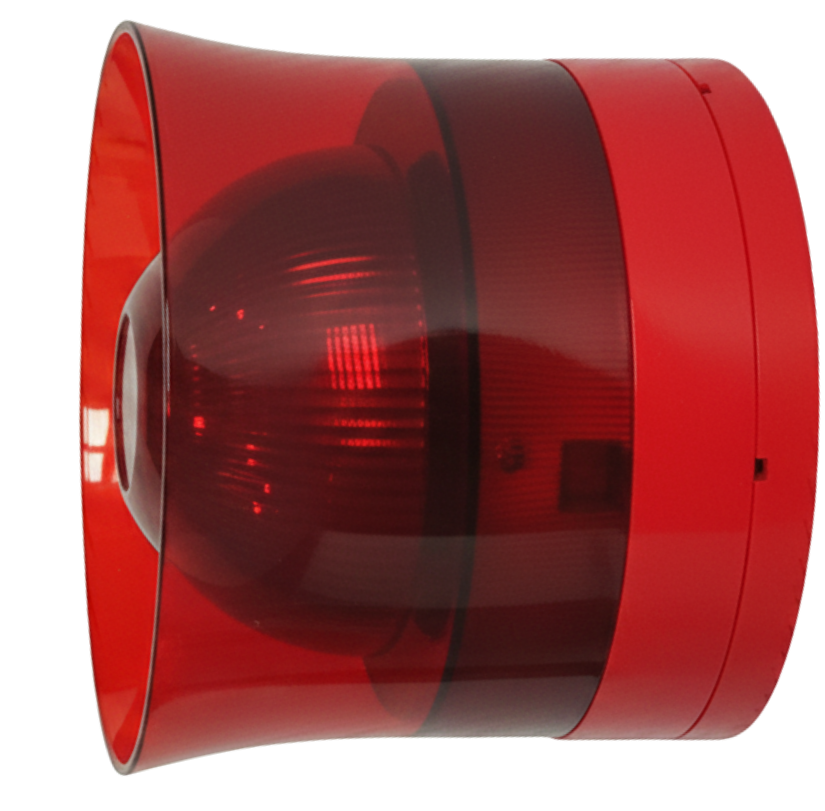

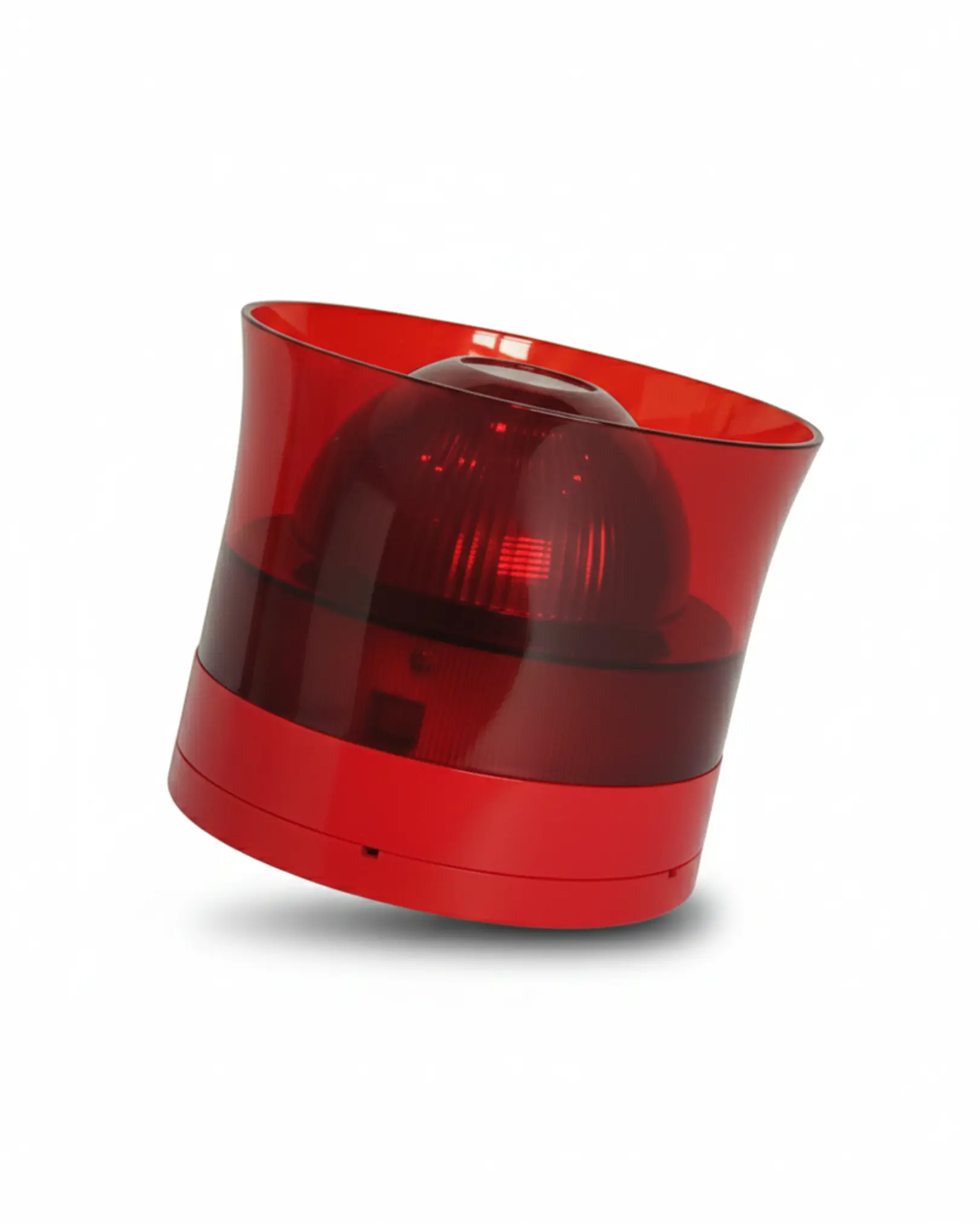

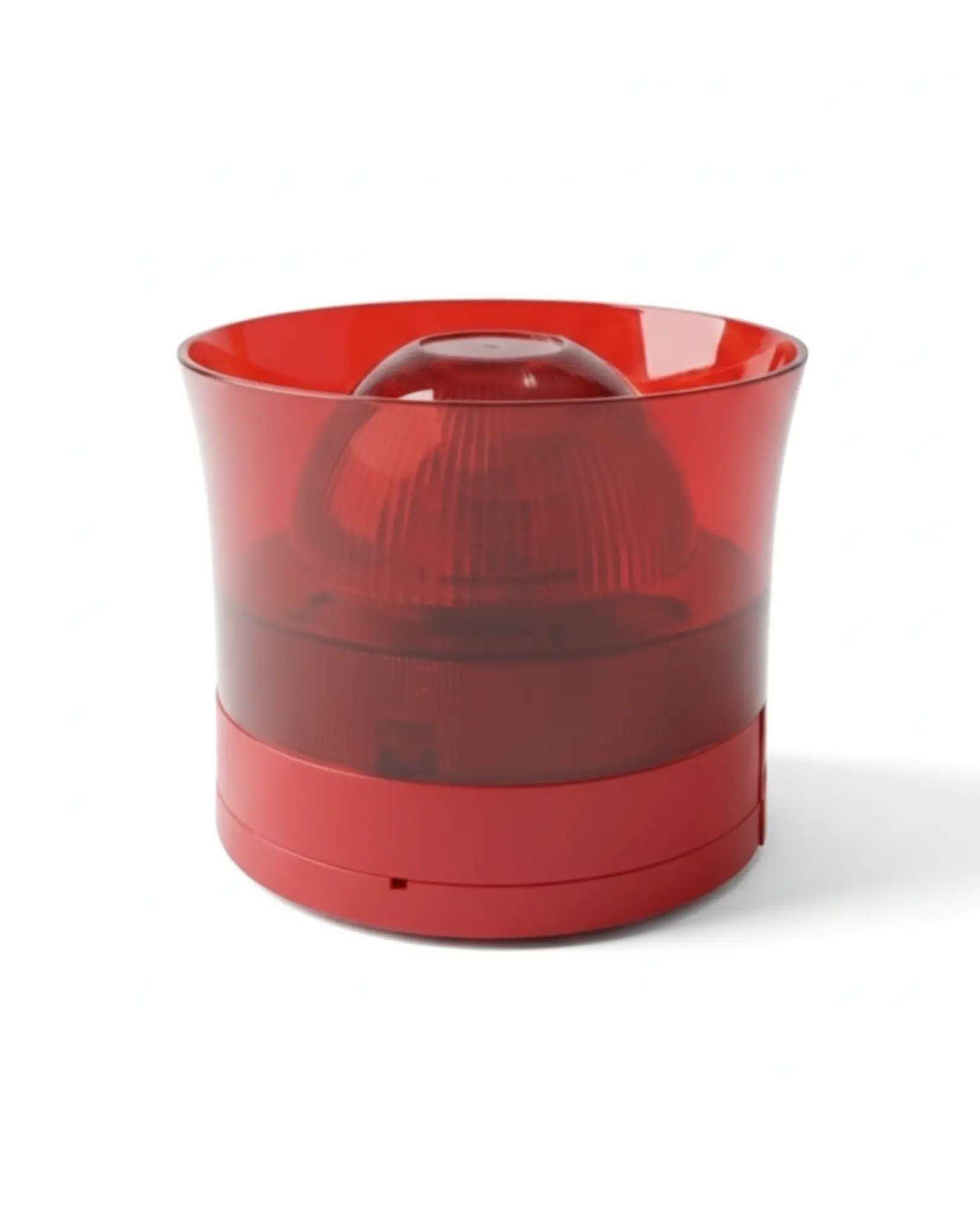

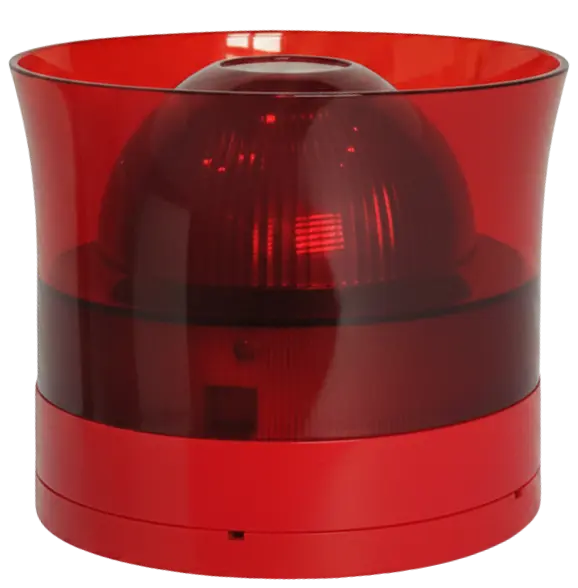

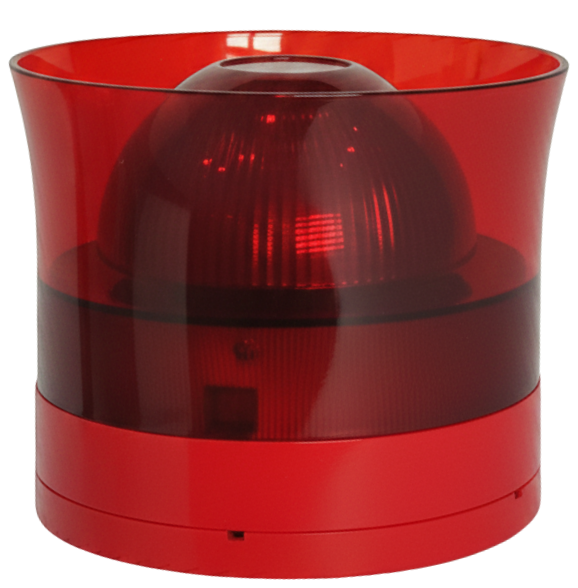

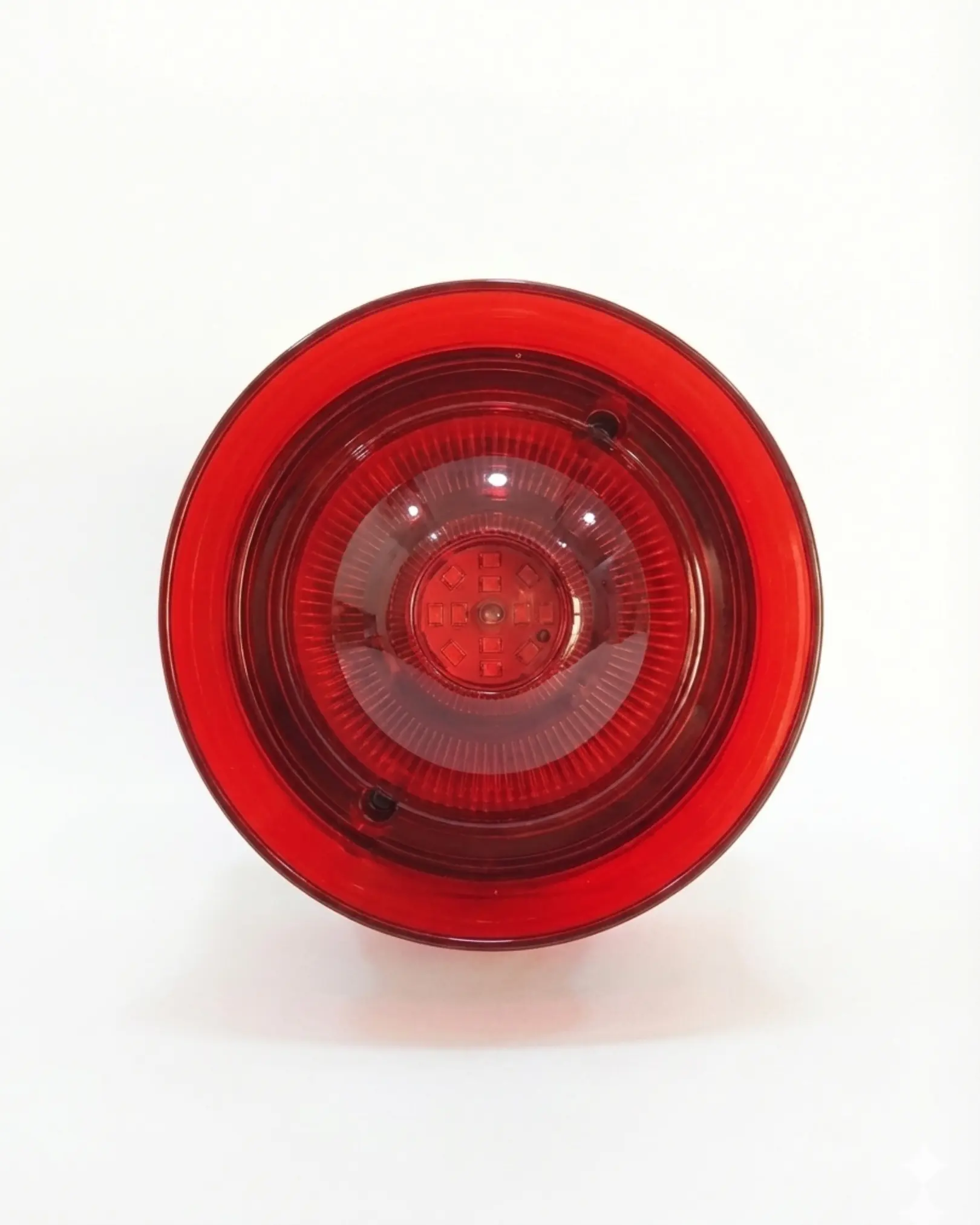

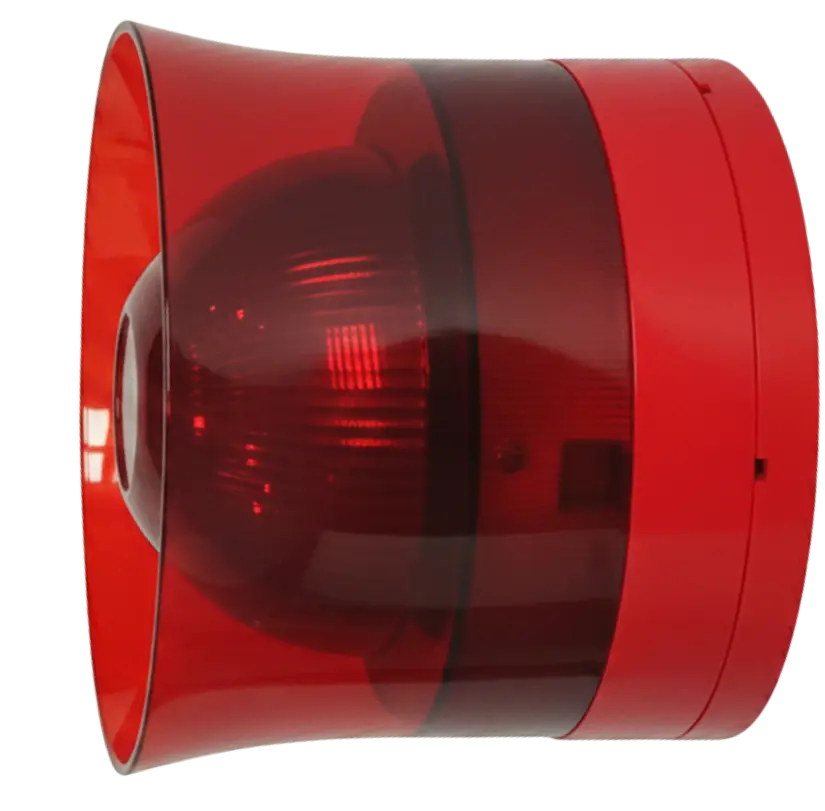

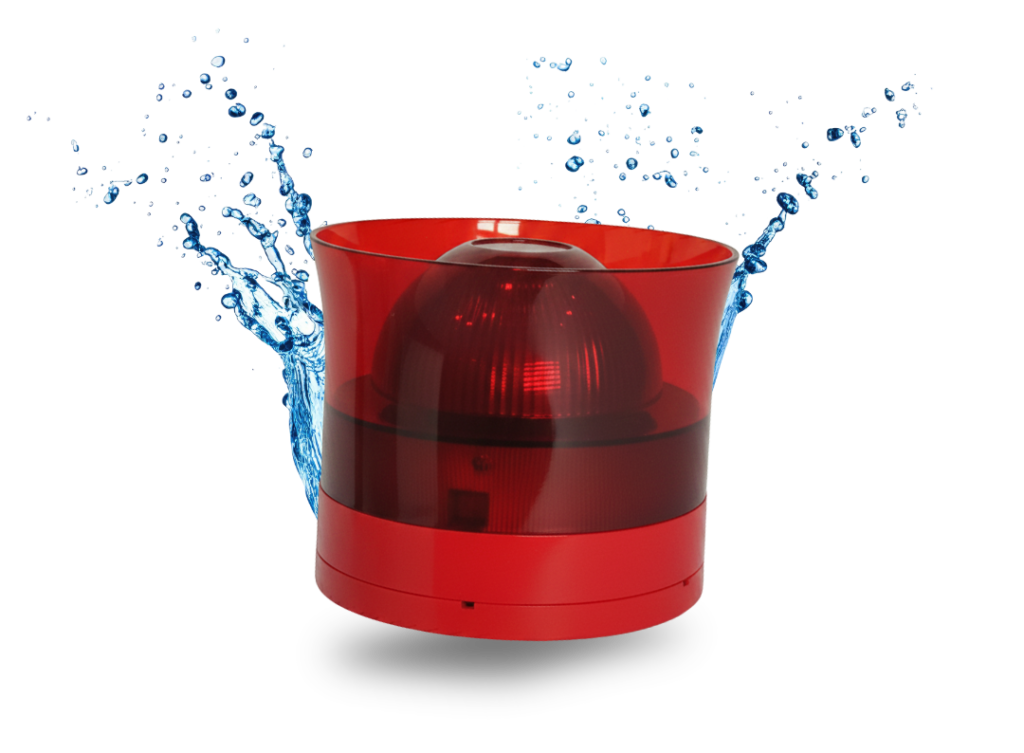

Agni Veiga Series Intelligent Addressable Loop Sounder / Horn Cum Strobe – Wall Mounted
Intelligent addressable wall-mounted sounder and horn cum strobe with high sound output and efficient LED strobe. Designed for indoor fire alarm systems, offering low power consumption, selectable alarm tones, and compliance with IS 2189 and EN 54 standards.
Description
The Agni Veiga Series Intelligent Addressable Loop Sounder / Horn Cum Strobe is a reliable audible and visual notification device for intelligent fire alarm systems. Designed for indoor wall mounting, it combines a powerful sounder or horn with a high-performance LED strobe to visual emergency alerts in both quiet and noisy environments.
Operating with a 20V to 30V DC supply range, the device supports continuous and pulsing alarm outputs, selectable via DIP switches for differentiated evacuation and alert signaling. The sounder gives a maximum acoustic output of 97.5 dBto 105 dB at 1 meter, meeting alarm audibility requirements for occupied and sleeping areas.
The integrated LED strobe provides visual indication with programmable light intensities of 35 cd, 40cd, or 85/110 cd (RMS at 24 V DC). Built using ABS and polycarbonate flame-retardant material (UL 94 V2), the unit ensures durability and safety under demanding operating conditions.Â
The sounder operates reliably across a temperature range of -10°C to 55°C and up to 95% RH non-condensing humidity. Fully compliant with IS 2189 and EN 54, the Veiga Series Loop Sounder / Horn Cum Strobe is ideal for commercial, industrial, and institutional fire alarm installations.Â
Job to be Done
Primary Job
When a fire emergency occurs: a sounder strobe delivers audible & visual alerts, ensuring rapid faster evacuation. even in noisy environments or hearing-impaired occupants.
Safety Job
Help occupants feel confident and guided during emergency. Give facility managers peace of mind through and follow standard SOP.
Functional Jobs
Provide immediate audible warning during a fire alarm condition and clean visual indication using an LED strobe
How it Works
How does the Agni Veiga Sounder / Horn Cum Strobbe Work?
The Agni Veiga Series Intelligent Addressable Loop Sounder / Horn Cum Strobe works by producing audible and visual alerts when a fire alarm control panel detects an emergency.Â
It connects to an intelligent addressable fire alarm system and activates instantly when the panel sends an alarm command.Â
Application & Solution
- Industrial and manufacturing facilities
- Commercial and corporate buildings
- Residential high-rise complexes
- Warehouses and logistics centers
- Hospitals, schools, and healthcare institutions
- Malls, hotels, and mixed-use buildings
Application & Solution
- Industrial and manufacturing facilities
- Commercial and corporate buildings
- Residential high-rise complexes
- Warehouses and logistics centers
- Hospitals, schools, and healthcare institutions
- Malls, hotels, and mixed-use buildings
How does the Agni Veiga Sounder / Horn Cum Strobbe Work?
1. Standby Mode
The device remains powered and monitored through the addressable loop while waiting for an alarm signal.
2. Alarm Signal from Control Panel
When a smoke detector, heat detector, or manual call point is detected, the fire alarm control panel sends an activation command.
3. Audible Alarm Output
The sounder produces a loud alarm of up to 97.5 dB at 1 meter, ensuring it is heard above noise / Apart from the environmental noise.

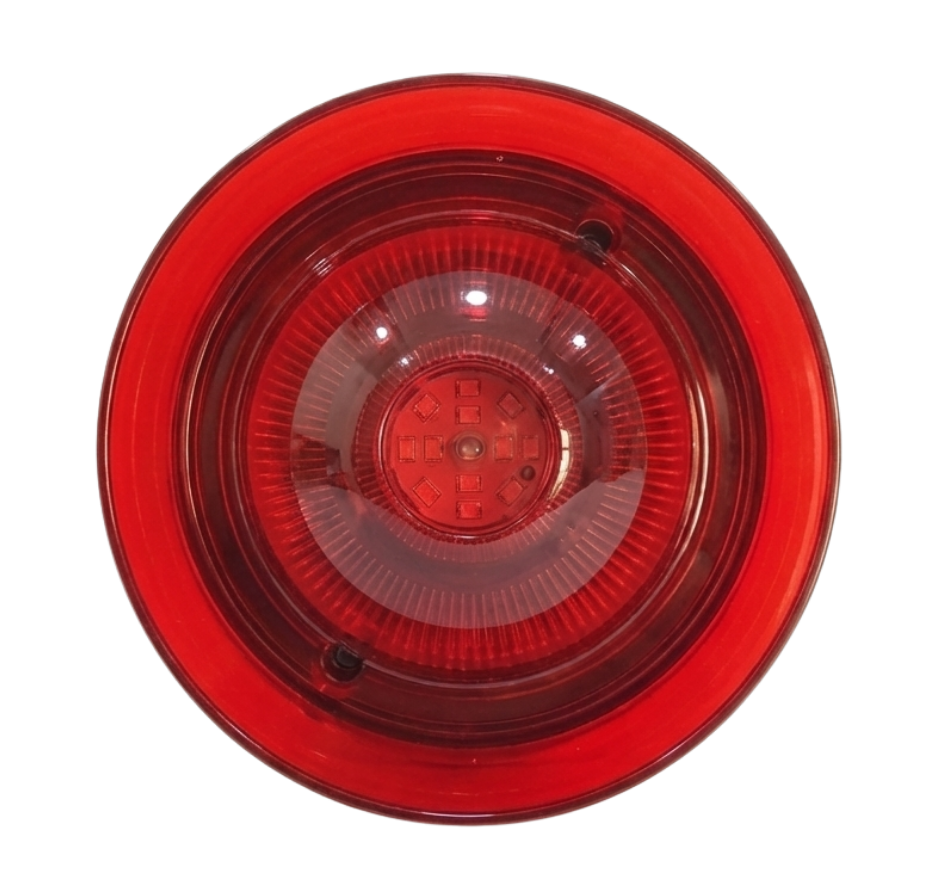

4. Visual Strobe Activation
At the same time, LED strobe flashes to provide visual warning for occupants, including hearing-impaired users.
5. Programmable Configuration
Installers can choose continuous or pulsing alarm tones and select strobe intensity levels.
6. For Reset / Silence
After the system is reset from the control panel, the device returns to normal.
Product in One LineÂ
The Agni Veiga Loop Sounder / Horn Cum Strobe alerts people instantly during a fire using sound and flashing light to support safe evacuation.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Intelligent Addressable Loop Sounder / Horn Cum Strobe |
|
Mounting |
Wall Mounted |
|
Supply Voltage |
20 V to 30 V DC |
|
Current Consumption |
10 mA - 280 mW @ 28 V DC |
|
Maximum Sound Output |
97.5 dB to 105dB (@ 1 meter (30 V DC) |
|
Strobe Light Output |
35 cd, 40 cd, 85/110 cd (RMS @ 24 V DC) |
|
Strobe Technology |
High Performance LED |
|
Cable Size |
1.5 sq mm |
|
Rest / Start-Up Time |
Maximum 20 Seconds |
|
Operating Temperature |
-10°C to 55°C |
|
Maximum Humidity |
95% RH (Non-Condensing) |
|
Protection Category |
Type A - Indoor Use |
|
Ingress Protection |
IP21C |
|
Case Material |
ABS & Polycarbonate (Flame Retardant UL 94 V2) |
|
Dimensions |
110 mm (Diameter) × 85 mm (Height) |
|
Weight |
254 g (including base), 306 g including packaging |
FAQ
What happens when the fire alarm activates?
The sounder emits a loud alarm and the LED strobe flashes to warm & alert occupants for the evacuation. The sounder supports programmable multi-tone alarm outputs.Â
Does the sounder work without a control panel?
No. It operates as part of an intelligent addressable fire alarm system and activates only when commanded by the control panel.Â
What is the Agni Veiga Series Loop Sounder / Horn Cum Strobe used for ?
The Agni Veiga Series Loop Sounder / Horn Cum Strobe is used as an audible and visual notification device in intelligent addressable fire alarm systems to alert occupants during emergency situations.Â
Is this sounder suitable for indoor use only?
Yes, the device is designed for Type A indoor use and has an ingress protection rating of IP21C, making it suitable for indoor fire alarm installations.Â
What strobe light intensity options are available?
The LED strobe offers selectable effective light output of 35 cd, 40 cd, and 85/110 cd (RMS at 24 V DC), suitable for office and industrial environments.Â
Is the strobe LED-based or xenon-based?
The device uses high-performance LED strobe with the optics technology, providing high efficiency and ultra-low current consumption. LED devices can replace legacy xenon strobes.Â
What is the current consumption of the device?
The sounder and beacon have a low current consumption ranging from 10 mA to 280 mW at 28 V DC, supporting energy-efficient operation.
What materials are used in the construction of the device?
The enclosure is made of ABS and polycarbonate flame-retardant material, compliant with UL 94 V2 fire resistance standards.Â
