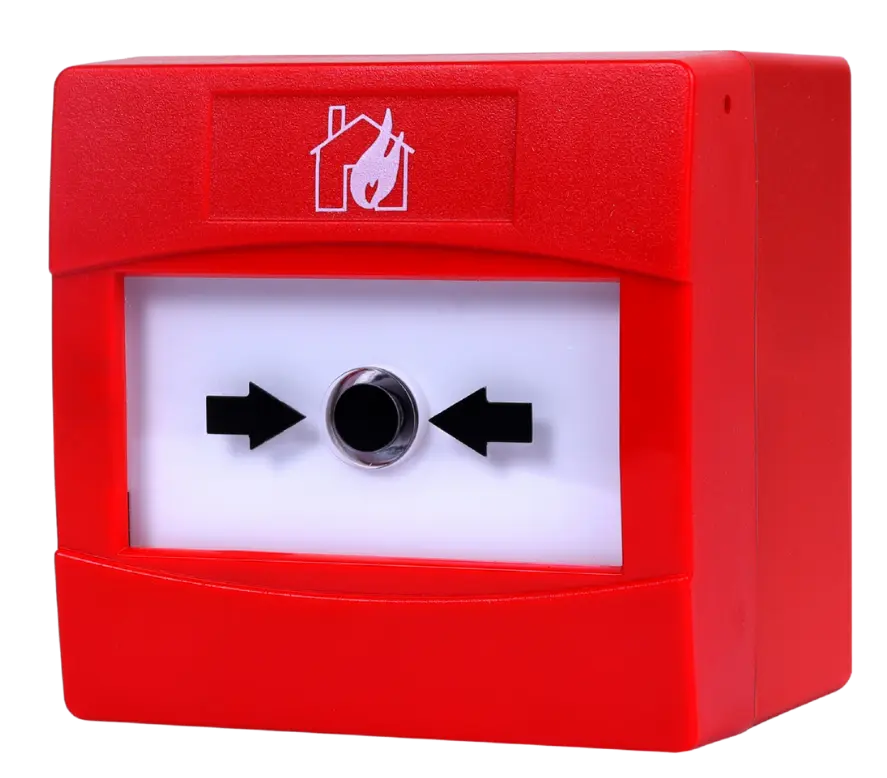

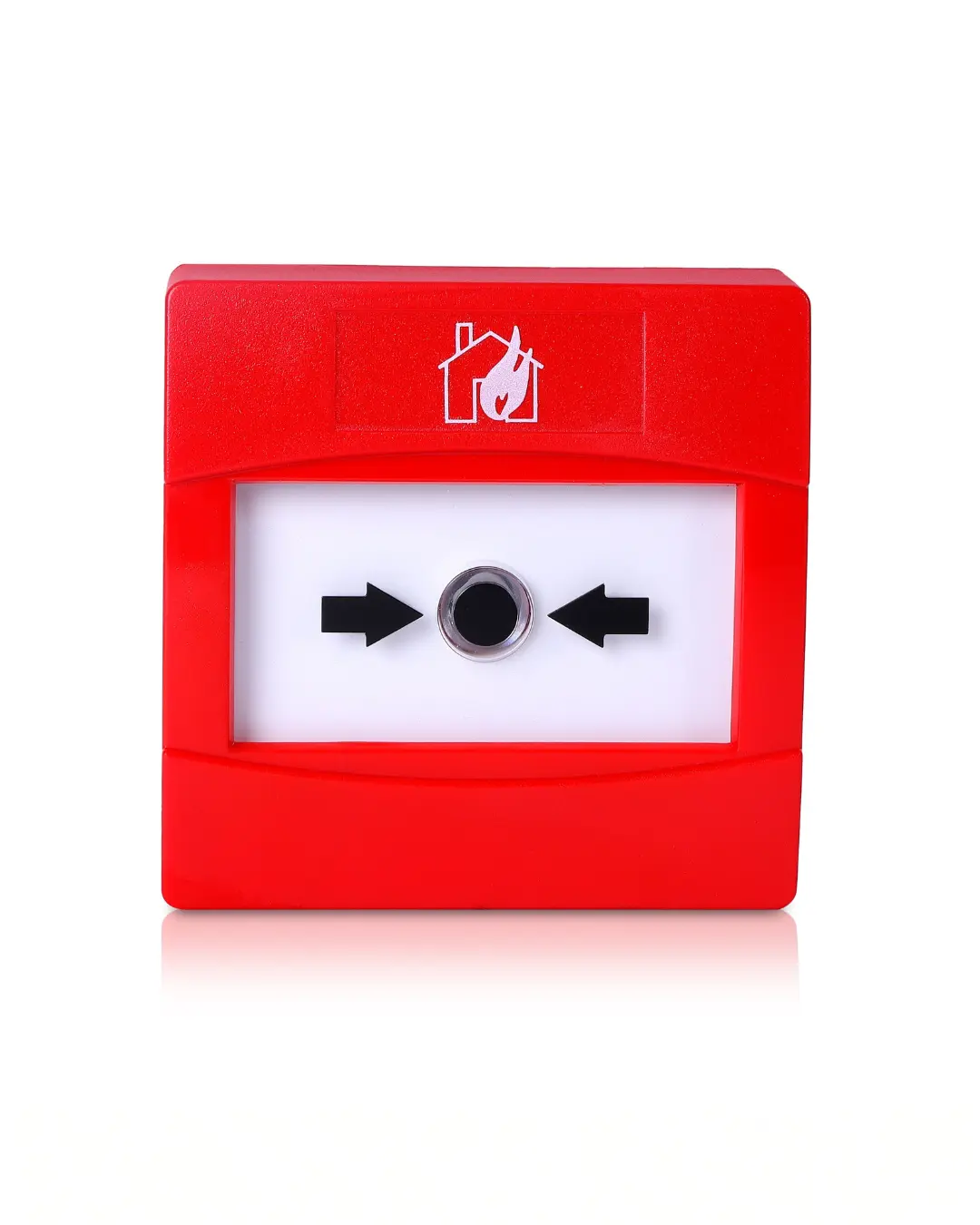

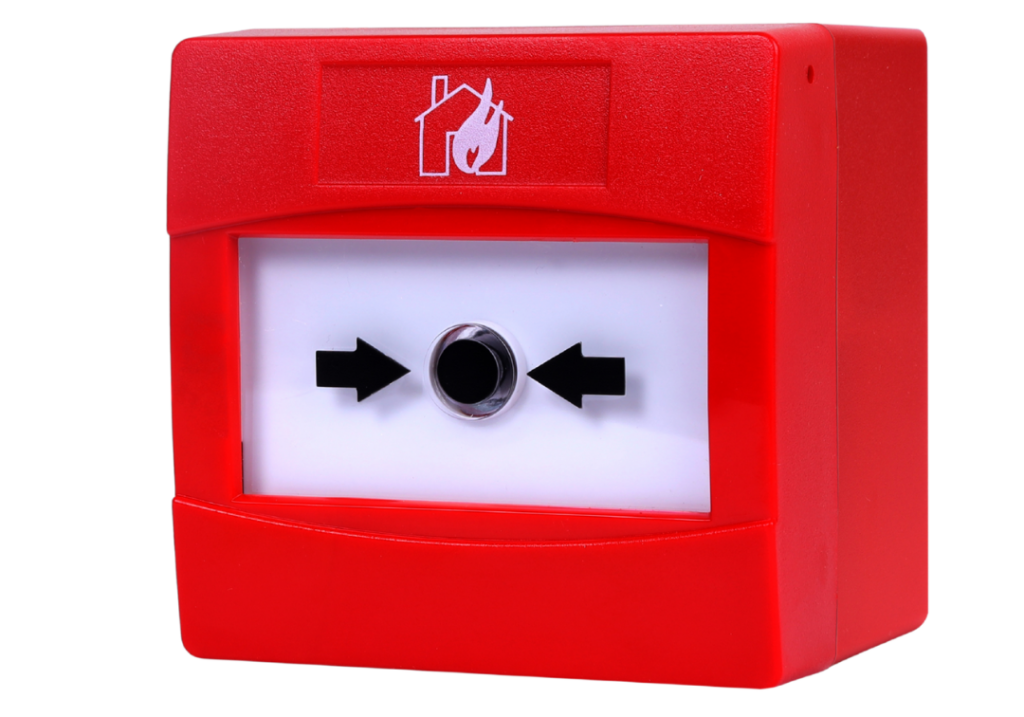

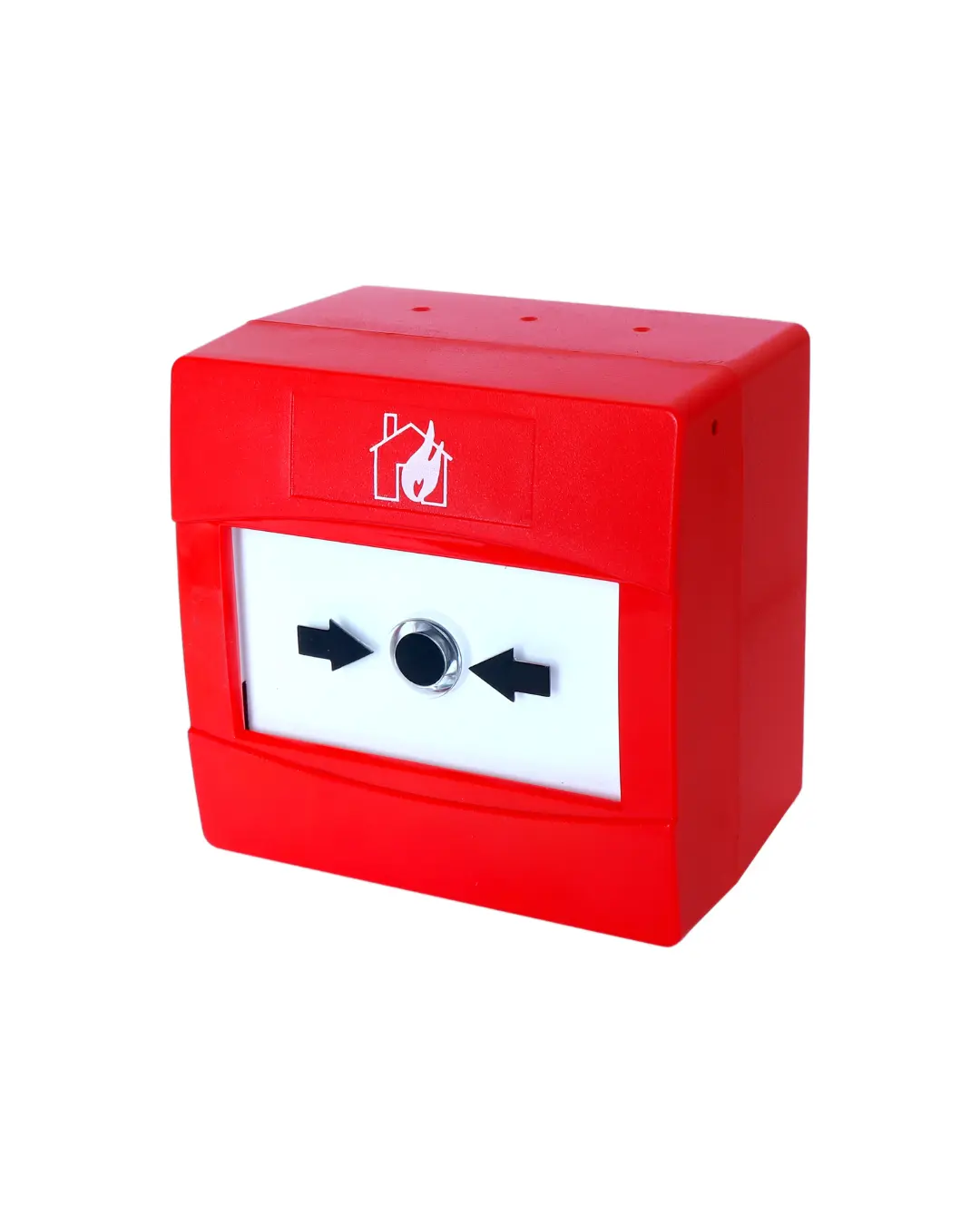

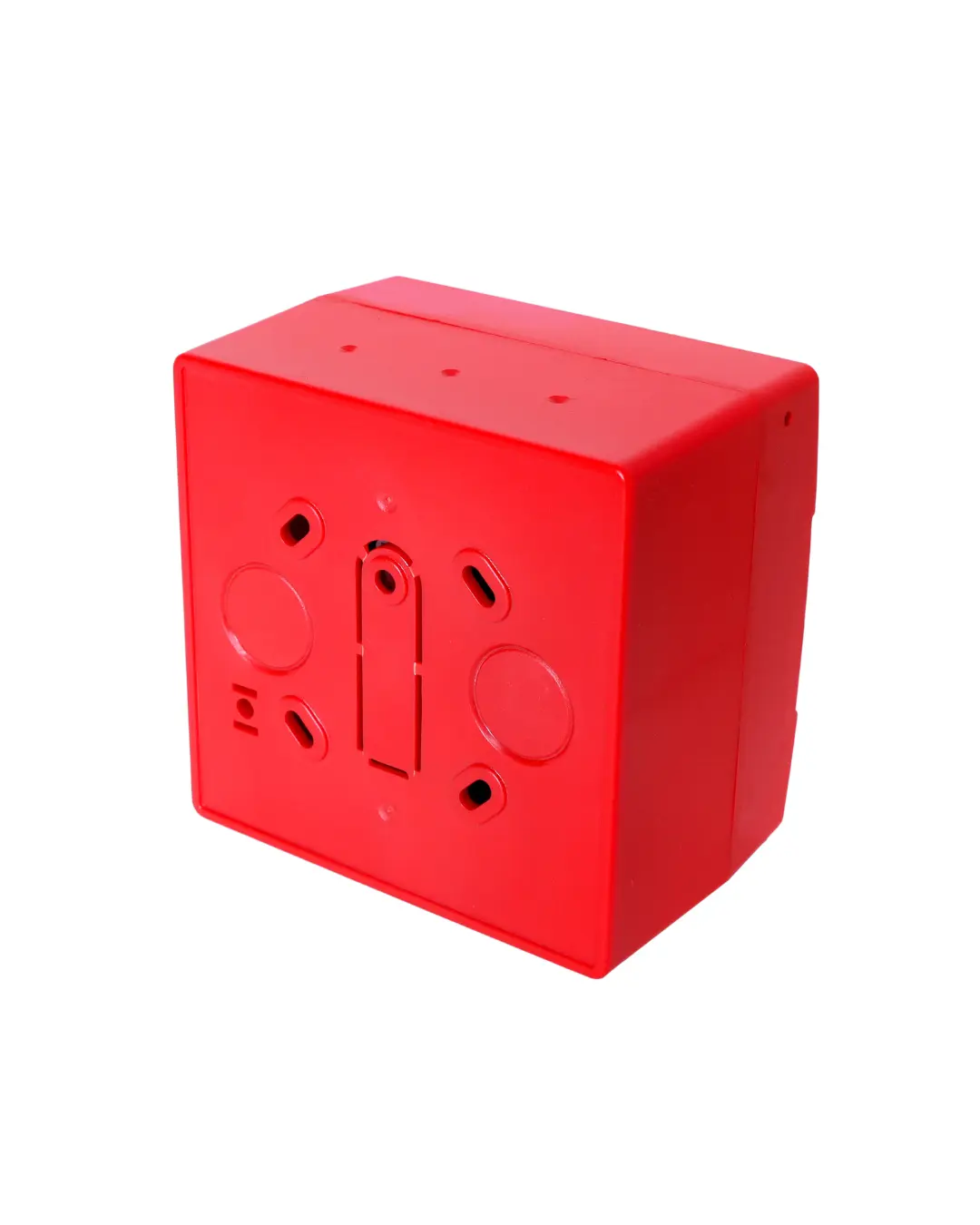

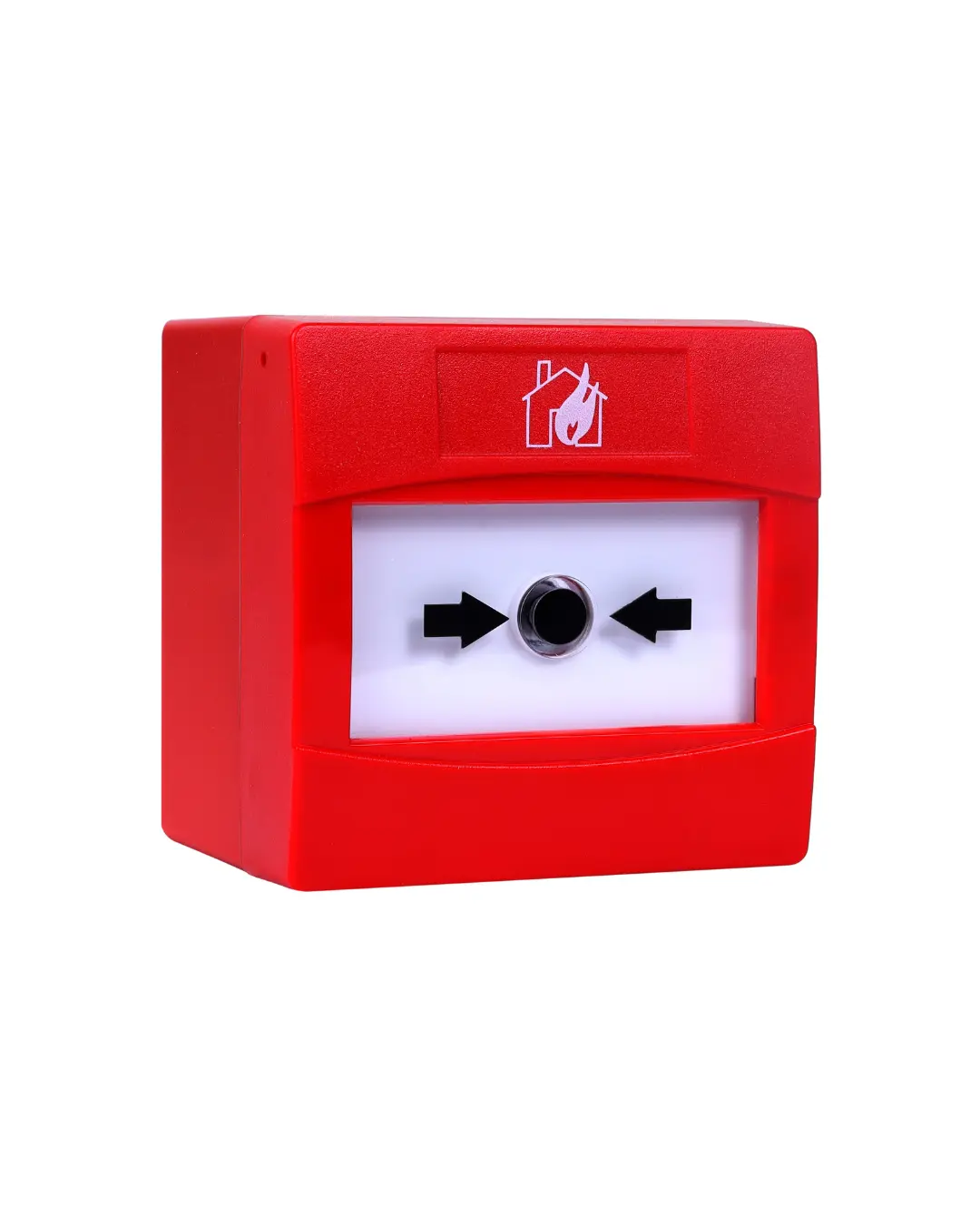

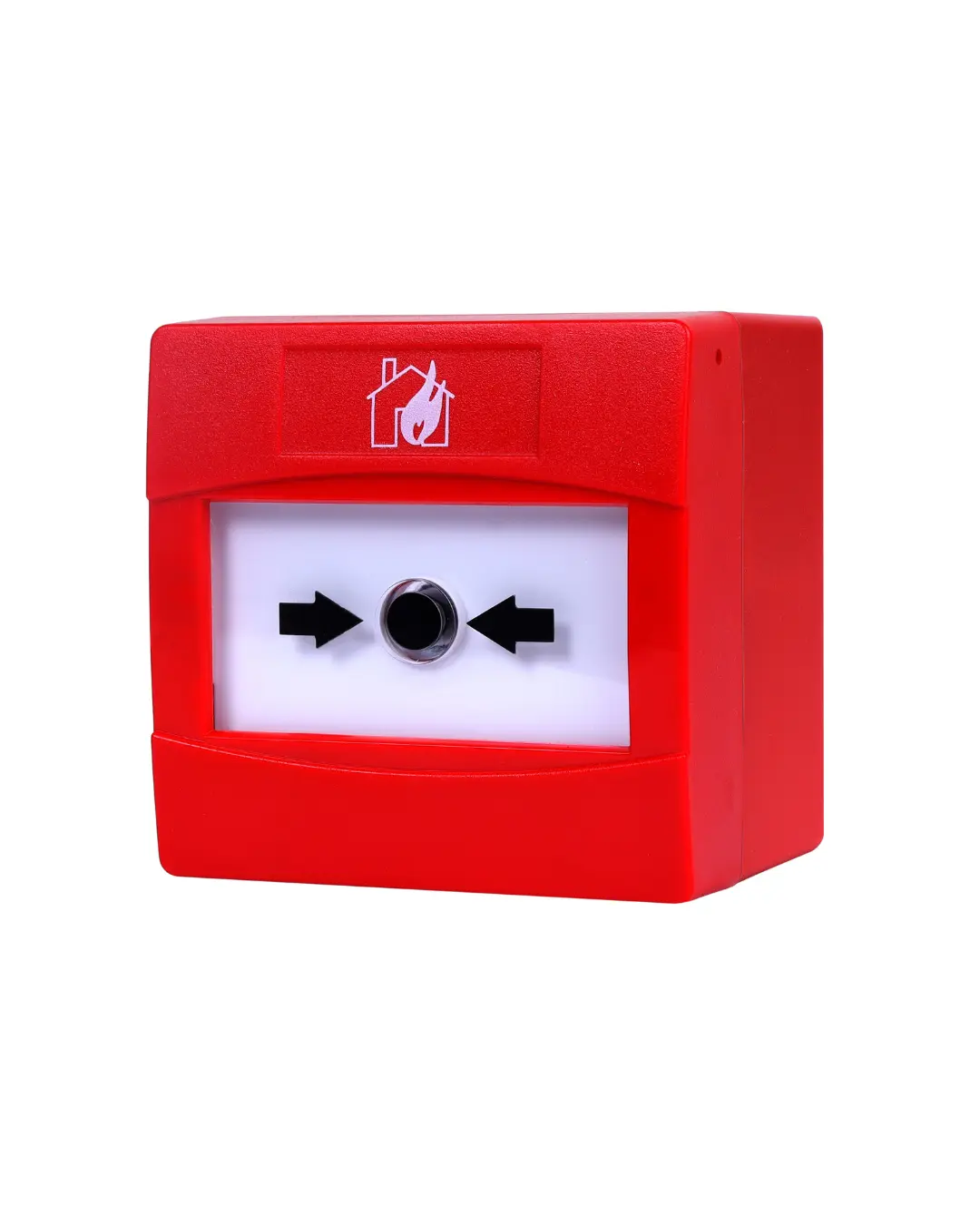

Agni Veiga Series Intelligent Addressable Manual Call Point
The Agni Veiga Intelligent Addressable Manual Call Point is a well infallible fire alarm activation device designed for fast response, high visibility, and seamless compatibility with intelligent fire alarm control panels using Agni’s fully digital protocol.
Description
The Agni Veiga Series Intelligent Addressable Manual Call Point (IND-ALCP100) is engineered to provide dependable and immediate manual fire alarm activation in commercial, industrial, and institutional buildings. Designed for indoor applications, this call point integrates smoothly with our series fire control panels utilizing Agni’s fully digital communication protocol.
Its designed front operating element snaps securely into place, enabling quick installation without the need for special tools. The inclusive back base of the operating face, combined with a bright LED ring at the center of the active area, ensures excellent alarm visibility across a wide viewing angle of up to 170 degrees.Â
A large Front indicator ring can be easily reset using the supplied call point key, allowing the device to be returned to service immediately after activation. The unit also incorporates a built-in short circuit isolator, helping preserve system integrity and enhancing overall safety.Â
With robust construction, resettable operating elements, and compliance with EN54-11 standards, the Agni Veiga Manual Call Point delivers dependable performance while reducing installation time and long-term maintenance costs.
Job to be Done
Primary Job
When a fire or emergency is detected, I want to manually trigger the fire alarm immediately so that occupants are alerted and evacuation can begin without delay.
Safety Job
Give occupants confidence that help has been alerted Reduce panic and confusion during emergencies Assure facility managers that the system is reliable and compliant
Functional Jobs
Enable any occupant to raise a fire alarm instantly. Send a clear, Send a clear, addressable alarm signal to the fire alarm control panel
How it Works
How does the Agni Veiga Manual Call Point Work?
The Agni Veiga Series Intelligent Addressable Manual Call Point allows occupants to manually trigger a fire alarm when manual press front element , or an emergency situation before automatic detectors respond.Â
Application & Solution
- Office Buildings :- An deployed official Occurrences notices in the server room before fire smoke Detection or alarm activation. They immediately press the manual call point, triggering the fire alarm system and enabling quick evacuation and response.
- Shopping Mall :- Security staff observe a fire hazard in a food court area. Activating the manual call point instantly alerts the fire alarm panel, initiating evacuation alerts across the mall.Â
- Industrial Facility :- A machine overheats and produces sparks. A nearby worker activates the call point to alert the control room, helping prevent escalation and system damage.
- Hospital or Educational Campus :- Fire Safety Staff detect a fire risk in a restricted area. The manual call point provides a fast, reliable way to raise the alarm without relying solely on automatic detectors.Â
Application & Solution
- Office Buildings :- An deployed official Occurrences notices in the server room before fire smoke Detection or alarm activation. They immediately press the manual call point, triggering the fire alarm system and enabling quick evacuation and response.
- Shopping Mall :- Security staff observe a fire hazard in a food court area. Activating the manual call point instantly alerts the fire alarm panel, initiating evacuation alerts across the mall.Â
- Industrial Facility :- A machine overheats and produces sparks. A nearby worker activates the call point to alert the control room, helping prevent escalation and system damage.
- Hospital or Educational Campus :- Fire Safety Staff detect a fire risk in a restricted area. The manual call point provides a fast, reliable way to raise the alarm without relying solely on automatic detectors.Â
How does the Agni Veiga Manual Call Point Work?

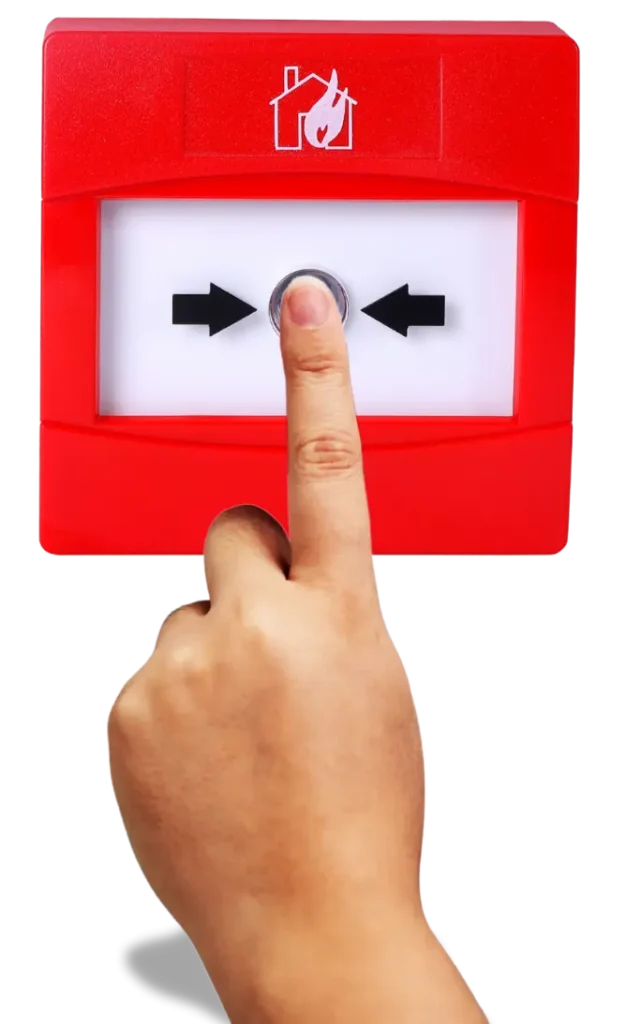

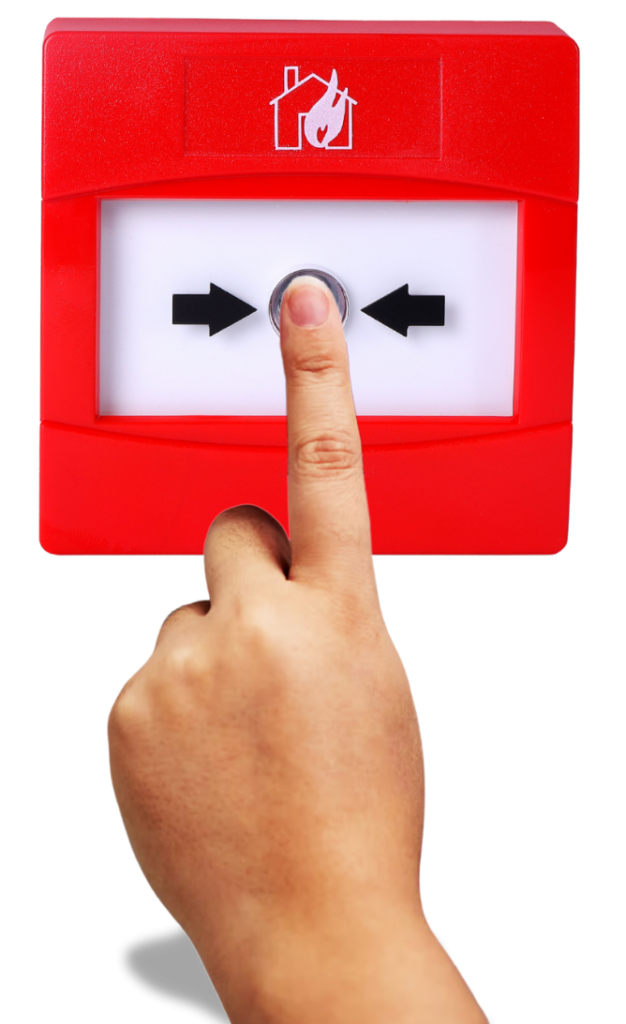

1. Manual Activation
In an emergency, the user presses the front operating element of the manual call point.
2. Instant Alarm Signaling
Once activated, the device sends a digital alarm signal to the fire alarm control panel using Agni’s fully digital communication protocol.
3. Clear Visual Indication
A reflective alarm flag appears at the bottom of the operating face, and a bright LED ring illuminates at the center, clearly indicating the alarm status from up to a 170-degree viewing angle.
4. System Response
The Connected fire alarm control panel processes the signal and activates configured responses such as sounders, strobes, or fire safety controls.
5. Quick Reset & Re-use
After the situation is resolved, the alarm can be reset using the supplied call point key, returning the device to normal operation without replacement.
Product in One LineÂ
When a fire or emergency is detected, I want to manually trigger the fire alarm immediately so that occupants are alerted and evacuation can begin without delay.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Intelligent Addressable Manual Call Point / Call Station |
|
Model |
IND-ALCP100 |
|
Series |
Agni Veiga Series |
|
System Type |
Agni Veiga Series |
|
Communication Protocol |
Fully Digital Protocol |
|
Loop Voltage Range |
18 to 40 Vdc* |
|
Average Standby Current |
35 µA @ 24 Vdc |
|
Alarm Visibility Angle |
170° |
|
Reset Method |
Resettable using call point key |
|
Built-in Isolator |
Yes (Short Circuit Isolator) |
|
LED Indication |
Bright central LED Ring |
|
Dimensions (H × W × D) |
88 mm × 87 mm × 73 mm |
|
Weight |
160 g |
|
Operating Temperature (Design Range) |
−30°C to 70°C |
|
Operating Temperature (EN54-11 Approved Range) |
−10°C to 55°C |
|
Maximum Humidity (Non-condensing) |
93% RH |
|
IP Rating |
IP42 |
|
Compliance Standard |
EN54-11 |
|
Application |
Indoor Use |
|
Available Colour |
Red |
FAQ
What is the Agni Veiga Intelligent Addressable Manual Call Point used for?
The Agni Veiga Intelligent Addressable Manual Call Point is used to manually trigger a fire alarm in case of an emergency. It allows occupants to immediately alert the fire alarm system.Â
Is this manual call point compatible with intelligent fire alarm systems?
This manual call point is compatible with intelligent addressable fire alarm control panels that support Agni’s fully digital Communication protocol.Â
How does the manual call point indicate an alarm condition?
When activated, the call point displays a high-visibility alarm RED Color indication.Â
Can the manual call point be reset after activation?
Yes, the alarm can be easily reset using the supplied call point key, allowing the device to be reused immediately without replacement.Â
Does the manual call point include short circuit protection?
Yes, the Agni Veiga Manual Call Point includes a built-in short circuit isolator, which helps maintain the integrity of the fire alarm system.Â
What are the environmental operating limits?
The manual call point operates within a design temperature range of −30°C to 70°C and an EN54-11 approved range of −10°C to 55°C, with maximum non-condensing humidity of 93% RH.
Where is this manual call point typically installed?
It is designed for indoor use in an easy access area in commercial, industrial, and institutional buildings such as offices, factories, hospitals, malls, and educational facilities.Â
