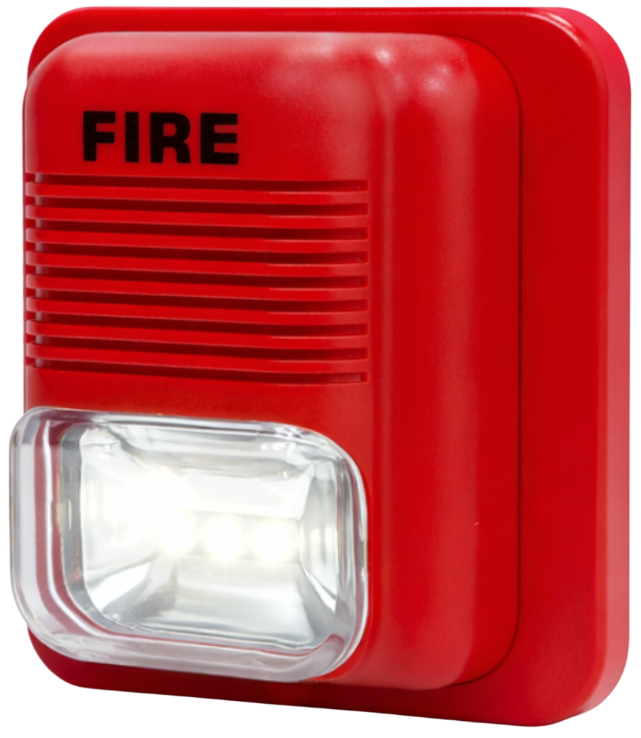

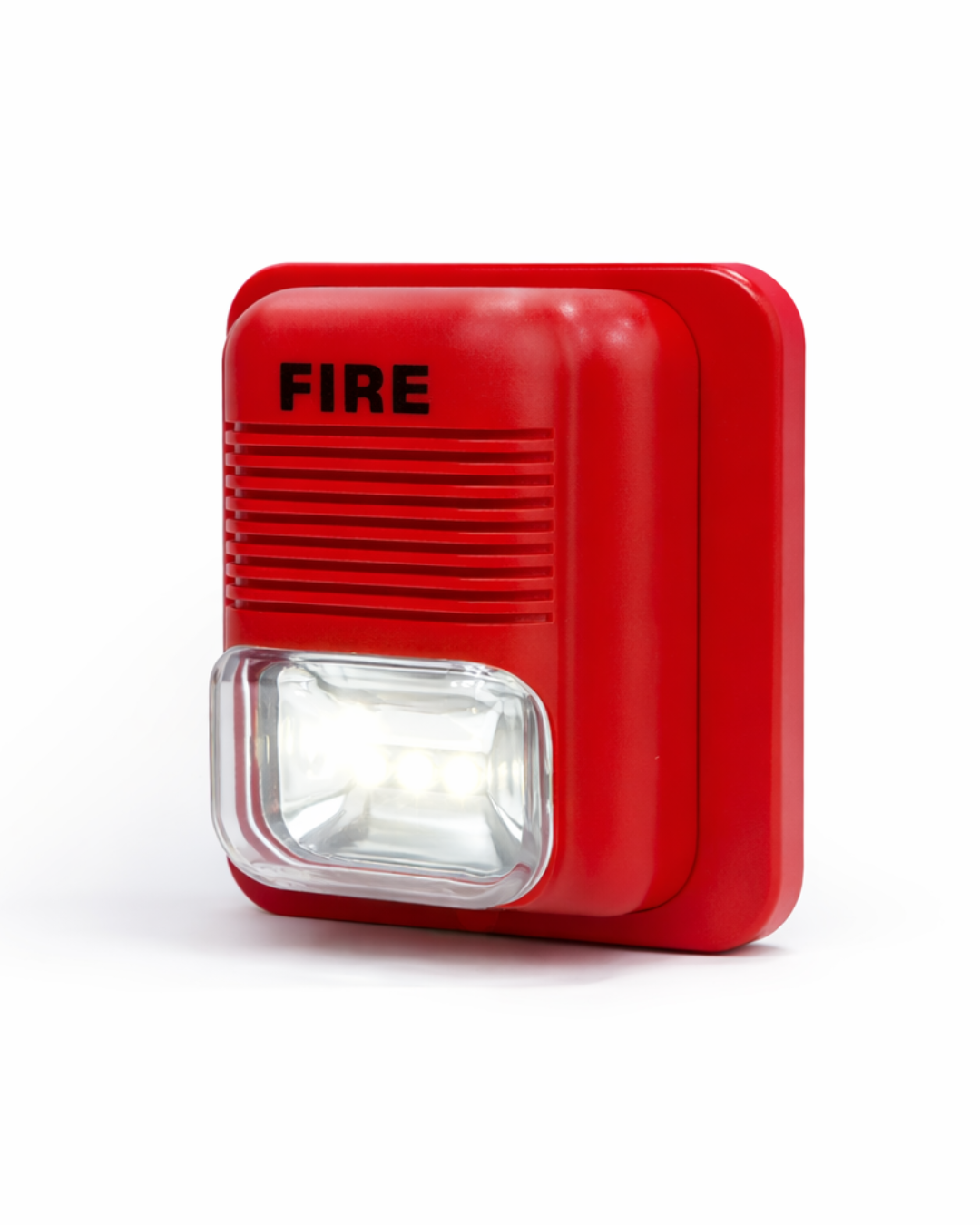

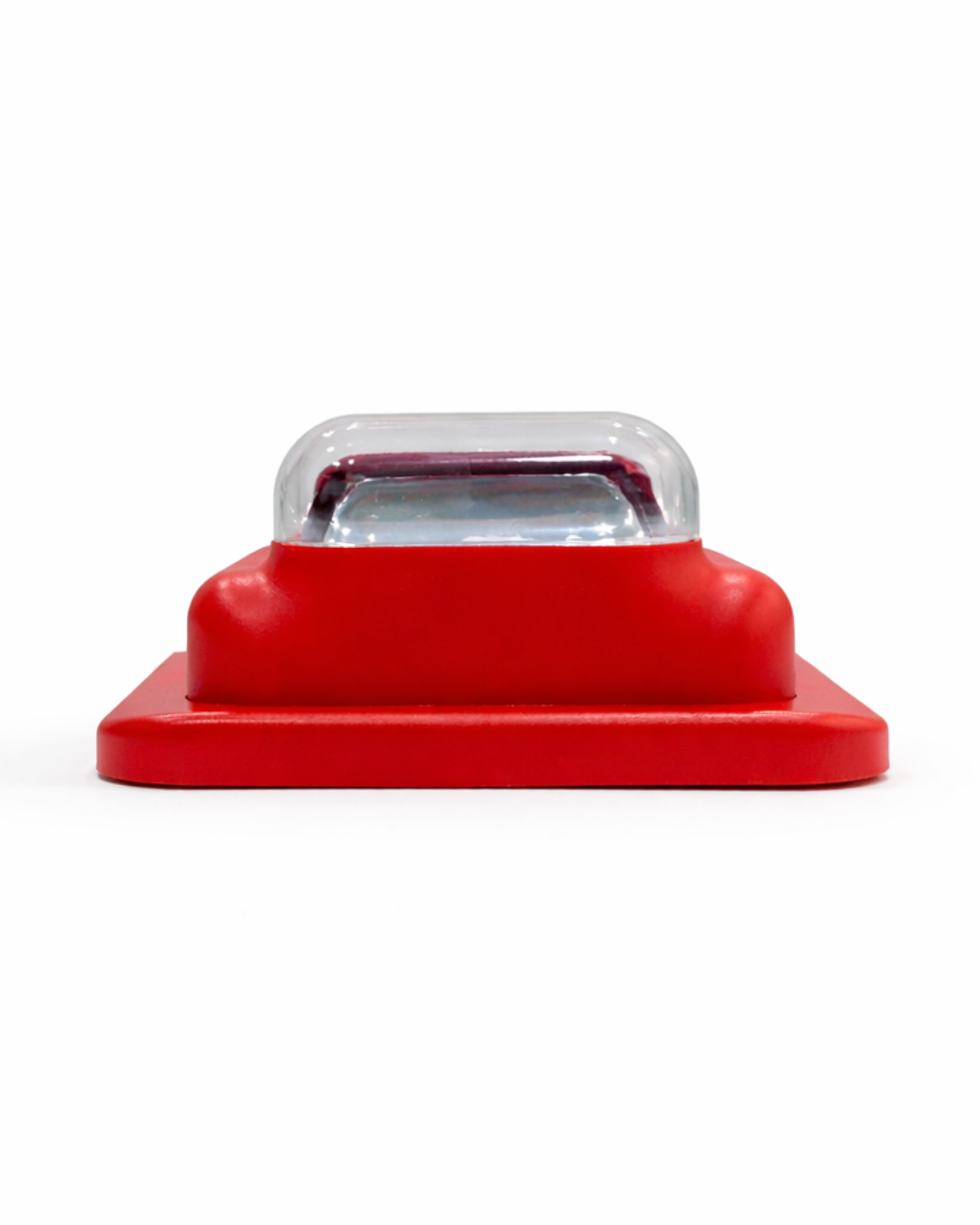

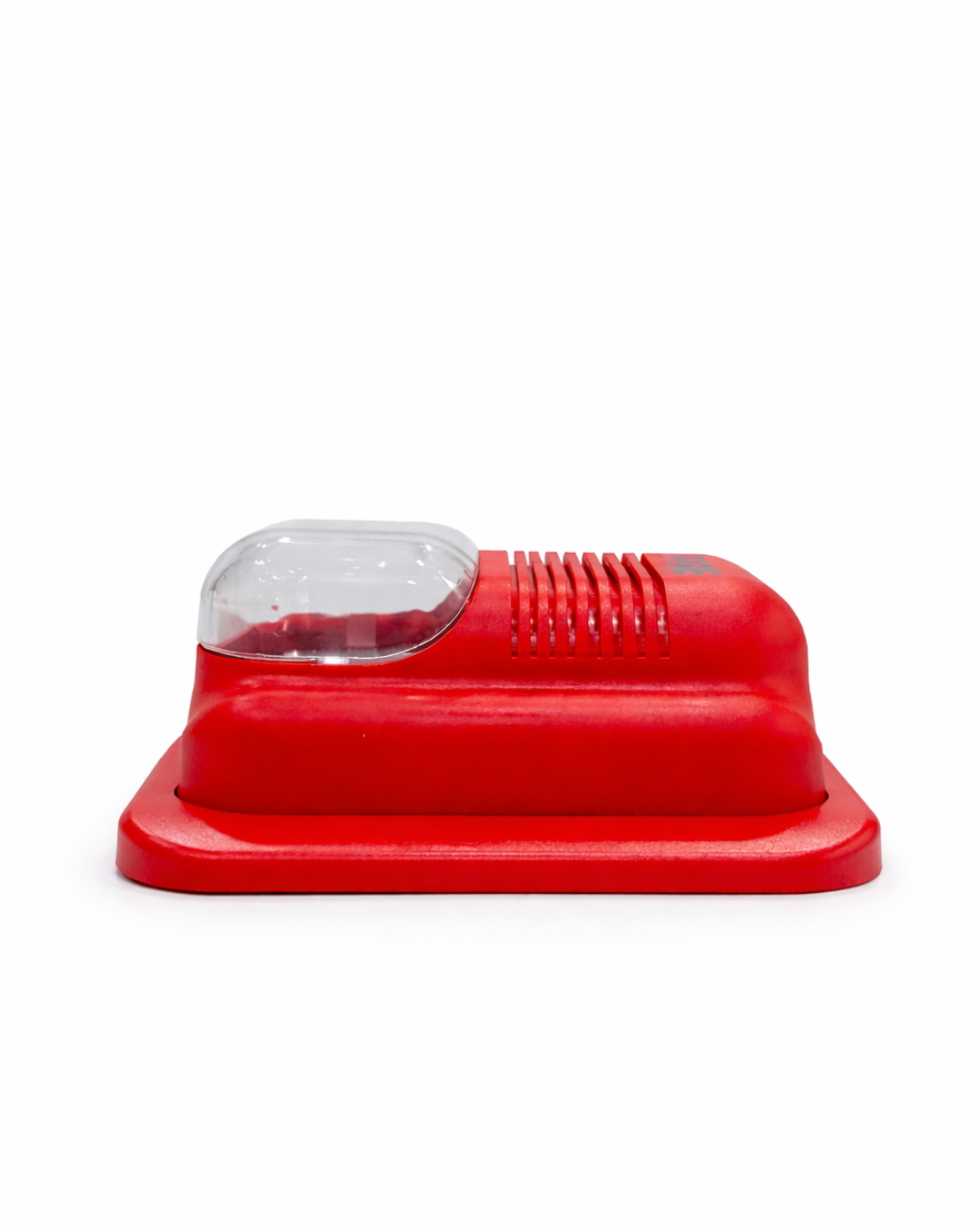

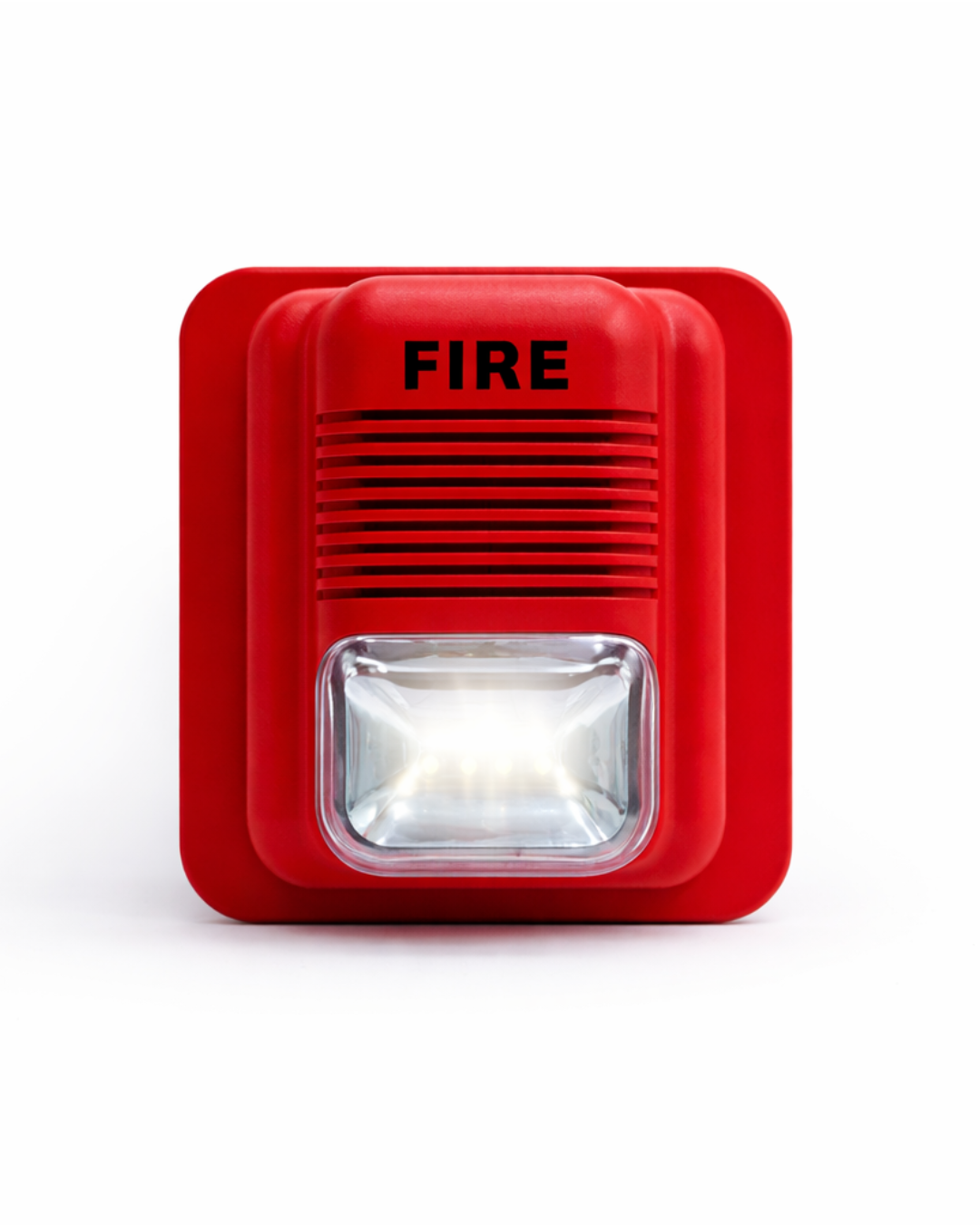

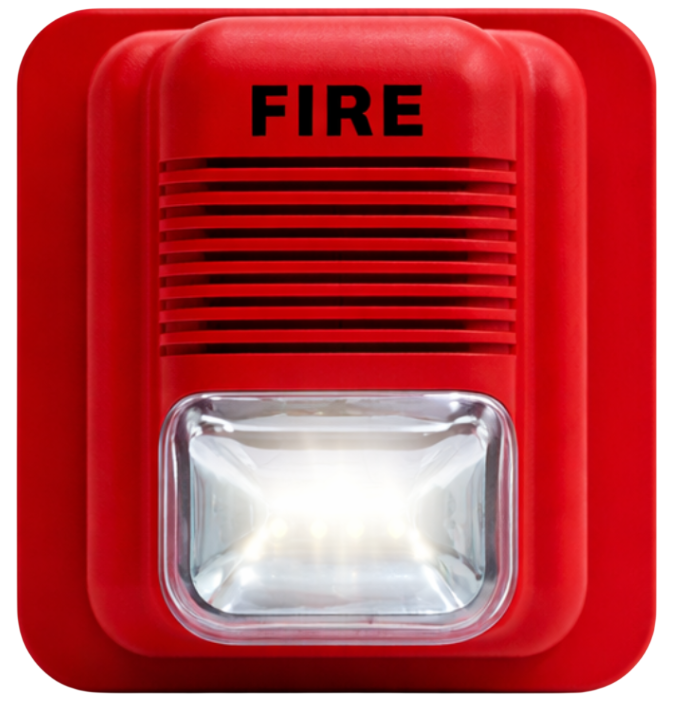

LED Sounder Cum Strobe – Red Housing Tamper-Resistant Construction
Agni 405 LED Sounder Cum Strobe is a dual-mode fire alarm notification device designed for both audible and visible alerts. Built with high-strength ABS plastic and integrated LED strobe, it ensures effective emergency signaling in high-noise environments while meeting essential safety compliance standards.
Part Number: AGNI-405-LED | Category: Sounder
Description
The Agni 405 LED Sounder Cum Strobe is designed to do one simple but critical job, make sure people can quickly see and hear an emergency alert. It combines a loud audible alarm with a bright LED strobe light, making it highly effective in indoor fire alarm systems where visibility and sound both matter. Built using high-quality ABS (Acrylonitrile Butadiene Styrene) plastic, the device is strong, durable, and reliable for long-term use.
This sounder cum strobe works especially well in places where noise levels are high, like factories, commercial buildings, or public spaces. It also helps improve safety for people with hearing impairments by providing a clear visual alert through its LED strobe light, ensuring no one misses an emergency warning.
The device operates on 12V/24V DC (up to 36V ±6%) and delivers a powerful sound output of 95–100+ dB. It supports different alert tones for fire and security situations, with sound frequencies ranging from 500Hz to 2000Hz. Along with this, the built-in LED strobe light produces 95–108+ candela intensity and covers a wide 120° area, making the alert easily visible across rooms and corridors.
It follows the standard Temporal-Three (T-3) alarm pattern, which is widely recognized for fire evacuation signals. With a high-frequency piezo disc and integrated circuit design, this fire alarm sounder performs consistently whenever it is needed.
The Agni 405 also meets important safety standards like EN 54-23, IS 2189, UL 1971, UL 464, NFPA 72, NBC, and BIS, making it a reliable choice for fire safety systems, emergency notification setups, and indoor alarm installations.
How it Works
How does the Agni LED Sounder Cum Strobe 405 Work?
Agni 405 LED Sounder Cum Storbe works as a dual-alert emergency notification device, combining both sound and light to ensure maximum awareness during fire and security events.
Commonly Used
- Office building Fire Emergency
- Factory Floor (High Noise Area)
- Shopping Mall or Public Space
- Hospitals /
- Security Alert
Step-by-Step Sounder Cum Hooter LED Working Principle?
01
Signal Activation from Fire Alarm Panel
When a fire alarm system detects smoke, heat, or manual trigger activation, it sends an electrical signal (12V/24V DC) to the sounder cum strobe unit.
02
Instant Audible Alert
The device immediately produces a loud alarm sound of 95-100+ dB, using a high-frequency piezo disc. This ensures people can hear the warning even in noisy environments.
03
LED Strobe Flash Activation
Simultaneously, the LED strobe emits high-intensity flashes (95-108+ candela) with a wide 120° coverage, providing strong visual alerts.
04
Standardized Alarm Pattern
The sound follows the Temporal-Three (T-3) pattern, which is globally recognized for fire evacuation. This pattern helps occupants quickly identify the emergency.
05
Continuous Alert Unit Reset
The device continues both sound and light alerts until the system is manually reset or the emergency condition is cleared.
06
Dual Safety coverage
By combining sound and light, the device ensures alerts reach: People in loud environments, Individuals with hearing impairments, Areas with limited visibility.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Audible & Visual Fire Alarm Notification Device |
|
Model |
LED Sounder Cum Strobe |
|
Part Number |
AGNI-405-LED |
|
Body Color |
Alert Standard Red |
|
Enclosure Material |
ABS - Acrylonitrile Butadiene Styrene High Strength Plastic |
|
Body Colour |
Alert Standard Red |
|
Dimensions (H x W x D) |
125 mm x 126 mm x 60 mm |
|
Net Weight |
160 g |
|
Shipping Weight |
180 g (Gross with packing) |
|
Operating Voltage |
24V / 12V DC, 36V (±6%) |
|
Maximum Alarm Current |
135 mA |
|
Operating Temperature |
-2°C to +87°C |
|
Max Humidity |
95% RH |
|
Protection Category |
Type A – Indoor Use / IP21C |
|
LED Strobe Intensity |
95-108+ Candela |
|
Strobe Coverage |
Wide Angle 120° |
|
LED Color |
White |
|
Audible Sound Level |
95-100+ dB |
|
Audible Alert Tones |
Fire: 2 / Security: 2 |
|
Sound Frequency |
500 Hz to 2000 Hz (±10%) |
|
Alarm Pattern |
Temporal-Three (T-3) - ISO 8201 Standard |
|
Technology |
High Frequency Piezo Disc with Integrated Circuit Logic |
|
LED Front Lens |
Transparent PC |
|
Standards Compliance |
EN 54-23, IS 2189, UL 1971, UL 464, NFPA 72, NBC, BIC |
|
Application |
Indoor Fire Alarm & Emergency Notification Systems |
Job to be Done
Primary Job
Enable immediate and reliable emergency notification by delivering dual alerts (audible + visual) so that no individual misses a warning signal, regardless of noise level or visibility conditions.
Safety Job
Ensure complete emergency awareness in high-noise environments, Support hearing-impaired individuals through visual alerts, Enable fast and organized evacuation during fire incidents.
Functional Jobs
Operate seamlessly with fire alarm control panels (12V/24V DC systems), Provide distinct alert tones for fire and security situations, Maintain continuous alert until system reset, Perform reliably in indoor environments with up to 95% humidity.
FAQ
What is a Sounder Cum Strobe LED used for?
A Sounder Cum Strobe is a fire alarm notification device that provides both audible and visual alerts during emergencies. It ensures that occupants are alerted through loud sound (95-100+ dB) and flashing LED light (95-108+ candela), making it ideal for noisy environment and for people with hearing impairments.
What type of alarm tone does it support?
It supports dual alert tones for fire and security applications, including Temporal-Three (T-3) evacuation pattern as per ISO 8201 standards.
Where can this Sounder Cum Strobe be installed?
It can be installed in commercial buildings, offices, malls, factories, hospitals, and public spaces where effective emergency alert systems are required.
Can this device be used in factories or high-noise environments?
Yes, it is specifically designed for such environments. The combination of loud sound + bright flashing strobe ensures alerts are noticed even when machinery noise is high.
Is installation complicated? Do I need a professional?
Installation is straightforward for trained technicians, but it is recommended to use a professional fire alarm installer to ensure proper wiring and compliance.
What maintenance does this device require?
Minimal maintenance is required. Regular system testing and periodic inspection as part of fire safety protocols are sufficient.
What happens if the alarm is triggered accidentally?
The device will continue to sound and flash until the system is manually reset from the fire alarm panel.
