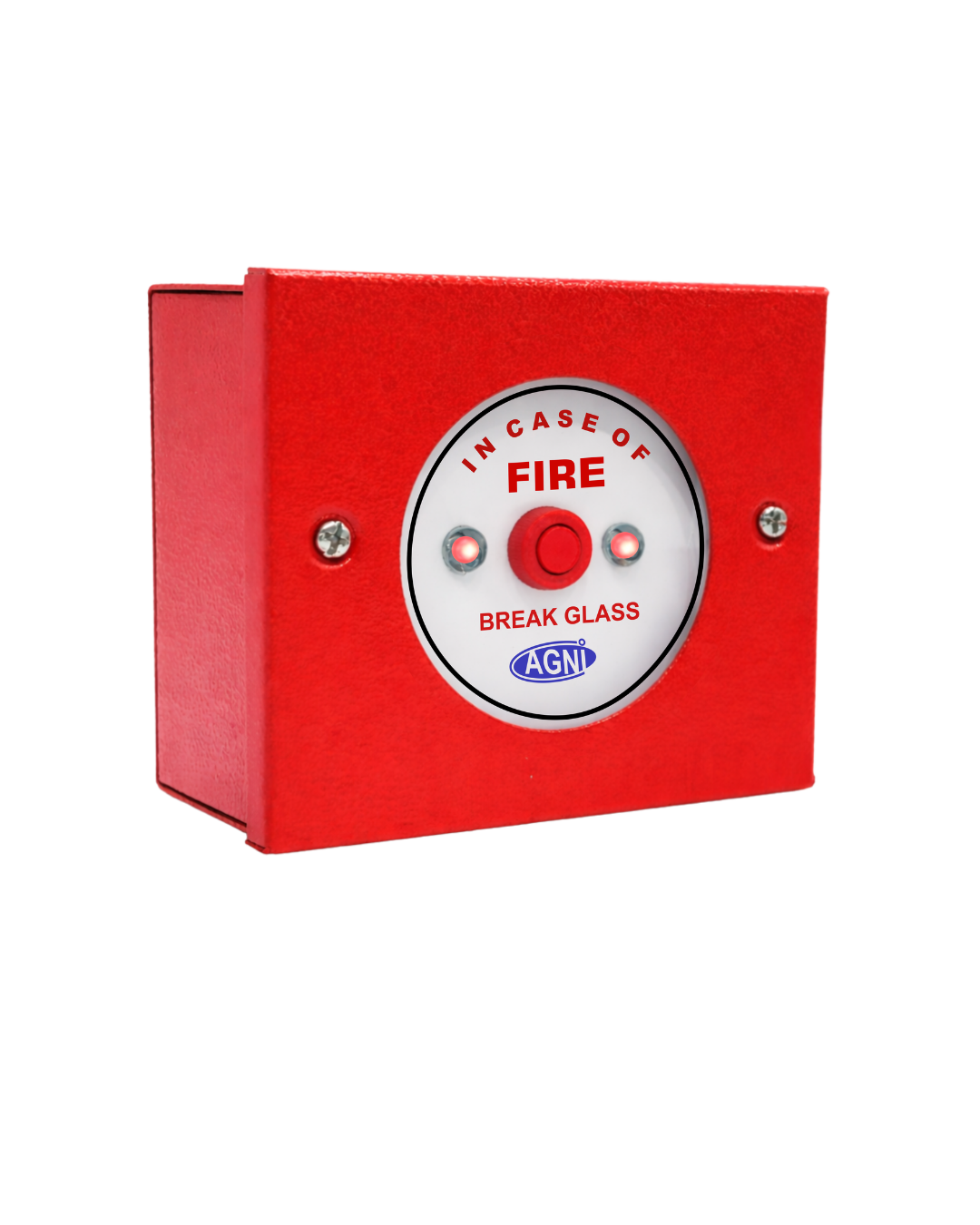

Manual Break Glass Call Point AGNI-301 – Solid Sheet Metal MCP

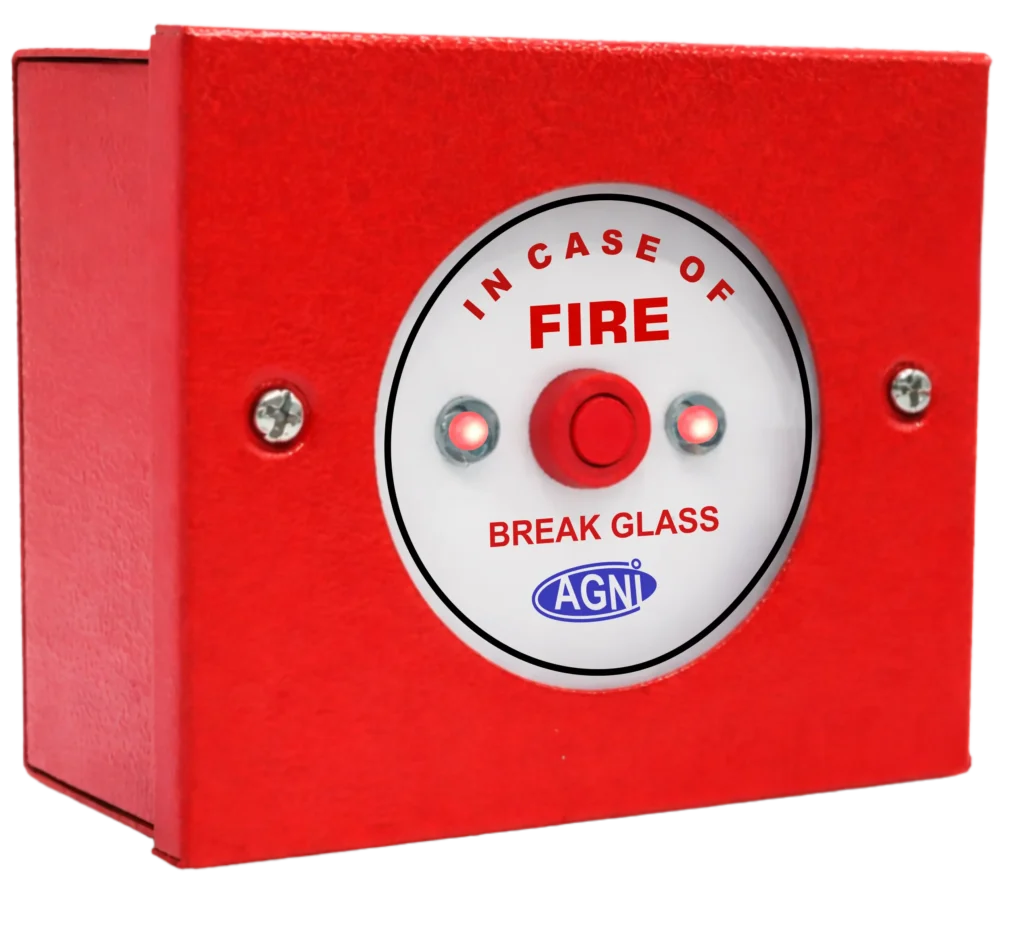

The AGNI-301 Manual Break Glass Call Point is a robust conventional fire alarm activation device featuring a solid sheet metal enclosure, dual red LED indication, SPDT micro switch, and instant emergency response mechanism for indoor fire detection systems.
Part Number: AGNI-301 | Category: Conventional Fire Alarm Accessories
Description
The AGNI-301 Manual Break Glass Call Point is a reliable and universally designed conventional manual call point used for immediate fire alarm activation in fire detection systems. Built with a 1.2 or 1.6 SWG solid sheet metal enclosure, it offers long-term durability in demanding indoor environments.
A blinking red LED confirms normal healthy operation, while a steady red LED indicates alarm activation. In an emergency, users simply break the fragile glass panel using any object or the provided nickel-plated hammer with chain, which activates the internal switch and instantly triggers the fire alarm circuit for rapid response.
After activation, the broken glass can be replaced using the standard 1.8 mm thick fragile glass panel, restoring the device for continued use.
Designed in compliance with IS 2189, EN 54-5-7, and certified by ERTL / NABL, the AGNI-301 is ideal for installation along escape routes, exits, and staircases at a recommended mounting height of 1.4 m ± 0.2 m.
Its compact size, high humidity tolerance of 95% RH, wide operating temperature range from -2°C to +87°C, and IP21C indoor protection rating make it a dependable solution for commercial, industrial, and institutional fire safety systems.
Manufactured by Agni Instruments Engineers India Private Limited, the AGNI-301 reflects precision engineering and strict safety compliance.
How it Works
How does the Manual Break Glass Call Point Work?
This conventional manual call point works on a simple, reliable mechanical activation principle. When someone identifies a fire hazard, they manually trigger the fire alarm system by breaking the glass panel on the unit.
Commonly Used
- Commercial buildings
- Industrial Facilities
- Warehouses
- Educational institutional
- Shopping Complexes
Step-by-Step Talk Back Unit Working Principle?
01
Device Stays in Ready Mode
The Agni-301 remains powered in normal conditions with its red LED blinking showing the fire alarm circuit is healthy and active
02
Emergency Situation Occurs
When smoke, fire or danger is noticed, anyone nearby can reach the call point installed along escape routes, exits, or staircases.
03
Glass Panel is Broken
The user breaks the fragile glass using a hand or the provided hammer attached with a chain.
04
Internal Switch Activates
Breaking the glass triggers the internal SPDT micro switch, closing the fire alarm circuit.
05
Fie Alarm System Is Triggered
The alarm devices connected to the system activate immediately, while the red LED stays ON continuously to indicate fire condition.
06
Device is Reset After Emergency
Once communication is complete, the device can be restored, the broken glass should be replaced with a new glass panel to restore the device for future use
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Part Number |
AGNI-301 |
|
Product Type |
Manual Break Glass Call Point (Conventional MCP) |
|
Enclosure |
Made Out of 1.2 1.6 SWG Solid sheet Metal Profile |
|
Body Color |
STD Red |
|
Protection Category |
Type A - Indoor Use |
|
IP Rating |
IP21C |
|
Operating Temperature |
-2°C to +87°C |
|
Maximum Tolerated Humidity |
95% RH |
|
LED Indication |
5 mm Dual LED Redundancy |
|
LED Color |
Red Color Wide Angle 120° |
|
LED Status |
Blinking Red - Healthy / Steady Red - Fire |
|
Contact Configuration |
C, COM, NO |
|
SPDT Micro Switch |
NC Fire, COM, NO Normal |
|
Push Switch |
Fire Case NC / Close in Normal |
|
Alarm Resistance |
560 / 1k Watts |
|
Maximum Alarm Currect |
25 mA |
|
Dimensions (H × W × D) |
98mm × 118mm × 51mm |
|
Net Weight |
455 g |
|
Shipping Weight |
495 g (Gross weight with packing) |
|
Break Glass Area |
69R mm |
|
Fragile Element |
Standard 1.8 mm Thick Glass |
|
Glass Size |
78 mm × 78 mm |
|
Accessories |

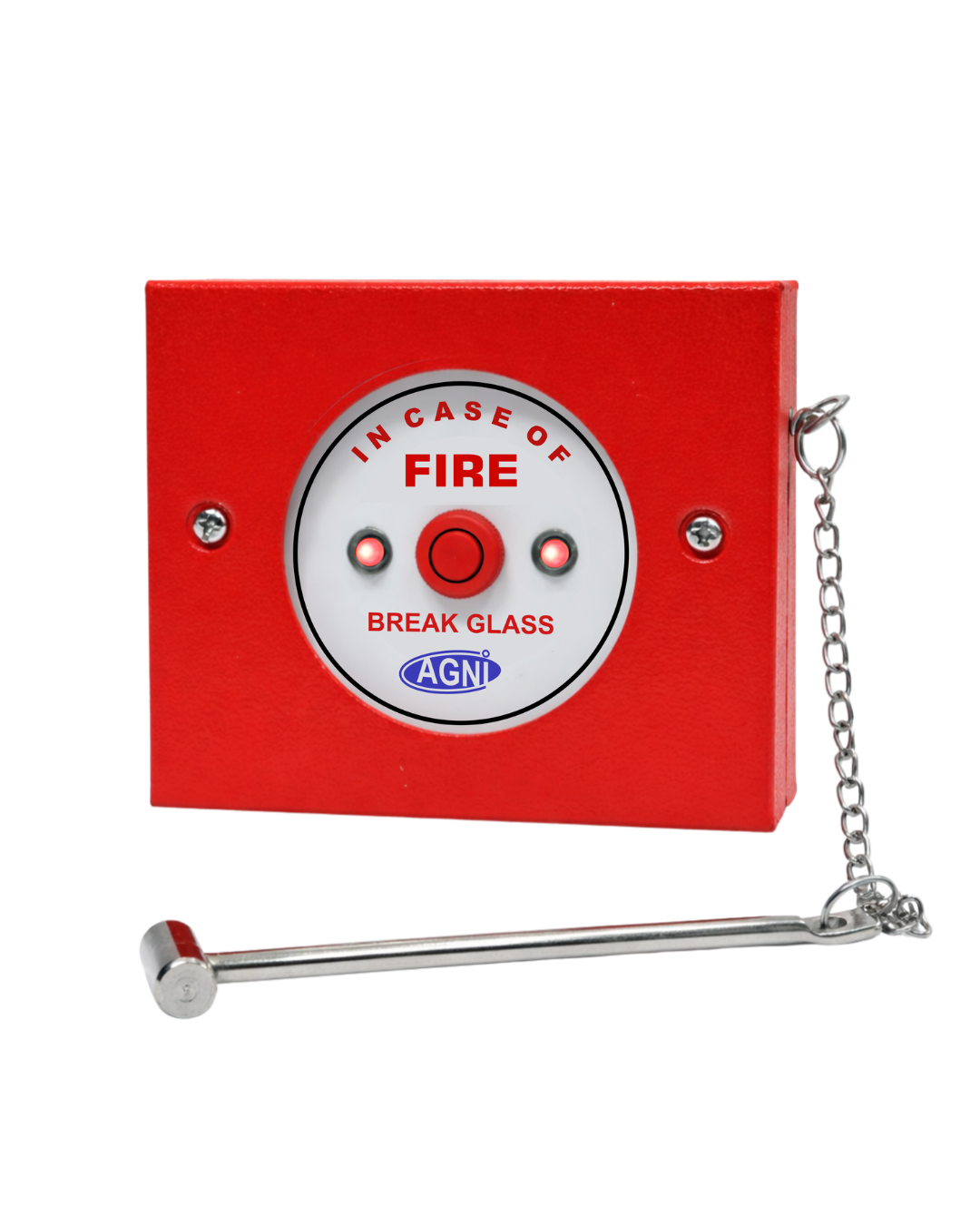

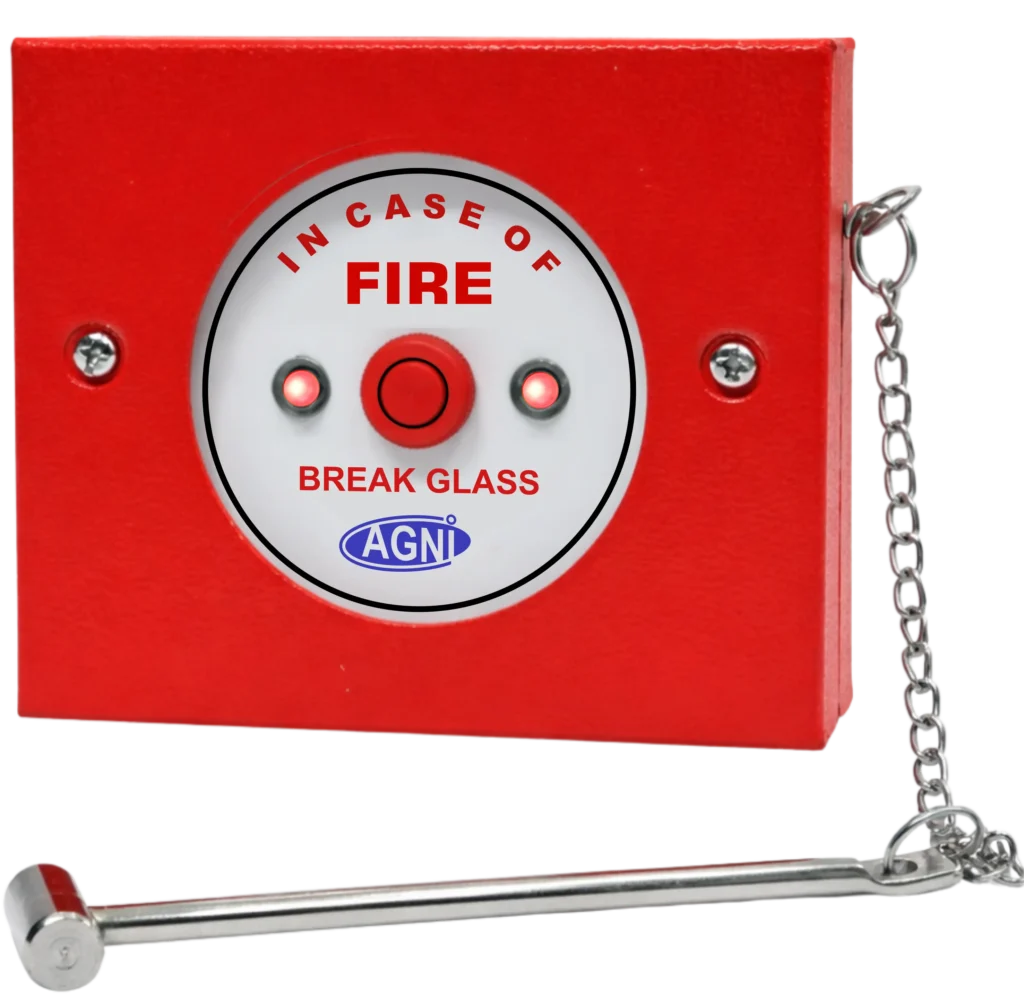

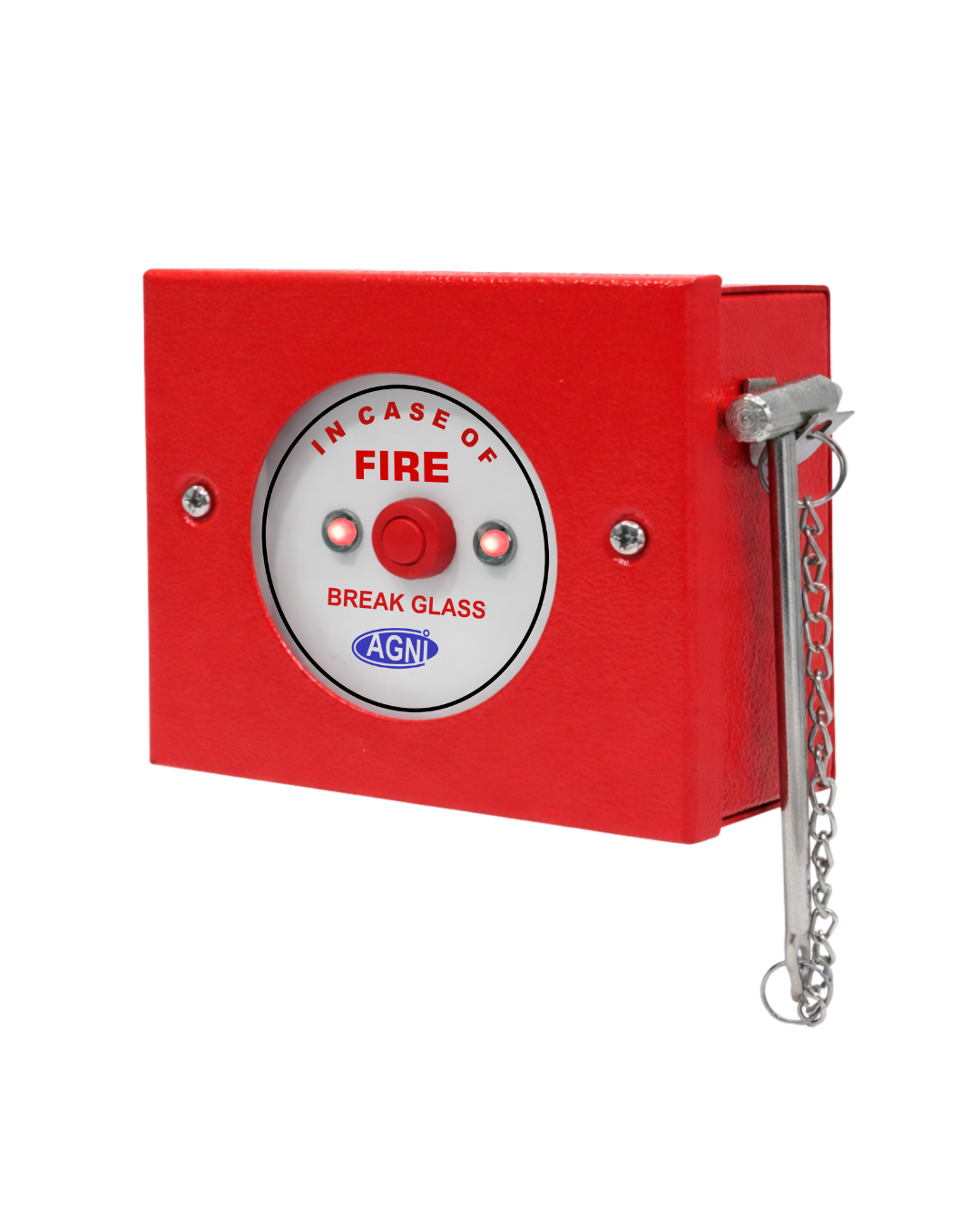

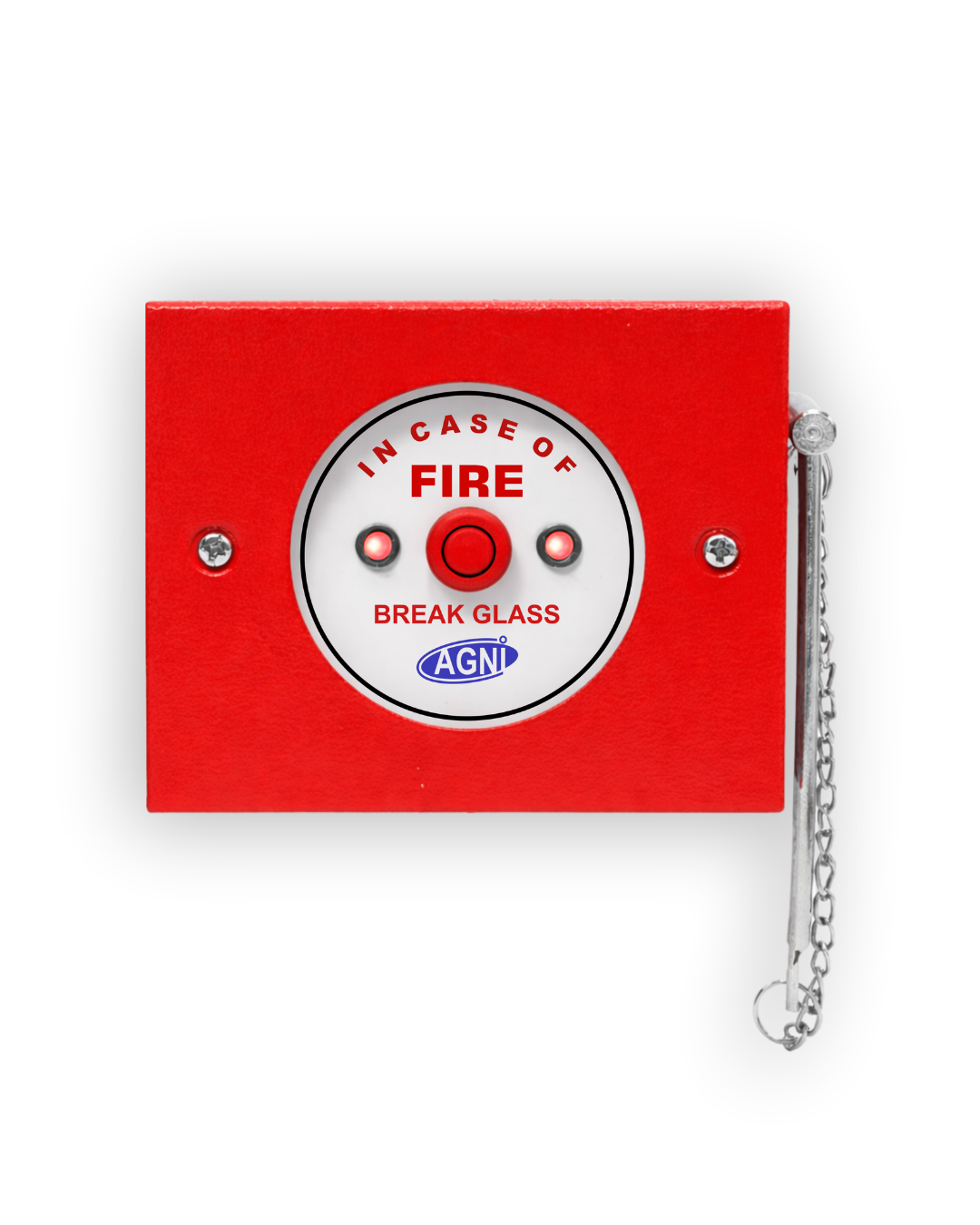

Nickel Plated Hammer with Chain & Side Mout Clamp |
|
Spare Parts |
Standard 1.8 mm Thick Fragile Glass |
|
Standards |
EN 54-5-7, IS 2189 |
Guidelines: As per IS 2189 (aligned with practices similar to BS 5839)Manual Call Points (MCPs) shall be mounted at a height of 1.4 m ± 0.2 m above finished floor level. Devices shall be positioned in conspicuous, unobstructed, and readily accessible locations, typically along escape routes, adjacent to exits, and at staircase landings, to facilitate immediate operation in case of fire emergency
Job to be Done
Primary Job
Enable occupants to instantly activate the fire alarm during emergencies by breaking the glass, ensuring rapid alert, evacuation, and system response.
Safety Job
Protect lives by providing a reliable manual emergency trigger that works even when automatic detectors fail, ensuring immediate warning across the building.
Operational Job
Mechanically trigger the conventional fire alarm circuit through a durable break glass mechanism, activating connected alarm devices with visible LED status confirmation.
FAQ
What is a Manual Break Glass Call Point used for?
A Manual Break Glass Call Point is an emergency fire alarm activation device that allows occupants to manually trigger the fire alarm system by breaking the glass panel during a fire incident. It ensures immediate alert and repair emergency response.Â
How does a break glass fire alarm switch work?
When the glass is broken, the internal micro switch activates and closes the fire alarm circuit, instantly triggering connected sirens, hooters, and alarm panels.Â
Where should a manual call point be installed in buildings?
Manual call points should be installed along escape routes, near exits, and staircases at about 1.4 meters height to ensure quick access during emergencies.
Is the AGNI-301 suitable for conventional fire alarm systems?
Yes, the AGNI-301 is a conventional break glass type manual call point designed specifically for conventional fire detection and fire alarm systems.
How does the LED indication work?
The device uses dual red LED indicators:
Blinking red LED shows normal healthy operation
Steady red LED indicates that the fire alarm has been activated
This helps users easily identify the device status.
Does the product come with accessories?
Yes, It includes a nickel-plated hammer with chain and side mount clamp for emergency activation and secure installation.
Manual Break Glass Call Point AGNI-301
AGNI-301 Manual Break Glass Call Point with solid metal enclosure, dual LED, 24V DC, IS 2189 compliant. Reliable indoor fire alarm MCP.Â
