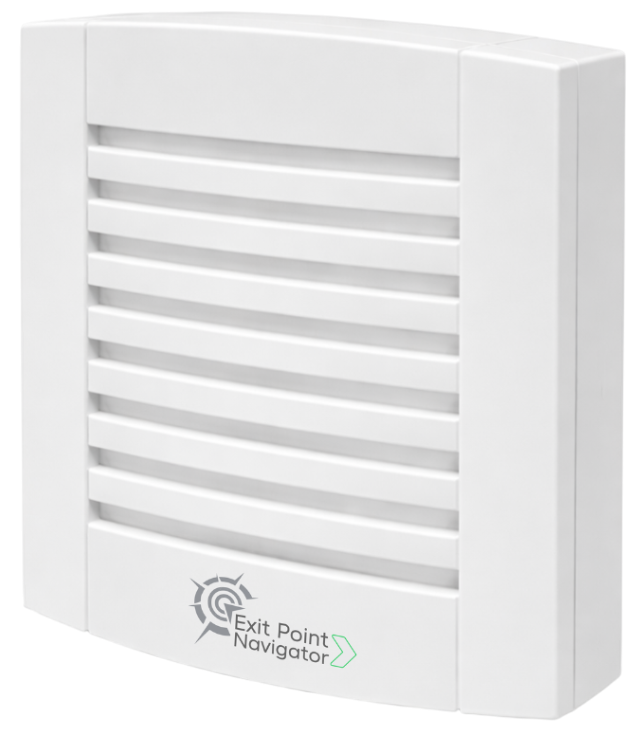

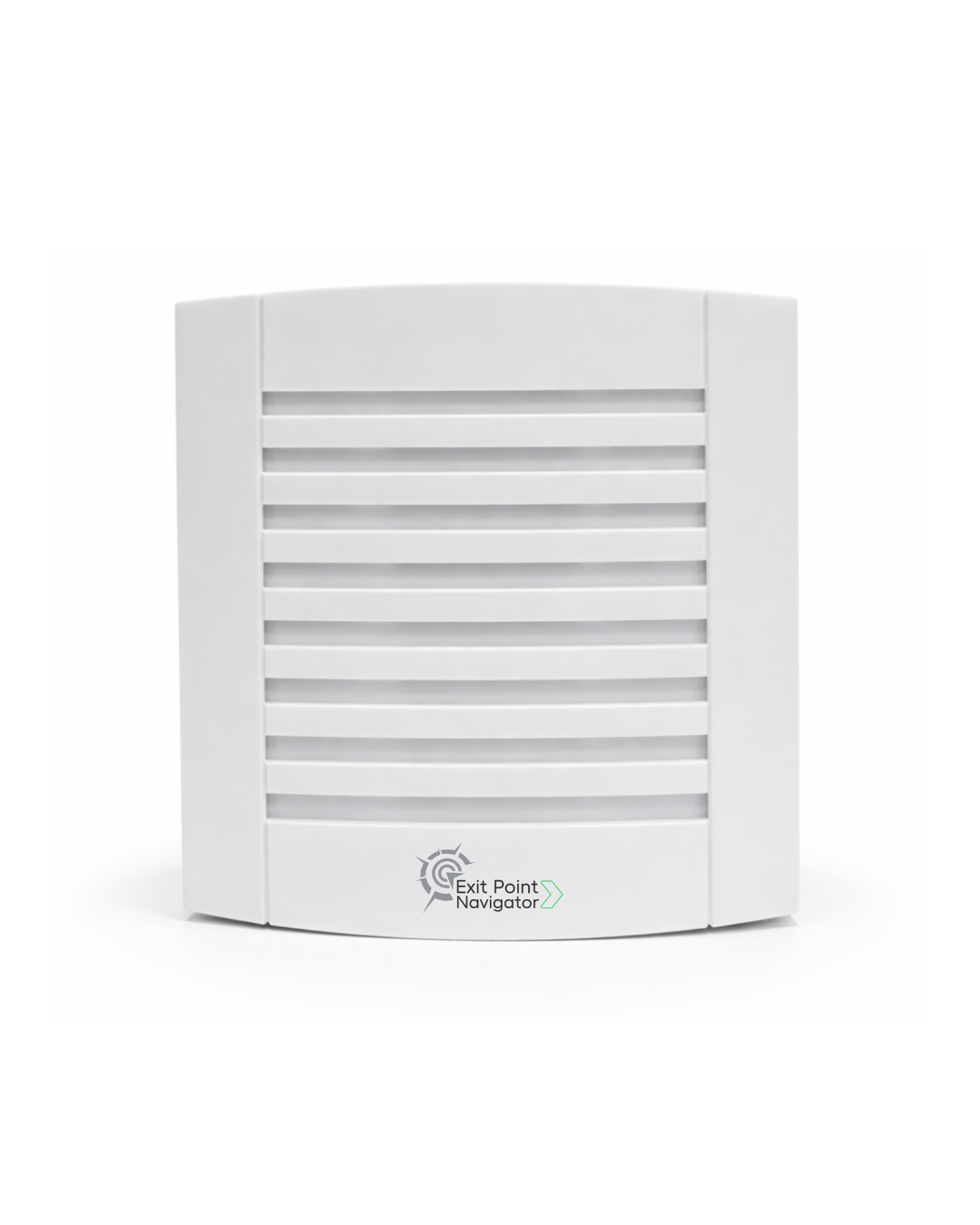

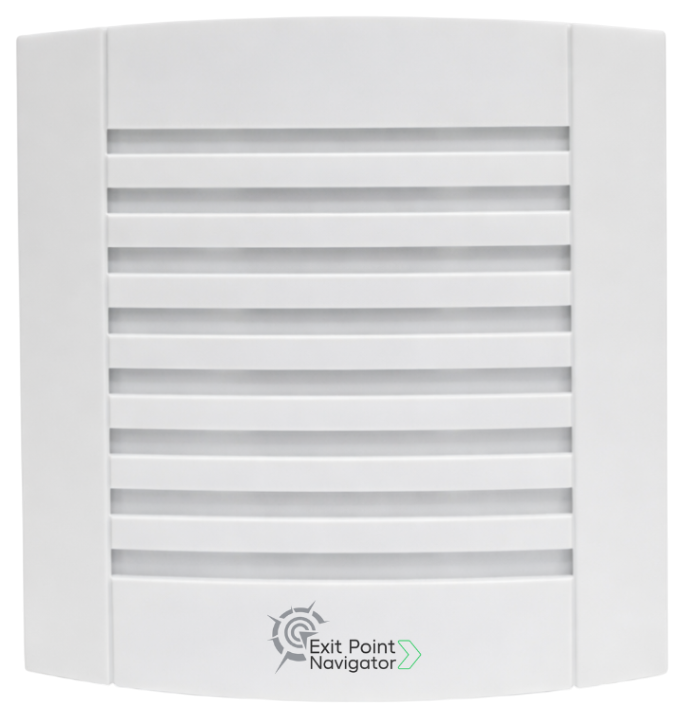

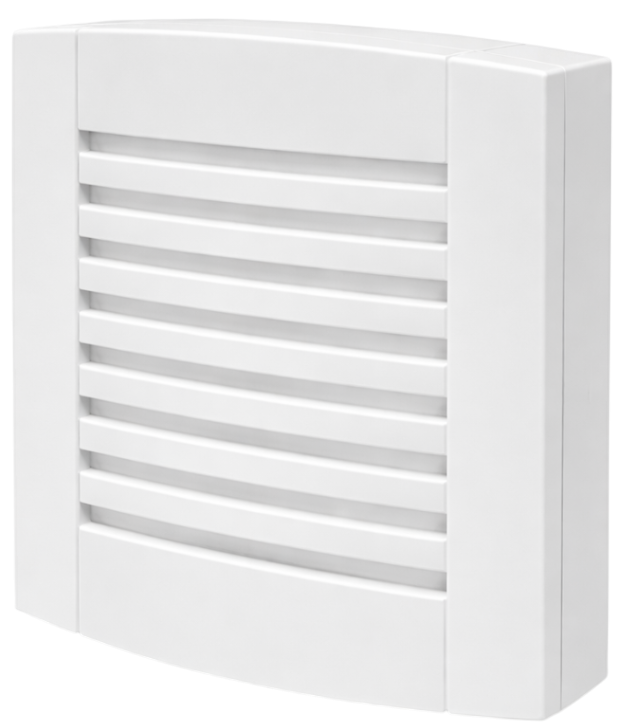

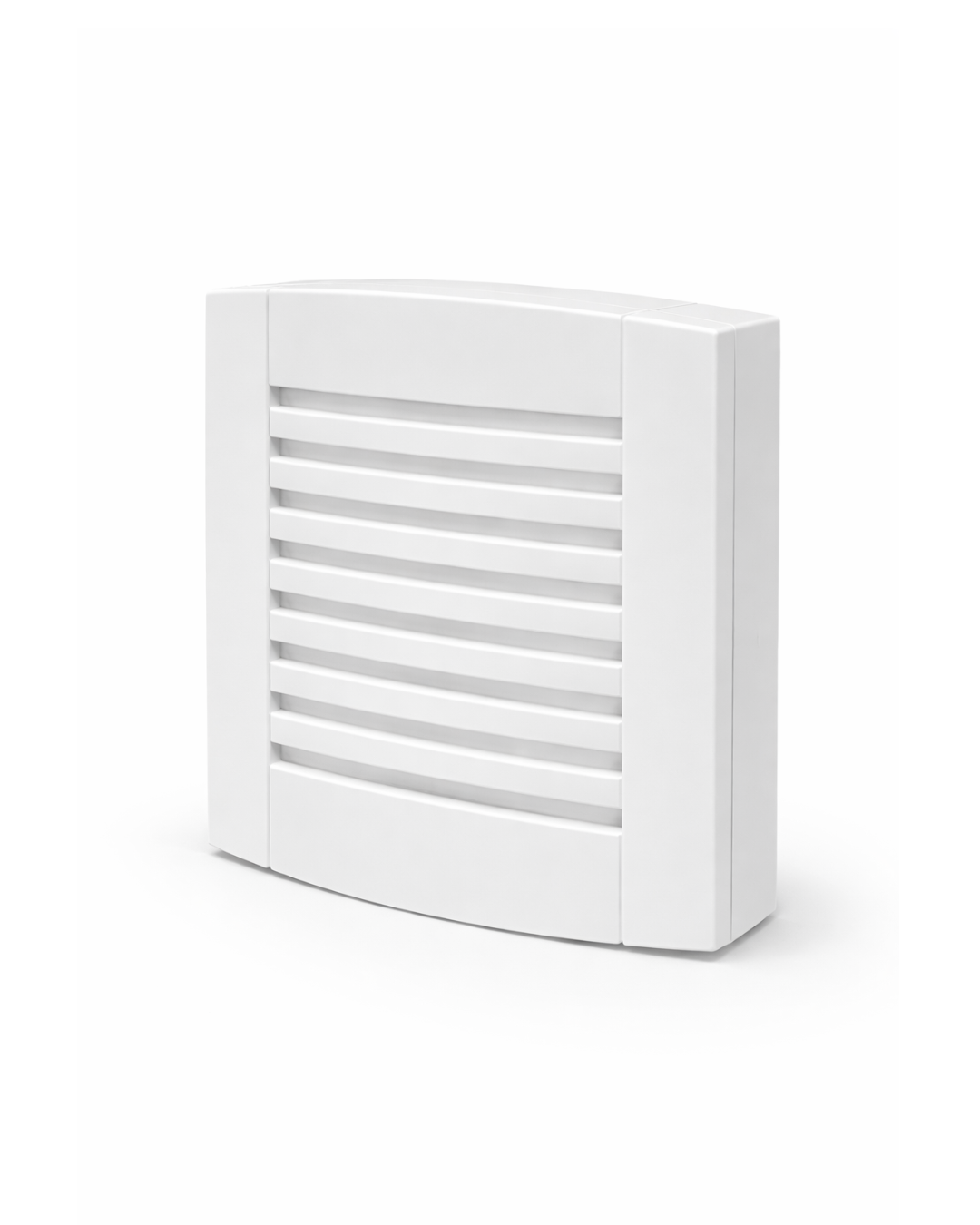

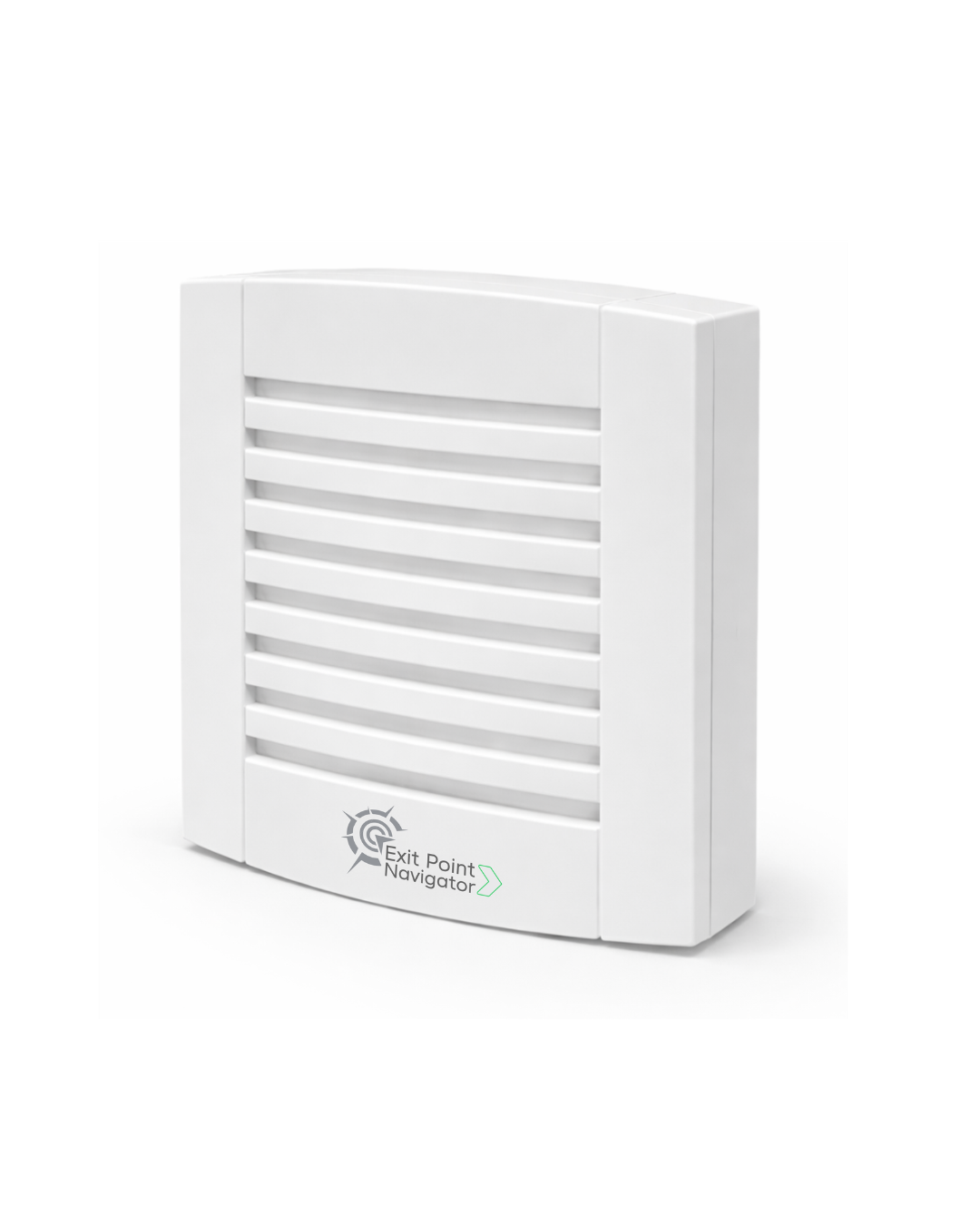

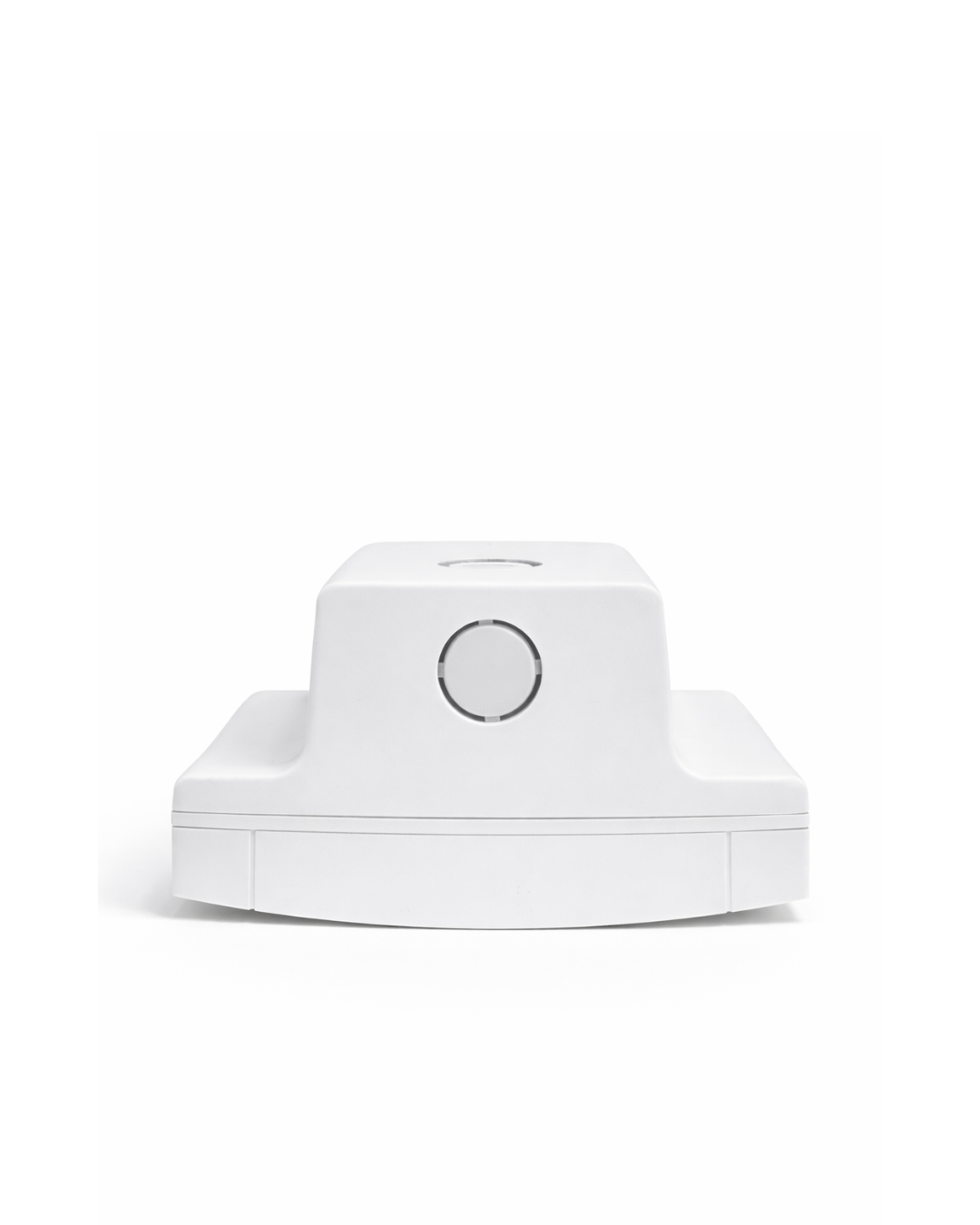

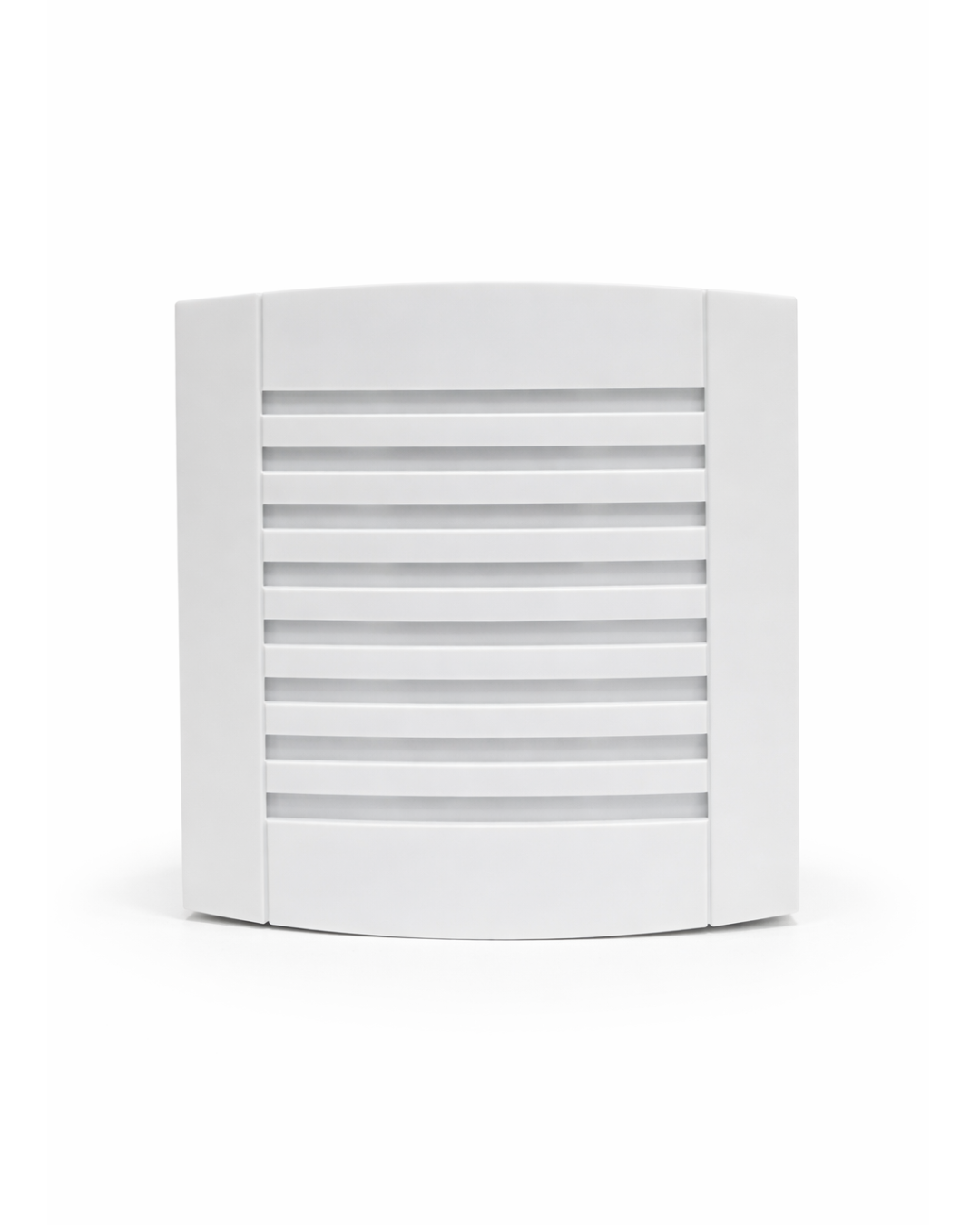

Adam Voice Alarm Series Plus – Exit Point Navigator Sounder with Speech (White)
The Exit Point Navigator Sounder from Agni Instruments in an EN 54-3 Compliant voice sounder with built-in power amplifier, 90 dB speech alarm output, multilingual programmable messages, and intelligent PC software configuration. Designed for reliable evacuation guidance in industrial and commercial buildings.
Part Number: AGNI-EPN-918 | Category: Voice Evacuation Systems
Description
The Agni Adam Voice Alarm Series Plus Exit Point Navigator Sounder is an intelligent, multilingual voice evacuation device engineered for modern fire alarm systems.
Built in compliance with EN 54-3, this loop-powered voice sounder operates on 24…42V DC and delivers a powerful 90 dB speech alarm, ensuring clear evacuation instructions even in high-noise environments.
It features:
- Built-in power amplifier compatible with any system
- 20 programmable signaling audit messages
- 5 different language options
- 8 programmable volume levels via PC software
- Synchronous trigger capability
- Short circuit protection
- Open circuit detection
- Intelligent PC software programmable configuration
Alarm signaling, evacuation alerts, and test alarms can each be programmed in different languages, making it ideal for multi-tenant buildings, hospitals, malls, hotels, factories, and commercial complexes.
Constructed with durable polycarbonate housing and acoustic ABS (Acrylonitrile Butadiene Styrene), the device supports wall and ceiling mounting. It operates reliably in ambient temperatures from -10 °C to 55 °C with humidity levels below 95% (non-condensing).
This Exit Point Navigator Sounder ensures precise directional exit guidance, such as stair door left or right announcements, improving emergency evacuation efficiency and safety compliance.
How it Works
How does the Agni Exit Point Navigator Work?
The Agni Adam Voice Alarm Series Plus Exit Point Navigator Sounder operates as an intelligent voice evacuation device within a fire alarm system. It not only produces a loud audible alarm but also delivers clear multilingual evacuation instructions to guide occupants safely.
Commonly Used
- Corporate Office Building
- Hospital Environment
- Industrial Facility
- Shopping Mall
Step-by-Step Exit Point Navigator Working Principle?
01
Signal from Fire Alarm Control Panel
When smoke, heat, or manual call points trigger the fire alarm system, the fire Alarm Control Panel (FACP) sends a signal through the powered loop (24...42 V DC) to the Exit Point Navigator Sounder.
02
Built-in Power Amplifier Activation
The sounder's built-in power amplifier activates immediately. Because it is compatible with any system, integration remains seamless within existing fire alarm setups.
03
Message Selection via PC Programming
The device selects the pre-programmed audio message configured through intelligent PC software. It supports: 20 programmable audio messages, 5 different languages, Separate programming for alarm, evacuation, and test alerts, 8 adjustable volume levels.
04
Voice + Tone Output (90 dB Speech Alarm)
The sounder delivers a 90 dB speech alarm combined with signaling tones if configured. the synchronous trigger feature ensures multiple sounders operate together for uniform evacuation messaging across the building.
05
Directional Exit Guidance
Instead of only sounding a siren, the device can announce clear evacuation instructions such as stair direction guidance (left/right exit navigation), improving evacuation clarity and reducing panic.
06
Protection & Monitoring
The system continuously supports: Short circuit protection, Open circuit detection, Low power consumption (55 μA @ 19 V DC). This ensures reliable operation even under emergency conditions.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Part Number |
AGNI-EPN-918 |
|
Compliance |
EN 54-3: 2001 / A1: 2002 / A2: 2006/ -17:2005 |
|
Operating Voltage |
24...42V DC (via Powered loop) |
|
Sound Level |
90 dB Speech alarm |
|
Quiescent Current @ 19 V DC |
55 μA |
|
Quiescent Current @ FACP Battery |
Approx. 300 μA @ 42 V |
|
Number of Programmable Messages |
20 |
|
Language Support |
5 Languages |
|
Volume Levels |
8 (Software Programmable) |
|
Trigger Type |
Synchronous Trigger |
|
Protection Features |
Short Circuit Protection, Open Circuit Detection |
|
Connection Terminal |
Max. 1.5 mm² (AWG 30–14) |
|
Ambient Temperature |
10 °C to 55 °C |
|
Storage Temperature |
-25 °C to 75 °C |
|
Air Humidity |
< 95% RH (Non-Condensing) |
|
Type of Protection |
IP 43 |
|
Housing Material |
Polycarbonate Plastic |
|
Acoustic Material |
ABS (Acrylonitrile Butadiene Styrene |
|
Color |
White |
|
Weight |
Approx. 350 g (with base) |
|
Mounting |
Wall & Ceiling Mount |
|
Base Note |
Flat IP base reduces output by average 3 dB |
Guidelines: Conforms with ( IS 2189 / EN 54-5-7 / NBC) For Hooter Unit With Or Without Strobe / Audio / Alarm / Visual / Combination Devices It Should Be Mounted With The Top Of The Unit Between 80 And 96 Inches ( Ideally. 2.0 To 2.4 Meters 2200 Or 2400) Above The Floor, And Not More Than 4 Inches From The Ceiling.
Job to be Done
Primary Job
Provide clear, synchronized, multilingual voice evacuation instructions at 90 dB during emergencies using an EN 54-3 compliant, loop-powered Exit Point Navigator Sounder integrated with fire alarm systems.
Safety Job
Reduce evacuation confusion and panic by delivering precise stair-direction voice guidance, synchronized alarms, and reliable operation with short circuit protection and open circuit detection.
Functional Jobs
Operates on 24–42 V DC loop power with low current consumption, programmable messages, adjustable volume levels, and seamless compatibility with fire alarm control panels.
FAQ
What is an Exit Point Navigator Sounder?
An Exit Point Navigator Sounder is a voice-enabled fire alarm device that provides audible evacuation instructions such as stair direction alerts (left or right). The Agni Adam Voice Alarm Series Plus delivers a 90 dB speech alarm and supports multilingual voice evacuation messaging.
How many voice messages can be programmed?
The sounder supports 20 different programmable signaling audio alarm messages in 5 different languages. Alarm, evacuation, and test messages can be configured separately.
Can different evacuation messages be assigned for different emergency scenarios?
Alarm signaling, evacuation, and test alarms can be programmed separately with selectable speech messages and signaling tones.
Can this device be used for drill testing without triggering full evacuation panic?
Yes. Test alarms can be programmed separately via PC software with specific message and volume configurations.
