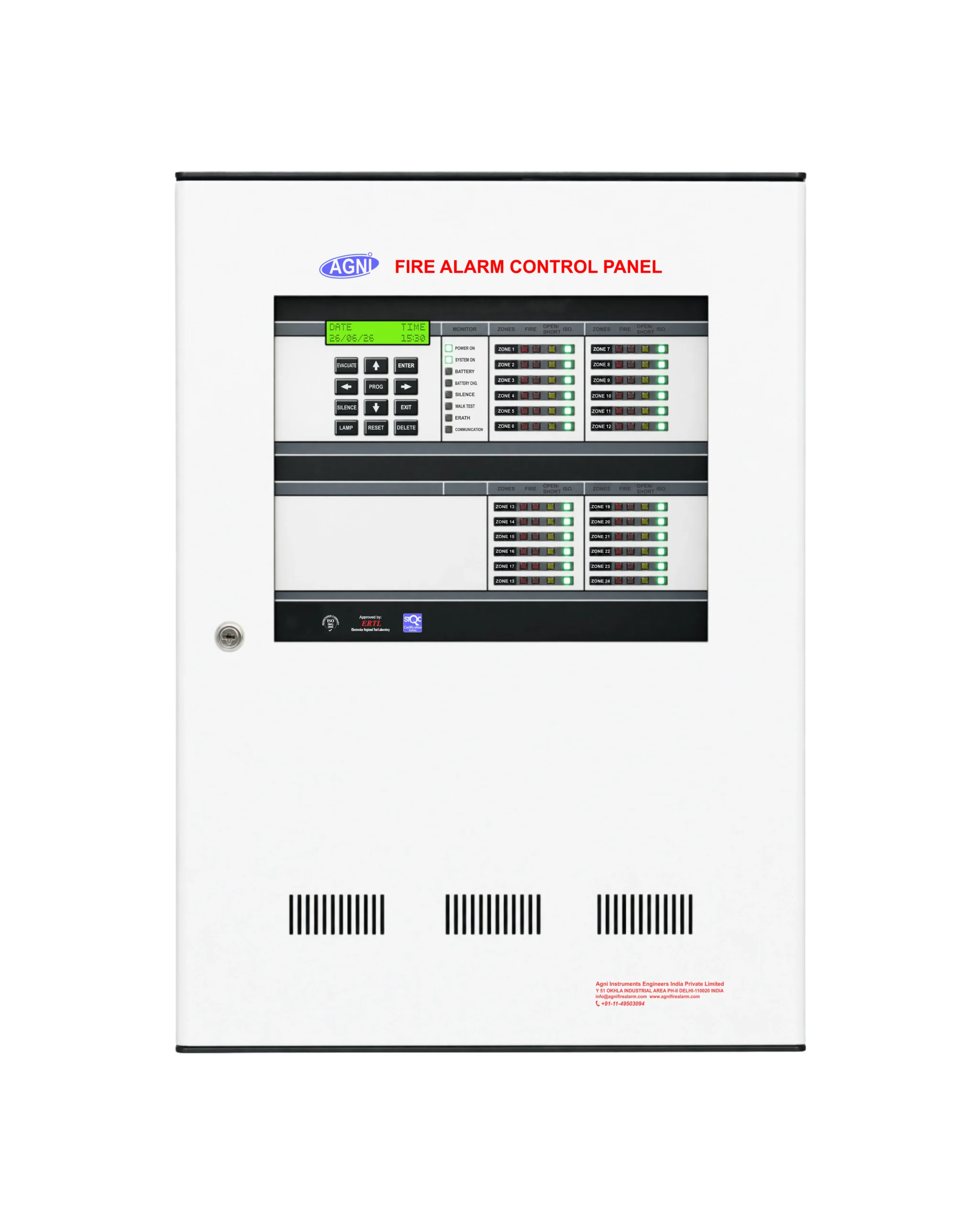

Agni Max Hybrid 12 to 60 zone Fire alarm control panel - Image 1

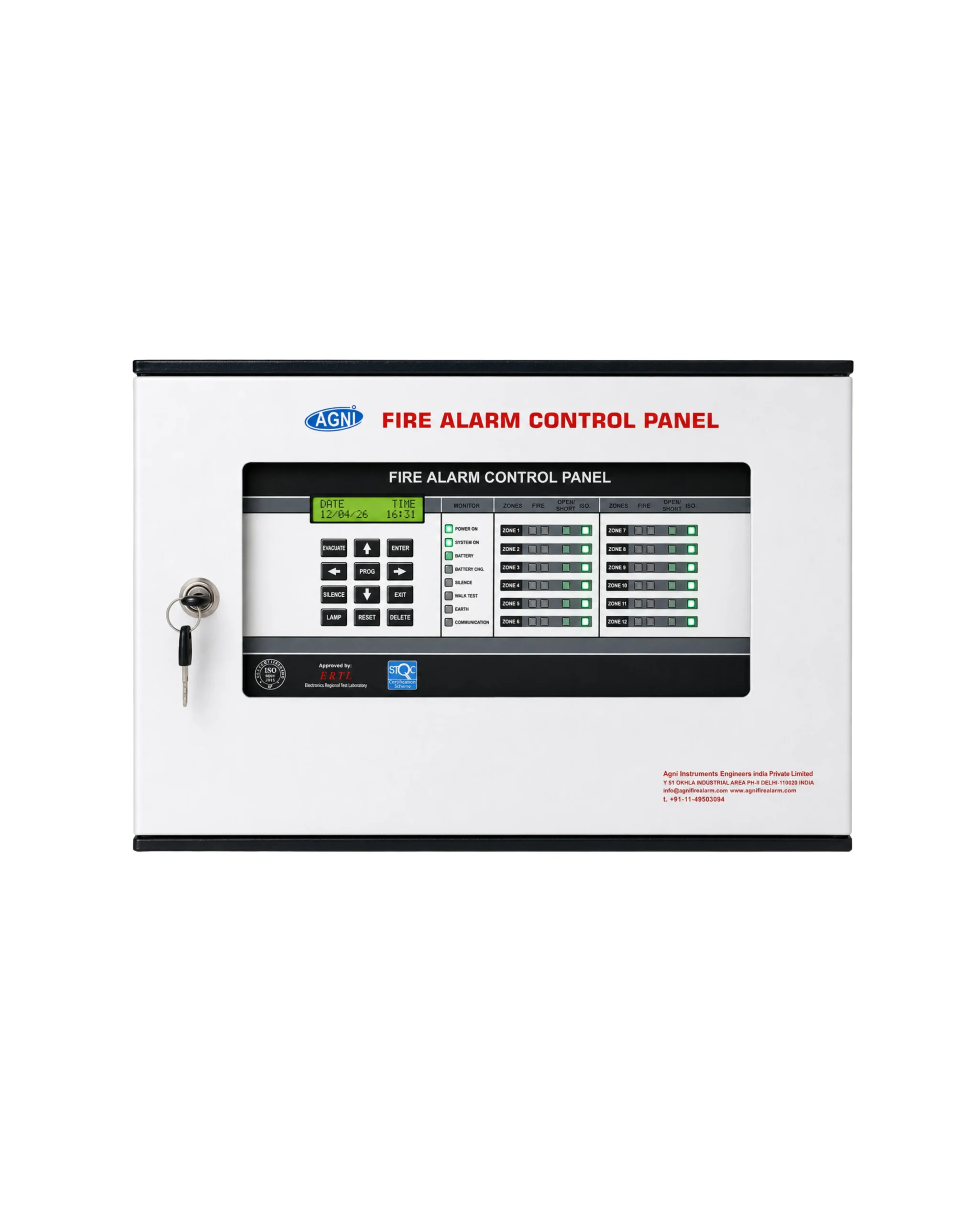

Agni Max Hybrid 12 to 60 zone Fire alarm control panel - Image 2

Max Hybrid 12 to 60 Zone Conventional Fire Alarm Control Panel

The Agni FACP-MAX Hybrid is a micropocessor-based conventional fire alarm contorl panel built for industrial and commercial buildings. It watches every zone continuously, runs on 230 V AC with a 24 V DC battery backup, and networks with other panels over RS-485.

Part Number:
AGNI MAX-HYBRID- 12 | 24 | 36 | 48 | 60

Product Overview

Conventional fire alarm control panel built for continuous duty

The AGNI 12 and 60 Zone Fire Alarm Panel is a microprocessor-based conventional fire alarm control panel from Agni .Part of the FACP-MAX Hybrid series, it is available in 12, 24, 36, 48 and 60 zone models, and the 12 zone model can be expanded up to 120 zones. It works with standard smoke detectors, heat detectors, manual call points and hooters, so it fits conventional zone wiring. The panel design conforms to IS 2189:1988 and suits installations that call for Tariff Advisory Committee (TAC) specifications.

Every zone is monitored continuously for fire and fault, and all zones are scanned automatically every 60 seconds. Zones are wired as Class B radial circuits ending in a 4.7 kΩ end-of-line resistor, so open and short circuits are detected straight away. Individual zones can be isolated with an LED indication, each zone’s sounder can be enabled or disabled separately, and volt-free relay contacts give separate outputs for fire and fault. A zone test mode and a timed walk-test mode make commissioning and field checks easier.

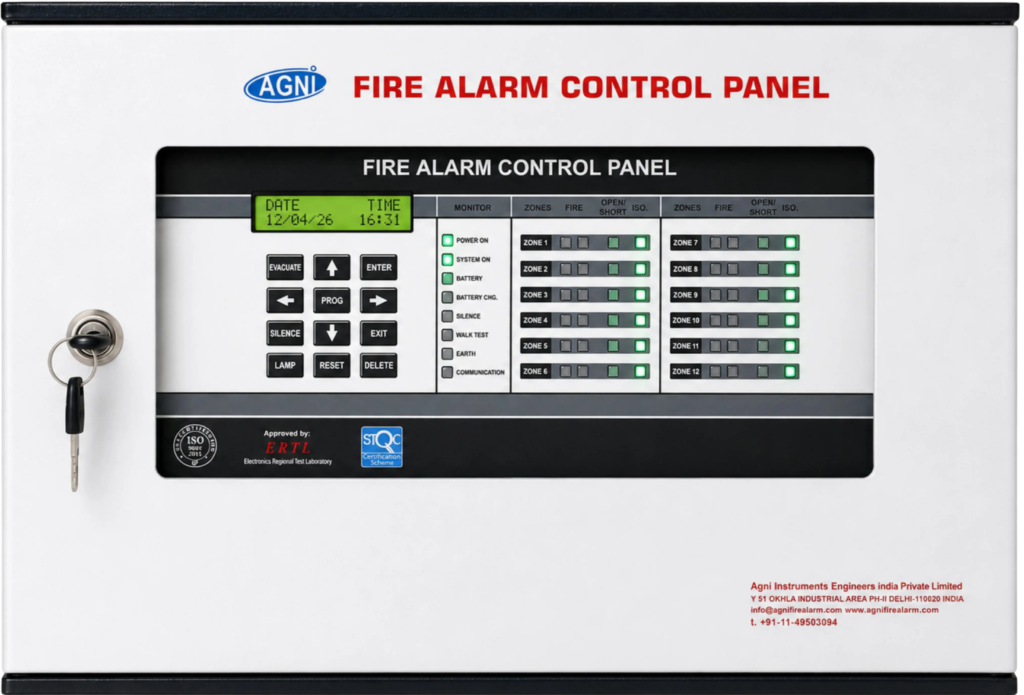

A 16 × 2 LCD with moonlight backlighting shows the fire or fault status of each zone, backed by colour-coded LEDs. The buzzer sounds a continuous tone for fire and an intermittent tone for fault, so the two are easy to tell apart. If the panel is silenced during a fire, a fire in another zone sounds the alarm again. Installers can enter a location name for every zone, set the date and time, and display the customer’s own logo, name and address on the LCD. The panel records up to 999 time-stamped events, including fires, faults, battery changes and mains on and off.

For multi-panel sites, RS-485 networking with the MAX Hybrid Technology Protocol supports up to 32 nodes over distances exceeding 1.3 km. A panel can also act as a system signal active repeater, and silencing or resetting at the master panel carries through to the connected slave panels.

Fire Deteciton standards

Certifications & Compliance

CE
European Conformity

EN54-4 | EN45-2
European Certification

UL 217:2024
Functionality Compliance

IS 2189: 2022
NABL Laboratories Test Certified

ERTL North (Govt. India)
Functional Test Certified

Standard Code of Practice
INDIA- BIS | NBC

Approved Department

Government of India
Department of CPWD / PWD
Complied with CPWD DSR

MAX HYBRID-12 to MAX HYBRID-60 at a glance

Fire models cover 12 to 60 detection zones. Every model carries the same features; zone count and cabinet size are what change.

Available variants	12 Zones	24 Zones	36 Zones	48 Zones	60 Zones
Model number	MAX HYBRID-12	MAX HYBRID-24	MAX HYBRID-36	MAX HYBRID-48	MAX HYBRID-60
Dimensions (H × W × D) mm	300 × 410 × 115	700 × 500 × 155	800 × 500 × 155	800 × 500 × 155	920 × 500 × 155
Zone address programming	✓	✓	✓	✓	✓
Event data logging (999 events)	✓	✓	✓	✓	✓
Network RS-485	✓	✓	✓	✓	✓
Max-net repeater	✓	✓	✓	✓	✓
Batteries space	✓	✓	✓	✓	✓
Enclosure material	1.6 mm - 1.8 mm SWG (standard Gauge) sheet metal; heavy-duty, impact-resistant construction for long-term durability in demanding environments.
Front door	Transparent polycarbonate front door secured by lock and key, giving full panel visibility without opening the enclosure and protecting against unauthorised access and tampering.
Need a different zone count, such as 8, 16, 20, 32, 40 or 44 zones and zones upto 120 zones? Ask our team about your project.

Technical Specifications

Full Technichal Specificaiton - Max Hybrid

Parameter	Specification
Control Type	Conventional
Part Number	AGNI MAX-HYBRID- 12 \| 24 \| 36 \| 48 \| 60
Standard model	12 detection zones expandable up to 120 zones
Microprocessor	Cortex-MO
Operating voltage	230 V AC
System working voltage	24 V DC
Battery charging	Sensor-based battery detection automatically activates PWM 27 V DC power output for rapid and controlled charging
Reverse battery protection	Available with indication
Display	High-resolution alphanumeric 16 × 2 LCD
Keypad	12-keymatrix keypad
Visual indicators	Red, green and yellow for zones and monitoring
Event log (EEPROM)	Up to 999 records, with real-time date and time clock
Date / time (RTC)	Clock shown on display and used to time stamp the data log
Fuse circuit breaker Glass type	Battery - 3 Amp, common hooter - 2 Amp, AC-230v input-1.5Amp

Parameter	Specification
End-of-line resistor	4.7k Ohm
Alarm resistor	560 k Ohm
Zone Detection Voltage	23v DC Sensor Out
Zone Detection Riser Current	24V DC port, 73 milliamperes
Zone Addressing	Programmable address mapping via matrix keypad
Zone Control	Enable or disable with detection voltage cut-off
Zone & Sounder Control	Zone-wise sounder enable / disable
Zone-wise hooter output	Optional Relay Card
Zone Reverse Voltage protection	Every zone have Reverse Voltage protection
Walk-Test Facility	Walk-test each device test Add automatic time Duration Per Zone
Zone Self Test	Automatic zone wise Test Fire, Open, Short

Parameter	Specification
D2 Main Signals	No extra
Signal relays	Potential-free contacts for Fire and common Fault
Sounder output	NAC / common sounder (hooter) output
Relay outputs	24 V DC, 1 A (higher ratings available on order)
Isolated 24 V DC supply	For module support; listed as optional
RS-485 Network	One port, 32-node support
UART RS-232	Internal zone expansion

Parameter	Specification
Ambient Operating Temperature	10°C to +55°C range
Max. Tolerated Humidity	95% RH
Protection Category	Type A-Indoor Use / Rating IP47
Colour shade	Approved dual-colour powder-coated finish

Conventional Seires	Part Number
X Hybrid 2, 4, 6, 8 Zone Control Panel	AGNI MAX-HYBRID- 12 \| 24 \| 36 \| 48 \| 60
Multi Detector	AGNI-201
Photoelectric Somke Detector	AGNI-204
Heat Detector	AGNI-205
Duct Smoke Sampling Detector	AGNI-208
Industrial Heat Detector (Prob)	AGNI-207
CO Gas Detector	AGNI-CO
LPG Gas Detector	AGNI-LPG
CNG Gas Detector	AGNI-CNG
PNG Gas Detector	AGNI-PNG
Electronic Hooter Cum Sounder - MS	AGNI-403
Electornic Hooter Cum Sounder - ABS	AGNI-408
High Intensity Hooter	AGNI-418
LED Sounder Cum Strobe ABS	AGNI-405
LED Sounder Cum Strobe MS	AGNI-406
Xenon Sounder Cum Strobe ABS	AGNI-407
LMT Hooter Cum Speaker MS	AGNI-404
PA LMT Hooter cum Speaker ABS	AGNI-409
Exit Point Navigator	AGNI-EPN-918
Manual Call Point MS Body	AGNI-301
Manual Call Point ABS Body	AGNI-302
Chain & Hammer	AGNI-CH35
Response Indicator Wall Mounted ABS Body	AGNI-501
Response Indicator ABS Ceiling Mounted	AGNI-502
Response Indicator Wall Mount MS Body	AGNI-503
AC Interposing Relay Module	AGNI-704-AC-2RC

Key Features

The Agni Conventional Max Hybrid Fire Alarm Panel Stand Out For

Built to IS 2189 and TAC

Panel Design conforms to IS 2189:1988 and suits installations that call for Tariff Advisory Committee specifications.

Zone monitoring and isolation

Zone-wise fire and fault monitoring with a full scan every 60 seconds, per-zone isolation with LED indication, and a walk-test mode for field checks.

Battery and power management

Automatic battery search, CPU-managed charging, low-battery and mains-fail warnings, and deep-discharge shutdown to protect the battery.

RS-485 networking

Up to 32 nodes over 1.3 km and more, with the MAX Hybrid Technology Protocol. A panel can act as a system signal active repeater.

Clear display and event log

16 × 2 LCD with moonlight backlight, colour-coded LEDs, two buzzer tones, and 999 time - stamped events with real-time clock.

Rugged cabinet, easy setup

Powder-coated sheet-metal cabinet with a lockable polycarbonate door, a unique serial number on every panel, and keypad menus for zone names, enable or disable, and zone tests.

Product in One Line

The Agni FACP-MAX Hybrid is a microprocessor-based conventional fire alarm control panel, designed to IS 2189, that scales from 12 to 60 zones and networks up to 32 panels over RS-485.

User Manual

FAQs

Frequently Asked Questions

What is the AGNI 12 and 60 Zone Fire Alarm Panel?

It is the FACP-MAX Hybrid series of conventional fire alarm panels, available in 12, 24, 36, 48 and 60 detection zones. Each zone is wired with detectors and manual call points and monitored for fire, open and short circuit.

Which zone sizes does Agni offers, and what about 8, 16, 20 or 44 zone panels?

This series is built as 12, 24, 36, 48 and 60 zones. For 8 zones and below see the Agni X Hybrid panels. For other counts, such as a 16, 20, 28, 32, 40, 42 or 44 zone fire alarm panel, ask our engineers about a custom configuration.

Is this an EN 54 fire alarm panel or a CE marked fire alarm system?

The MAX Hybrid is designed to IS 2189:1988 and is suited to TAC specifications. If your project needs an EN 54 fire alarm panel or CE marking, contact us so we can confirm the right model and certification status.

Can it connect to a fire alarm public address or voice evacuation sytem?

The panel has a fire relay with potential-free contacts that can trigger external equipment. Agni also make separate voice alarm controllers for a fire alarm voice evacuation system: ask us how to interface them.
