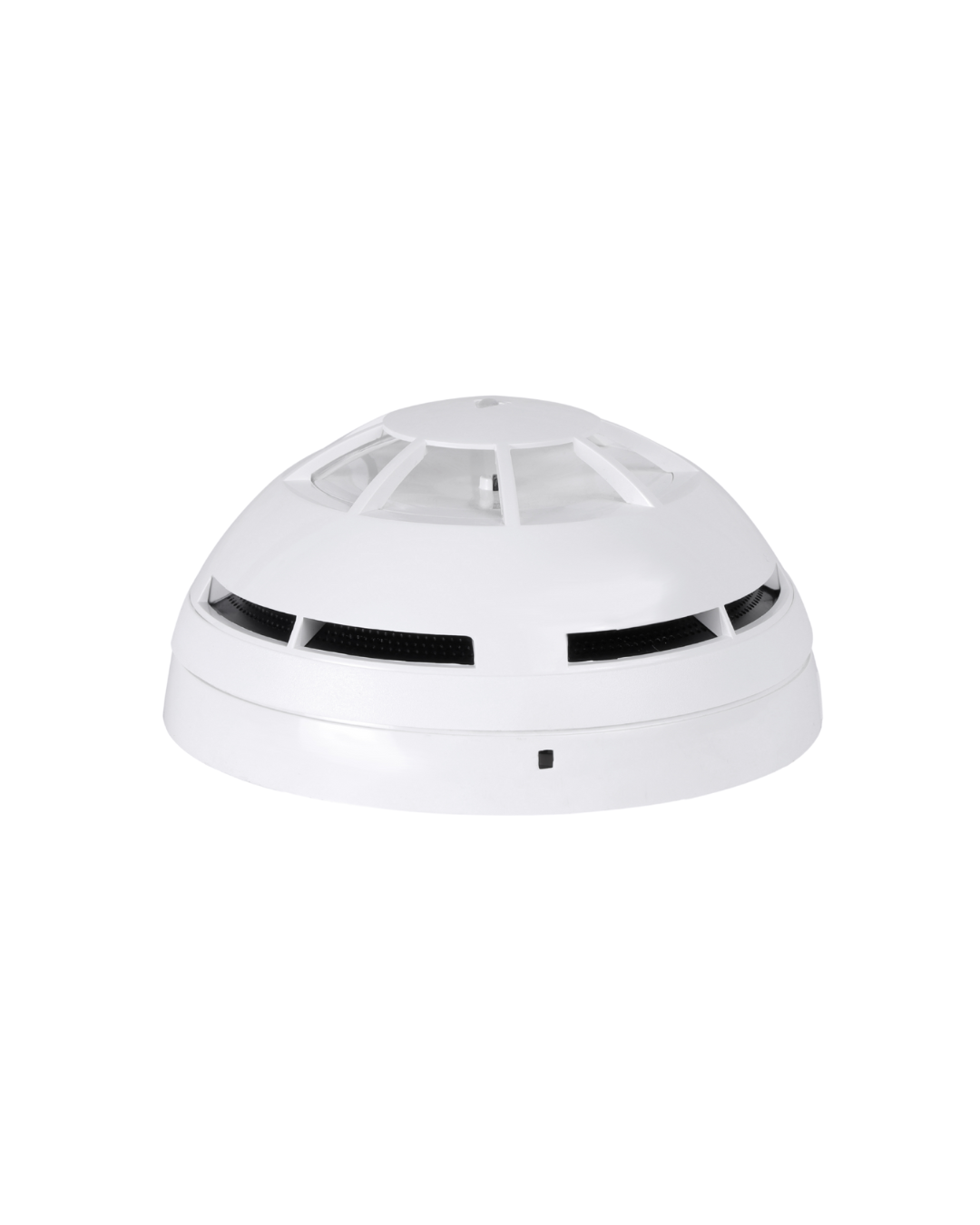

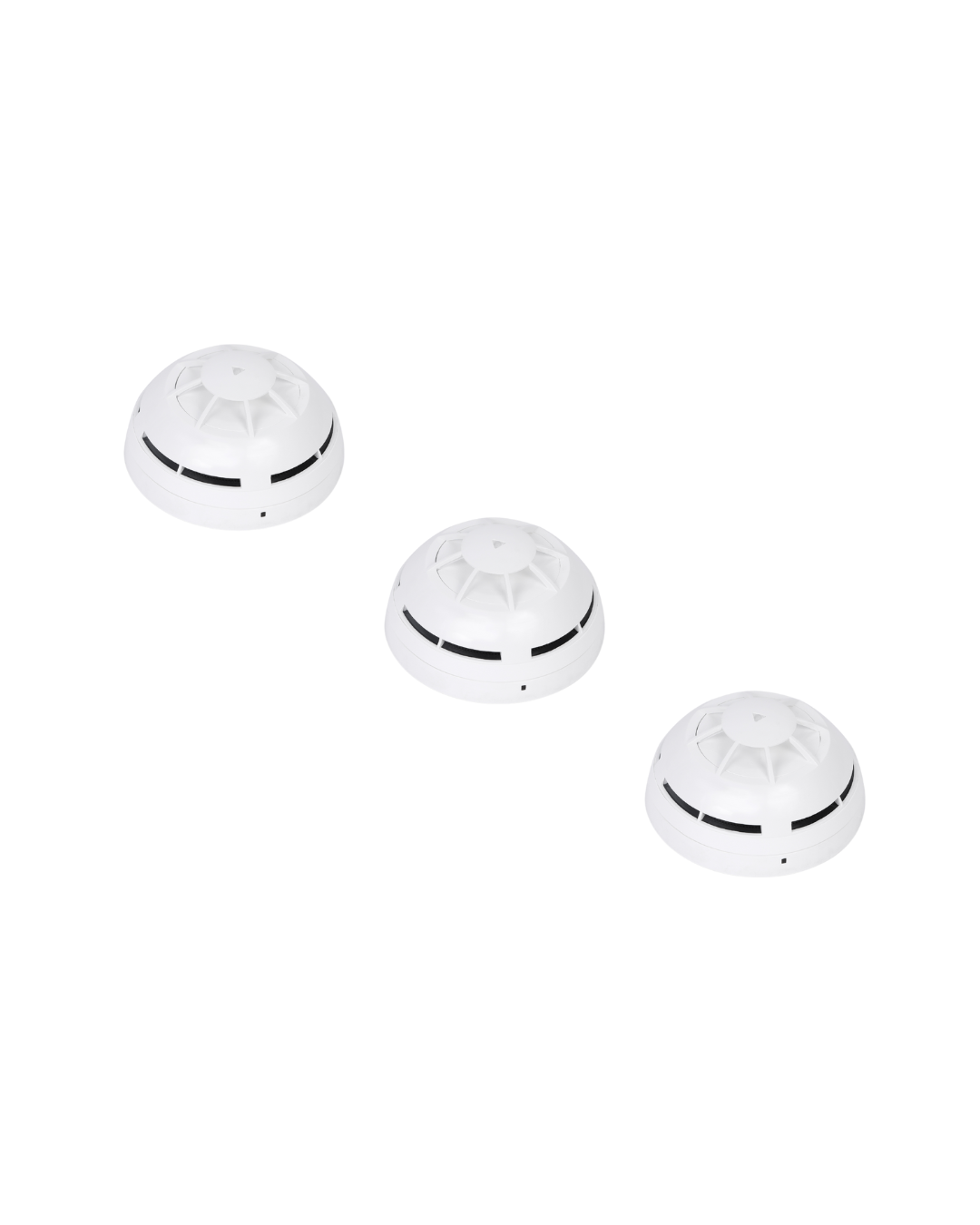

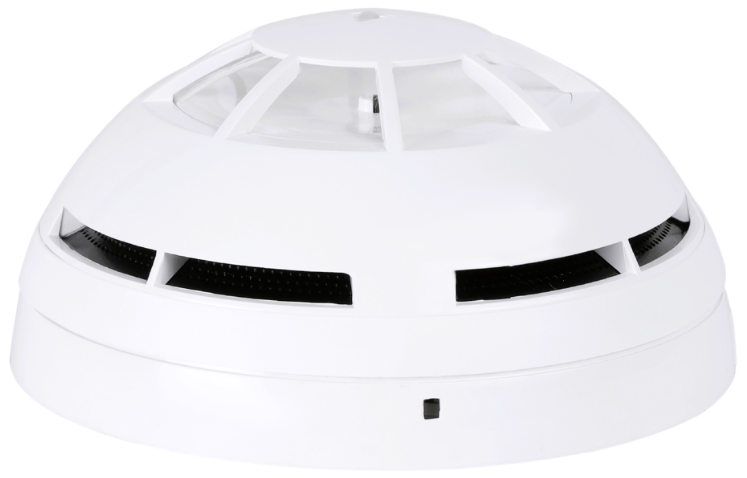

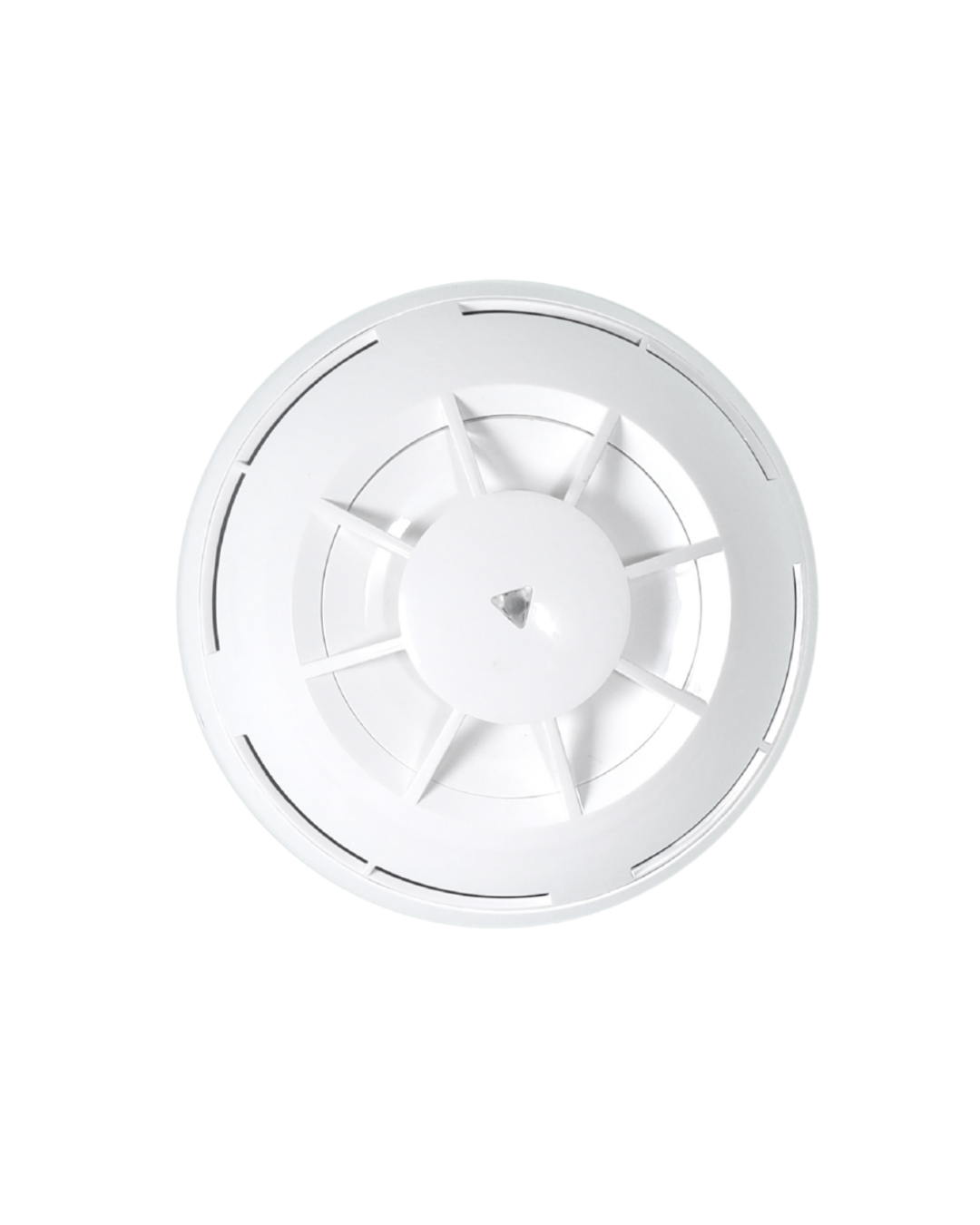

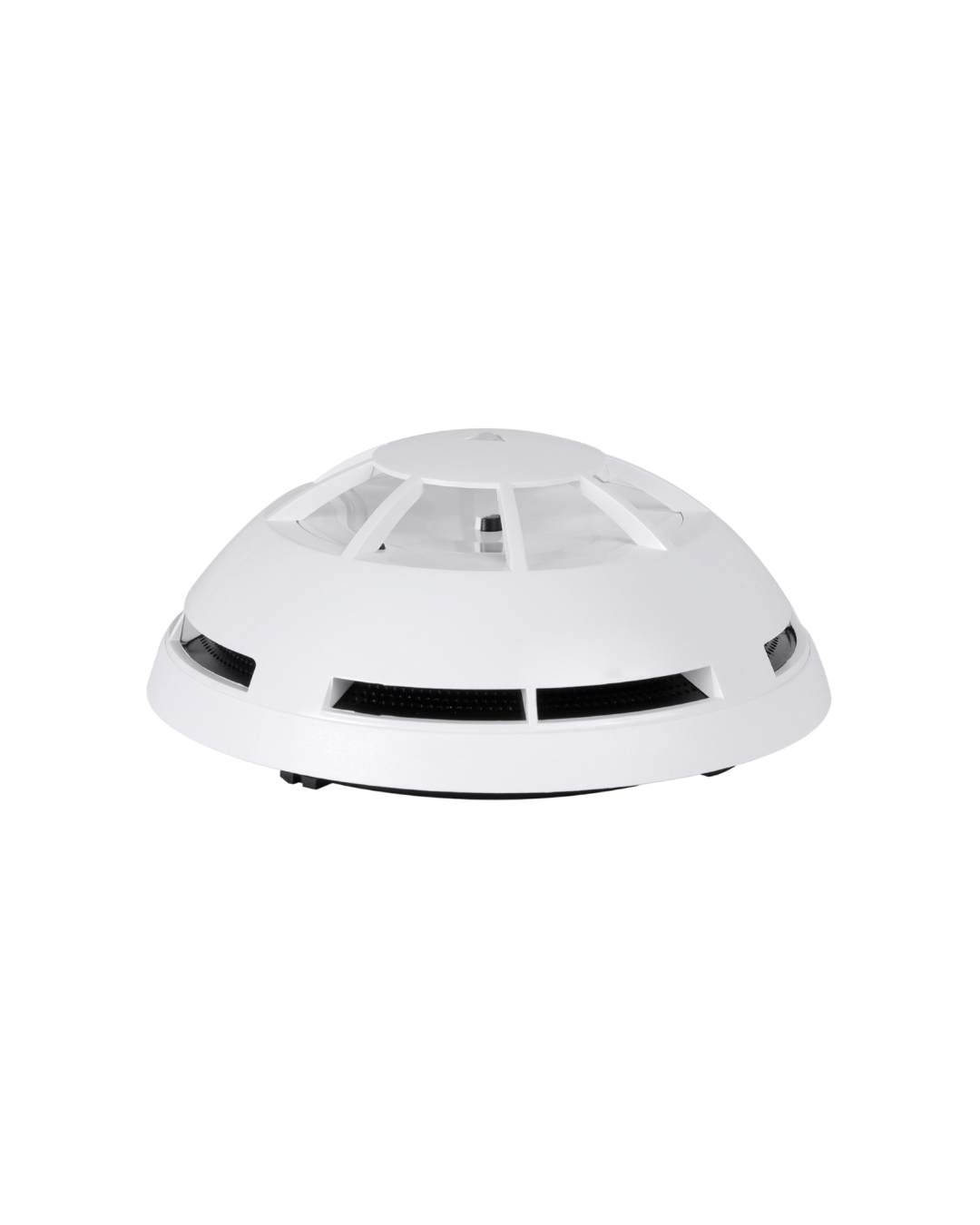

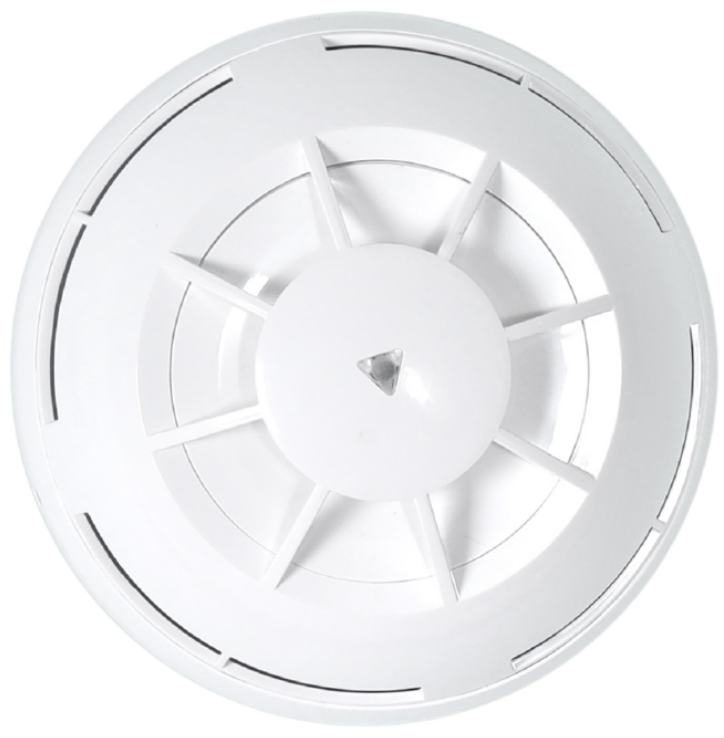

Agni Veiga Series Intelligent Addressable Thermal Fixed Temperature Heat Detector
Intelligent addressable thermal detector combining rate-of-rise and fixed temperature detection for early and reliable fire alerts in challenging environments.
Part Number:
VEIGA-IND-HT
A Detector that Sense Heat
The AGNI Thermal Rate of Rise Cum Fixed Temperature Detector is a precision-engineered intelligent heat detector designed to provide early fire warning by continuously monitoring temperature variations.
By combining rate-of-rise detection with a fixed temperature threshold, these detectors are not suitable. It communicates digitally with compatible AGNI fire alarm control panels and supports auto addressing for easy system configuration.
Its low-profile design, 360-degree LED visibility, programmable alarm thresholds, and built-in magnet test facility make it ideal for commercial, industrial, and institutional fire alarm installations requiring accuracy, durability, and compliance.
Compliance & Certifications
CE
European Conformity
EN54-4 | EN45-2
European Norms
UL 217:2024
Functionality Compliance
IS 2189: 2022 / 2026
NABL Laboratories Test Certificate
ERTL North (Govt. India)
functional test certificate
Code of Practive
INDIA- BIS | NBC
Approved Department
Government of India
Department of CPWD / PWD
Complied with CPWD DSR
Our fire safety engineers respond within 2 hours with competitive pricing for your project
Call: 9811522993 / 9811554440
Choose The Ideal Addressable Detector for your Smoke and Heat Detection Application
The Veiga Series is available in customizable device configurations, all built on the same intelligent addressable microprocessor platform. Every loop supports a wide range of devices, enabling the design of standard or flexible hybrid fire alarm systems. Supported devices include optical smoke detectors, RoR/Fixed-Temperature heat detectors, multi-criteria detectors, beam detectors, loop-powered sounders, strobes, detector beacon bases, manual call points, monitor modules, and zone monitor modules.
Select the model that best matches your site’s device capacity, application requirements, and future expansion needs.
Multi Criteria Detector
VEIGA-INO-OH
|
Dual-Sensing Technology |
|
|
Selectable Sensing |
4 threshold levels |
|
LED Indicator |
360° visibility LED |
|
Dust Protection |
Dust Restrictor Chamber |
|
Standby Current |
70 µA @ 24 VDC |
|
Alarm Current |
6 mA @ 24 VDC |
|
Compatible Bases |
Fault isolator, Sounder beacon, Standard base |
Fixed Temperature Heat Detector
VEIGA-IND-HT
|
ROR cum Fix Sensing Technology |
|
|
Threshold |
Rate-of-Rise: 7°C–10°C/min |
|
LED Indicator |
360° visibility LED |
|
Temperature |
57°C (135°F) |
|
Standby Current |
70 µA @ 24 VDC |
|
Alarm Current |
6 mA @ 24 VDC |
|
Compatible Bases |
Fault isolator, Sounder beacon, Standard base |
Optical Photoelectric Smoke Detector
VEIGA-IND-OP
|
Photoelectric Optical IR Technology |
|
|
Selectable Sensing |
4 threshold levels |
|
LED Indicator |
360° visibility LED |
|
Dust Protection |
Dust Restrictor Chamber |
|
Standby Current |
70 µA @ 24 VDC |
|
Alarm Current |
6 mA @ 24 VDC |
|
Compatible Bases |
Fault isolator, Sounder beacon, Standard base |
Full Technichal Specificaiton - Agni Multi Detector
All specifications for the analogue Intelligent addressable Photothermal Detector (Multi-Criteria) covering general performance, power supply, inputs/ outputs, and mechanical/ compliance other parameters
|
Parameter |
Specification |
|---|---|
|
Product Type |
Intelligent Thermal Rate of Rise Cum Fixed Temperature Detector |
|
Part Number |
VEIGA-IND-HT |
|
Detection Method |
Rate Of Rise + Fixed Temperature |
|
Thermal Threshold |
Triggers at 135°F (57°C) |
|
Communication Protocol |
Intelligent Digital Communication Protocol |
|
Thermal Detection |
Fixed temperature and / or rate-of-rise |
|
Operating Temperature (Non icing) |
0°C to +49°C |
|
Selectable Alarm Thresholds |
4 configurable alarm threshold levels |
|
4 application-specific modes |
A: Sensitive, Mode B: Moderate, Mode C: Standard, Mode D: High Immunity |
|
Adjustable Sensitivity |
Fine-tunable to match application environment and reduce nuisance alarms |
|
Loop Voltage |
15 VDC - 40 VDC |
|
Average Standby Current |
70 µA @ 24 VDC |
|
Parameter |
Specification |
|---|---|
|
Remote Indication |
Output Signal |
|
Alarm Led |
Red: flashes every 2-4s |
|
Alarm Led |
Llluminates continuously in alarm |
|
Working Principle |
Thermistor sensor variable temperature Rate of Rise |
|
Wiring |
Two-wire,polarity sensitive, |
|
Contact Configuration |
Loop In Positive (+) / Loop In Nagative (-) / Loop Out Positive (+) / Loop Out Negative (-) |
|
Parameter |
Specification |
|---|---|
|
Diameter |
Ø 110 mm |
|
Height |
48 mm |
|
Weight (Including Base) |
130 g |
|
IP Rating |
IP40 (IP42 with base waterproof protection) |
|
Max Tolerated Humidity |
95% RH (Non-condensing) |
|
Dust Protection |
Dust Restrictor Chamber (DRC) |
|
LED Indication |
360° Visibility LEDs |
|
Standards Compliance |
EN54-5 (Heat Detectors), EN54-7 (Smoke Detectors) |
|
Installation Standard |
India IS 2189 (2026) / NBC /NFPA 72 / ISO 7240 / EN54 |
|
Certification |
CE Compliant (EN 54) — ERTL / NABL Tested |
|
Veiga Seires |
Part Number |
|---|---|
|
1 to 4 Loop Addressable Fire Alarm Control Panel |
VEIGA-FAP-1001 / VEIGA-FAP-1002 / VEIGA-FAP-1004 |
|
Network Active Repeater Panel |
VEIGA-FAP-2001 |
|
Backnet/ModBus Card |
FAP-ModBus |
|
RS-485 Network communication card |
VEIGA-FAP-3002 |
|
Handheld Programmer |
VEIGA-IND-ALPU1000 |
|
Addressable Photothermal(Multi) Detector |
VEIGA -IND-OH |
|
Addressable Optical Smoke Detector |
VEIGA -IND-OP |
|
Addressable ROR cum Fixed Temperature |
VEIGA -IND-HT |
|

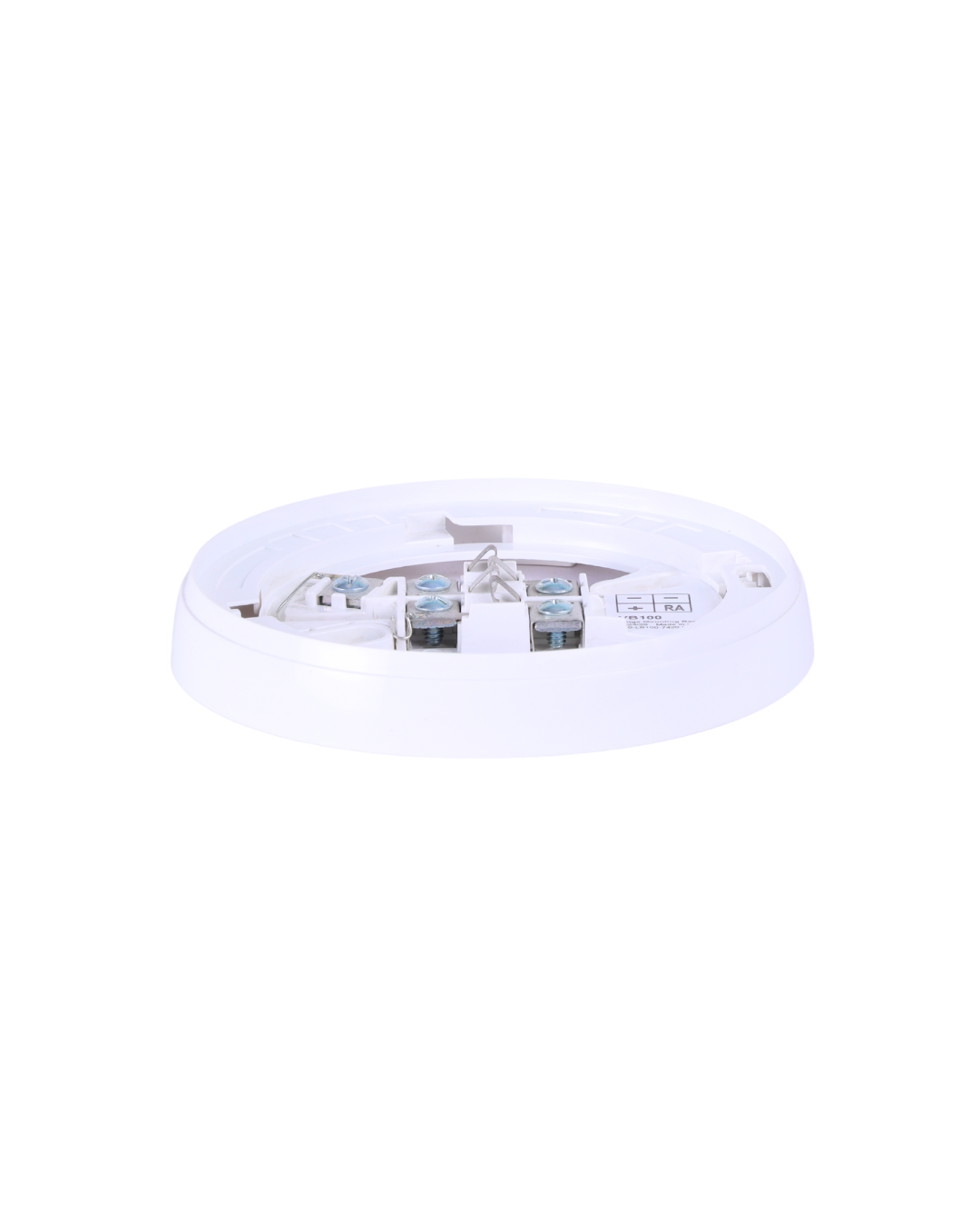

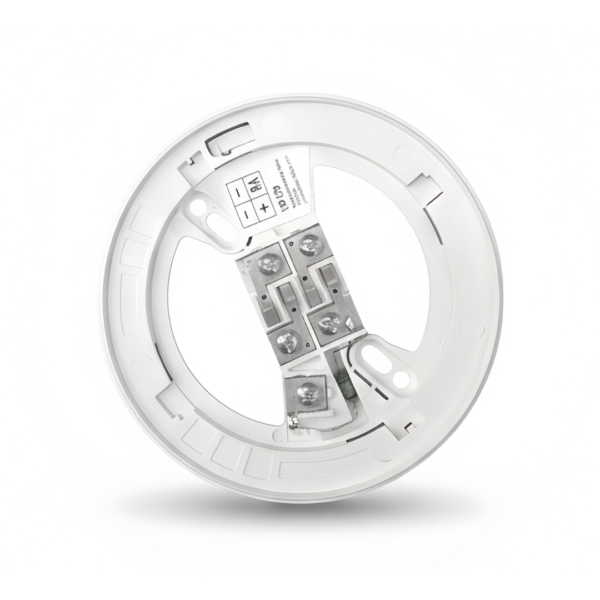

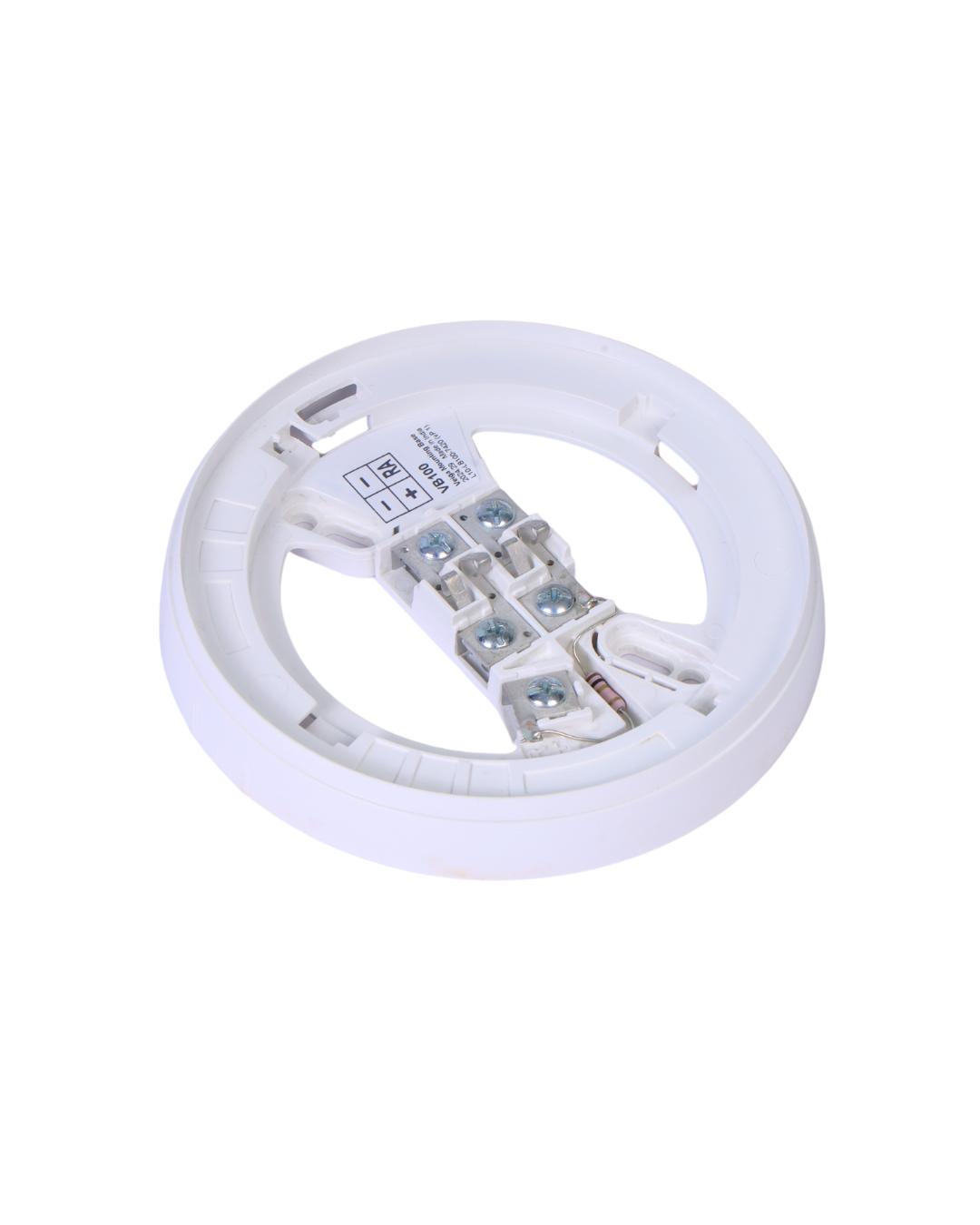

Stander Detector Base |
IND-MB |
|
Intelligent Addressable Loop Sounder Base |
IND-S2MB / IND-SV2MB |
|
Isolator Base |
IND-ISO-B (Comming Soon) |
|
Intelligent Addressable Loop Sounder cum Bcecon |
IND-WSM+LPM |
|
Intelligent Addressable Manual Call Point |
IND-ALCP100 |
|
Addressable Input/Monitor Module |
IND-VMI100 |
|
Addressable Control Module |
IND-VMIC-120 |
|
Addressable Zone Monitor Module |
IND-VMCZ100 |
|
Addressable Isolator Module |
IND-LVMX100 |
How it Works
How does the Agni Veiga Thermal Rate of Rise Cum Fixed Temperature Detector Work?
The Agni Veiga Series Intelligent Addressable Thermal Rate of Rise Cum Fixed Temperature Detector continuously monitors the surrounding air temperature using an intelligent sensing element.
Application & Solution
- Electrical rooms and cable shafts
- Warehouses and storage facilities
- Workshops and manufacturing units
- Parking basements and service areas
- Laundry rooms and utility spaces
Application & Solution
- Electrical rooms and cable shafts
- Warehouses and storage facilities
- Workshops and manufacturing units
- Parking basements and service areas
- Laundry rooms and utility spaces
Right Instalation application For Smoke and Heat Addressable Fire Alarm Detector
Commercial Office Buildings
NBC 2025 compliant addressable fire alarm panel for IT parks, corporate towers, and corporate towers, and co-working spaces above 15m.
Hospitals & Healtcare
Device-level alarm precision ensures fast, targeted evacuation without false alarms disrupting patient care areas.
Industrial & Manufacturing
Rugged IP30 enclosure and loop fault diagnostics make the Veiga Series ideal for warehouses, factories, and process plants.
Government & CPWD Projects
CPWD DRL approved — eligible for Central and State Government buildings under CPWD Part VI DSR specifications.
Product in One Line
Detect dangerous heat buildup early and trigger a reliable fire alarm in environments where smoke detection is not effective.
Built as a True Addressable Thermal Detector
True intelligent addressable fixed-temperature, variable-threshold, and rate-of-rise thermal heat detection, engineered to international standards for the most demanding applications
Intelligent Digital Protocol
Fully digital communication with auto-addressing on compatible Agni-protocol control panels.
360° LED Visibility
Status and alarm condition readable from any approach angle for fast field diagnosis.
Dust Restrictor Chamber
Advanced immunity to airborne contaminants for long-term sensing stability.
4 Selectable Alarm Thresholds
Tune sensitivity to the risk profile of each protected zone.
Handheld Programming Tool
Compatible with Agni's programmable handheld device for quick field configuration.
Improves fire detection accuracy
Built in drift compensation smoke detector
Job to be Done
Primary Job
Help building owners and safety teams detect fire caused by abnormal heat rise or overheating and trigger an early, reliable alarm in environments where smoke detectors are not suitable.
Safety Job
Prevent fire-related injuries and property damage by reliably detecting abnormal heat rise or overheating early and activating timely fire alarms for safe evacuation and rapid response.
Functional Jobs
Detect rapid temperature increases caused by electrical faults or sudden combustion, Detect slow-developing fires when temperature reaches a fixed threshold, Provide precise addressable fire location to the control panel.
How does the Agni Veiga Thermal Detector Operate?
1. Continuous Temperature Sensing
The detector continuously monitors the surrounding air temperature using its built-in thermal sensing element.
2. Temperature Pattern Analysis
It analyzes both the rate of temperature rise and the absolute temperature value in real time.
3. Rate-of-Rise Detection
If the temperature increases rapidly at 7°C–10°C per minute, the detector identifies a fire condition and prepares to trigger an alarm.
4. Fixed Temperature Detection
If the temperature rises slowly and reaches approximately 57°C, the detector activates the alarm based on the fixed temperature threshold.
5. Alarm Signalling & Visual Indication
Once an alarm condition is confirmed, the detector sends its addressed digital signal to the control panel and activates 360° LED indication.
6. System Activation & Reset
The fire alarm control panel triggers alarms and safety responses. After the event is cleared, the detector resets and resumes normal monitoring.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Intelligent Thermal Rate of Rise Cum Fixed Temperature Detector |
|
Part Number |
AGNI IND-HT |
|
Series |
Veiga Series |
|
Detection Method |
Rate Of Rise + Fixed Temperature |
|
Loop Voltage |
15 Vdc - 40 Vdc |
|
Average Standby Current |
70 µA @ 24 Vdc |
|
Alarm Current |
6 mA @ 24 Vdc |
|
Temperature Range (Set) |
−30°C to +70°C |
|
Fixed temperature Threshold |
Approx. 57°C |
|
Rate of Rise Activation |
7°C to 10°C per minute |
|
Alarm Thresholds |
4 Selectable Alarm Thresholds |
|
Communication Protocol |
Intelligent Digital Communication |
|
Addressing |
Auto Addressing on Compatible Fire Panels |
|
LED Indication |
360° Cone of Visibility |
|
Humidity Tolerance |
95% RH (Non-Condensing) |
|
Max Loop Addresses |
240 / 256 |
|
Mounting Type |
Open Style Mounting Base |
|
Weight (with Standard Base) |
130g |
|
IP Rating |
IP40 |
|
Diameter |
Ø 110 mm |
|
Height |
48 mm |
|
Compliance Standards |
EN 54-5, IS 2189:2175:1988 |
|
Certification |
CE Compliant |
Frequently Asked Questions
It is a heat detector that activates an alarm when it senses a rapid rise in temperature or when a fixed temperature threshold is reached.
The detector continuously monitors temperature changes. It triggers an alarm if the temperature rises rapidly (7°C–10°C per minute) or reaches approximately 57°C.
Yes it supports auto addressing on compatible intelligent fire alarm control panels, simplifying installation and configuration.
It conforms to EN 54-5 and IS 2189:2175:1988 standards and is CE compliant.
The detector has an IP40 rating, which increases to IP42 when used with a waterproof mounting base.
The detector has an IP40 rating, which increases to IP42 when used with a waterproof mounting base.
Intelligent Addressable Thermal Fixed Temperature Heat Detector
Agni Veiga IND-HT intelligent thermal rate of rise cum fixed temperature heat detector. EN 54-5 & IS 2189 complaint, addressable fire alarm solution.
