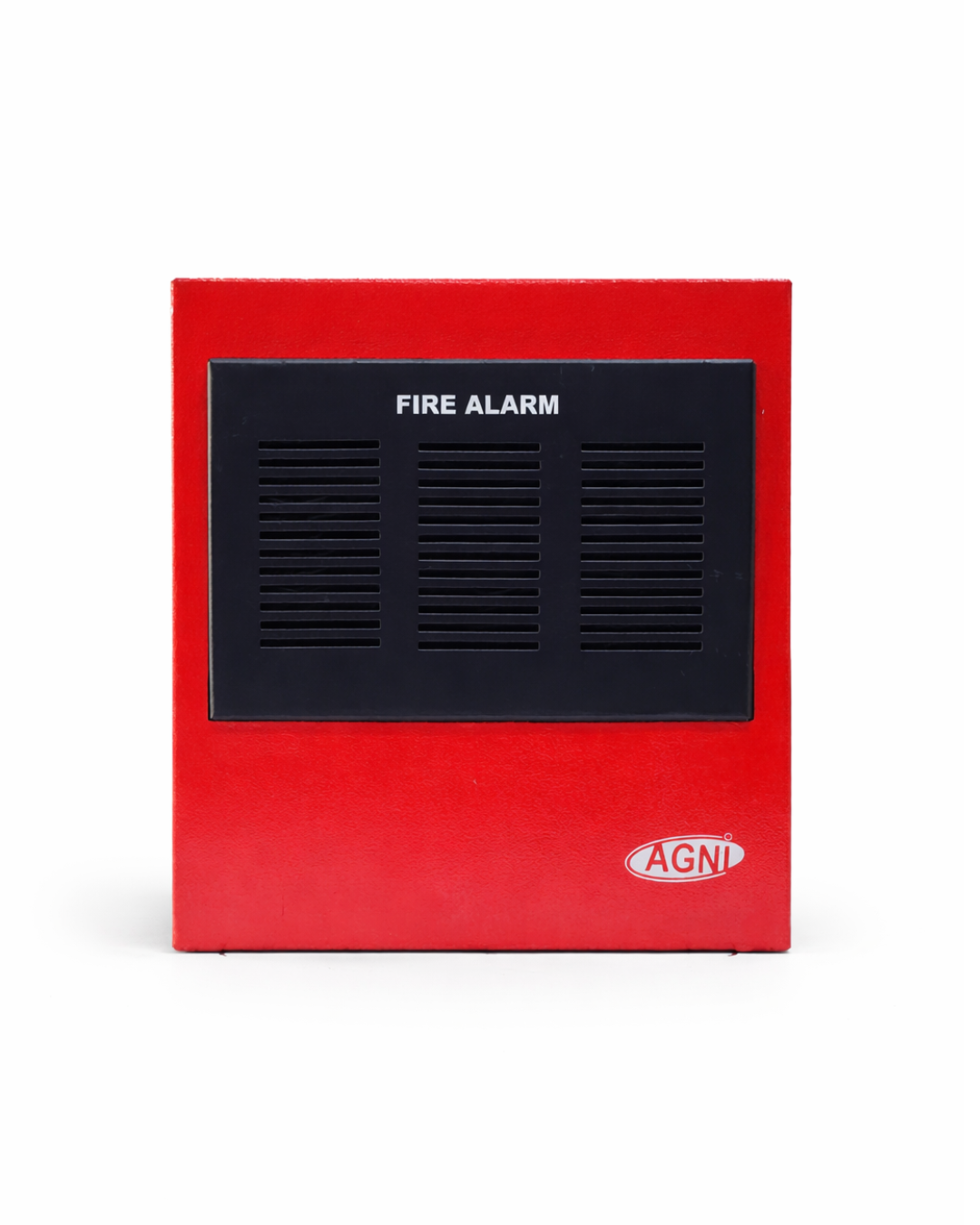

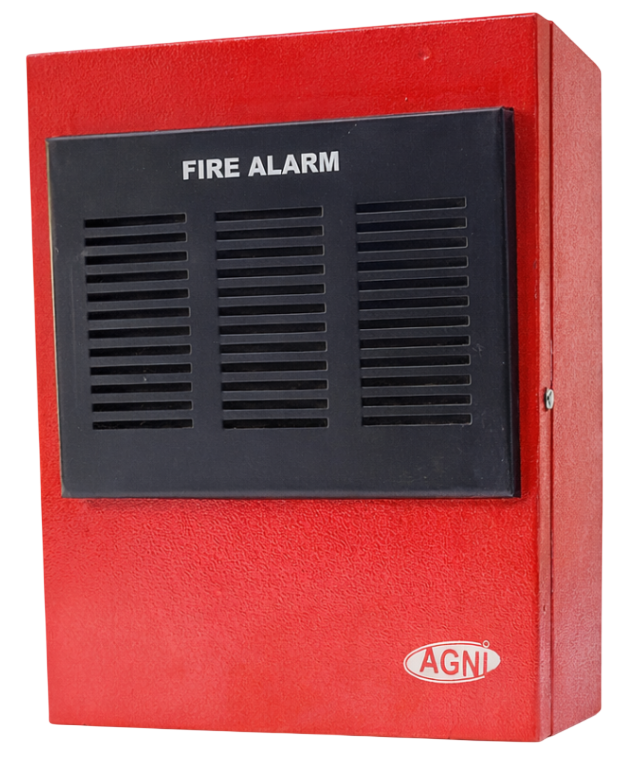

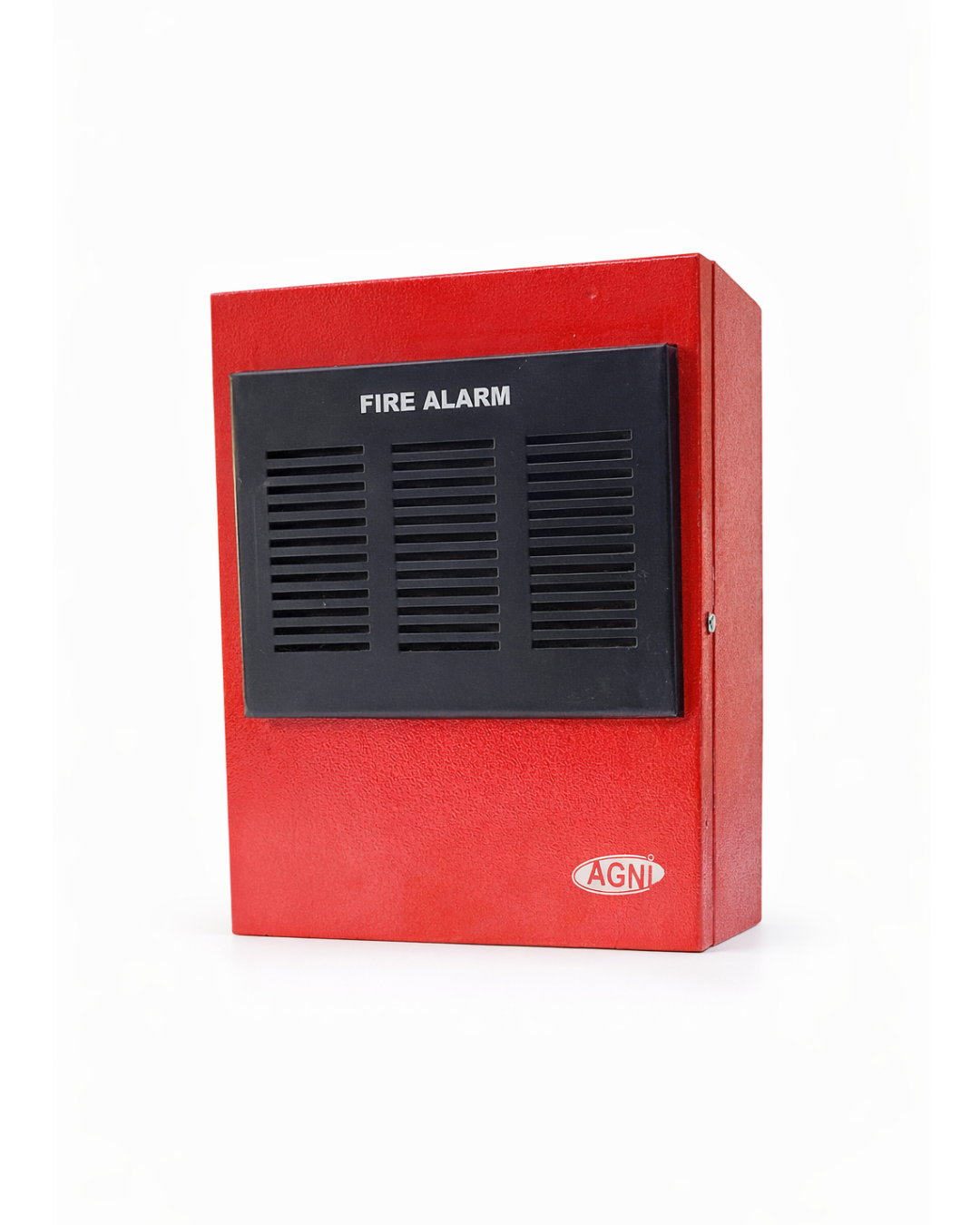

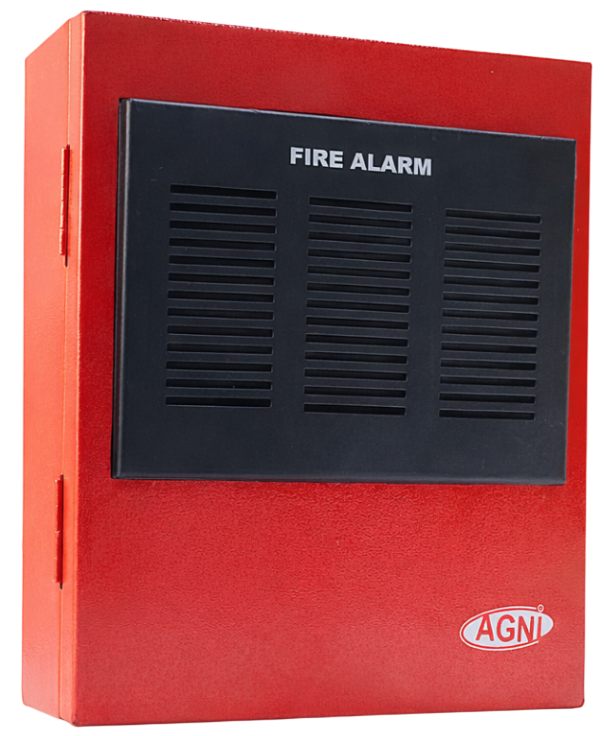

High-intensity Hooter Built With A Robust Sheet-metal Enclosure
The Agni 418 High Intensity Hooter is a powerful audible audible alarm device designed for 24V DC conventional fire alarm systems. Producing 95-115 dB sound output, it provides loud emergency alerts for industrial, commercial, and high-noise environments. The hooter features a robust sheet-metal enclosure, efficient 6-Watt loudspeaker, and a dual-tone pulsed alarm signal for maximum audibility during fire emergencies.
Part Number: AGNI-418 | Category: Hooter/Hooter Flasher/Hooter cum Speaker
Description
The Agni 418 High Intensity hooter is a heavy-duty audible warning device designed to deliver immediate alarm signals during fire emergencies or critical alarm conditions. It integrates seamlessly with 24V DC conventional fire alarm control panels, ensuring reliable operation across a wide range of applications.Â
When an alarm is triggered by smoke detectors, heat detectors, or manual call points, the fire alarm panel activates the hooter circuit. The internal solid-state electronics generate a pulsed dual-tone alarm signal, which drives the built-in loudspeaker to produce a highly audible warning sound.Â
With sound output reaching up to 115 dB, the device is capable of delivering clear alarm signals across large areas such as manufacturing plants, warehouses, commercial complexes, hospitals, and residential buildings.

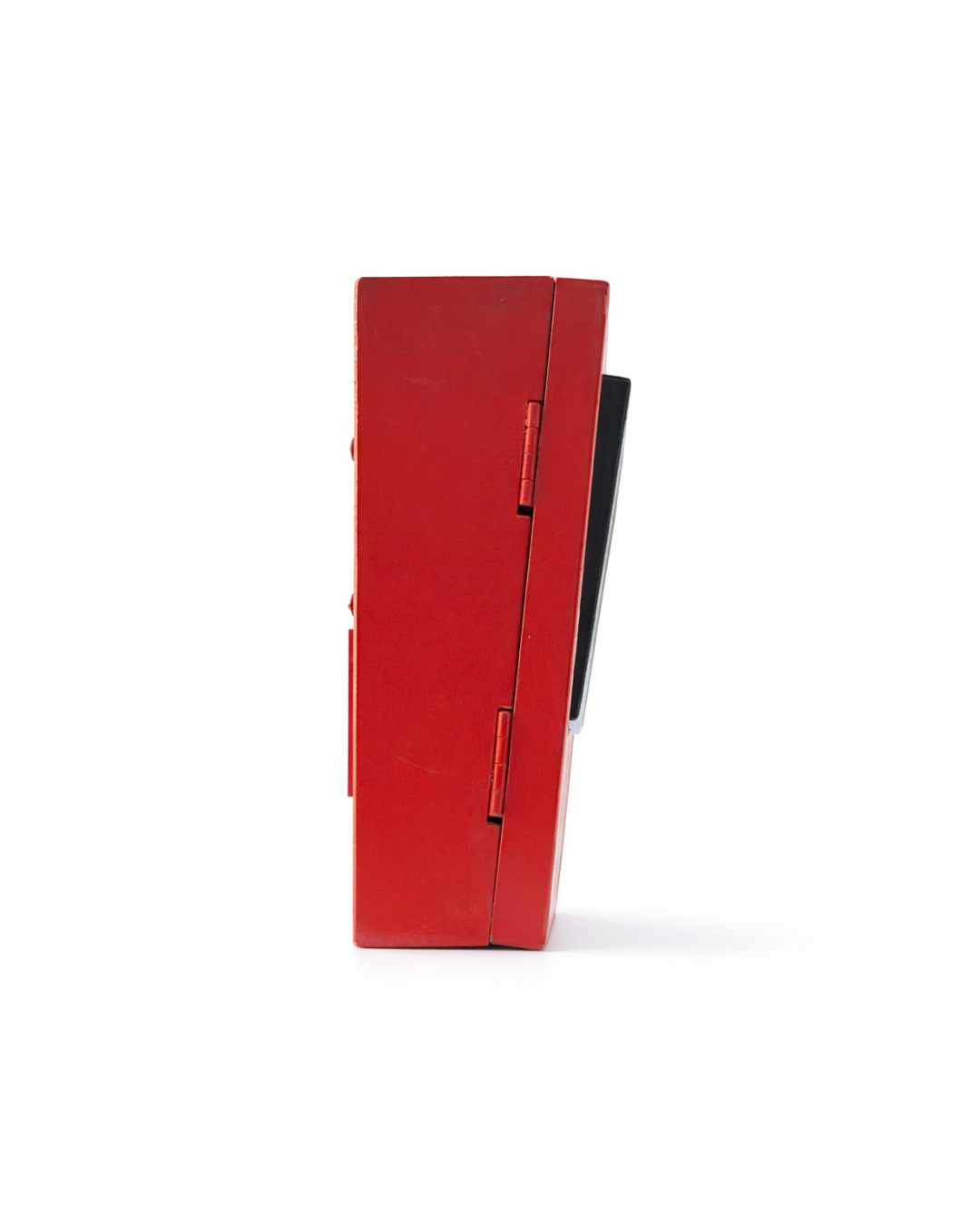

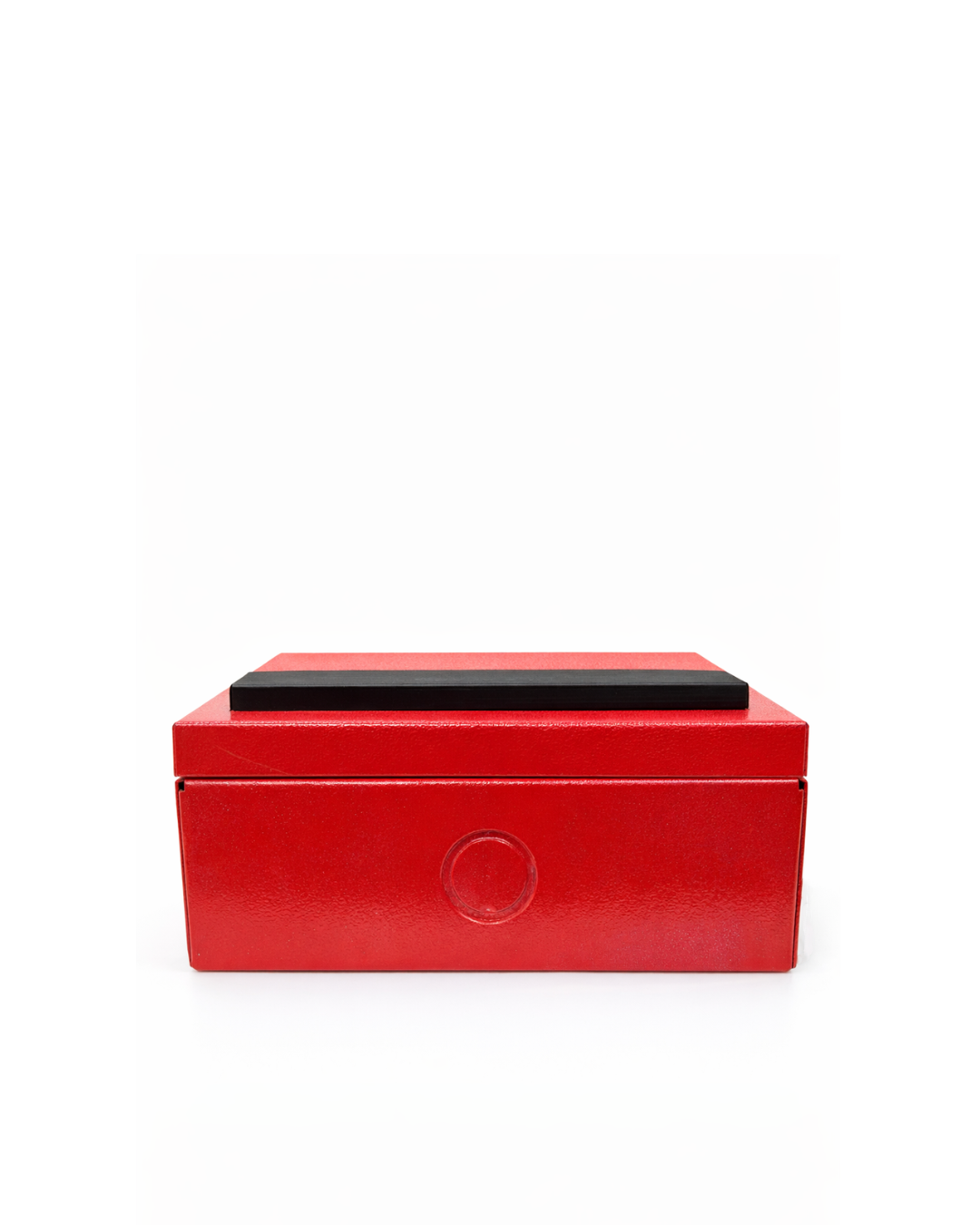

The hooter is constructed using a robust steel-metal enclosure, protecting the internal components from vibration, dust, and physical impact commonly present in industrial installations. Its solid-state electronic design eliminates mechanical moving parts, improving reliability white reducing maintenance requirements.Â
The integrated 8-Ohm, 6-Watt loudspeaker with a rectangular-oval diaphragm design (72 × 42.4 mm) ensures efficient sound protection and consistent acoustic performance.Â
How it Works
How does the Agni High Intensity Hooter Work?

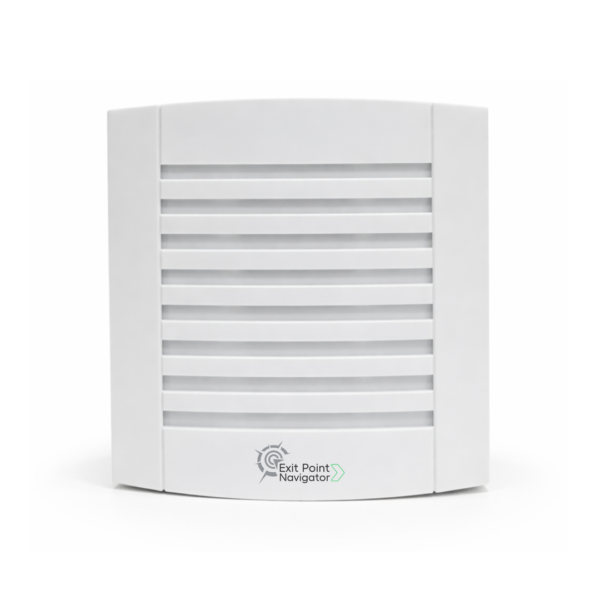

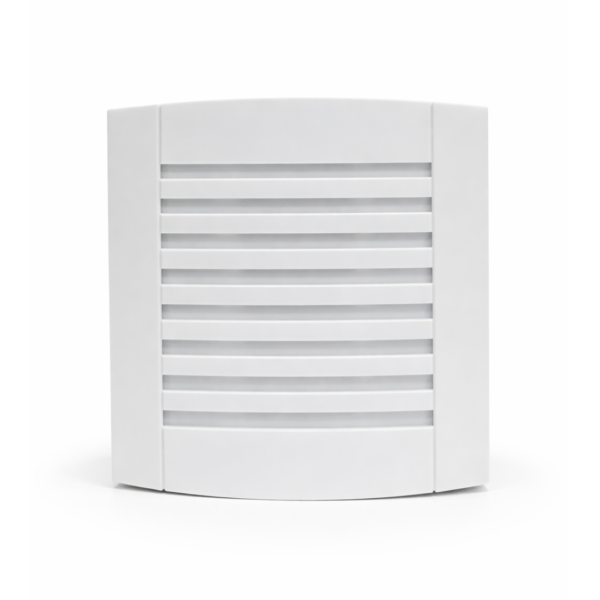

The Agni Adam Voice Alarm Series Plus Exit Point Navigator Sounder operates as an intelligent voice evacuation device within a fire alarm system. It not only produces a loud audible alarm but also delivers clear multilingual evacuation instructions to guide occupants safely.
Commonly Used
- Factory Emergency
- Warehouse Fire Alert
- Commercial Building Alarm
- Hospital Safety System
Step-by-Step High Intensity Hooter Working Principle?
01
Fire is Detected
Smoke detectors, heat detectors or a manual call point detect a fire or emergency condition and send a signal to the fire alarm control panel.
02
Alarm Panel Activates the Circuit
The fire alarm control panel processes the signal and sends a 24V DC trigger to the connected high intensity hooter.
03
Hooter Receives Power
Once the hooter receives the electrical signal, its internal electronic circuit activates immediately.
04
Alarm Tone is Generated
The device generates a pulsed fire alarm sound pattern (0.30 second ON / 0.30 seconds OFF) designed to stand out from normal background noise.
05
Loudspeaker Produces High-Volume Sound
The built-in 8-ohm, 6-watt loudspeaker convert the signal into a powerful audible alarm with 95-115 dB sound output.
06
Occupants Hear the Alarm and Evacuate
The loud alarm spreads across the area, alerting people to evacuate and take safety action during a fire emergency.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Part Number |
AGNI-418 |
|
Operating Voltage |
24V DC (±6%) Input Trigger |
|
Maximum Sound Pressure Level |
95 to 115 dB SPL @1 meter |
|
Sound Pattern |
Fire Alarm Pulsed Tone - 0.30 sec ON / 0.30 sec OFF |
|
Sound Frequency |
1000 to 3000 Hz, 520 Hz Signal (±10%) |
|
Maximum Current |
195 mA |
|
Speaker Type |
8 Ohm, 6 Watt Loudspeaker |
|
Speaker Diaphragm |
72 × 42.4 mm Rectangular-Oval |
|
Nominal Sound Dispersion |
120° Horizontal × 40° Vertical |
|
Enclosure Material |
1.2 or 1.6 SWG Solid Sheet Metal Profile |
|
Body Color |
Standard Red |
|
Dimensions (H × W × D) |
200 mm × 180 mm × 75 mm |
|
Shipping Weight |
1800 g (Gross weight with packing) |
|
Application |
Fire alarm audible warning device |
|
Compatibility |
Conventional 24V DC fire alarm systems |
Job to be Done
Primary Job
To provide a loud and immediate audible warning during fire emergencies, ensuring occupants are alerted quickly so they can evacuate safely when a fire alarm system is triggered.
Safety Job
To improve life safety and emergency response by delivering a clear, recognizable fire alarm sound that can be heard even in noisy environments, helping occupants respond quickly and reduce risk during fire incidents.
Functional Jobs
To generate a high-intensity alarm sound (up to 115 dB) when activated by a 24V DC fire alarm control panel, enabling clear and reliable emergency alerts across industrial, commercial, and residential environments.
FAQ
What is a high intensity hooter used for?
A high intensity hooter is an audible warning device used in fire alarm systems to alert occupants during emergencies. It produces a loud alarm sound so people can quickly recognize danger and evacuate safely.
What is a high intensity hooter used for in a fire alarm system?
A high intensity hooter is an audible alarm device used in fire alarm systems to warn occupants during emergencies. It produces a loud alarm sound so people can quickly recognize danger and evacuate safely.
Where is the high intensity hooter typically installed?
The hooter is usually installed in places where clear audible alerts are required, such as:
- Industrial plants
- Warehouses
- Commercial buildings
- HospitalsÂ
- Residential Complexes
