Conventional Indoor Resettable Manual Call Point Constructed From High-Impact ABS Plastic | Manual Call Station
The AGNI-302 Manual Call Point Resettable. 24V DC conventional fire alarm activation device designed for industrial and commercial safety applications. Featuring polarity-free wiring, integrated on-spot reset switch, blinking red LED status indicator, constructed from high-impact ABS plastic, providing strong durability, impact The AGNI-302 Manual Call Point Resettable constructed from high-impact ABS plastic in a 24V DC conventional fire alarm activation device designed for industrial and commercial safety applications. Featuring polarity-free wiring, integrated on-spot reset switch, blinking red LED status indicator, constructed from high-impact ABS plastic, providing strong durability, impact resistance, and long service life, making it suitable for indoor environments (IP21C), it ensures reliable emergency response and easy maintenance.
Part Number: AGNI-403 | Category: Manual Call Station
Description

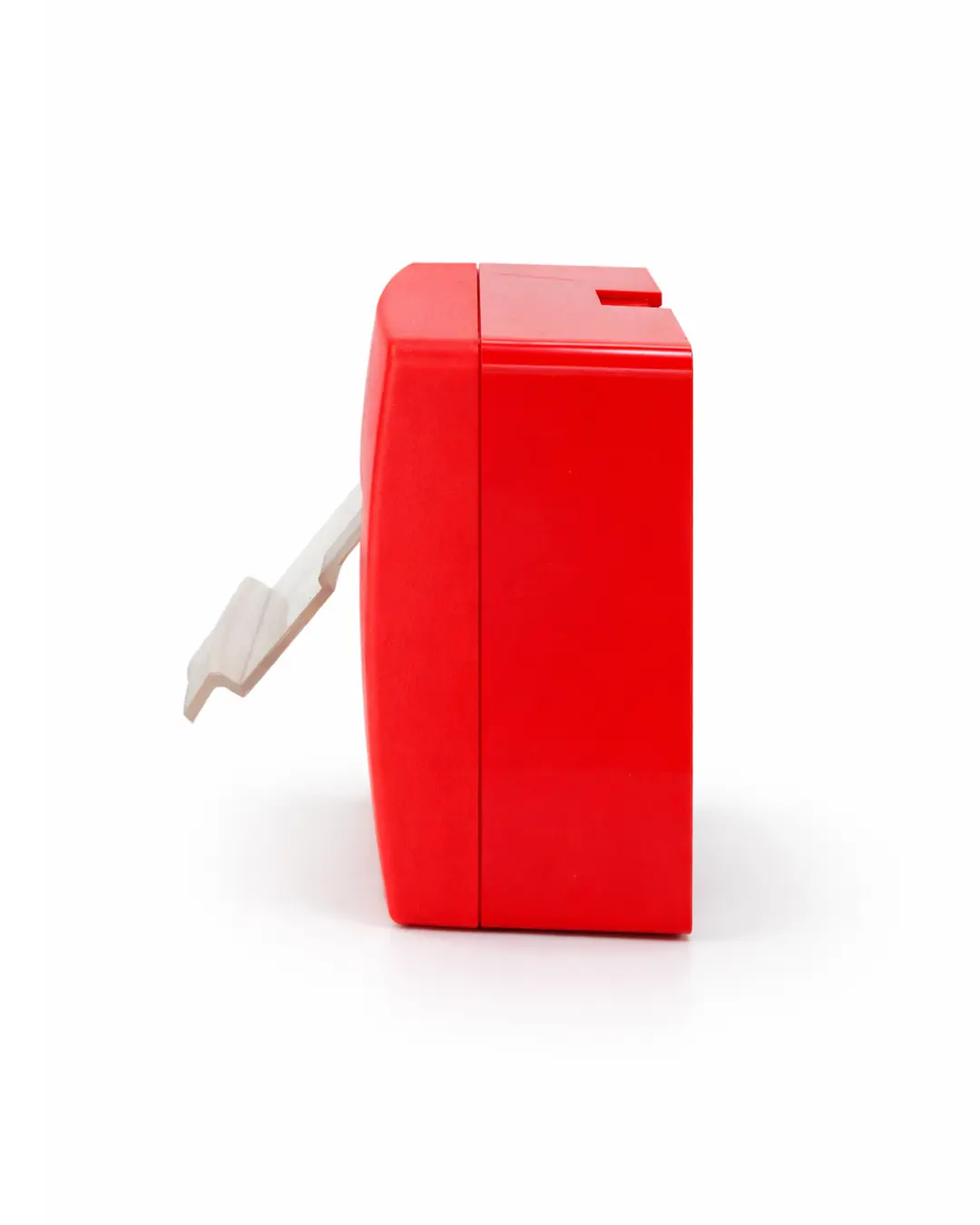

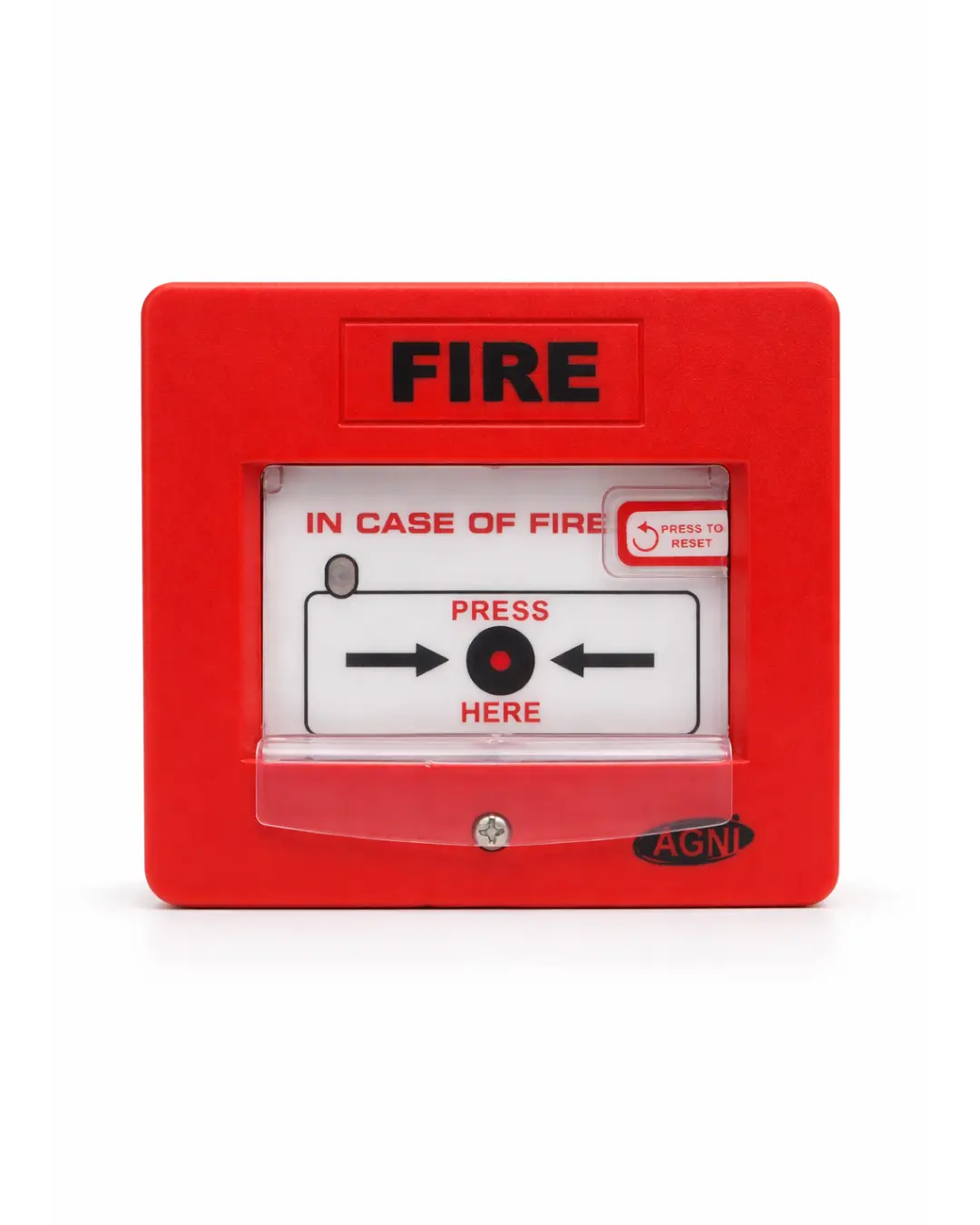

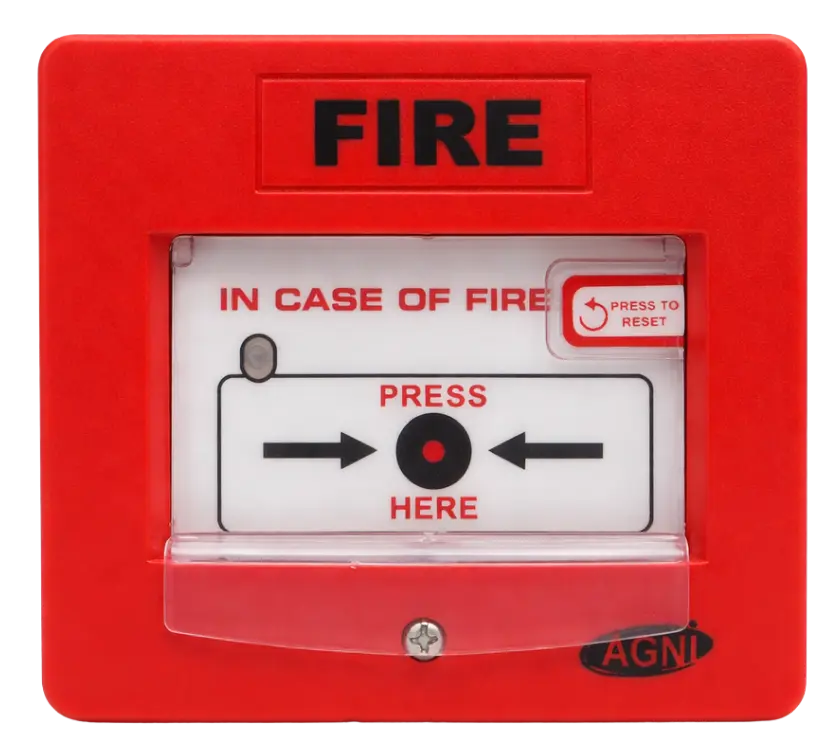

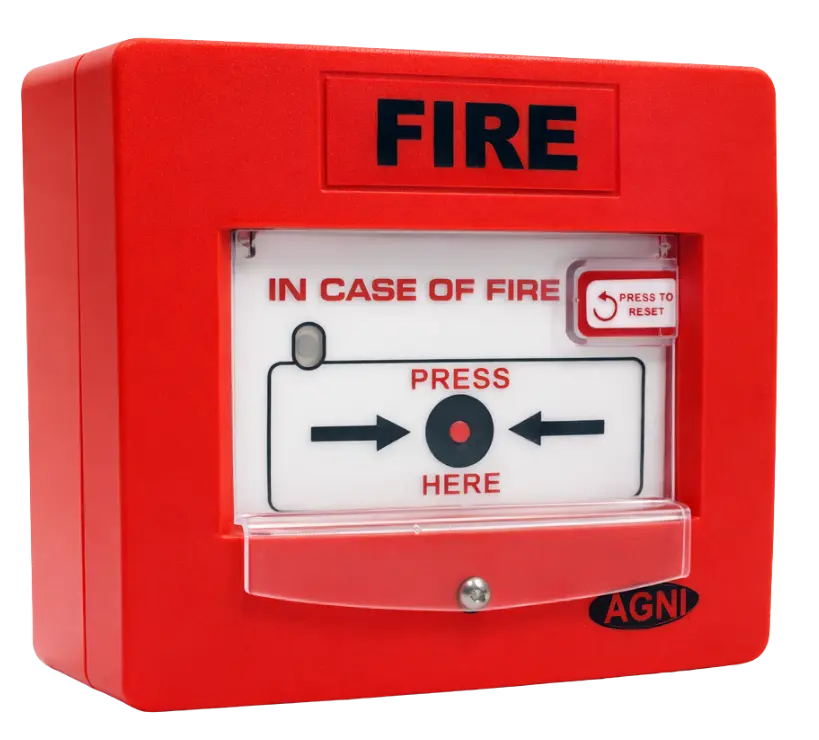

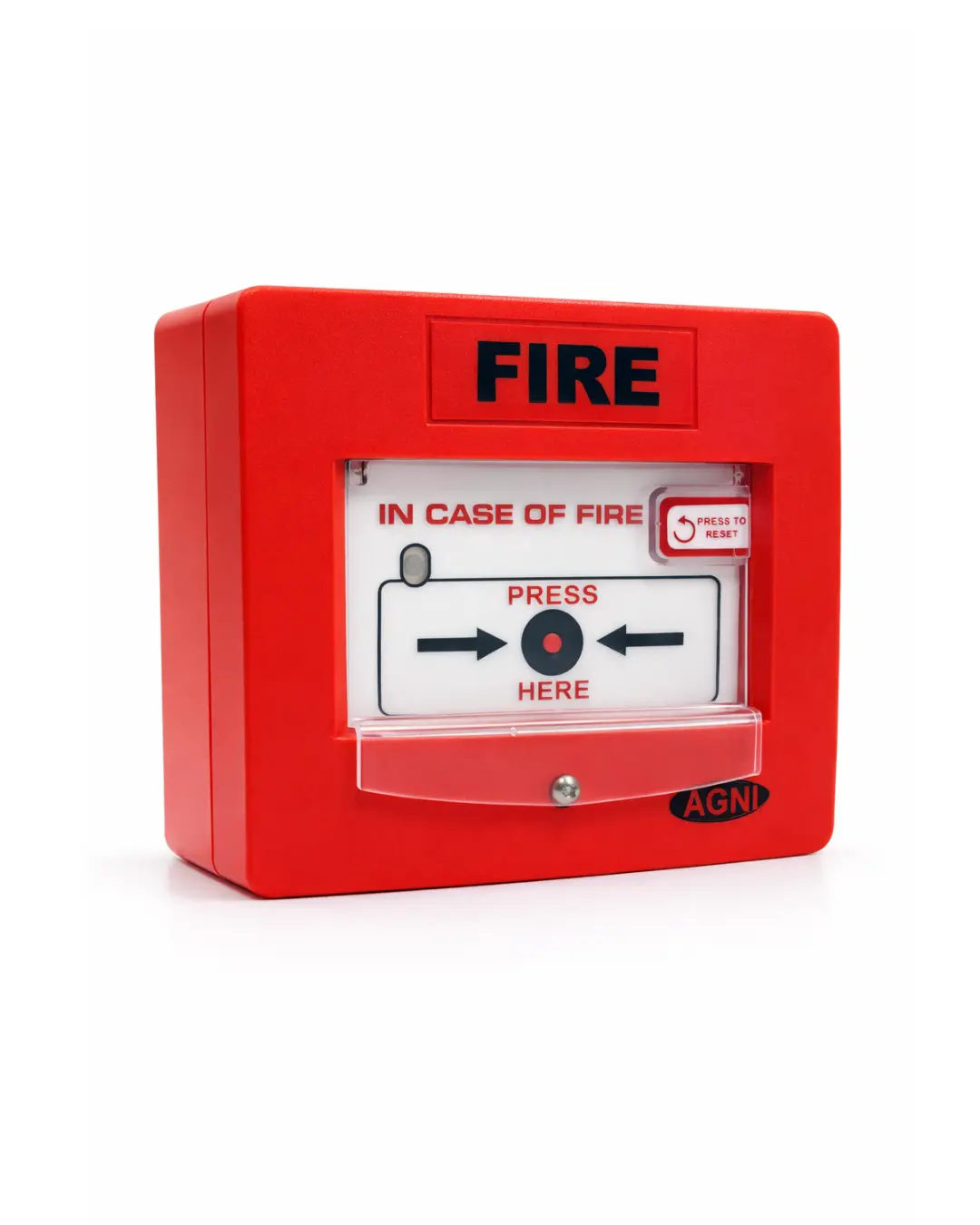

The Agni-302 Manual Call Point Resettable constructed from high-impact ABS plastic is a reliable and universally designed conventional fire alarm activation device built for fast emergency response and long-term performance.
Engineered for use in conventional fire detention systems, this manual call point provides immediate alarm triggering during fire emergencies. The wide-angle red LED (120°) blinks to indicate healthy operational status and remains ON when the unit is activated.Â
Designed for simplified installation and maintenance, the device features:
- Integrated on-spot reset switch (no separate key required)
- Polarity-free wire connection for easier wiring
- Low power consumption
- Dome switch thyristor latch mechanismÂ
- Integrated circuit logic

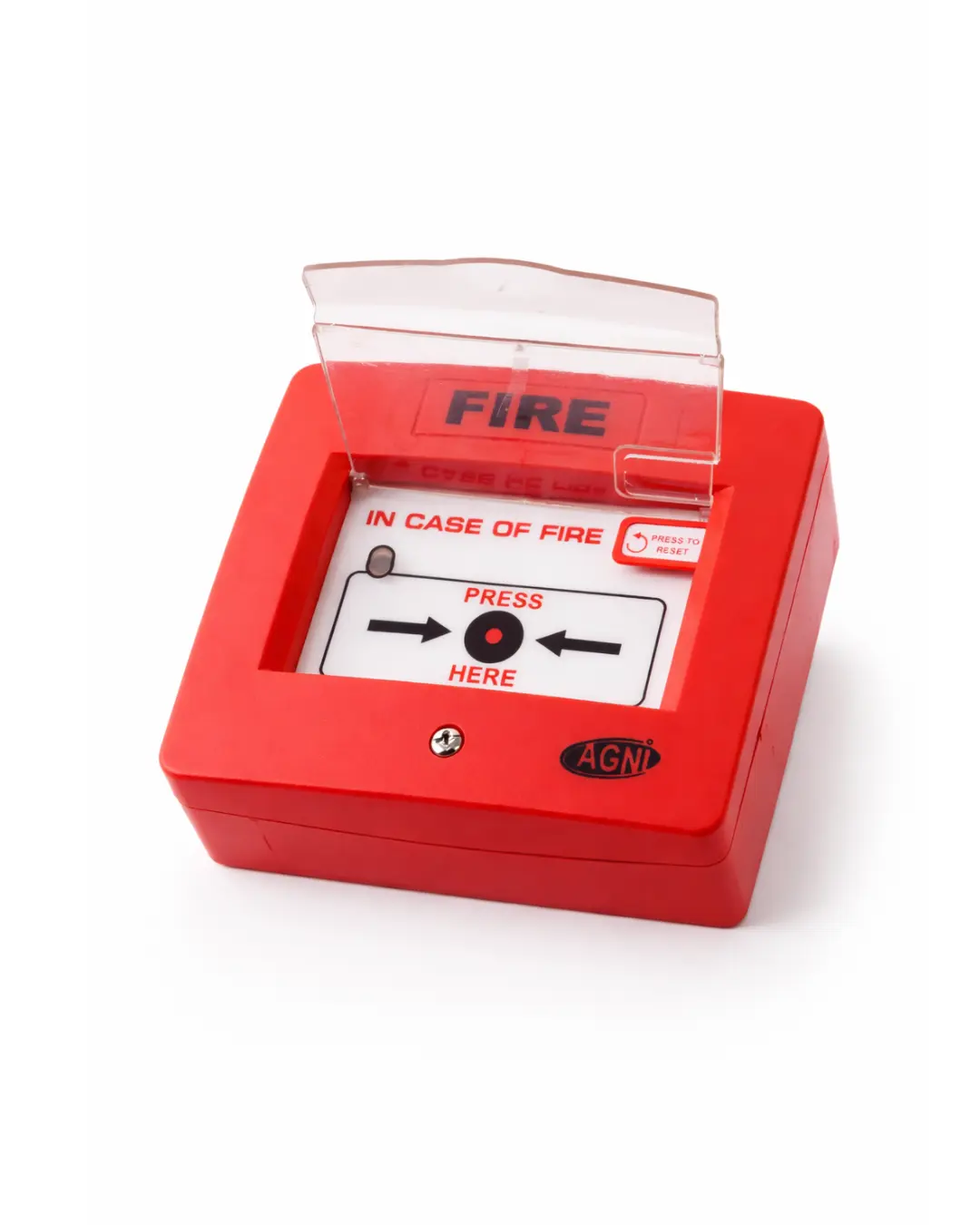

The enclosure is constructed from ABS – Acrylonitrile Butadiene Styrene high-strength plastic, ensuring durability in demanding industrial and commercial environments. A transparent polycarbonate front cave protects against tampering and false alarms.
With IP21C indoor rating and compliance with EN 54-5-7 and IS 2189 standards, the AGNI-302 is suitable for installation along escape routes, near exits, and staircase landings at the recommended height of 1.4 m ± 0.2 m above finished floor level.
How it Works
How does the Manual Call Point Resettable Work?
The Agni-302 Manual Call Point is designed to provide fast and reliable manual fire alarm activation in conventional fire alarm systems. Below is a simple step-by-step explanation of how it functions during normal operation and emergency situations.
Commonly Used
- Commercial buildingsÂ
- Industrial facilitiesÂ
- Office complexesÂ
- Hospitals
- Schools
- Fire alarm system installations
Step-by-Step Manual Call Point Working Principle?
01
System Power Supply
The device is connected to a conventional fire alarm control panel operating at 24V DC (±6%). Once powered, the internal circuit begins monitoring the fire alarm zone.
02
Status Monitoring
A wide-angle red LED (120°) continuously blinks to indicate the device is healthy and in standby mode. This confirms proper wiring and operational readiness.
03
Manual Activation
In case of fire or emergency, the user presses the centre push alarm switch. The internal dome switch with thyristor latch mechanism activates immediately.
04
Alarm Signal Transmission
Upon activation: The zone circuit is triggered, The system draws up to 20 mA alarm current, The LED turns steady ON. The control panel receives the signal and activates connected alarm devices.
05
Circuit Stability
The device uses Integrated Circuit Logic with specified alarm resistance (560Ω / 1k Watts) to ensure accurate signal transmission and prevent false triggering.
06
For Reset / Silence
After the emergency is resolved: The On Spot Reset Switch is used, The device returns to standby mode, The LED resumes blinking. No additional key is required, ensuring fast and simple restoration.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Part Number |
AGNI-302 |
|
Product Type |
Manual Call Station |
|
System Type |
Conventional Fire Alarm System |
|
Operating Voltage |
24V Dc (±6%) |
|
Operating Temperature |
-2ºC to +87ºC |
|
Maximum Alarm Current |
20 mA in case of fine |
|
Alarm Resistance |
560Ω / 1k Watts |
|
LED Indicator |
Red Color wide angle 120° |
|
Status Indication |
Blinking Red LED indicates Status healthy or Fire continue |
|
Centre Push Alarm Switch |
Dome switch Thyristor latch |
|
Alarm Reset |
On Spot Reset Switch |
|
Contact Configuration |
Integrated Circuit Logic |
|
Enclosure Material |
ABS high Strength Plastic |
|
Protection Category |
Type A - Indoor Use / Reate IP21C |
|
Maximum Tolerated Humidity |
95% RH |
|
Connectors |
External cable / Polarity free wire connection |
|
Body Color |
STD RED |
|
Dimensions (H × W × D) |
89 mm × 113 mm × 52 mm |
|
Net Weight |
140g |
|
Shipping Weight |
155 g (Gross weight with packing) |
|
Standards Compliance |
EN 54-5-7, IS 2189, ERTL / NABL |
Job to be Done
Primary Job
Enable occupants to manually trigger a conventional fire alarm system instantly during an emergency to ensure immediate evacuation and rapid response.
Safety Job
Ensure safe, tamper-resistant, and durable emergency activation in indoor environments while minimizing false alarms and enabling quick system restoration after incident resolution.
Operational Job
Provide reliable 24V DC manual alarm activation with clear LED status indication, polarity-free wiring, integrated reset switch, and stable circuit communication with the fire alarm control panel.
FAQ
What is a manual call point in a fire alarm system?
A manual call point is a device used to manually trigger a fire alarm system during an emergency. When pressed, it sends a signal to the fire alarm control panel to activate alarms and alert occupants.
How does the Agni-302 manual call point work?
The Agni-302 operates on 24V DC (±6%). When the center push switch is pressed, it activates the zone circuit using a dome switch with thyristor latch, triggering the fire alarm system immediately.Â
Is the Agni-302 manual call point resettable?
The agni-302 features an integrated On Spot Reset Switch, allowing the device to be reset quickly without needing an additional key.
What voltage does the Agni-302 manual call point require?
The Agni-302 requires 24V DC with a tolerance of ±6%, making it compatible with conventional fire alarm control panels.
Where should a manual call point be installed?
As per IS 2189 guidelines, manual call points should be installed at 1.4 meters ± 0.2 meters above finished floor level, typically near exits, staircase landings, and escape routes.
