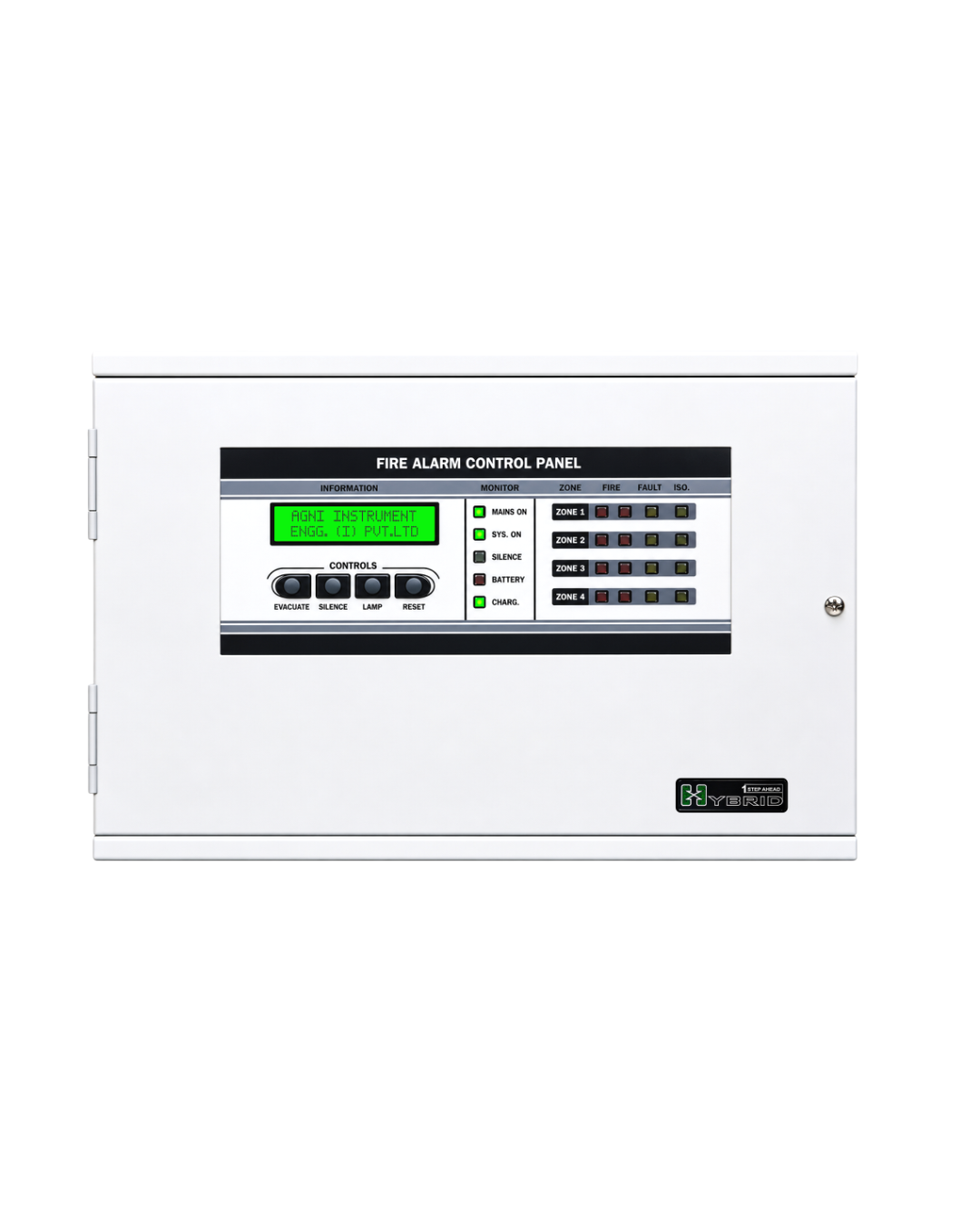

Agni Hybrid 2 & 4 Zone Fire Alarm Control Panel - Image 1

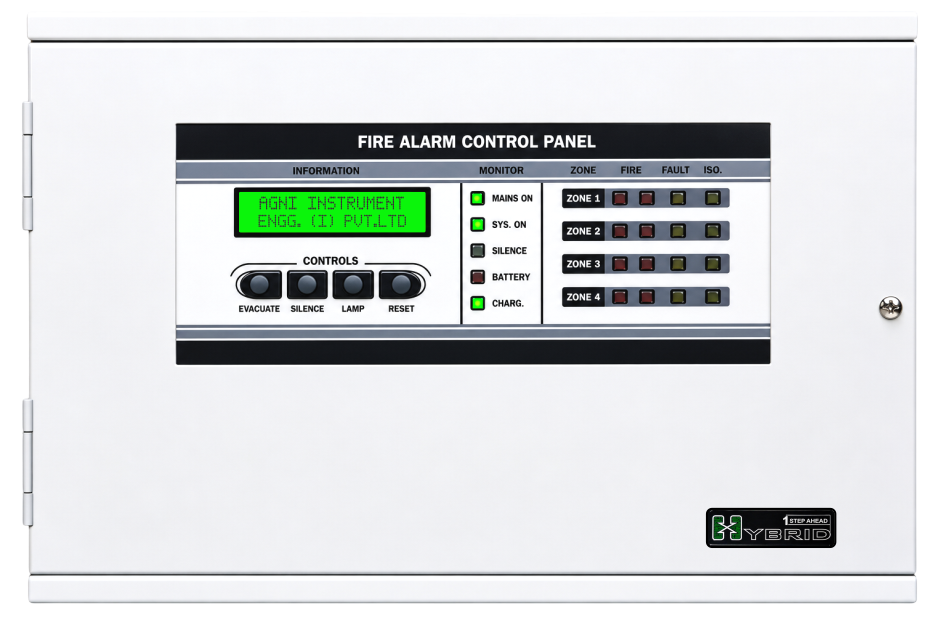

Hybrid 2 to 4 Zone Conventional Fire Alarm Control Panel

The Agni Hybrid is a microprocessor-based 2 zone and 4 zone fire alarm control panel for small and medium buildings. It watches every zone loop for open and short circuits, shows each zone’s status on its own LED and on a 16×2 LCD, and keeps running on battery during power cuts.

Part Number:
AGNI HYBRID-1002 | 1004

Product Overview

Conventional fire alarm control panel built for everyday buildings

A conventional fire alarm panel divides a building into zones and tells you which zone has a fire. The Agni 2-4 Zone Hybrid Panel does this on a microprocessor platform, so alarm processing, fault monitoring and notification control sit in one panel that is simple to install and easy for staff to read.

A conventional system, detectors and manual call points are wired in zones, and the panel tells you which zone is in alarm. The Agni Hybrid keeps that simple, proven approach and adds microprocessor control, a clear LCD and careful battery management.

It works with other brands standard smoke detectors, heat detectors, hooters and sounders, so you can specify it without locking a site into one device range. If you are comparing a 2 zone fire alarm panel against a 4 zone fire alarm panel, both share the same cabinet, display and operating logic.

The panel scans every zone automatically every 90 seconds and supervises field wiring for open and short circuits. It runs on 230 V AC mains with a 24 V DC battery backup and protects the batteries during long power cuts. Choose the 2 zone fire alarm panel for a small floor or shop, or the 4 zone fire alarm panel for large premises.

Fire Deteciton standards

Certifications & Compliance

CE
European Conformity

EN54-4 | EN45-2
European Certification

UL 217:2024
Functionality Compliance

IS 2189: 2022
NABL Laboratories Test Certified

ERTL North (Govt. India)
Functional Test Certified

Standard Code of Practice
INDIA- BIS | NBC

Approved Department

Government of India
Department of CPWD / PWD
Complied with CPWD DSR

Technical Specifications

Full Technichal Specificaiton - Hybrid

Parameter	Specification
Control Type	Conventional
Part Number	AGNI HYBRID-1002 / 1004
Loops Supported	2 / 4 Loops (Model Dependent)
Standards	IS 2189:1999 \| EN 54
Zones	2 or 4 conventional zones
CPU	8-bit peocessor
Dispaly and keys	16×2 LCD dot matrix, backlit; 4 kyes
Zone scan	Every 90 seconds, automatic
Zone inslation	Internal 4-way DIP switch
Enclosure	CRCA sheet steel, powder-coated
Cabinet Size (H × W × D)	(240 × 350 + 95 mm)

Parameter	Specification
Mains Supply	230 VAC
System operating voltage	24 V DC to 35 V DC
Battery backup	2 × 12 V 7.2 Ah sealed lead-acid, in series (24 V DC)
Charging	26.6 V DCk international inbuilt charger
Fuses	AC 0.5 A \| DC 1.5 A \| Battery 3.0 A

Parameter	Specification
Zone detection voltage	23.5 V
End-of-line resistor	4.7 kΩ per zone
Compatible devices	Standard smoke and heat detectors, hooters and sounder of other brands
Relay outputs	Fire and Fault, each C / NO / NC
Sounder outputs	Common hooter output; zone-wise hooter relay output
Cable entry	7 knockouts, 20 / 25 mm (top, bottom, rear)
Earth Fault Monitoring	Yes
PBUS Output	RS-485 / Optional Port – RSU Comms, fused at 20 mA
Zone Normal Threshold	Minimum 192 analogue value (0 – 255 range)
Temp Sense Input	Thermistor TTC5103 – 10,000 Ohms @ 25°C (battery temperature compensation)
Loop (Addressable Circuit)	Max current 500 mA \| Max 240 devices per loop
Detection Zones	1 to 18 Detection Zones

Conventional Seires	Part Number
Hybrid 2 to 4 Zone Control Panel	AGNI HYBRID-1002 / AGNI HYBRID-1004
Network Active Repeater Panel	VEIGA-FAP-2001
BACnet/ModBus Card	FAP-ModBus
RS-485 Network communication card	VEIGA-FAP-3002
Handheld Programmer	VEIGA-IND-ALPU1000
Addressable Photothermal(Multi) Detector	VEIGA -IND-OH
Addressable Optical Smoke Detector	VEIGA -IND-OP
Addressable ROR cum Fixed Temperature	VEIGA -IND-HT
Standard Detector Base	IND-MB
Intelligent Addressable Loop Sounder Base	IND-S2MB / IND-SV2MB
Isolator Base	IND-ISO-B (Comming Soon)
Intelligent Addressable Loop Sounder cum Beacon	IND-WSM+LPM
Intelligent Addressable Manual Call Point	IND-ALCP100
Addressable Input/Monitor Module	IND-VMI100
Addressable Control Module	IND-VMIC-120
Addressable Zone Monitor Module	IND-VMCZ100
Addressable Isolator Module	IND-LVMX100

Key Features

The Agni Conventional Fire Alarm Panel Stand Out For

Cost-effective protection

Competitive pricing for a 2 zone or 4 zone conventional fire alarm panel, without cutting corners on reliability.

Battery management

The CPU raises the charging rate when the battery is low and powers the panel off on deep discharge to protect the batteries.

Minimal inventory

Compatible with standard detectors, hooters and sounders, which keeps spareparts stock small.

Fast commissioning

One-touch zone testing and automatic zone status detection at start-up shorten site handover.

90-second scanning

Every zone loop is scanned automatically every 90 seconds, with no operator action needed.

Clear operator feedback

Separate buzzer tones for fire and fault, colour-coded LEDs, and zone-wise fire and fault messages on the LCD.

Product in One Line

The Agni 2-4 Zone Hybrid Panel is a microprocessor-based conventional fire alarm control panel for small and medium buildings, with a 16×2 LCD, automatic 90-second zone scanning, zone isolation and 24 V battery backup.

User Manual

1.5-1.8

Meters

Installation

Installation must be done by qualified personnel. Mount the panel 1.5 m to 1.8 m above floor level, fit a 4.7 kΩ end-of-line resistor at the last device on each zone, and keep cables away from high-voltage wiring. Disconnect mains and batteries before working inside the enclosure.

FAQs

Frequently Asked Questions

What is a conventional fire alarm panel?

It is a fire alarm control panel that monitors detectors and manual call points wired in zones. When one activates, the panel shows which zone is in alarm, but not which individual device.

Can I use other brands detectors with the Agni panel?

Yes, The Panel works with standard conventional smoke detectors, heat detectors, hooters and sounders, with a 4.7 kΩ end-of-line resistor on each zone.

Does Agni export fire alarm control panels?

Yes. Agni Instruments Engineers India Private limited has manufactured fire alarm systems in New Delhi since 1989 and exports to more than 14 countries.
