Water Leak Detection

The AGNI-WLD water leak detection system finds leaks at the first drop. A zone-wise panel and AGNI WLD sensing cable raise a local alarm, show where the leak is, and signal you BMS before water reaches live equipment.

Part Number:
AGNI-WLD-1002 / AGNI-WLD-1004

Product Overview

Water leak detection that stays ahead of the damage

Agni Instruments Engineers India Private Limited manufactures the AGNI-WLD Water Leak Detection System, designed to provide early warning of water leakage in sensitive areas such as server rooms, data centres, control rooms, equipment rooms, and other sensitive & critical installations.
Even a small water leak beneath a raised floor or near of equipment can cause significant damage to electrical and electronic systems, resulting in equipment failure. The AGNI-WLD system is designed to detect such leakage at an early stage and provide immediate warning .
system have microprocessor based intelligence in water leak detection panel, incorporating 12-bit embedded hardware and intelligent detection algorithms, with a specialised water leak detection sensing cable installed along floors, pipelines, cable trays, raised floors, or other areas requiring continuous monitoring.
The detected leakage condition and affected zone are displayed on the alphanumeric LCD display, enabling operators to quickly identify the location of the leakage.
The water leak detection cable continuously senses the presence of water. When water or leakage is detected, the system responds immediately and activates the programmed alarm output. The panel can operate its NAC output and relay contacts to activate external warning devices such as a 24 V DC sounder or strobe. The system provides two independent dry relay contacts: one dedicated to alarm activation and the other for fault indication.

When water touches the sensing cable, the panel responds immediately. It operates its alarm relay, drives a 24 V DC sounder or strobe, and shows the affected zone on the 16x2 display. Operators see both an audible and a visual alert and can send staff to the right spot. As part of Agni's range of fire detection equipment, the system supports data centre safetry and industrial safety programmes with one trusted manufacturer.

Fire Deteciton standards

Certifications & Compliance

CE
European Conformity

EN54-4 | EN45-2
European Certification

UL 217:2024
Functionality Compliance

IS 2189: 2022
NABL Laboratories Test Certified

ERTL North (Govt. India)
Functional Test Certified

Standard Code of Practice
INDIA-BIS | NBC

Approved Department

Government of India
Department of CPWD / PWD
Complied with CPWD DSR

Technical Specifications

Full Technichal Specificaiton - AGNI-WLD

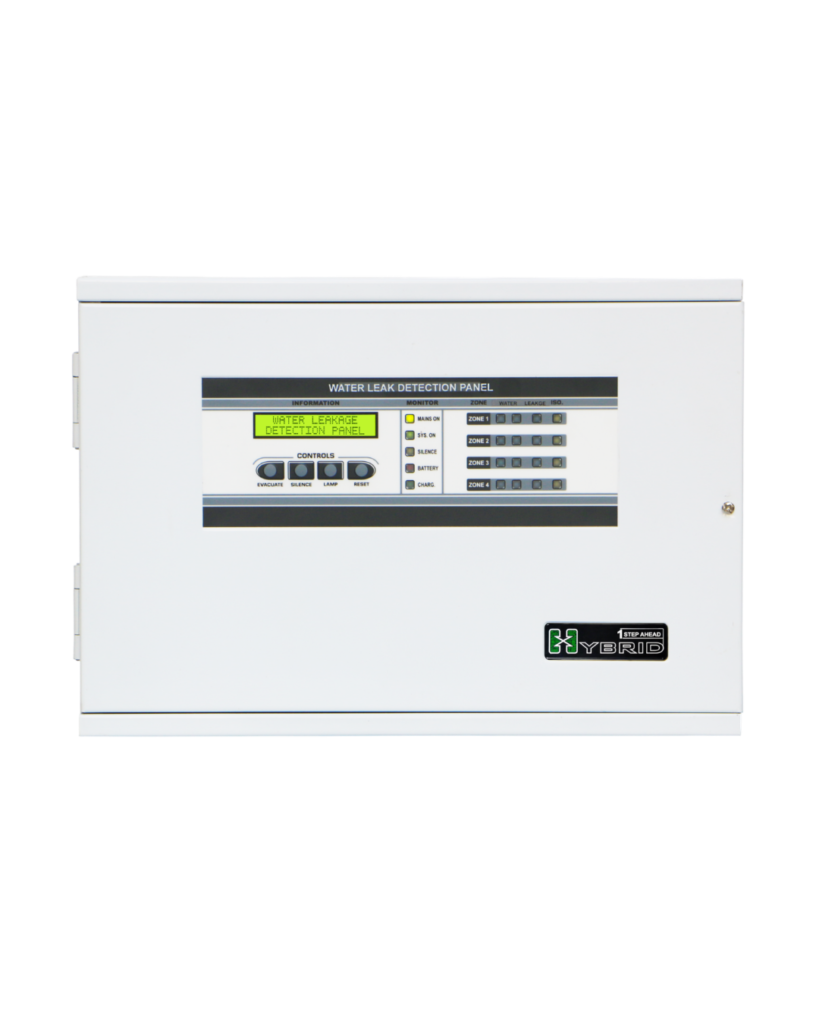

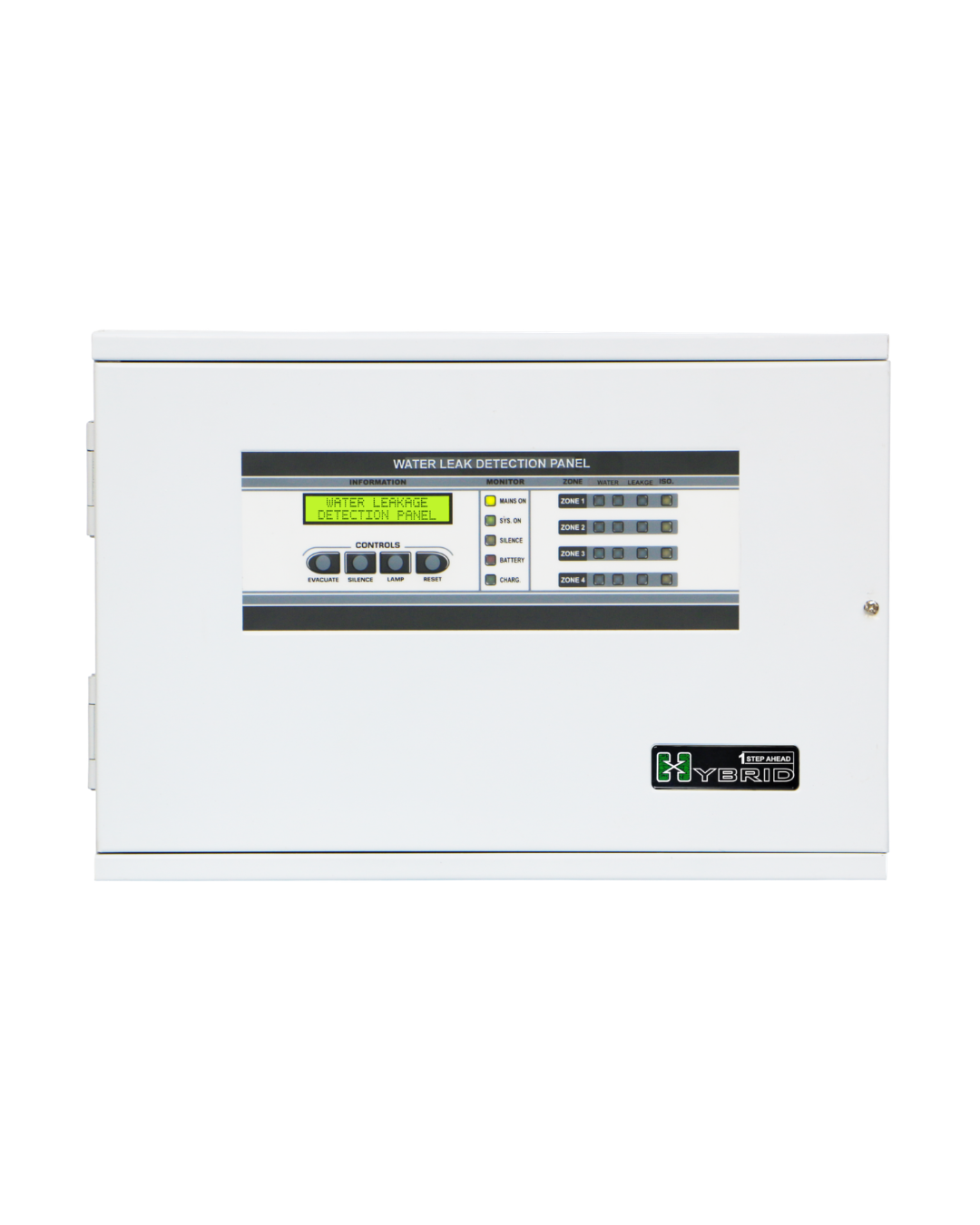

The panel is the control point of the WLD system. It is built in CRCA powder-coated steel and ordered as a 2 zone or 4 zone unit.

Parameter	Specification
Enclosure Material	CRCA sheet steel, powder-coated
Max Tolerated Humidity	95% RH
Protection Category	Type A - Indoor Use / Rating IP47
Dimension (H × W × D)	240 mm × 350 mm × 95 mm
Body Color	Snow White
Cable Entry	20 mm / 25 mm knockout opernings
Net Weight	3300 g
Shipping Weight	3600 g (Gross weight with packing)
Order Info	AGNI WLD-ZONE 2 and ZONE 4

Parameter	Specification
Operating Voltage	230 v AC (±6%)
System Operating Voltage	24 V DC to 35 V DC
Zone Detection Voltage	23.5 V
Battery Backup	12v×7.2Ah×2Nos. series.24vDC
End-of-Line (EOL) Resistor	4.7 kΩ per zone
Cable wiring Method	Class B
Fuse Ratings	AC:0.5A \| DC:1.5A \| Battery:3.0A
Output Relay Contact	Fire: C/NO/NC \| Fault: C/NO/NC
Ambient Operating Temperature	-2°C to +49°C Range

Product	Part Number
Water Leak Detection Panel	AGNI-WLD-1002 / AGNI-WLD-1004
WLD Cable	AGNI-WLD-CABLE (10, 15, 20, 25 Mtr.)
Agni Sounder Beacon	AGNI-410
WLD Cable Bracket	Additional
Pack of 20 fixing clips for WD-CS	Additional

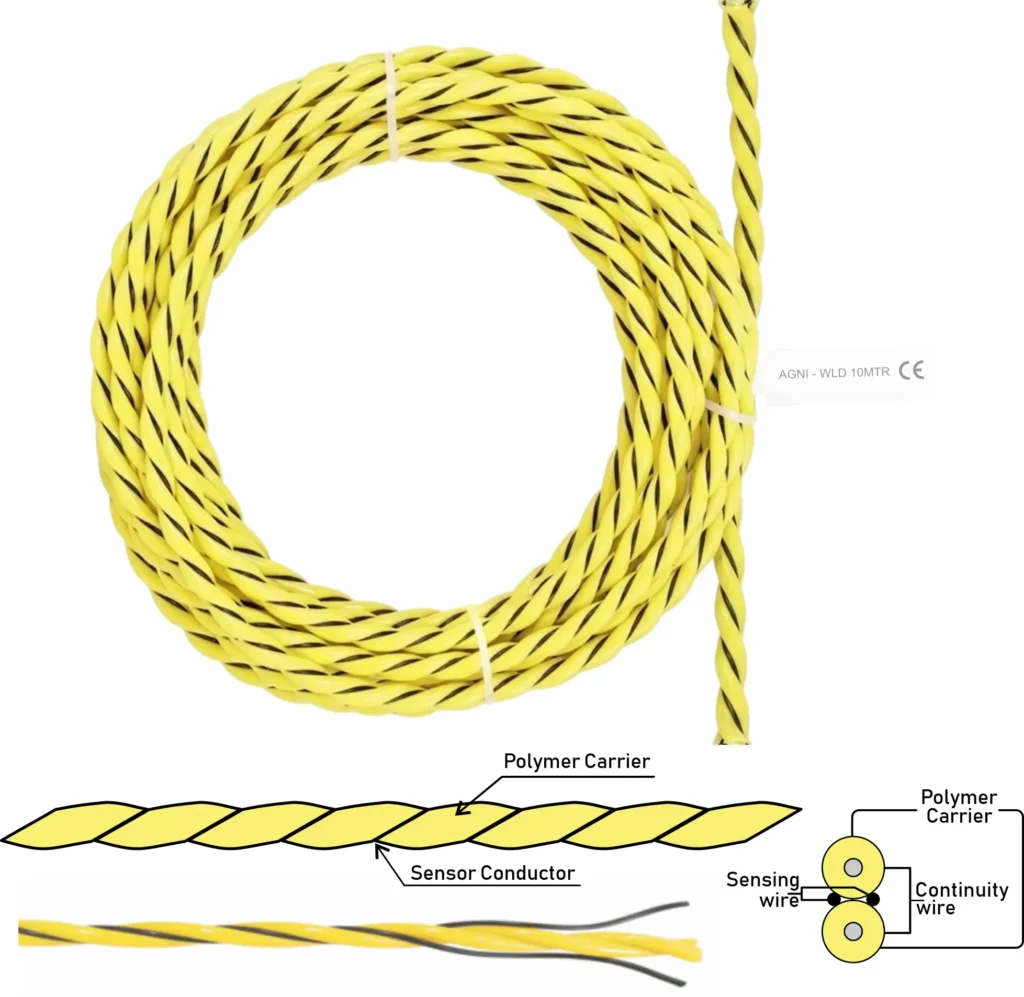

AGNI WLD Cable: Water Leakage Sensor Cable

The AGNI WLD CABLE is a yellow and black twisted pair, 3.5 mm in diameter, with stainless steel sensing elements in a PVC jacket. It detects water leaks under floors and in isolated plant rooms, and can also work as a rain detector to close windows automatically.

As a water leakage sensor, the cable resets by itself once dry. The datasheet states that it uses an isolated AC excitation signal, which avoids the oxidation and erosion problems common with DC sensing. Use it with the matching AGNI WLD interface as specified at order.

A heavy-duty 6.3 mm stereo plug terminates the cable. An ABS bracket and a pack of 20 fixing clips are available as accessories.

Cable specifications
Lengths	10m, 15m, 20m, 25 m; custom on request
Construction	PVC twisted pair, stainless steel sensing elements
Operating voltage	24 V DC (±6%)
Sampling resolution	Digital 12 bit
Max alarm current	15 mA
End-of-line resistance	10 kΩ, 1/4 W
Temperature	-10°C to +45°C
Humidity	95% RH

AGNI WLD Cable Range: Choose Your Sensing Length

Pick the water leak detection cable length that matches your zone. Measure the route along the floor, pipe or tray, and a margin for bends, and order the next size up. Need a different length? Custom lengths are made on request.

AGNI WLD Cable 10 m

AGNI-WLD-CABLE-10 Mtr.

AGNI WLD Cable 15 m

AGNI-WLD-CABLE-15 Mtr.

AGNI WLD Cable 20 m

AGNI-WLD-CABLE-20 Mtr.

AGNI WLD Cable 25 m

AGNI-WLD-CABLE-25 Mtr.

Accessory: WLD cable bracket

ABS bracket with a pack of 20 fixing clips to hold the cable in place along its route. The detector swivels on the bracket and is secured with a wing nut.

Cable and panel selection

Each cable section feeds a zone on the AGNI-WLD panel, available in 2 and 4 zone versions. Our team will confirm the right combination for your room.

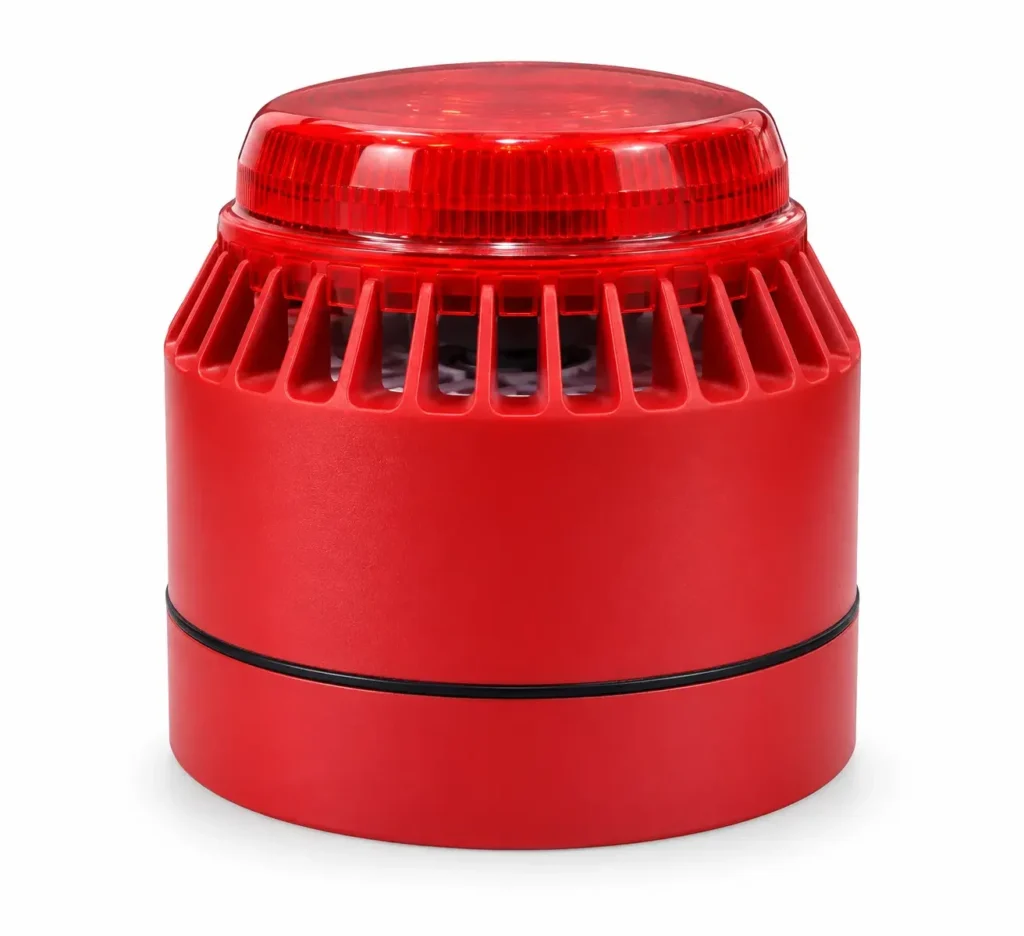

AGNI 410 Sounder Beacon

A leak alarm only helps if people notice it. The AGNI Sounder Beacon combines a flashing red LED with an electronic sounder in one compact unit, so staff are alerted even when they are away from the panel, wearing PPE, or in a noisy plant room.

It runs on 9 to 28 V DC, so it works from the 24 V DC alarm output of the AGNI-WLD water leak detection panel. At 101 dB at 1 metre it carries across server halls and plant rooms. A 93 mm diameter fits busy panels and mounting points, and 32 selectable tones let you give a leak its own sound, distinct from your fire alarm.

The ABS housing is rated IP54 and IP64, and the unit works from -10°C to +45°C, which suits industrial areas, schools and offices.

Sounder beacon specifications
Type	Electronic sounder with LED beacon
Sound level	101 dB at 1 m (102 dB max)
Tones	32 selectable
Supply	9 to 28 V DC
Current	15 mA
Light	Red LED, flashing
Temperature	-10°C to +45°C
IP rating	IP54 / IP65

Product in One Line

AGNI-WLD Water Leak Detection System: a 2 or 4 zone detection panel with 10 to 25 m sensing cable and a 101 dB sounder beacon that finds leaks early, shows the affected zone, and alerts your team and BMS to protect data centres, server rooms and plants.

User Manual

FAQs

Frequently Asked Questions

How does a water leak detection system work?

Water touching the sensing cable changes the electrical condition of the circuit. The panel detects the change, identifies the zone, and switches its alarm relay and sounder or strobe output.

How many zones does the AGNI-WLD panel support?

The panel is available in 2 zone and 4 zone versions. Each zone is monitored independently.

What cable lengths are available for the AGNI WLD cable?

Yes. The panel includes an onboard dual-line digital alarm communicator transmitter along with a built-in Ethernet port, so alarm and fault events can be reported to a remote monitoring station over telephone lines or IP, in addition to the panel's own local NAC, LCD and relay outputs.

Can the panel connect to a Building Management System?

Standard lengths are 10, 15, 20 and 25 metres. Custom length are available on request.

Can the panel connect to a Building Management System?

Yes, The panel supports BMS integration through its output relay contacts.

What happens during a power failure?

A built-in charger maintains two 12 V 7.2 Ah batteries in series (24 V DC), so monitoring continues when main power fails.
