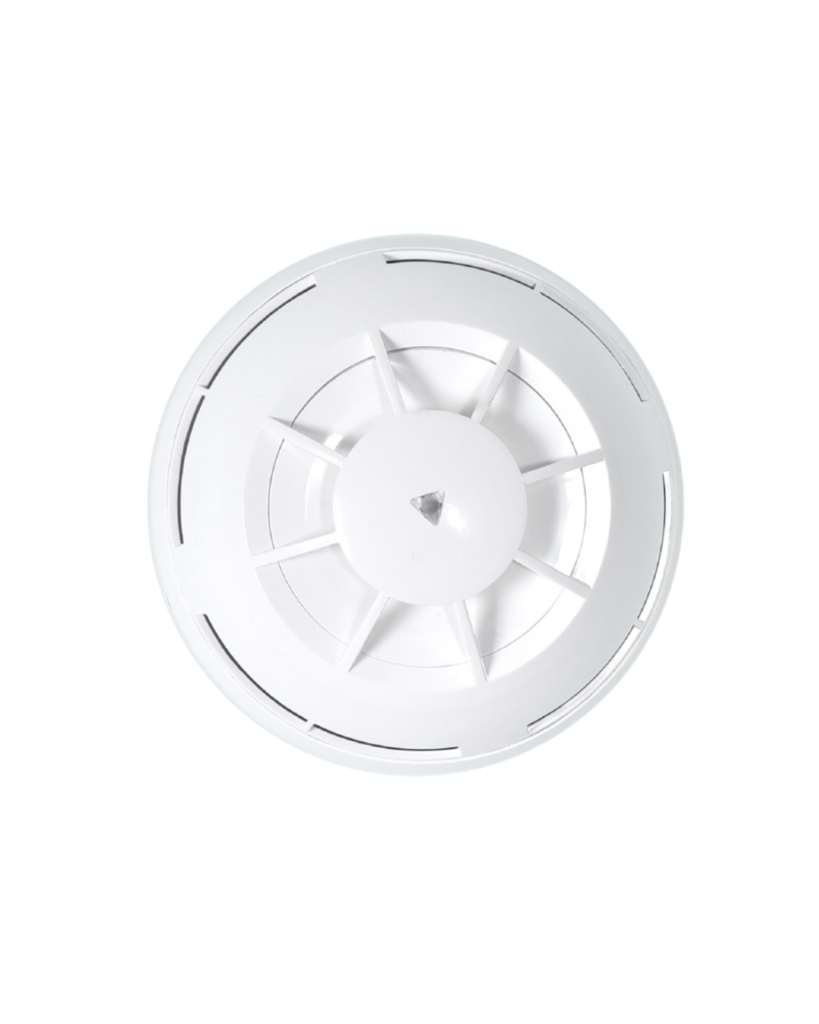

Agni Veiga Intelligent Addressable Detector Mounting Standard Base
The Detector Mounting Standard Base is a durable mounting solution for Agni Veiga Series intelligent addressable detectors, designed for secure ceiling installation, easy wiring, and reliable detector locking.
Description
The Detector Mounting Standard Base from Agni Veiga Series – Intelligent Addressable range is designed to provide a reliable and secure interface between the detector dead and the mounting surface.Â
This base allows wiring to be completed during the initial installation stage, even before the detector is installed. Once wiring is finished, the detector head is simply twisted and locked into the base, ensuring fast installation and simplified maintenance.Â

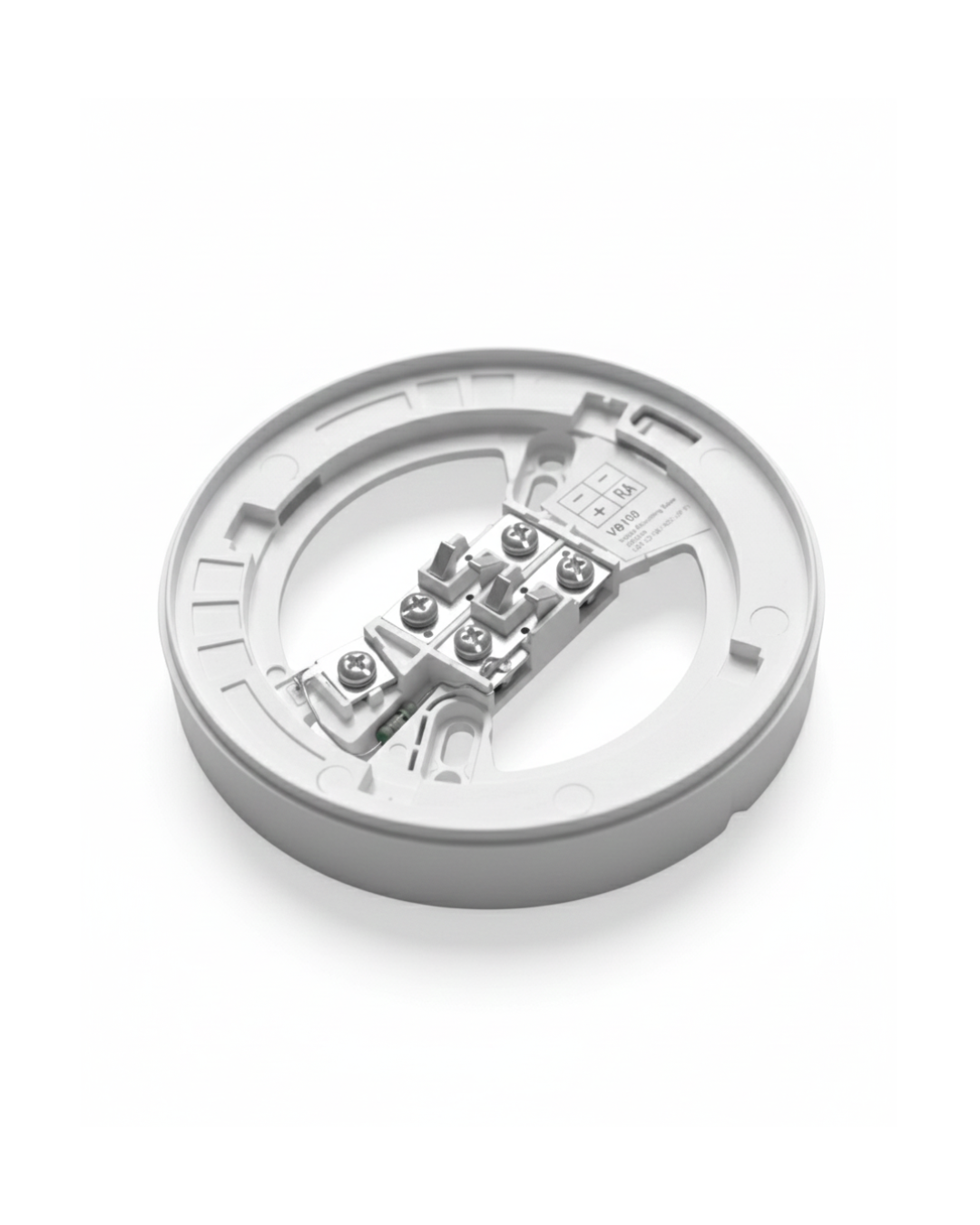

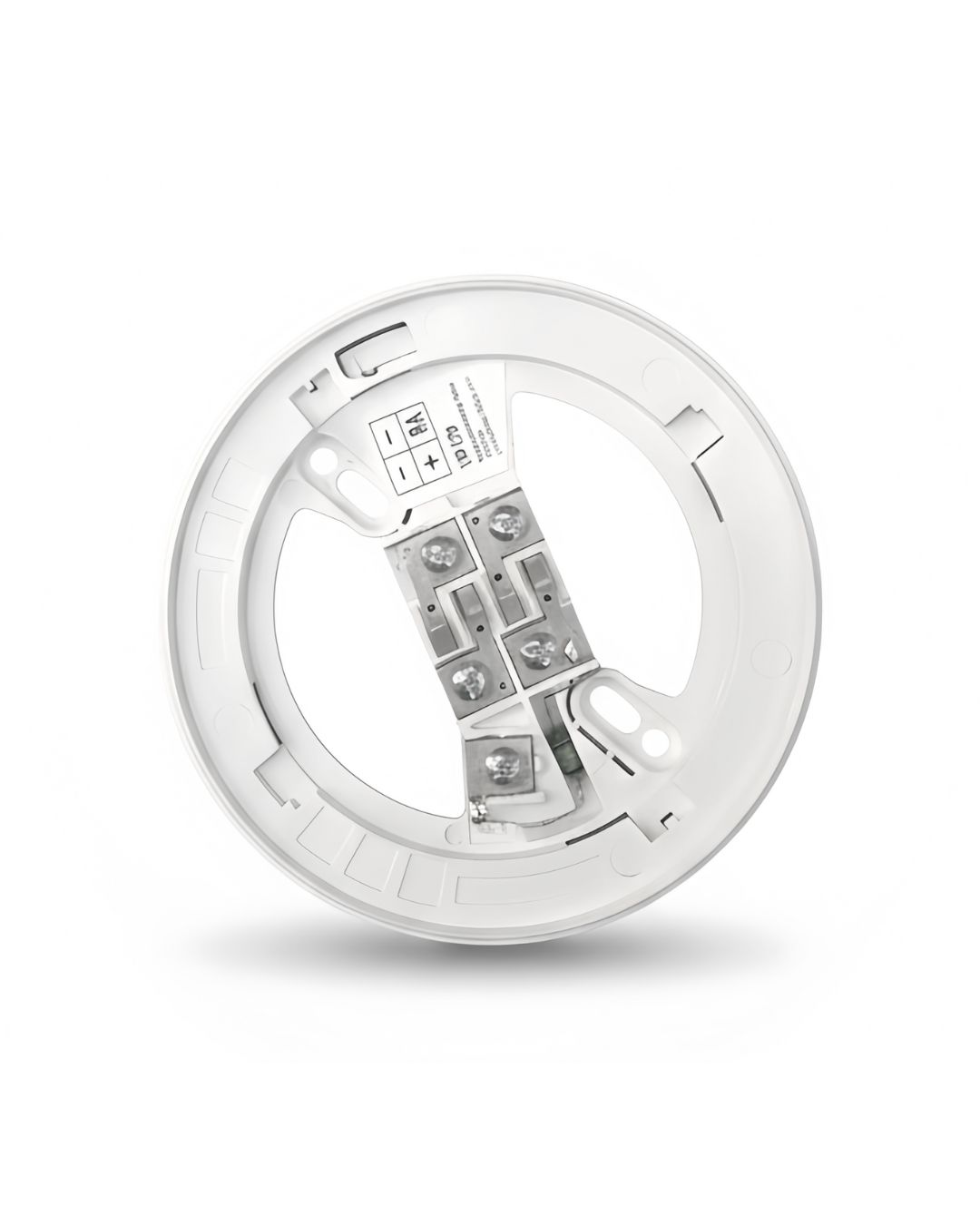

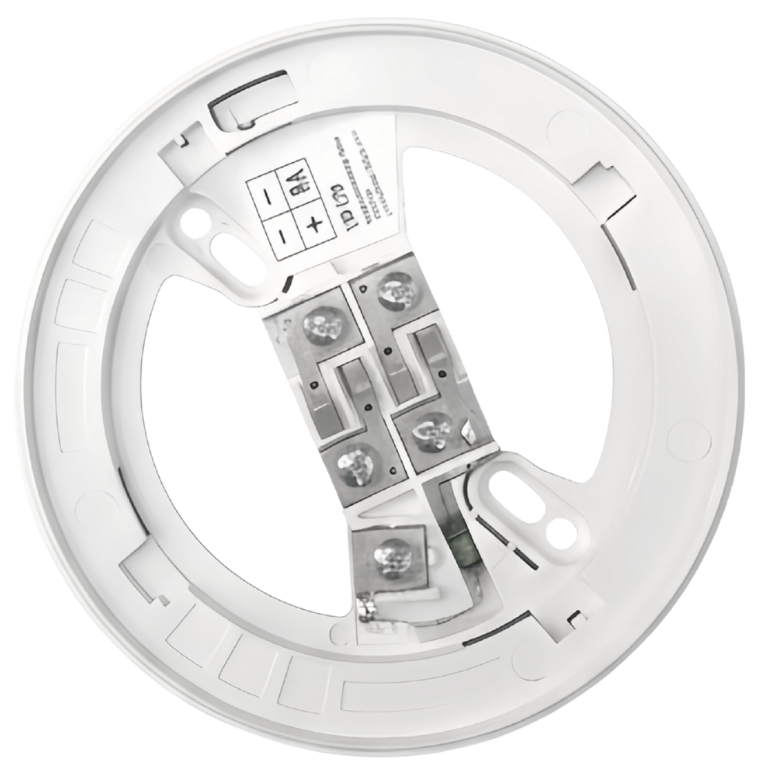

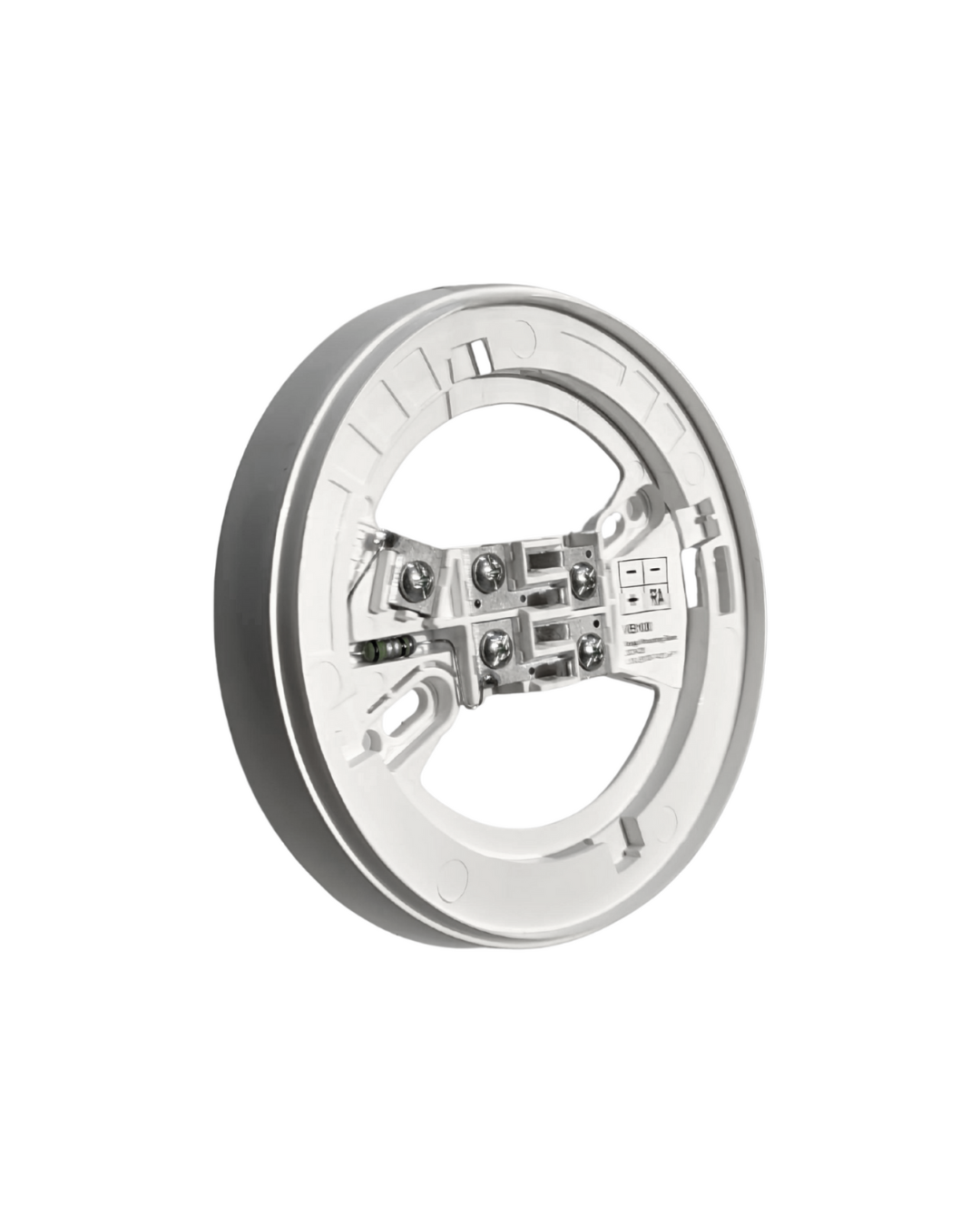

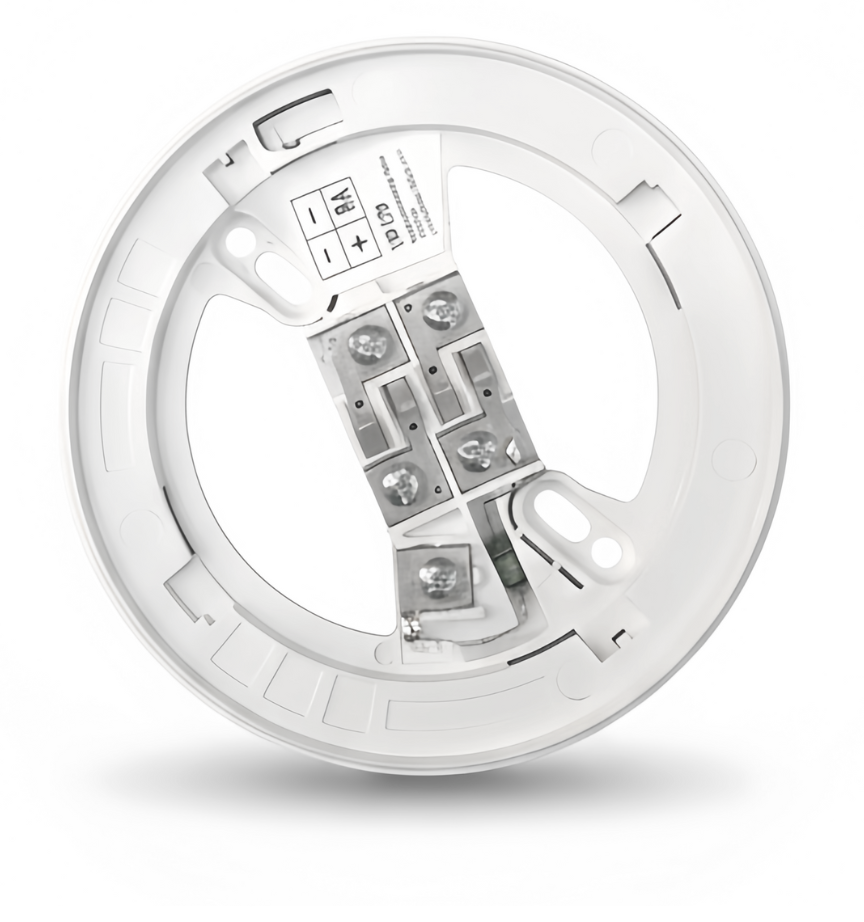

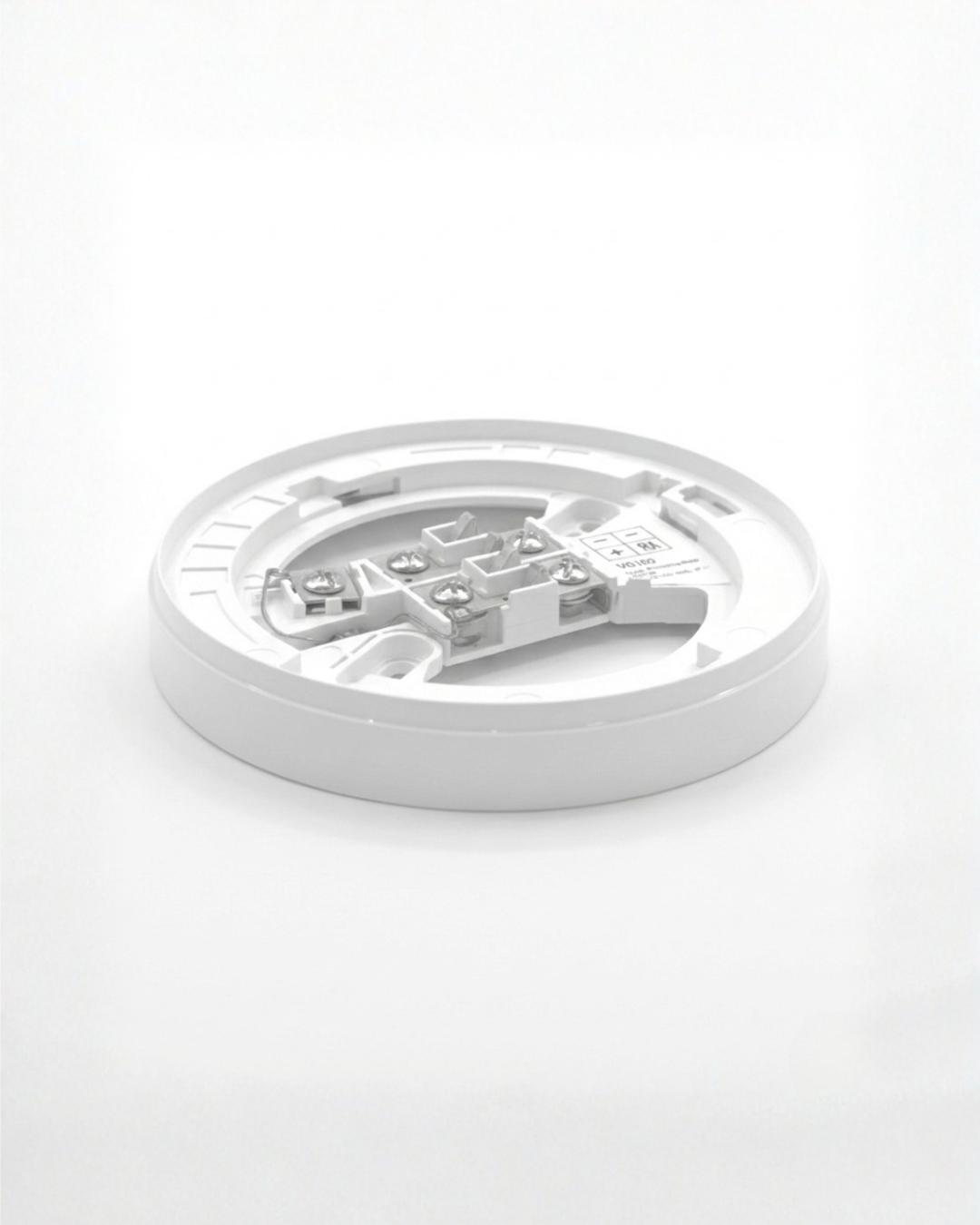

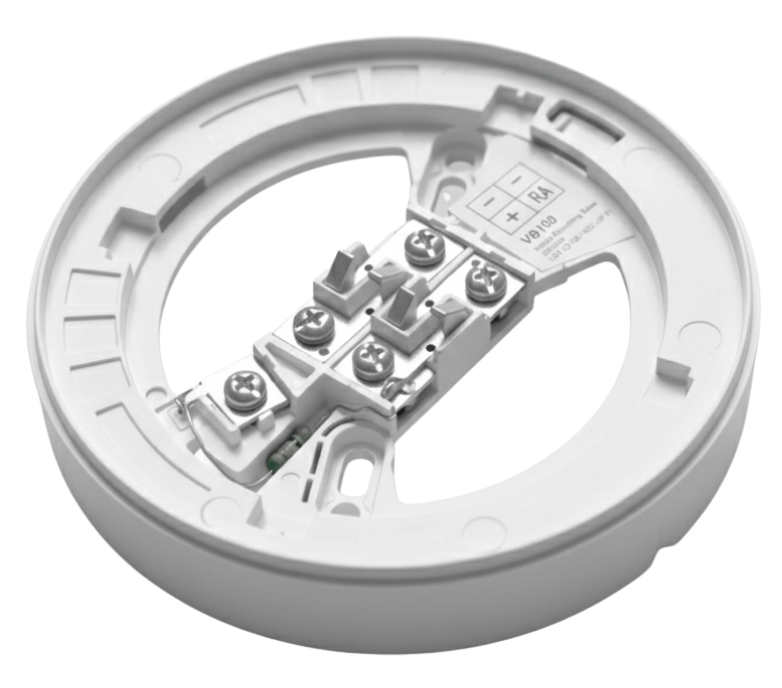

Manufactured using durable plastic, the base is suitable for surface mounting directly to ceilings or standard conduit boxes. It is equipped with robust screw terminals and SEMS screws, ensuring firm and long-lasting electrical connections.Â
An optical detector locking mechanism helps prevent unauthorized removal of the detector head. The base also supports remote indicator connection, allowing a remote LED indicator to provide visual alarm indication when the detector is installed in concealed locations such as false ceilings.Â
The mounting base is typically compatible with smoke detectors, heat detectors, and multi-sensor detectors used in intelligent addressable fire alarm systems.Â
Job to be Done
Primary Job
Install fire alarm detectors securely, quickly and reliable while allowing pre-wiring, easy maintenance, and system integrity in intelligent addressable fire alarm systems.
Safety Job
It keeps fire alarm detectors securely mounted, electrically reliable, tamper-resistant, and visible through remote indicators, ensuring continuous fire detection and system safety.
Functional Jobs
Securely mounts detectors, provides electrical connections, supports pre-wiring, enables twist-and-lock installation, and allows safe maintenance without wiring disruption.
How it Works
How does the Agni Veiga Detector Mounting Standard Base Work?
The Detector Mounting Standard Base (IND-MB) functions as the mechanical and electrical interface between the fire alarm detector and the mounting surface. It enables safe wiring, secure detector installation, and reliable system operation.Â
Application & Solution
- Office Building with False CeilingÂ
- Commercial Mall Installation
- Industrial Facility with Restricted AccessÂ
- Maintenance & Replacement ScenarioÂ
Application & Solution
- Office Building with False CeilingÂ
- Commercial Mall Installation
- Industrial Facility with Restricted AccessÂ
- Maintenance & Replacement ScenarioÂ
How does the Agni Veiga Detector Mounting Standard Base Work?
1. Base Installation on Surface
The mounting base is first fixed directly onto the ceiling or a standard conduit box using appropriate fasteners.
2. Loop Wiring Connection
Fire alarm loop cables are connected to the base terminals using robust screw terminals with SEMS screws. This ensures secure and stable electrical connections.
3. Remote Indicator Wiring (Optional)
If required, a remote indicator LED or compatible device is connected to the designed terminals on the base.
4. Initial System Wiring Completed
All wiring is completed during the first installation stage, even before the detector head is installed.
5. Detector Head Mounting
The detector head is aligned with the base and twisted into position, locking it securely in place.
6. Detector Locking (Optical)
An optical locking mechanism prevents unauthorized removal of the detector head after installation.
Product in One LineÂ
The Detector Mounting Standard Base helps installers pre-wire, securely mount, and protect fire alarm detectors while enabling for installation, easy maintenance, and reliable system performance.Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Intelligent Addressable Detector Mounting Standard Base |
|
Model |
IND-MB |
|
Series |
Agni Veiga Series |
|
System Type |
Intelligent Addressable |
|
Mounting Type |
Surface mounting |
|
Mounting Location |
Ceiling / Standard conduit box |
|
Material |
Durable plastic |
|
Wiring Terminals |
Robust screw terminals with SEMS screws |
|
Detector Locking |
Optical locking mechanism |
|
Remote Indicator Support |
Yes |
|
Remote Output Capability |
Available as standard feature |
|
Compatible Detectors |
Smoke, Heat & Multi-Sensor Detectors |
|
Installation Method |
Twist & lock detector head |
|
Application |
Fire alarm detection systems |
FAQ
What is a Detector Mounting Standard Base?
A Detector Mounting Standard Base is a component used to securely mount fire alarm detectors to ceilings or conduit boxes. It provides electrical connections and a locking interface for the detector head.
What is a Detector Mounting Standard Base used for?
The Detector Mounting Standard Base is used to install Agni Veiga Series Intelligent Addressable detectors. It acts as an intermediary between the ceiling surface and the detector head, simplifying installations and maintenance.
How Does the Detector Mounting Standard Base Work?
The Detector Mounting Standard Base connects the fire alarm detector to the ceiling, allows wiring before detector installation, and securely locks the detector in place for reliable operation.
Is correct cable polarity important during installation?
Yes. Correct cable polarity must be ensured during installation, especially when connecting remote output devices.Â
