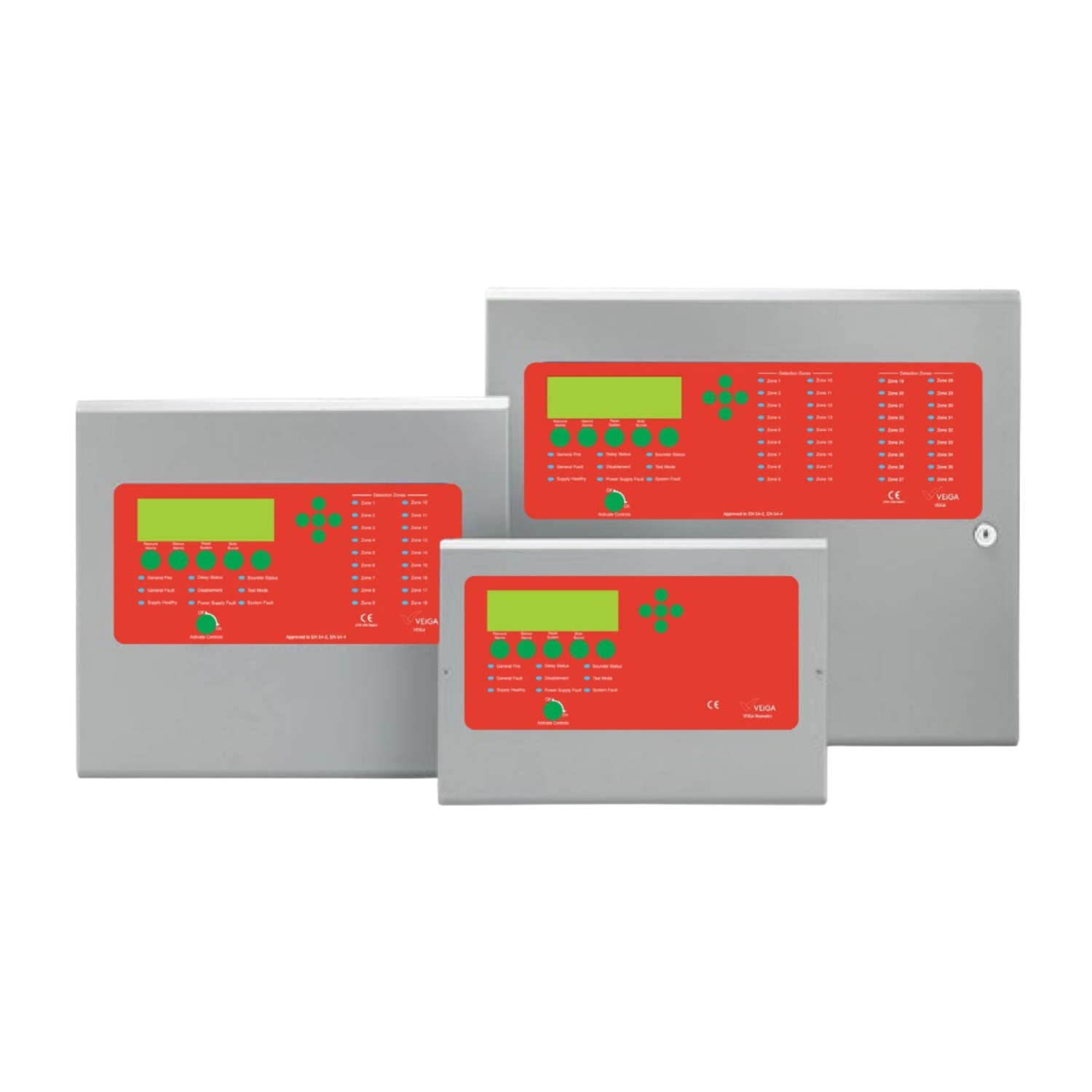

Intelligent Addressable Fire Alarm System
36 Years (Legacy of Excellence)
The Agni Veiga Series 2 to 10 loop analogue addressable control panels have been developed to provide a simple to use and cost effective, robust solution for the intelligent fire systems market. Extendable up to two loop circuits, and with up to 240 devices per loop, loop length up to 2 km and keypad and minimum 4000 events history log in the non-volatile memory (EPROM), network communication the control panels’ compact styling and programming power makes it ideal for all small and medium site requirements. The large graphical display with easy to navigate menus provide fast and simple setup and maintenance. Agni Veiga panels support the full range of Agni protocol devices including their All range of accessories. The panels are supplied with a 1.2 amp internal switch mode power supply module. This module complies with the requirements of EN54-4: 1998-8 and provides temperature compensated battery management charging. Agni Veiga panels are Compliance with European standards; EN54-2 & EN54-4.
Related Product
Long Description
TECHNICAL Specifications
Veiga Series Intelligent
The Agni Veiga 1-2 loop analogue addressable control panels have been developed to provide a simple to use and cost effective, robust solution for the intelligent fire systems market.
Extendable up to two loop circuits, and with up to 240 devices per loop, the control panels’ compact styling and programming power makes it ideal for all small and medium site requirements.
The large graphical display with easy to navigate menus provide fast and simple setup and maintenance.
Agni veiga panels support the full range of Agni protocol devices including their All range of accessories.
The panels are supplied with a 1.2 amp internal switch mode power supply module. This module complies with the requirements of EN54-4 : 1998
8 and provides temperature compensated battery management charging.
Agni Veiga panels are Compliance with European standards; EN54-2 & EN54-4.
Features
Main Features
- One to two loops
- 2 programmable sounder circuits
- Large Graphical display
- 4000 date and time stamped event logs
- Auto learn function
- 240 devices per loop
- False alarm management
- Programmable company logo
- Loop fault diagonstics
- Delays to outputs
- 64 programmable groups
- 18 zonal LEDs
- 1.2A integral PSU
- Approved to EN54-2 & EN54-4
- Robust metal enclosure
Agni Instruments Engineers India Private Limited
| Technical specifications | |
|---|---|
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions |
Back box: 350 W x 300 H x 80 D (mm), Lid: 357 W x 310 H x 25 D (mm) |
| Mains supply | Universal switch mode PSU, 1.2A |
| Battery capacity | Up to 7 Ah 24V |
| Charger current | 700mA |
| Auxiliary supply | 400mA aux supply output (21-28vdc) |
| Loop | Agni Protocol. Up to 2km. Each loop – 500mA maximum current |
| Sounder circuits | 2 x 400mA 21-28vdc |
| Switch inputs | CC, PULS |
| Event log | 4000 events, time & date stamped |
| Earth fault monitoring | Yes |
| Display 320*cs | Adjustable Font size 11.000 Dot Create Character Graphical LCD backlit |
| Front Fascia | Soft Touch Key Pad / Standard Sticker Label Blue / Red Colour |
