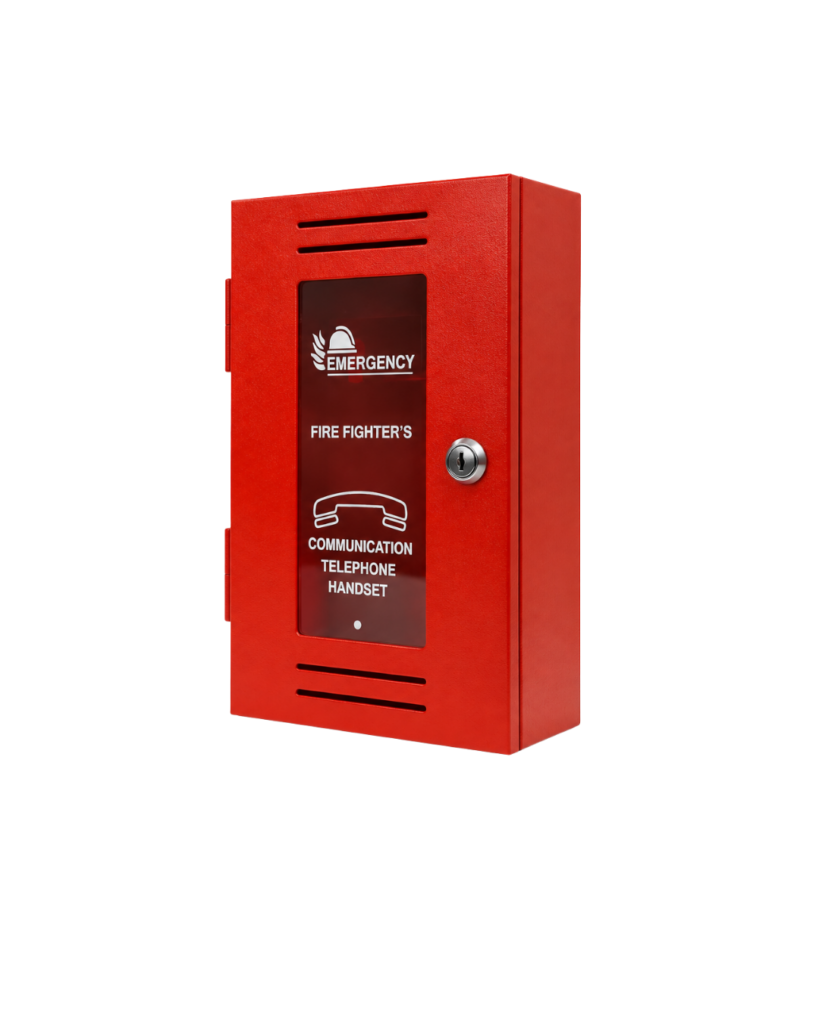

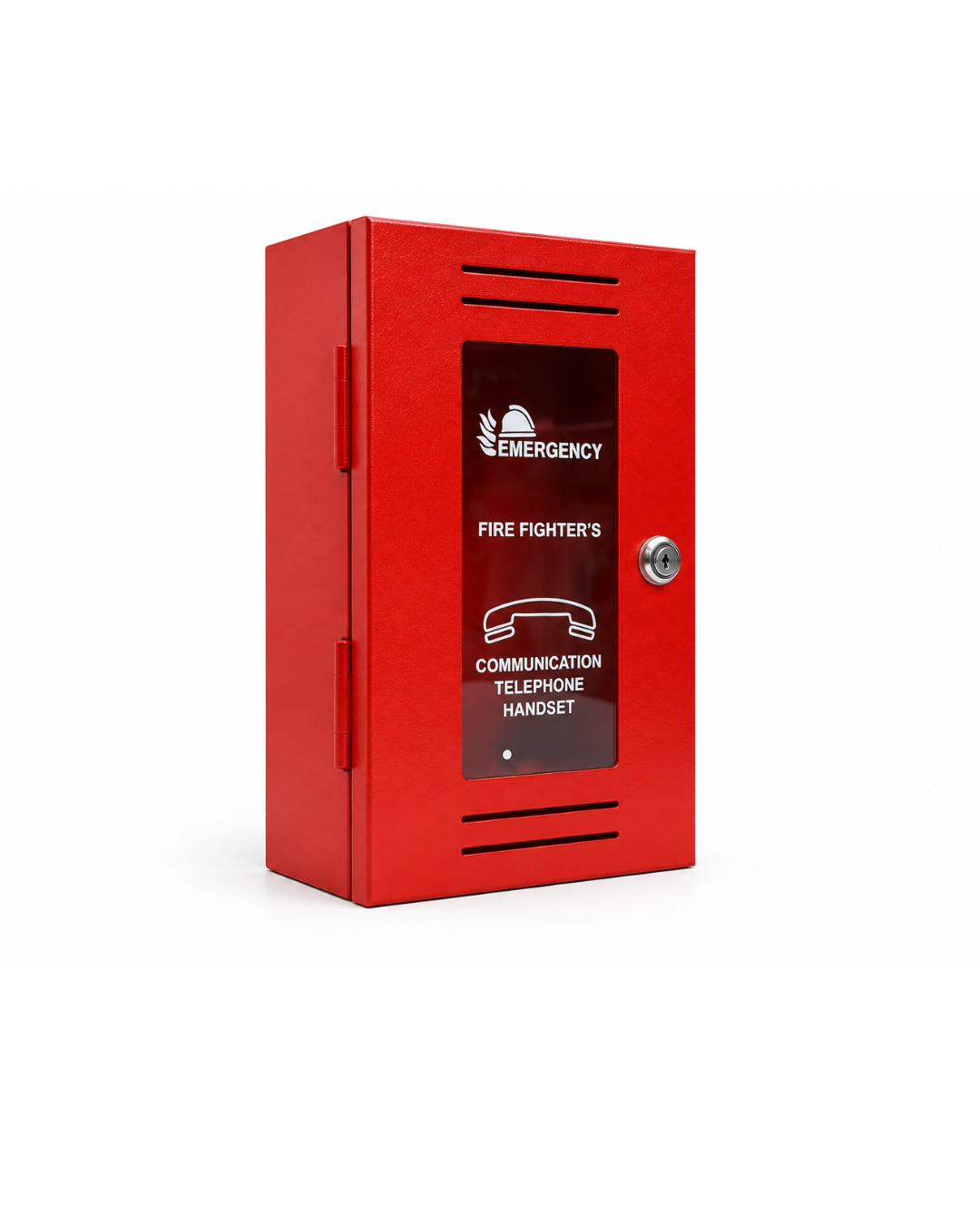

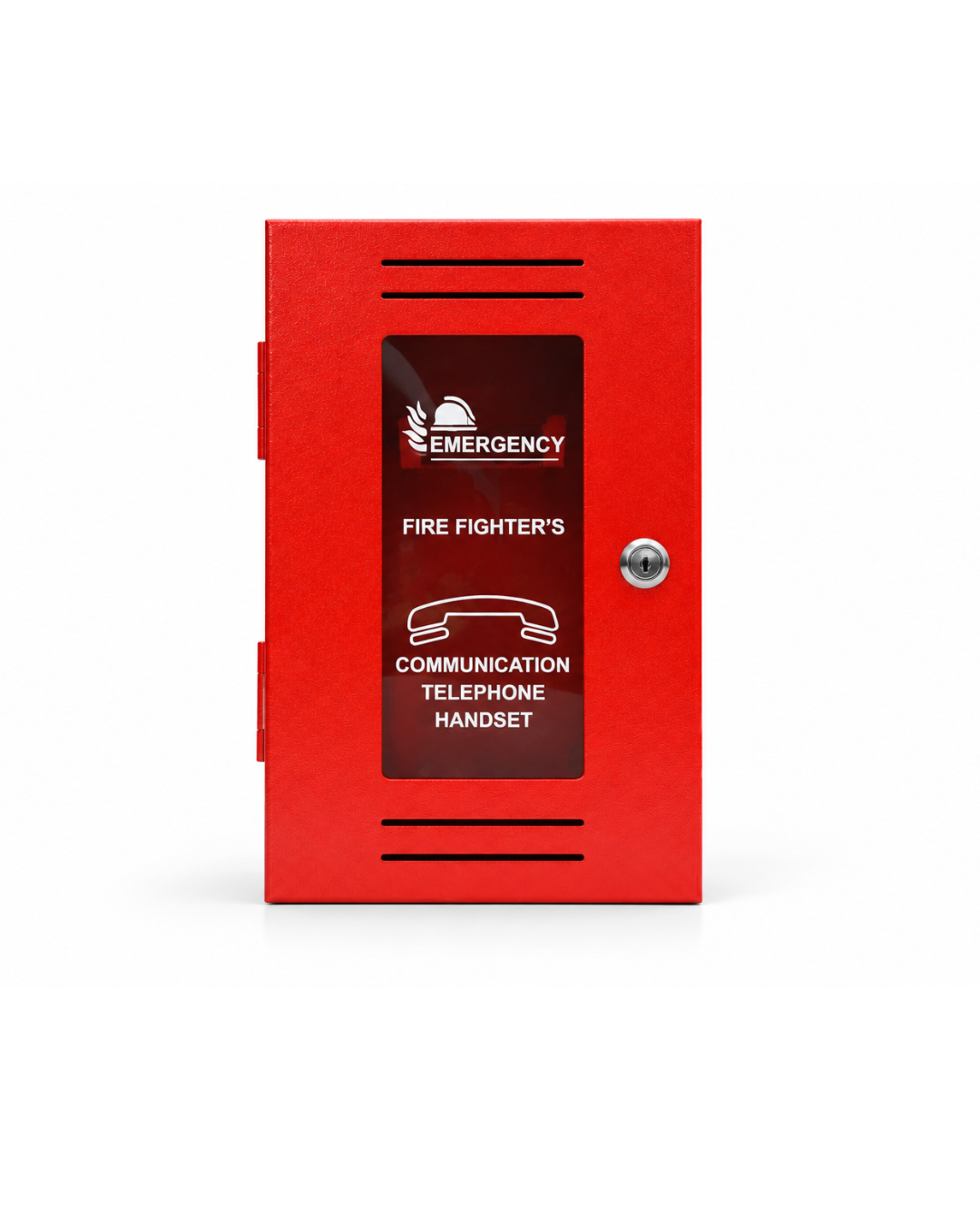

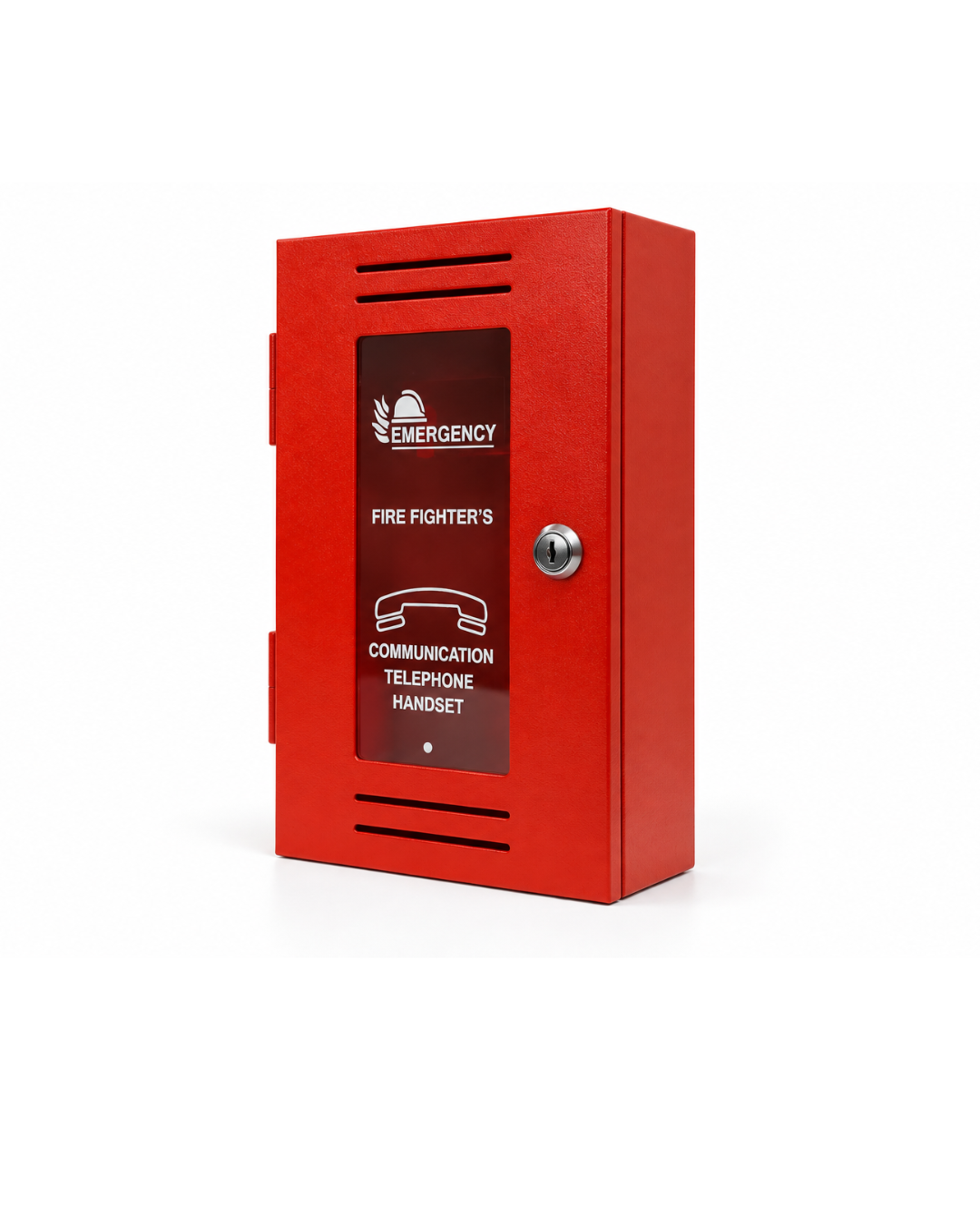

FFTH-901 BOX Fire Fighter Telephone Handset Enclosure
A red, lockable steel boox that keeps the Agni FFTH-901 firefighter telephone handset visible, protected and ready to lift out. Made from 1.2 SWG mild steel with a clear polycarbonate window, for surface or flush mounting or stairwasys, lobbies and evacuation routes.
Part Number:
AGNI FFTH-901-BOX
Firefighter Communication, on a line that never depends on radio coverage
The Agni Firefighter Telephone Handset Enclosure is built for the FFTH-901 fire fighter telephone handset. The handset hangs on a dangle hook behind a clear polycarbonate window, so responders can see the fireman telephone handset and the operating instructions before they open the door.
Inside, a holding mechanism keeps the handheld firefighter telephone secure in storage and free to lift out when needed. The steel body is finished in bright red powder coat, so the box reads clearly as emergency equipment in a stairwell or corridor. Choose a latch look or a break-glass access arrangement to discourage casual use.
Fire Fighters, rescue personal and building occupants can then use the fire emergency telephone quickly, as part of a wider firefighter telephone system.
Certifications & Compliance
CE
European Conformity
EN54-4 | EN45-2
European Certification
UL 217:2024
Functionality Compliance
IS 2189: 2022
NABL Laboratories Test Certified
ERTL North (Govt. India)
Functional Test Certificate
Standard Code of Practice
INDIA-BIS | NBC
Approved Department
Government of India
Department of CPWD / PWD
Complied with CPWD DSR
Full Technichal Specificaiton - FFTH 901 BOX
|
Parameter |
Specification |
|---|---|
|
Model |
AGNI FFTH-901-BOX |
|
Compatible with |
FFTH-901 fire fighter telephone handset |
|
Construction |
1.2 SWG mild steel sheet |
|
Mounting type |
Surface / flush mounting |
|
Finish |
Red powder coat |
|
Front window |
Transparent polycarbonate |
|
Cabinet size (H × W × D) |
270 × 158 × 80 mm |
|
Handset Cut-out window |
75 × 180 mm |
|
Access |
Latch lock or break-glass arrangement |
|
Weight |
1410 g without packing, 1450 g with packing |
|
Product |
Part Number |
|---|---|
|
Handheld Remote Firefighter's Telephone Handset - portable field unit |
FFTH 901 |
|
Remote Telephone Handset Box |
FFTH-901-BOX |
|
Firefighter's Jack Unit - Stainless steel wall-mounted connection point |
SSJ-FT 904-A |
|
Firefighter Telephone Jack SS Body (Rectangular) |
SSJ-FT 905-B |
|
Firefighter Telephone Jack ABS Body |
ABS-JFT 906-B |
|
Remote Paging Module - connects EVCS panel to paging amplifire |
FFT-PAC-900 |
|
BMS Interface Module - Building Management System integration |
FFT-900 Nexus 2.9V |
|
Hands-Free Speakerphone for Patients, Disabled Persons & Refuge Areas (Coming Soon) |
FFT CARE-1008 HF |
|
10k Ohms End-of-Line resistors for Class B circuit supervision - specify system configuration when ordering |
EOL 10K Resistors |
|
12V - 12Ah sealed lead-acid battery unit for backup power-specify system configuration when ordering |
Battery (12Ah) |
|
12V - 26Ah sealed lead-acid battery unit for extended power-specify system configuration when ordering |
Battery (26Ah) |
|
Module for Expantion system from 16 lines up to 128 lines |
FFT-900 Expansion V-4 |
|
Networking Module |
FFT-900 RS-485 Card |
|
Type B interface cable for FFT-9 software connection |
USB 2.0 Cable-FFT |
|
Advanced PC software for system configuration, monitoring, diagonstics, and firmware updates |
FFT-900 GUI-2 Software |
|
Replacement handset curly cord and plug assembly for FFTH 901 |
Curly Cord 901 |
Built for control rooms under pressure
1.2 SWG mild steel body
A sheet-metal formed enclosure that holds up to daily building conditions and a long service life.
Bright red powder coat
High-visibility finish for quick identification of the fire telephone handset during an emergency.
Latch lock or break-glass access
Two access options to help prevent unauthorised operation of the emergency fire telephone handset.
Product in One Line
The Agni Firefighter Telephone Handset Enclosure (FFTH-901-BOX) is a red powder-coated, 1.2 SWG steel wall box with a clear polycarbonate window and a latch-lock or break-glass option, built to store the FFT-901 firefighter telephone handset for surface or flush mounting.
Frequently Asked Questions
It is a lockable wall box that stores a firefighter telephone handset in a visible, portected position so responders can find and use the fire telephone handset quickly.
Yes, The cabinet can be supplied with either a latch lock or a break-glass access arrangement.
Install it in easily accessible places such as staircases, lift lobbies, service corridors, exit points and evacuation points, at a hight of 1.06 m to 1.21 m.
The enclosure houses the handset used in an emergency fire telephone setup. Contact Agni for help matching it with the panel, jack points and wiring of your site.
