Agni Veiga Handheld Programming Unit – ALPU1000
The Agni Veiga Handheld Programming Unit is a portable, battery-powered device designed to read, configure, and program parameters of Agni Veiga analogue addressable devices. Programming and diagnostic unit for Agni Veiga analogue addressable devices. Enables address setting, parameter configuration, firmware reading, and device diagnostics using an in-built keypad and display.
Description

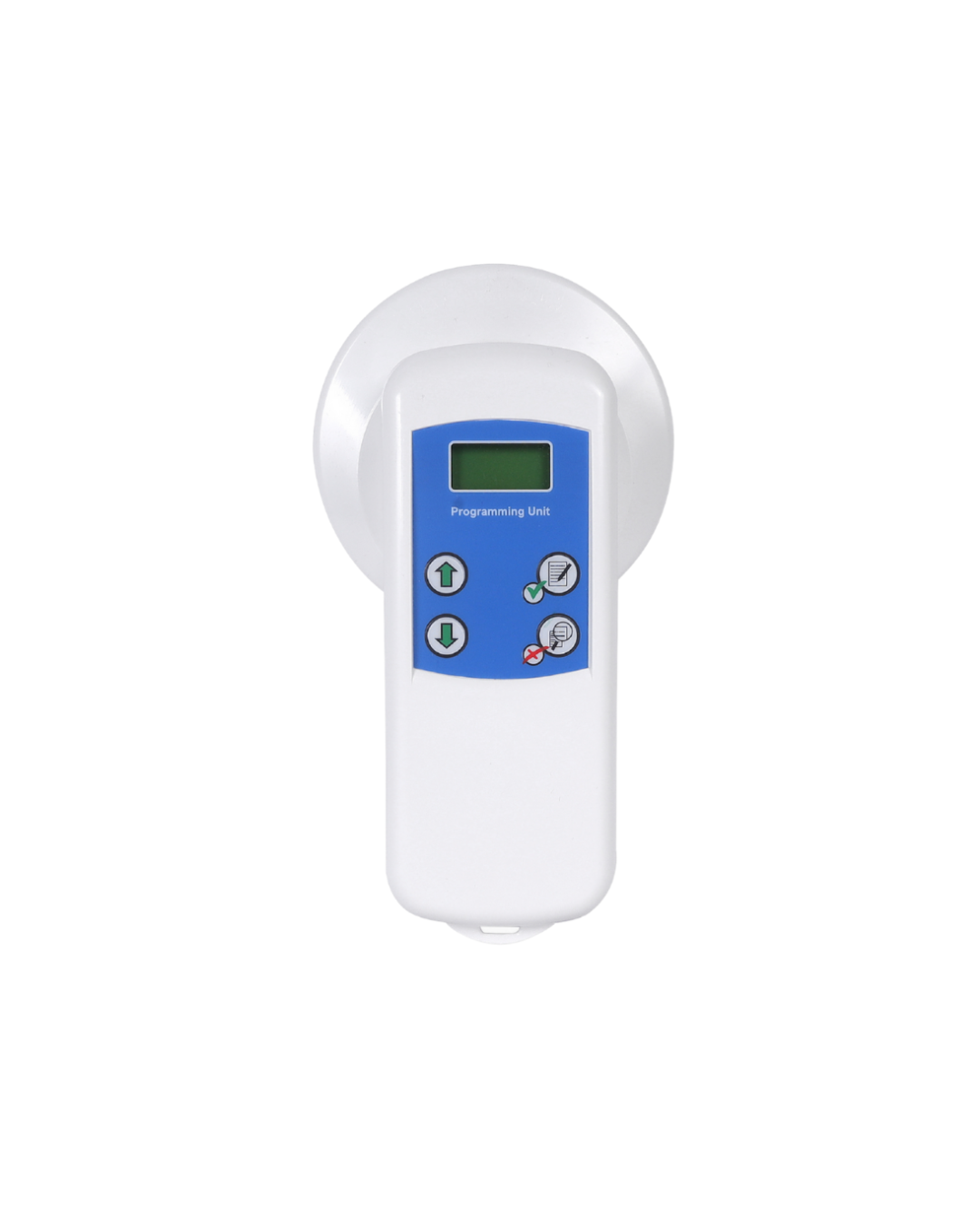

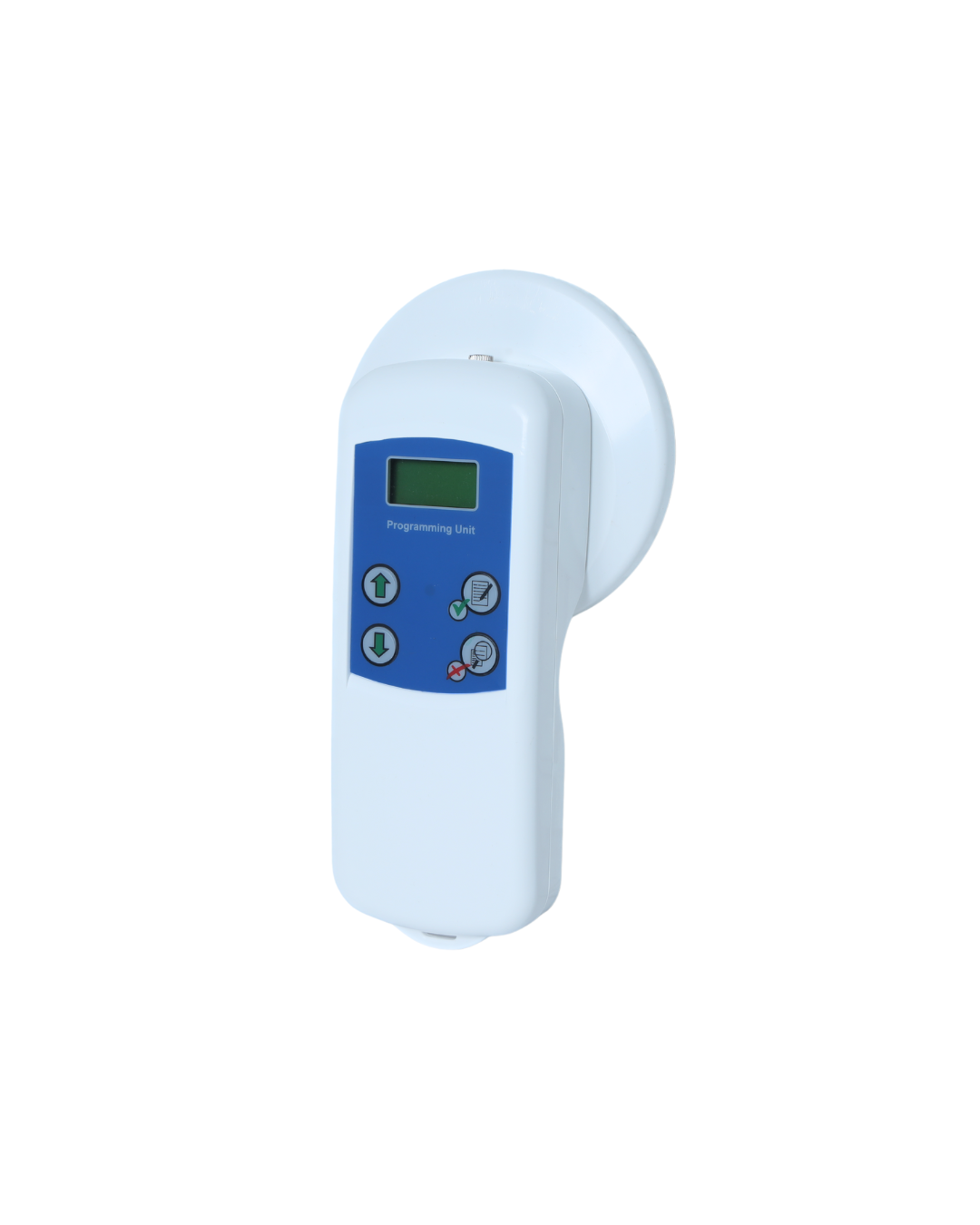

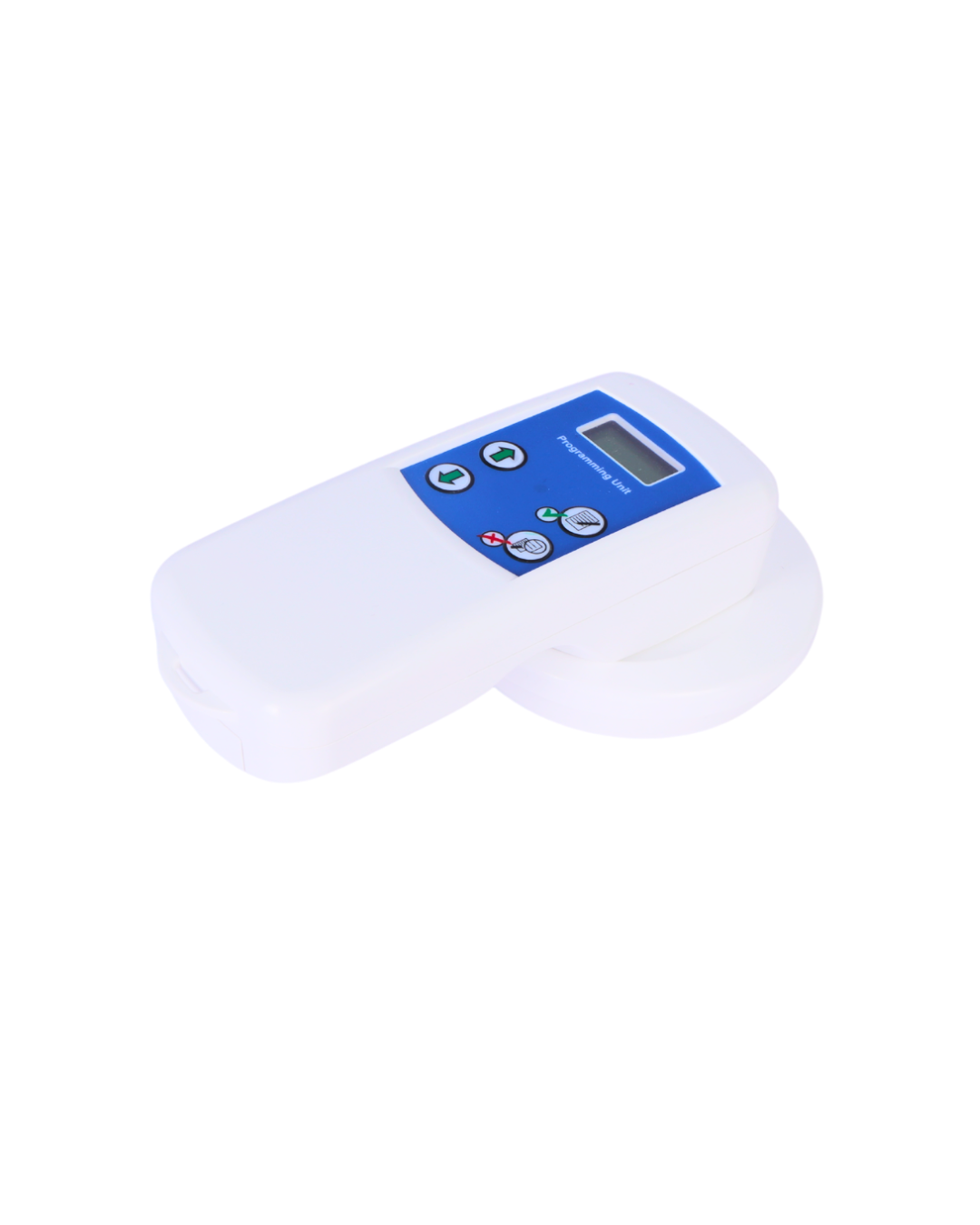

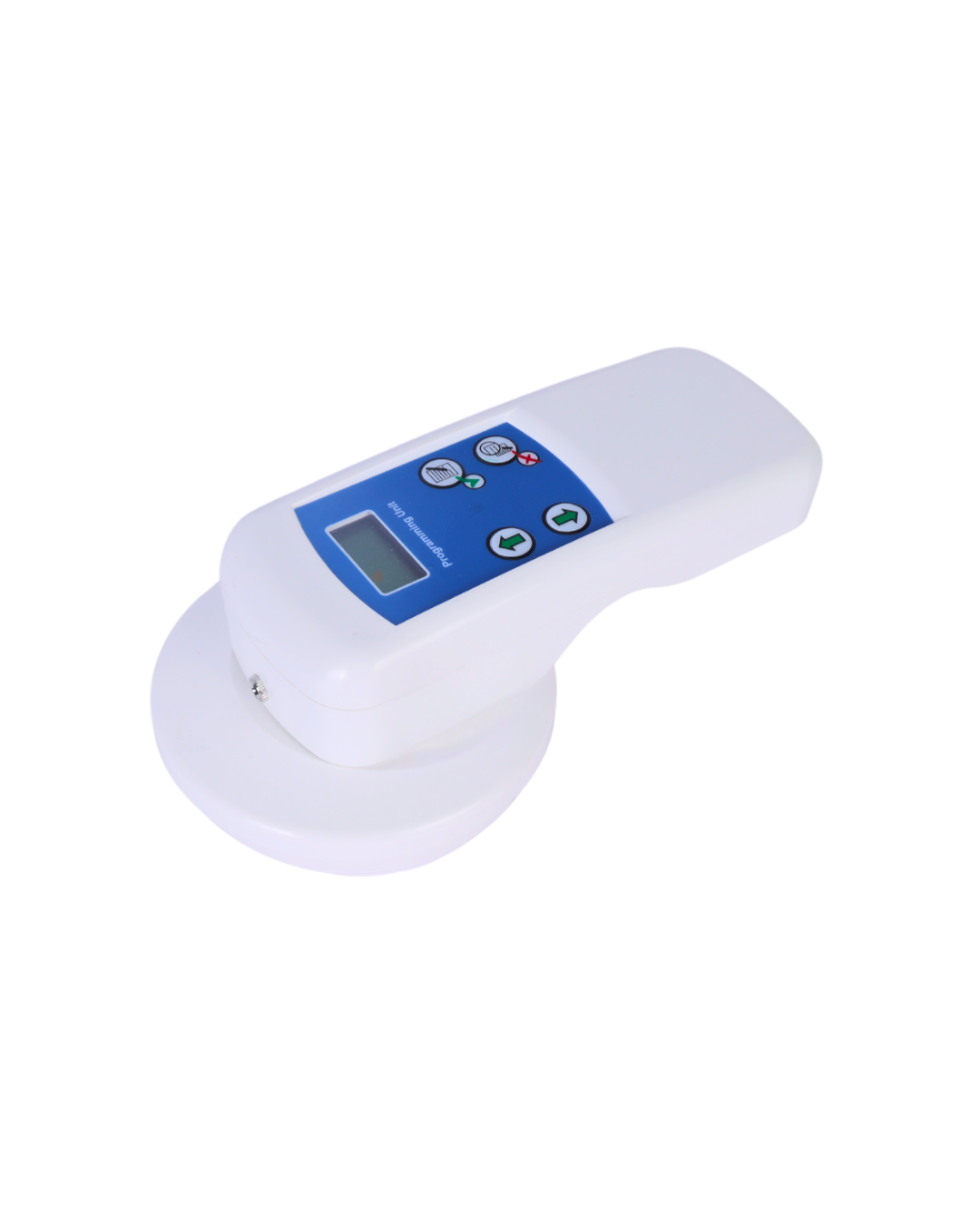

The Agni Veiga Handheld Programming Unit (ALPU1000) is a dedicated field programming tool designed for configuring and maintaining Agni Veiga analogue addressable fire alarm devices. It allows installers to easily set, modify, and read device parameters directly in the field without requiring a control panel connection.

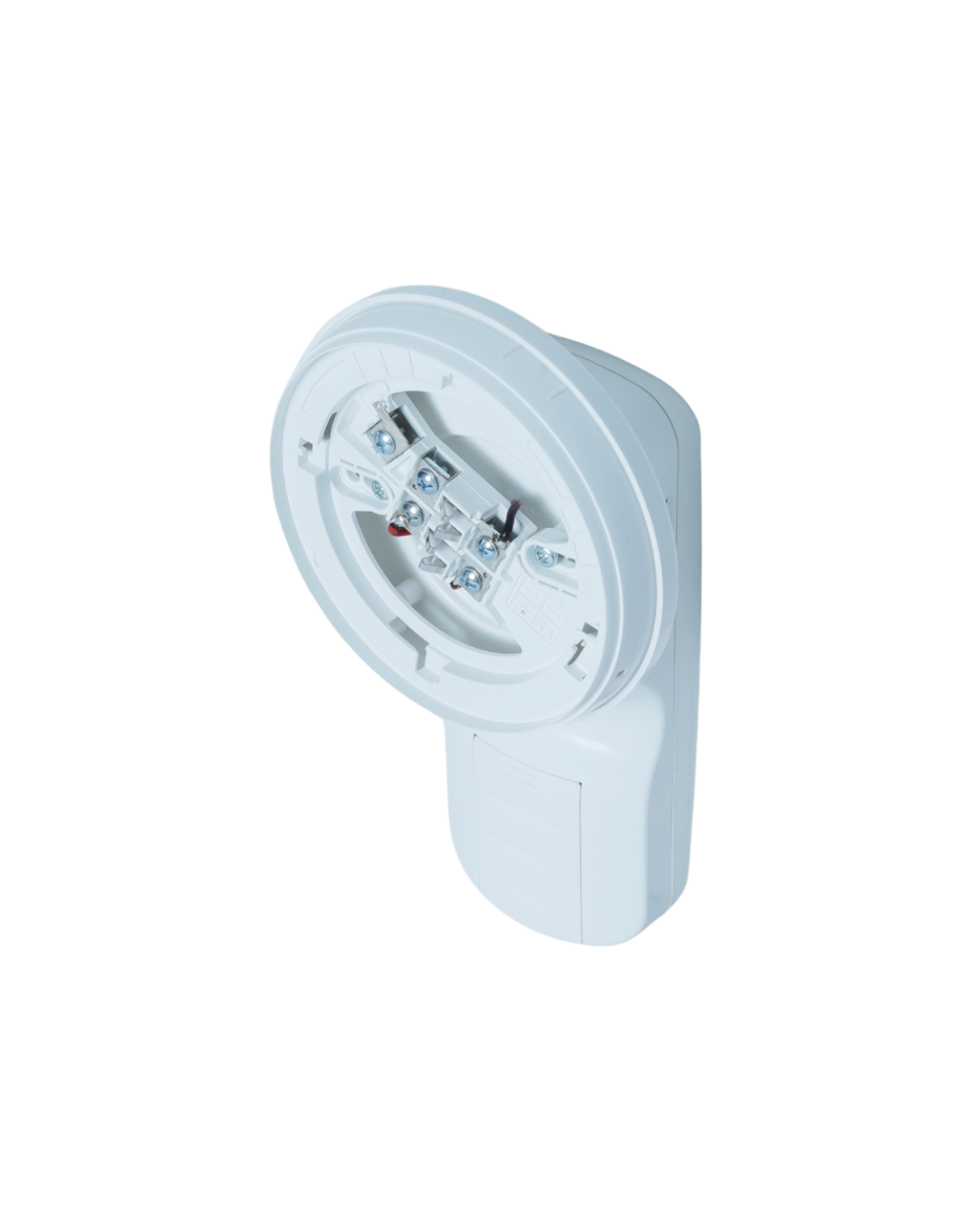

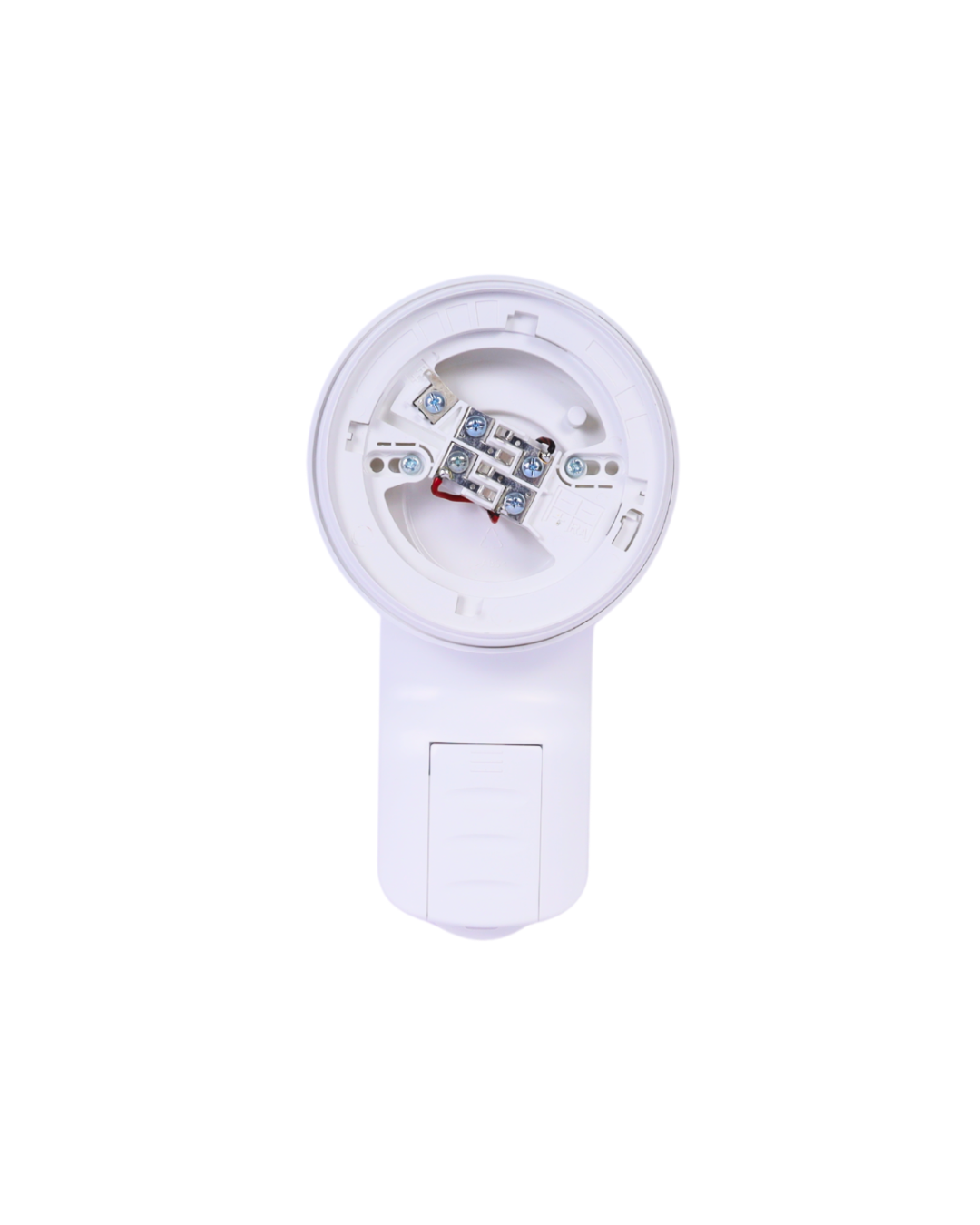

Equipped with an Agni detector adapter base for direct programming of detector devices and includes two interface plug-in cables for compatibility with other Agni Veiga devices. Using its integrated keypad and LCD display, users can navigate through a structured menu system to perform programming and diagnostic tasks efficiently.
The programming unit supports key operations such as assigning or read and write analogue addresses, configuring thermal sensor modes, enabling and disabling module inputs and outputs, programming conventional zone modules, and setting operating modes for sounder bases. Device information including firmware version, production date, test date, standard analogue values, and customer security code can also be viewed.
Powered by a 9V (6LR61) battery, the unit is lightweight, portable, and suitable for indoor and outdoor commissioning environments. It automatically switches off after inactivity, helping conserve battery life while ensuring reliable field operation.
Job to be Done
Primary Job
Ensure devices are correctly addressed, configured, and verified to maintain reliable detection, accurate system response, and compliance with fire safety standards.
Safety Job
Ensure fire alarm devices are correctly addressed, configured, and verified to maintain reliable detection, accurate system response, and compliance with fire safety standards.
Functional Jobs
Program, configure, verify, and diagnose Agni Veiga addressable fire alarm devices on site quickly and accurately without requiring a fire alarm control panel.
How it Works
How does the Agni Veiga Programming Unit Work?
The Agni Veiga Programming Unit (ALPU1000) works as a standalone configuration and diagnostic tool that directly communicates with Agni Veiga analogue addressable devices. It reads, programs, and verifies device parameters using a built-in keypad and display, without needing a fire alarm control panel.
Program Solution
- Assigning an Address to a Smoke Detector
- Changing thermal Detector Mode
- Programming a Tone Sounder Base
- Configuring a Conventional Zone Module
- Verifying Device Information During Maintenance
Program Solution
- Assigning an Address to a Smoke Detector
- Changing thermal Detector Mode
- Programming a Tone Sounder Base
- Configuring a Conventional Zone Module
- Verifying Device Information During Maintenance
How does the Veiga Series Handheld Programmer Operates?
1. Power the Programming Unit

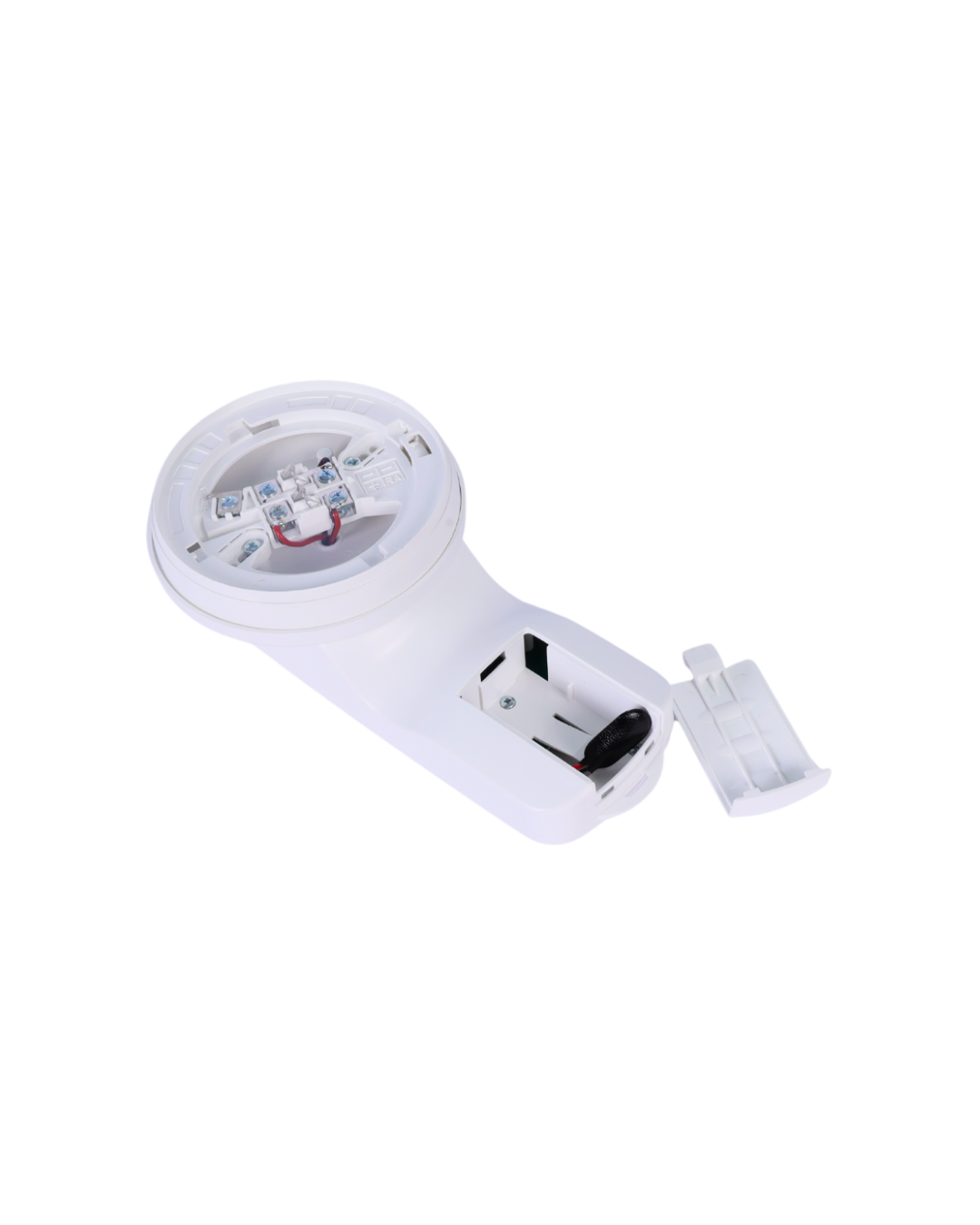

Insert the supplied 9V (6LR61) battery into the programming unit. The battery powers all programming and diagnostic functions.
2. Connect the Device
Connect only one device at a time: Detectors: Mount the detector directly onto the built-in adaptor base, Tone sounder bases: Connect using the supplied jack-to-jack cable, Other analogue devices: Use the jack-to-terminal block cable, ensuring correct polarity
3. Activate the Unit
Press the READ key once. The display shows the firmware version, then opens the address menu automatically.
4. Read or Set the Device Address
The current analogue address appears on the screen. Use the UP and DOWN keys to change it. Press WRITE to store the new address.
5. Access the Main Menu
Press and hold the READ key to enter the main menu. Here, the unit identifies the connected device and displays available parameters such as device type, firmware version, production date, and standard analogue values.
6. Program Device Parameters
Depending on the connected device, the programming unit allows you to: Configure thermal detector modes , Enable or disable input/output channels , Set operating modes for modules or sounder bases , Program conventional zone monitor modules
Product in One Line
The Agni Veiga Handheld Programming Unit enables technicians to program and verify analogue addressable fire alarm devices quickly and accurately on site without using a control panel.
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Programming Unit |
|
Model |
ALPU 1000 |
|
Power Supply |
9V Battery (6LR61 type) |
|
Operating Temperature |
-30°C to +70°C |
|
Maximum Relative Humidity |
95% RH (non-condensing) |
|
Weight |
200 grams |
|
User Interface |
In-built keypad and LCD display |
|
Programming Method |
Menu-driven configuration |
|
Device Connectivity |
Adaptor base, jack-to-jack cable, jack-to-thermal block cable |
|
Supported Devices |
Agni Veiga analogue addressable devices |
|
Funcations |
Address setting, parameter programming, data reading |
|
Auto Power Off |
After 30 seconds of inactivity |
FAQ
What is the Agni Veiga Programming Unit used for?
The Agni Veiga Programming Unit is used to read, configure, and program parameters of Agni Veiga analogue addressable fire alarm devices. It allows technicians to set device addresses, configure operating modes, and read device data during installation, commissioning, or maintenance.
Which devices are compatible with the Agni Veiga Programming Unit?
The programming unit is compatible with Agni Veiga analogue addressable devices, including detectors, sounder bases, zone monitor modules, input / output modules, and multi-module devices.
What parameters can be programmed using this unit?
The programming unit allows:
- Reading and setting analogue address
- Programming Operating modes
- Configuring thermal sensor modes (Rate of Rise or High Temperature)
- Enabling or disabling input and output modules
- Programming operating modes for tone sounder bases
Is polarity important when connecting devices?
Yes, When using the terminal block cable, correct polarity must be maintained. The red wire indicates positive polarity, and the block wire indicates negative polarity.
Agni Veiga Handheld Programming Unit
Agni ALPU1000 Programming Unit for addressable fire alarm devices. Configure addresses, modes, firmware, and device parameters easily.
