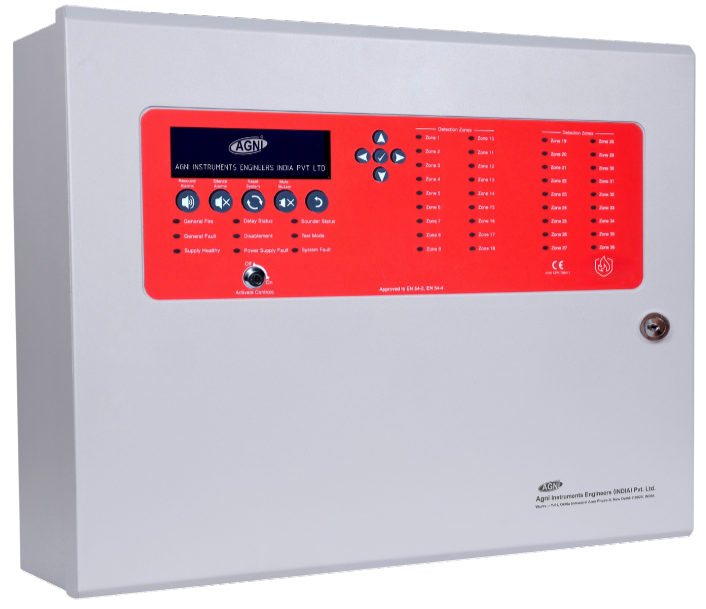

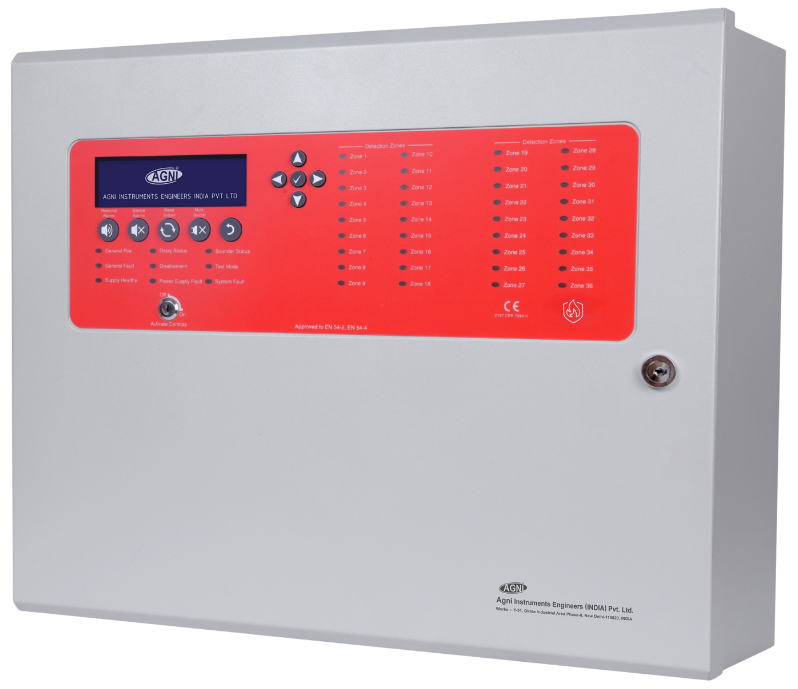

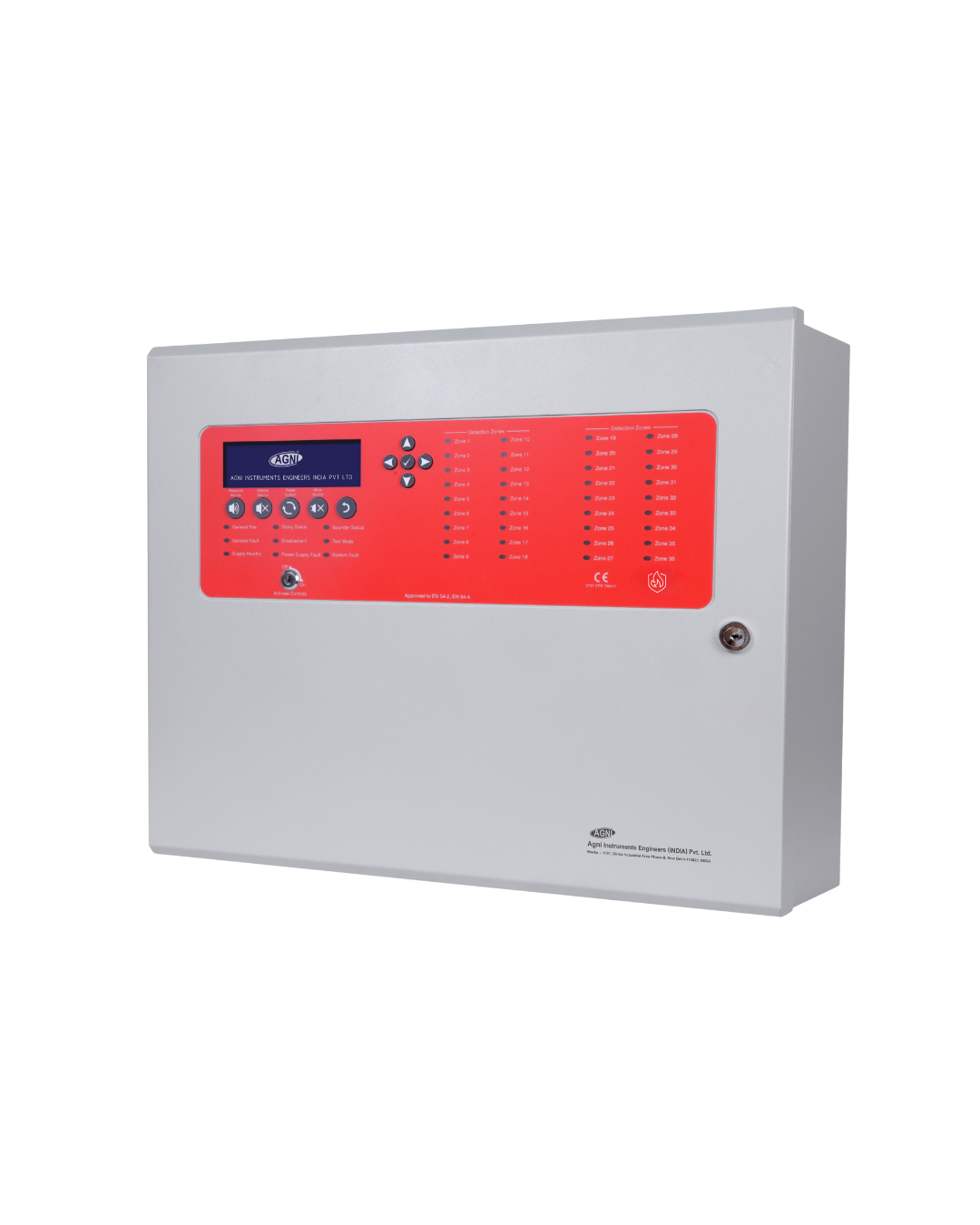

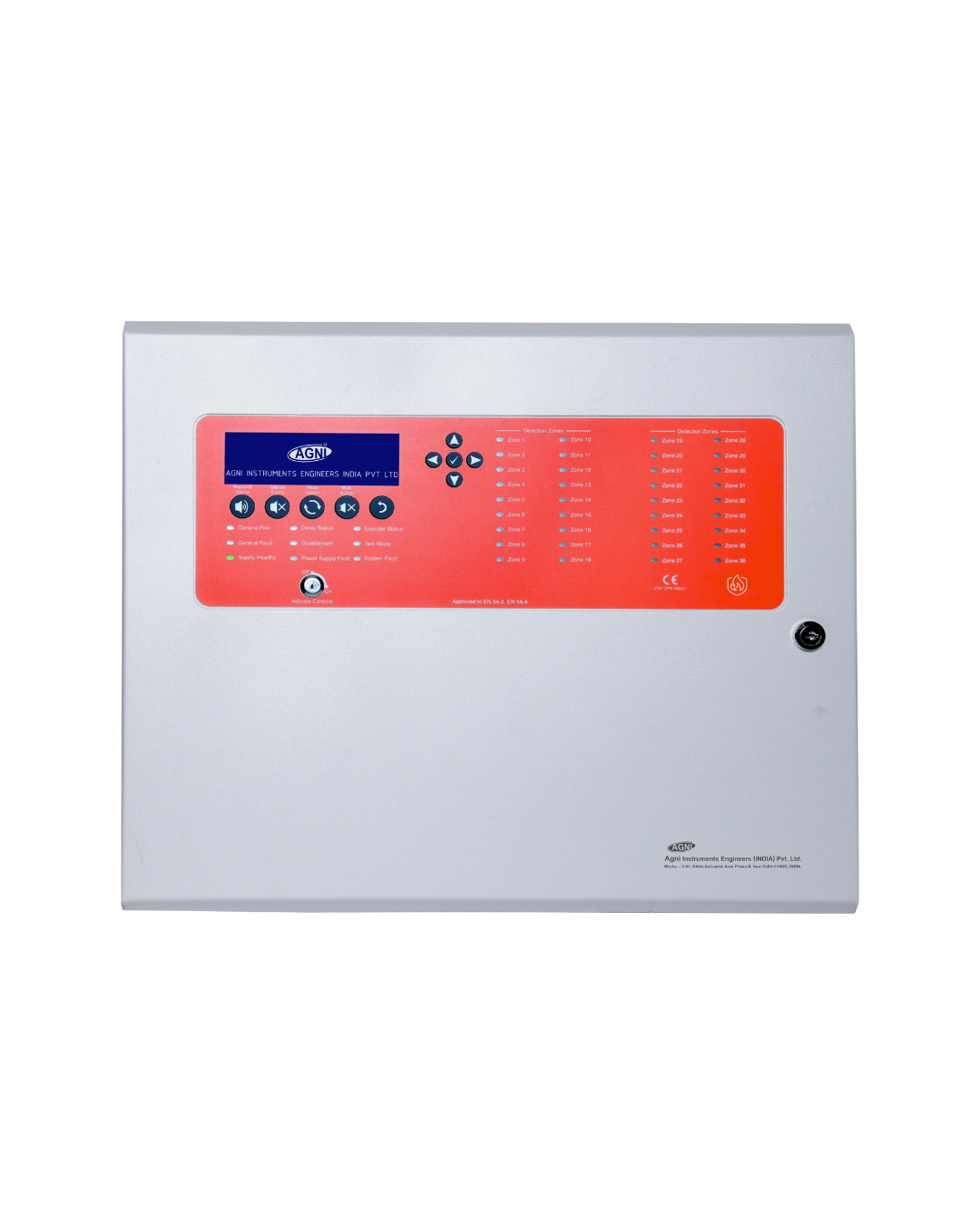

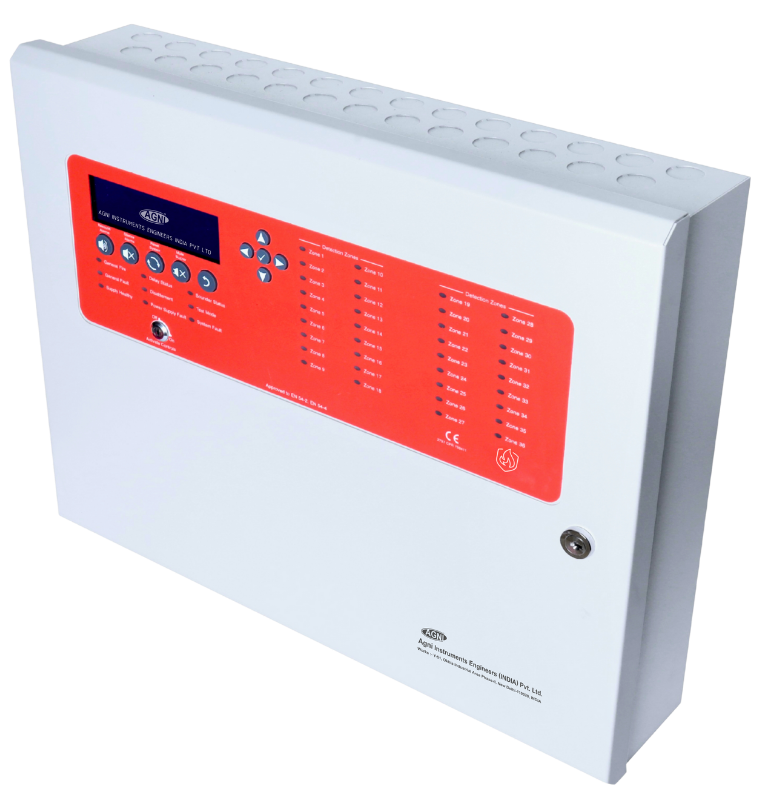

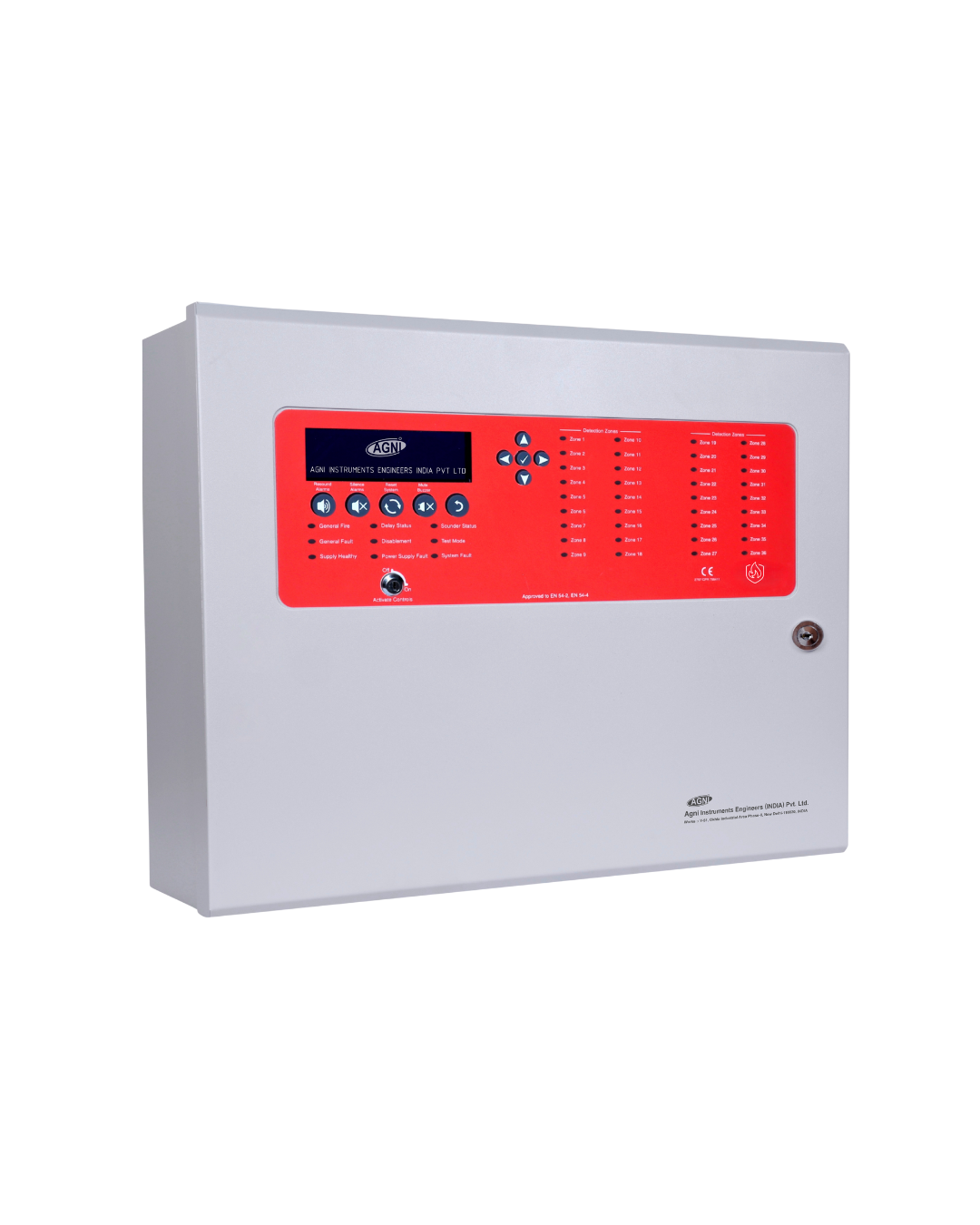

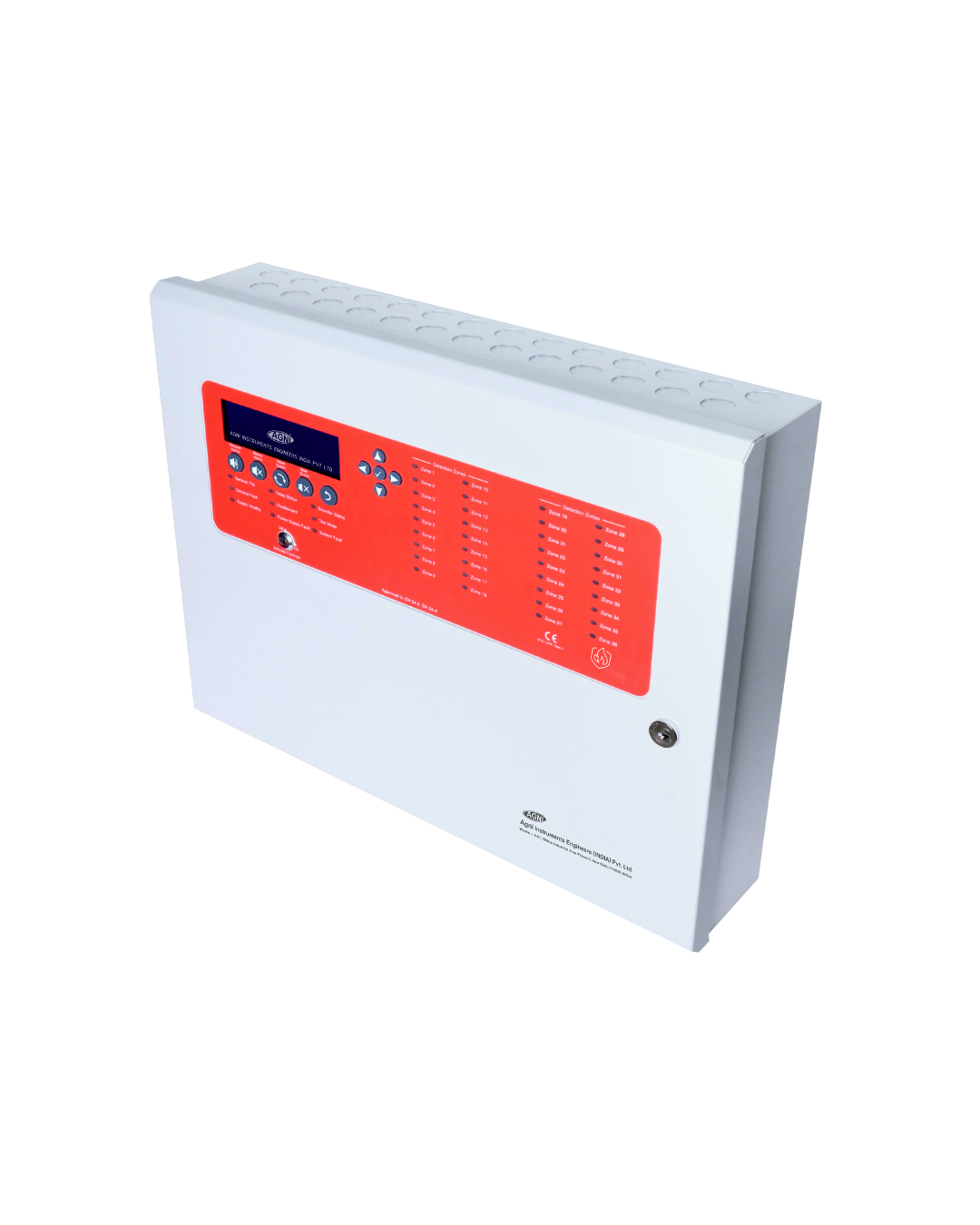

Micro Processor Based Intelligent Addressable 1/2/4 Loop Control Panel – Agni Veiga Series
The Agni Veiga Series Micro Processor Based Intelligent Addressable Control Panel is a high-performance fire alarm control solution designed for reliable fire detection and system management in commercial, industrial, institutional, and government buildings. Supporting up to 1-4 addressable loops, 240 devices per loop, and 2 km loop length, the panel offers intelligent monitoring, fast response, and long-term operational stability. Fully compliant with EN54-2 & EN54-4, it is based on an ARM cortex processor , graphical LCD interface, and robust metal construction for any hard and rugged environment .
Description
The Micro Processor Based Intelligent Addressable Control Panel – Agni Veiga Series is engineered to deliver precise fire detection, intelligent system control, and easy maintenance. Built on an intelligent Redundancy microprocessor architecture, this control panel continuously monitors addressable devices and provides accurate alarm, fault, and system status information.
The panel supports 1 to 4 intelligent analogue addressable loops (model dependent), with each loop capable of handling up to 240 addressable devices over a distance of up to 2 km. This scalability makes it suitable for small to medium-large scale NETWORKING fire alarm installations where performance, flexibility, and compliance are essential.
A large graphical LCD display Factory font 320cs character size customization with soft-touch keypad allows intuitive navigation, fast system configuration, and simplified servicing. The control panel maintains a minimum 4000 event history, including alarms, faults, and system actions, stored securely in non-volatile memory with date and time stamping.
The integrated 1.5 A intelligent switch-mode power supply ensures stable operation while providing temperature-compensated battery changing in accordance with EN54-4 requirements, Advanced features such as auto-learn device addressing, false alarm management, loop fault diagnostics, and programmable cause-and-effect logic enhance system reliability and Reduce Unwanted Alarms.
Designed in a robust mild-steel enclosure (IP30) with powder-coated finish, the Agni Veiga control panel supports the full range of Agni protocol addressable devices, Optional RS-485 networking, and BMS integration via BCAnet / Modbus IP. This makes it an ideal choice for modern fire alarm systems requiring compliance, intelligence, and durability.
Job to be Done
Primary Job
Building owners and safety managers to detect fire incidents early, identify the exact location instantly, and Alarm trigger the immediate emergency response with minimal human intervention.
Safety Job
Protect human life and expansive critical infrastructure by detecting fire threats early, communicating precise locations, and initiating immediate emergency response without system failure.
Functional Jobs
Monitor up to 240 addressable devices per loop continuously Accurate identify the pin point device location address mapping area or zone during alarm or fault system Commands as execute algorithm Acctivate sounders, relays, and outputs automatically during emergencies
How it Works
How does the Agni Veiga Intelligent Addressable Control Panel Work?
The Micro Processor Based Intelligent Addressable Control Panel operates by continuously monitoring every connected addressable device through intelligent loop communication. Each device has a unique address, allowing the system to identify the Pin point location and type of Event display with real Date & time.
Application & Solution
- Office Building Fire Detection
- Industrial Facility Fault Monitoring
- Hospital False Alarm Reduction
- Networked Multi-Building Setup
Application & Solution
- Office Building Fire Detection
- Industrial Facility Fault Monitoring
- Hospital False Alarm Reduction
- Networked Multi-Building Setup
How the Intelligent Addressable Control Panel Operate?
1. Continuous Loop Scanning
The control panel scans each addressable loop in real time. Each loop supports up to 240 devices and a maximum loop length of 2 km.
2. Device Identification
When a detector or manual call point is activated, it sends its unique address to the panel. The panel identifies the exact device and zone without delay.
3. Alarm Verification
The microprocessor analyzes the signal to confirm an alarm condition. False alarm management helps reduce unwanted activations.
4. Alarm Activation
After confirmation: Sounder circuits are activated, Fire relays operate automatically, Visual and audible alerts appear on the panel display
5. Event Recording
The system stores all alarms and faults in non-volatile memory. A minimum of 4000 events are logged with date and time.
6. Power Backup Operation
The internal 1.5A intelligent switch-mode power supply maintains system stability. During mains failure, the system automatically switches to battery backup.
Product in One Line
System have built in intelligence false-alarm-resistant and accurate fire detection that instantly identifies the exact alarm location, triggers relevant emergency devices, ensures continuous operation, and complies with health and safety regulations and standards.
Technical Specification
General Specification
|
PARAMETER |
Specification |
|---|---|
|
Control Type |
Agni Veiga Micro Processor Based Intelligent Addressable |
|
Loops |
1,2,4 Loops (Model Dependent) |
|
Devices per Loop |
Maximum 240 |
|
Loop Length |
Up to 2 km |
|
Protocol |
Agni Addressable Protocol |
|
Event Log Capacity |
4000 Events (Date & Time Stamped) |
|
Display |
Graphical LCD with Adjustable Font 320cs* |
|
Keypad |
Soft Touch Keypad |
|
Zonal LEDs |
18 |
|
Programmable Groups |
64 |
|
False Alarm Management |
Yes |
|
Auto Learn Function |
Yes |
Power Supply Specification
|
PARAMETER |
Specification |
|---|---|
|
Mains Supply |
230VAC ±10% / −15%, 50Hz |
|
Internal Power Supply |
1.5A Intelligent Switch Mode PSU |
|
Output Voltage |
19.8 - 29.7 VDC |
|
Battery Charging Voltage |
27.3 VDC (Temperature Compensated) |
|
Charging Current |
700mA (Current Limited) programmable |
|
Battery Capability |
1Lp / 2 Lp Batt. @ 7Ah / 12Ah 24v / 4Lp Batt. @ 27 Ah 24v |
|
Standby Current |
Approx. 220-230mA |
|
Alarm Current |
Up to 1000mA |
Input & Output Specification
|
PARAMETER |
Specification |
|---|---|
|
Sounder Circuits |
2 × 400mA @ 21–28VDC |
|
Fire Relay |
Clean C/O, Max 3A @ 30VDC |
|
Fault Relay |
Clean C/O, Max 3A @30VDC |
|
Inputs |
CC / Pluse (Protected) |
|
Communication |
RS-485 (Optional) |
|
BMS Integration |
Optional BACnet / Modbus IP / Scada IO 70 |
Mechanical & Compliance
|
PARAMETER |
Specification |
|---|---|
|
Enclosure Material |
1.2 mm Mild Steel |
|
Protection Rating |
IP30 |
|
Finish |
Powder-Coated (Red Fascia) |
|
Compliance |
EN 54-2, EN 54-4 |
|
Certification |
EN 54-2 & 54-4 / CE / NABL LAB TESTED |
|
Warranty |
12 Months |
FAQ
What is a Micro Processor Base Intelligent Addressable Control Panel?
A Micro Processor Based Intelligent Addressable Control Panel is a fire alarm control unit that uses a microprocessor to continuously monitor, analyze, and control addressable fire detection devices. Each device has a unique address, allowing precise identification of alarms, faults, and system status.
How many loops does the Agni Veiga Control Panel support?
The Agni Veiga Series supports 1 / 2 / 4 analogue addressable loops, depending on the model. The system can be extended based on installation requirements.
Is networking between multiple panels possible?
Yes, Multiple Agni Veiga panels can be networked using RS-485 communication, allowing centralized monitoring and control.
Which devices are compatible with this panel?
The panel supports the full range of Agni protocol addressable devices, including detectors, sounders, modules, and accessories from Agni Instruments Engineers India Private Limited.
Micro Processor Based Intelligent Addressable Fire Alarm Panel – Loop 1, 2, 4
EN54-2 & EN54-4 compliant micro processor based intelligent addressable control panel with 1,2,4 and up to 4 loops, 240 devices per loop, graphical LCD & robust PSU.
Related products
Summary
Advance micro processor based intelligent addressable control panel continuously monitors all connected fire alarm devices using unique digital addresses. When a fire or fault occurs, the panel identifies the exact device location, activates alarms, records the event, and ensures uninterrupted operation through battery backup.
Key Highlights of
Seamless Integration wiht PA and Fire Fighting Telephone with Agni Veiga Series:
- Agni axis audio series Emergency voice alarm controller & Communication (EVAC): Upon detecting a fire, the system automatically broadcasts pre-recorded evacuation instructions, replacing traditional, often confusing, alarm bells.
- Agni communicator Series Integrated Firefighter Telephone System: Advanced systems include fire-rated, two-way communication stations (talkback units) that connect directly to the main control panel, allowing firefighters and personnel to communicate with the control room.
- Seamless Integration with agni Fire Alarm Panels: These systems connect with addressable fire detection panels to trigger specific zone alerts.
- Zoning and Control: The system allows for targeted announcements, enabling different messages for specific floors or areas to manage evacuation efficiently.
- Real-Time Announcements: Enables security teams or fire wardens to make live, manual announcements or override automated messages.
- Compliance and Safety: These systems are engineered to meet safety regulations like NFPA 72, IS 2189, and NBC 2016 for commercial, industrial, and high-rise buildings.
