GST-IFP8 Intelligent Fire Alarm Control Panel
Features
- Loops (242) capacity (1936) addressable points
- Modular constructed for future expansion
- 40 x15 lines LCD Display
- Up to 999 programmable zones and 140 zones’ indication
- Day and Night Mode
- Enable and Disable function
- PAS and Acknowledge Function
- Dirty Detector Reporting
- Duplicate Address Checking
- Walk Test Function with optional silent mode
- Programmable from PC or Panel
- History record – 999 fire incident and 999 general events capacity in non-volatile memory
- Advanced user friendly programming software including ‘Fuzzy Logic’
- Networkable with GST Intelligent Fire panels up to 240 nodes ( CAN Class B connection )
- Optional GST-GMC graphic station
- Optional RS 485 mimic and repeater up to 64
- Built in Fire Alarm, FPE, Fault and Alarm Router output
- Panel Printer included
- Built in Battery Charger
- Optional protection of re-programming
- Approved by LPCB
GST100 Intelligent Fire Alarm Control Panel
- Single loop addressable panel
- Can connect up to 128 addressable devices
- 8 zone fire and fault indication with consumer definable label
- Self configurable via panel keyboard
- Easy commissioning making the GST100 an ideal product for electrical installers
Manual Call Point ABS Body With Blinking LED
Agni 302
Conventional manual call point is an emergency alerting device which can be activated by pressing a transparent plastic window on its front side.
The call point once activated can be reset by press. Designed for use with conventional fire alarm control panels and alarm loop by installing the module conventional zone module.
This allows the fire alarm control panel to monitor the conventional call point devices.
Response Indicator ABS Body
Agni 501
- Compatibility with all Detectors
- Dual LED Lamp
- Wall Mounted
- Ceiling Mount
- ABS Plastic
- Indoor use Only
Response Indicator ABS Body For False Ceiling
Agni 502
- Compatibility with all Detectors
- Dual LED Lamp
- Wall Mounted
- Ceiling Mount
- ABS Plastic
- Indoor use Only

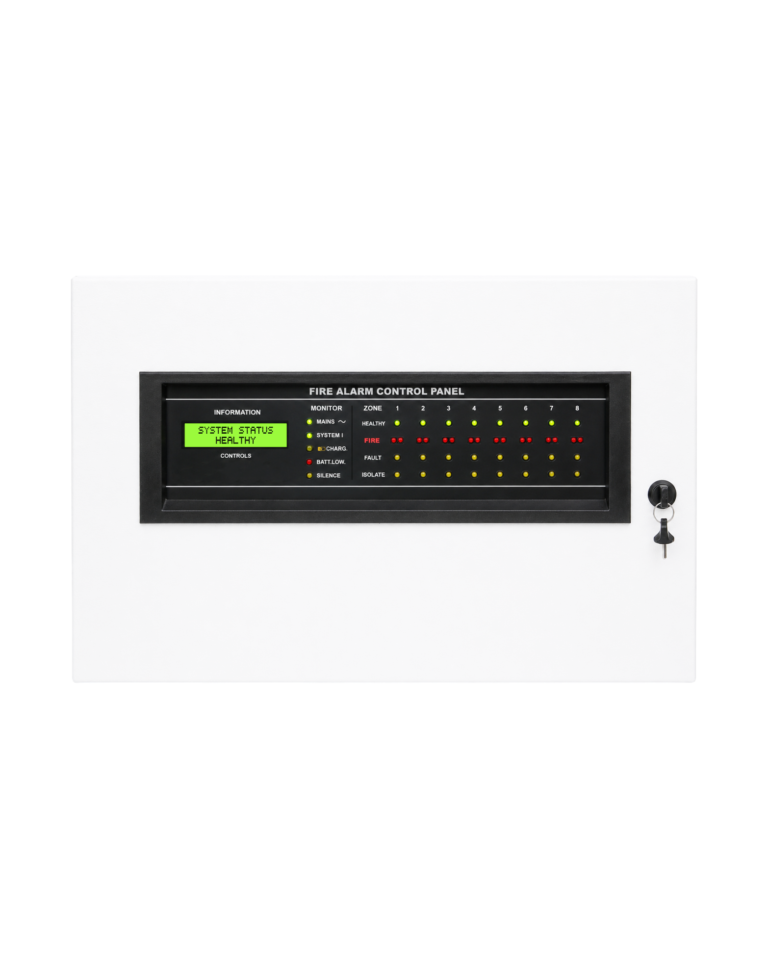

SIG. Hybrid 1002
2 Zone and 4 Zone Microprocessor Based Fire Alarm Control Panel
- SYSTEM AS PER IS-2189 : 1999 AND NFPA SPECIFICATIONS,
- ALL STATUS DISPLAYED ON LCD DURING STARTUP.
- AUTOMATIC ALL ZONE SCANNING AFTER 90 SEC.
- ZONE ISOLATION FACILITY VIA INTERNAL SOFTWARE.
- INTELLIGENT INBUILT BATTERY COMPARISON CHARGER.
- ADVANCE ZONE TESTING FACILITY.
- USER FRIENDLY
- BUZZER PRODUCES TWO DIFFERENT SOUNDS TO DIFFERENTIATE BETWEEN.
- FIRE ALARM CONDITIONS AND FAULT / WARNING CONDITIONS.
