ABS-JFT 906 Fire Fighter Telephone Jack
A wall-mounted plug-in point for the Agni FFTH-901 handset. A firefighter plugs in on any floor, the fire alarm system logs which jack was used, and a two-way voice line opens to the fire control room. Built for high-rise buildings, malls, hospitals, offices and industrial complexes.
Part Number:
AGNI-ABS-JFT-906-B
Firefighter Communication, on a line that never depends on radio coverage
The Agni Firefighter Telephone Jack is a dedicated emergency communication point. It is the wall end of a fire telephone system: a firefighter carries a portable handset, plugs it into the nearest jack, and speaks directly to the fire alarm control room.

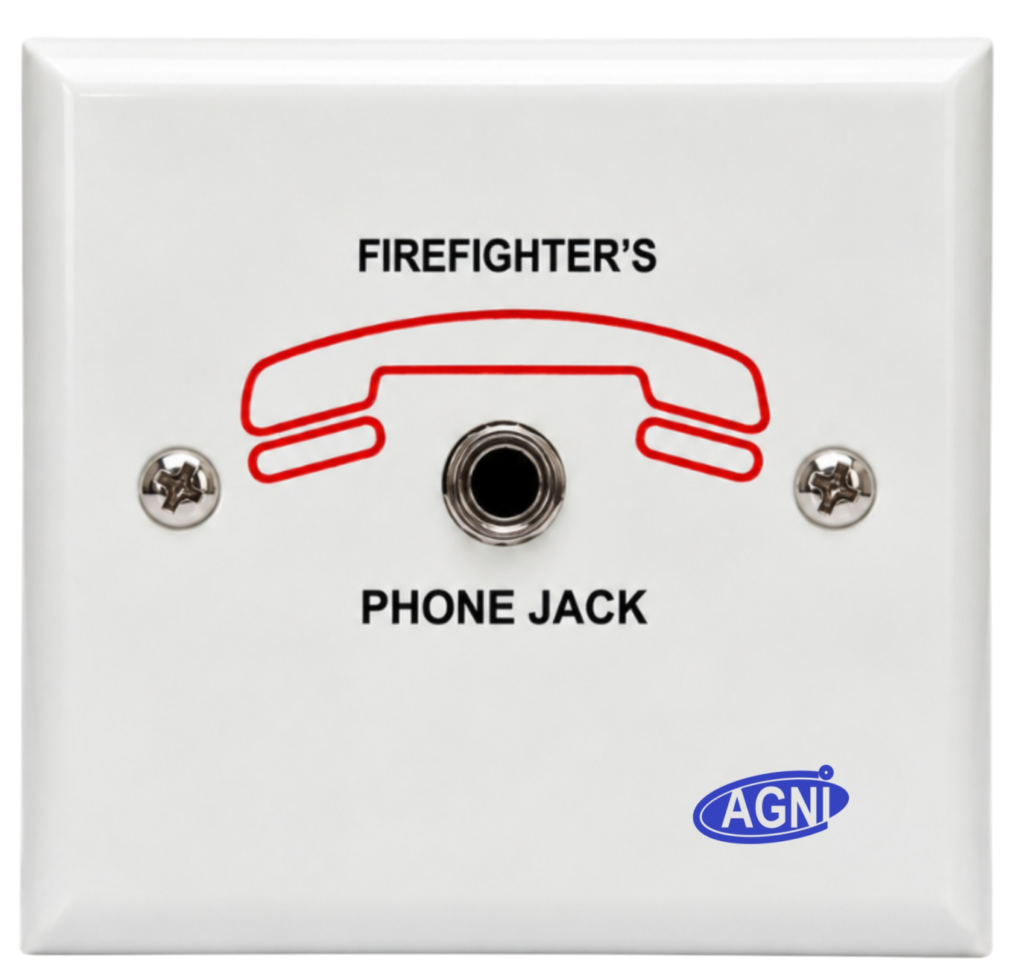

The panel is moulded in high impact ABS and finished in matte white, with a clearly marked red handset symbol so responders can find it quickly in a smoky corridor or dim stairwell. Use it as a fireman telephone jack in any building where a control-room voice link in needed on every floor.
It forms one part of Agni's fireman communication system. The jack connects to the FFT-900 Series EVCS, and the handset that plugs into it is the FFTH-901.
Certifications & Compliance
CE
European Conformity
EN54-4 | EN45-2
European Certification
UL 217:2024
Functionality Compliance
IS 2189: 2022
NABL Laboratories Test Certified
ERTL North (Govt. India)
Functional Test Certified
Standard Code of Practice
INDIA-BIS | NBC
Approved Department
Government of India
Department of CPWD / PWD
Complied with CPWD DSR
Choose The Ideal Fire Fighter Telephone Jack
Each jack is a remote firefighter phone jack point: a socket on the wall that leads back to the control room. Around it sit the other parts a firefighter needs: the handset, and the jack plate in the material and size your project calls for. All three jack plates share the same electrical specification, so you choose between them by material, plate size and finish.

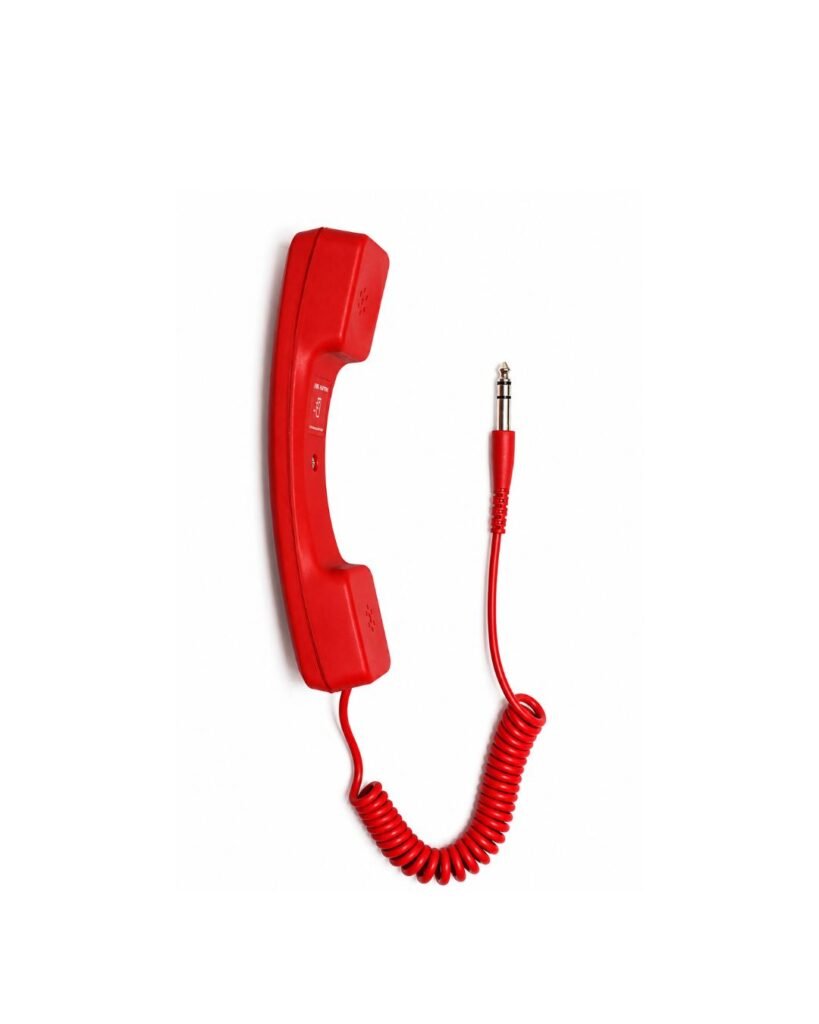

Firefighter Telephone Handset
AGNI-FFTH-901
- Red ABS body, 4.8 mm curly cord, 1200 mm length
- 6.3 mm stereo pin plug, 75+ dB audible level
- 24 V DC, IP47, ENC (background noise cancellation)

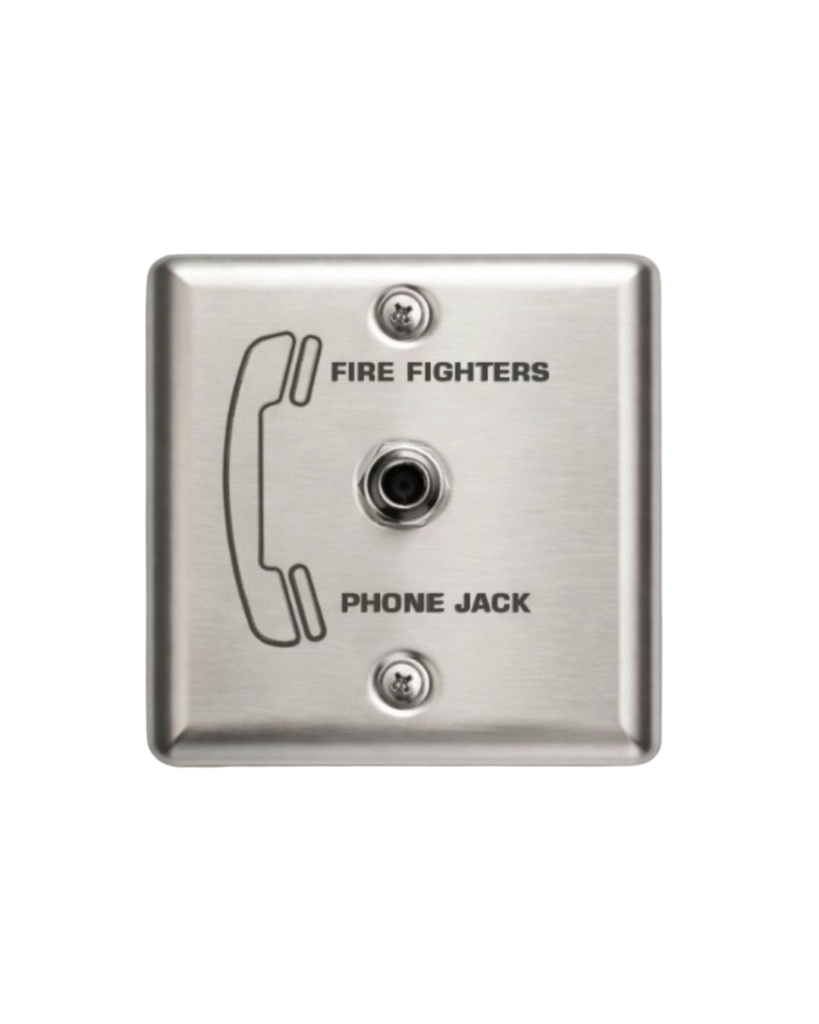

SS Firefighter Telephone Jack
AGNI-SSJ-FT-904-A
- 304 grade stainless steel, 18 swg
- 88 × 88 mm, square plate, 85 g
- 6.3 mm socket, 24 V DC and 10k EOL supervision

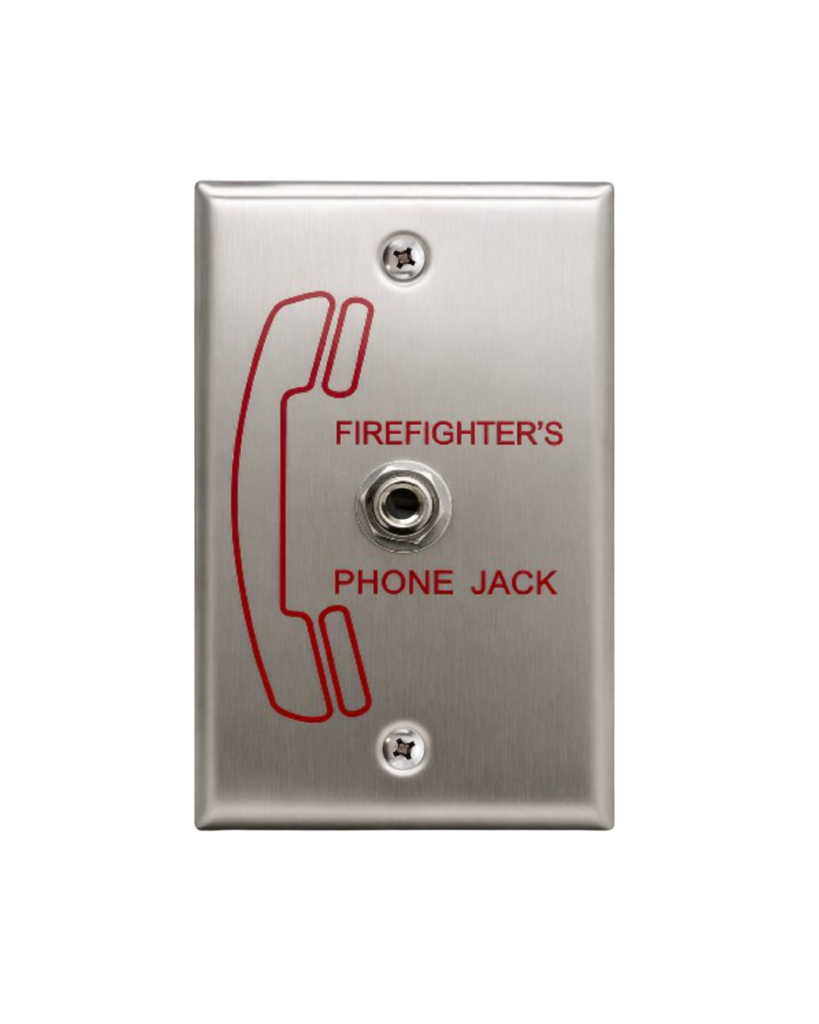

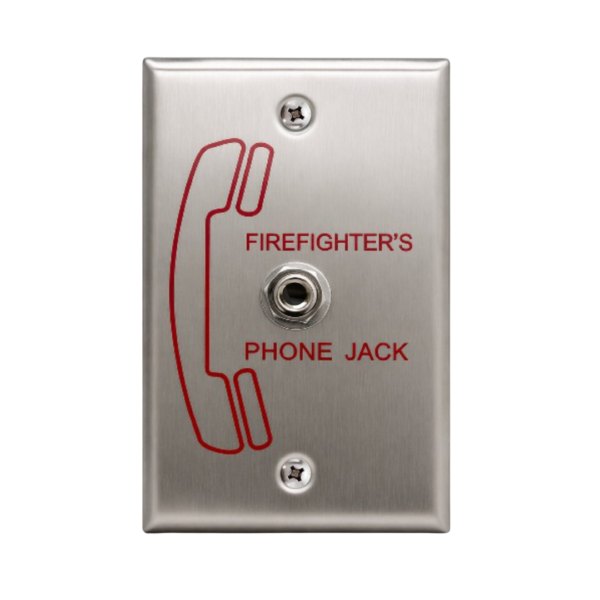

Stainless Steel Fire Fighter Jack
AGNI-SSJ-FT-905-B
- 304 grade stainless steel, 18 swg
- 116 × 70 mm rectangular plate, 95 g
- 6.3 mm socket, 24 V DC and 10k EOL supervision
Firefighter Telephone Jack Technichal Specificaiton - ABS-JFT-906-B
|
Parameter |
Specification |
|---|---|
|
Construction |
ABS - Acrylonitrile Butadiene Styrene High Strength Plastic |
|
Max tolerated humidity |
95% RH |
|
Protection Category |
Type A - Indoor Use / Rating IP21C |
|
Dimensions |
Height - 90 mm / Width - 100 mm / Depth - 5 mm |
|
Finish |
Bright Stainless Steel brushed finish |
|
Net Weight |
95 g |
|
Mounting |
Surface Or Flush Mount |
|
Part Number |
AGNI-ABS-JFT-906-B |
|
Parameter |
Specification |
|---|---|
|
Operating Voltage |
24v Dc (±6%) |
|
Female Jack |
6.3 stereo |
|
Monitoring |
DC current Open Short |
|
End of line Resistance |
10k 1/4 w |
|
Current When Handset Connectivity |
35 mA |
|
Connectivity Connection |
Male PIN TRS 6.3 mm |
|
Cable / Wire |
2 core 1.5 sq mm |
|
Circuits Supervised |
Class B wiring |
|
Ambient Operating Temperature |
-10ºC to + 49ºC Range |
|
Product |
Part Number |
|---|---|
|
Handheld Remote Firefighter's Telephone Handset - portable field unit |
FFTH 901 |
|

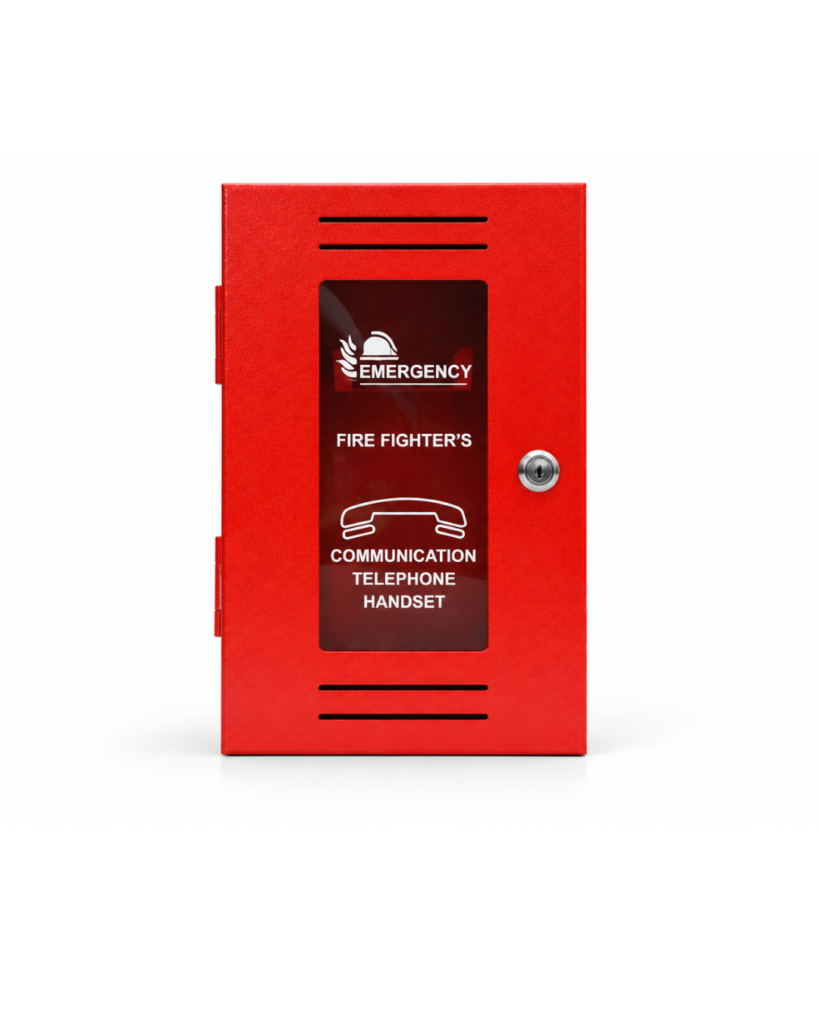

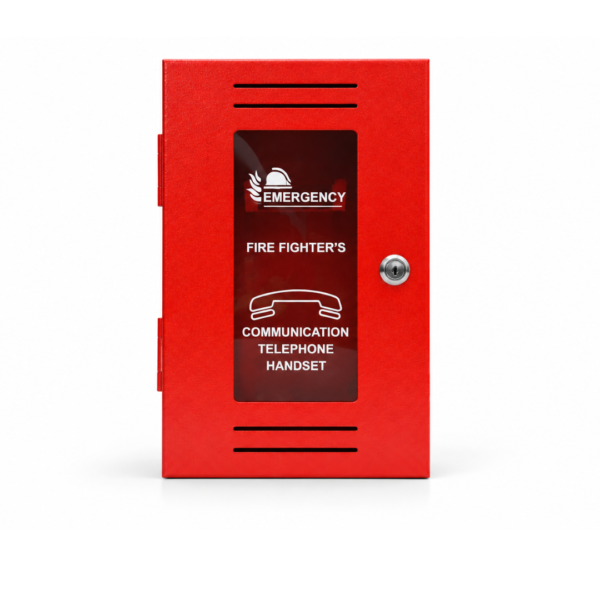

Remote Telephone Handset Box |
FFTH-901-BOX |
|
Firefighter's Jack Unit - Stainless steel wall-mounted connection point |
SSJ-FT 904-A |
|
Firefighter Telephone Jack SS Body (Rectangular) |
SSJ-FT 905-B |
|
Firefighter Telephone Jack ABS Body |
ABS-JFT 906-B |
|
Remote Paging Module - connects EVCS panel to paging amplifire |
FFT-PAC-900 |
|
BMS Interface Module - Building Management System integration |
FFT-900 Nexus 2.9V |
|
Hands-Free Speakerphone for Patients, Disabled Persons & Refuge Areas (Coming Soon) |
FFT CARE-1008 HF |
|
10k Ohms End-of-Line resistors for Class B circuit supervision - specify system configuration when ordering |
EOL 10K Resistors |
|
12V - 12Ah sealed lead-acid battery unit for backup power-specify system configuration when ordering |
Battery (12Ah) |
|
12V - 26Ah sealed lead-acid battery unit for extended power-specify system configuration when ordering |
Battery (26Ah) |
|
Module for Expantion system from 16 lines up to 128 lines |
FFT-900 Expansion V-4 |
|
Networking Module |
FFT-900 RS-485 Card |
|
Type B interface cable for FFT-9 software connection |
USB 2.0 Cable-FFT |
|
Advanced PC software for system configuration, monitoring, diagonstics, and firmware updates |
FFT-900 GUI-2 Software |
|
Replacement handset curly cord and plug assembly for FFTH 901 |
Curly Cord 901 |
Built for Emergency Communication
The AGNI-ABS-JFT-906-B is a brushed stainless steel fire telephone jack that gives firefighters a fixed plug-in point on every floor. Connect an FFTH-901 handset and you are in two-way contact with the fire control room.
304 stainless steel jack plate
Made from 18 swg, 304 grade corrosion-resistant steel with a brushed finish. It is durable and easy to spot on the wall.
Supervised plug-and-talk activation
Plugging in the handset triggers the circuit, and the monitor module reports the jack's ID or location to the fire alarm system. A 10k end-of-line resistor and Class B wiring watch for open and short faults.
Works with the FFTS-900 Series EVCS
It gives duplex two-way communication once the control room presses "Call Accept". It connects through a monitor module the datasheet says is compatible with any brand.
The full FFT-900 ecosystem
Field-side hardware that connects to every FFT-900 master panel.
Handheld handset
Portable firefighter’s telephone with noise-cancelling mic and earpiece; plug-and-talk into any jack unit, no dialing required.
BMS interface module
Dedicated motherboard port for integrating the FFT-900 into a Building Management System for centralized monitoring.

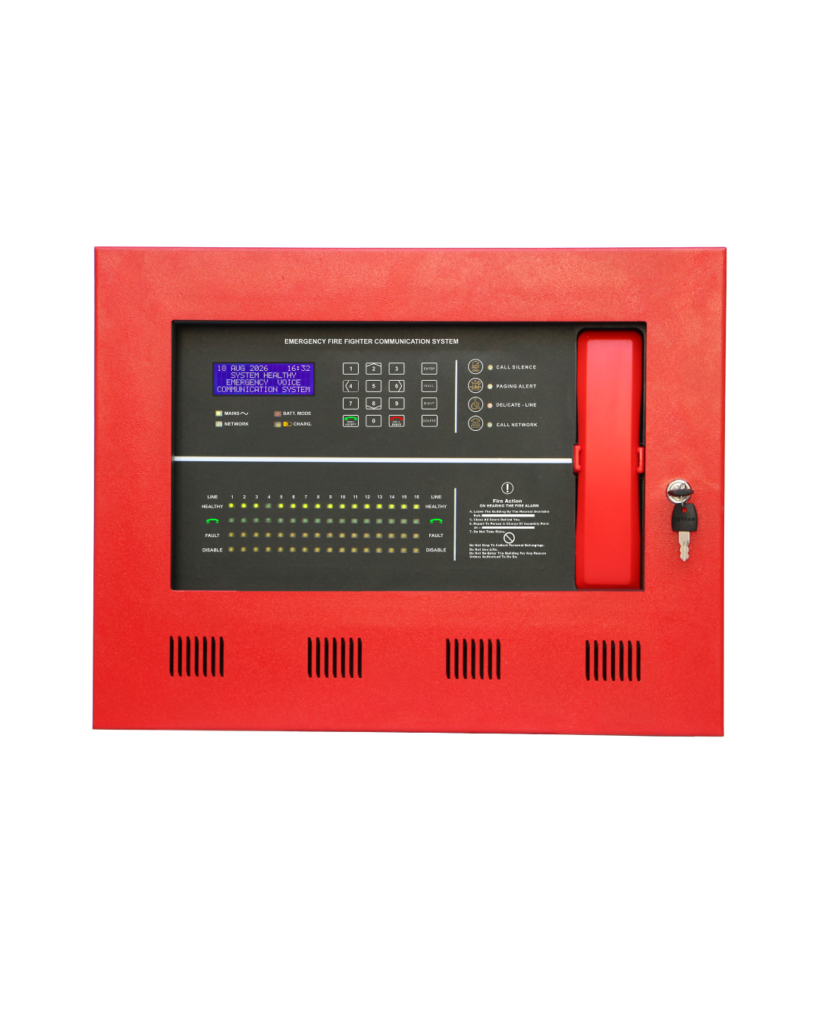

Telephone Communication System
Fire fighter telephone communication system (EVCS) with 16 to 128 expandable zones, BS 5839-9 compliant.
Product in One Line

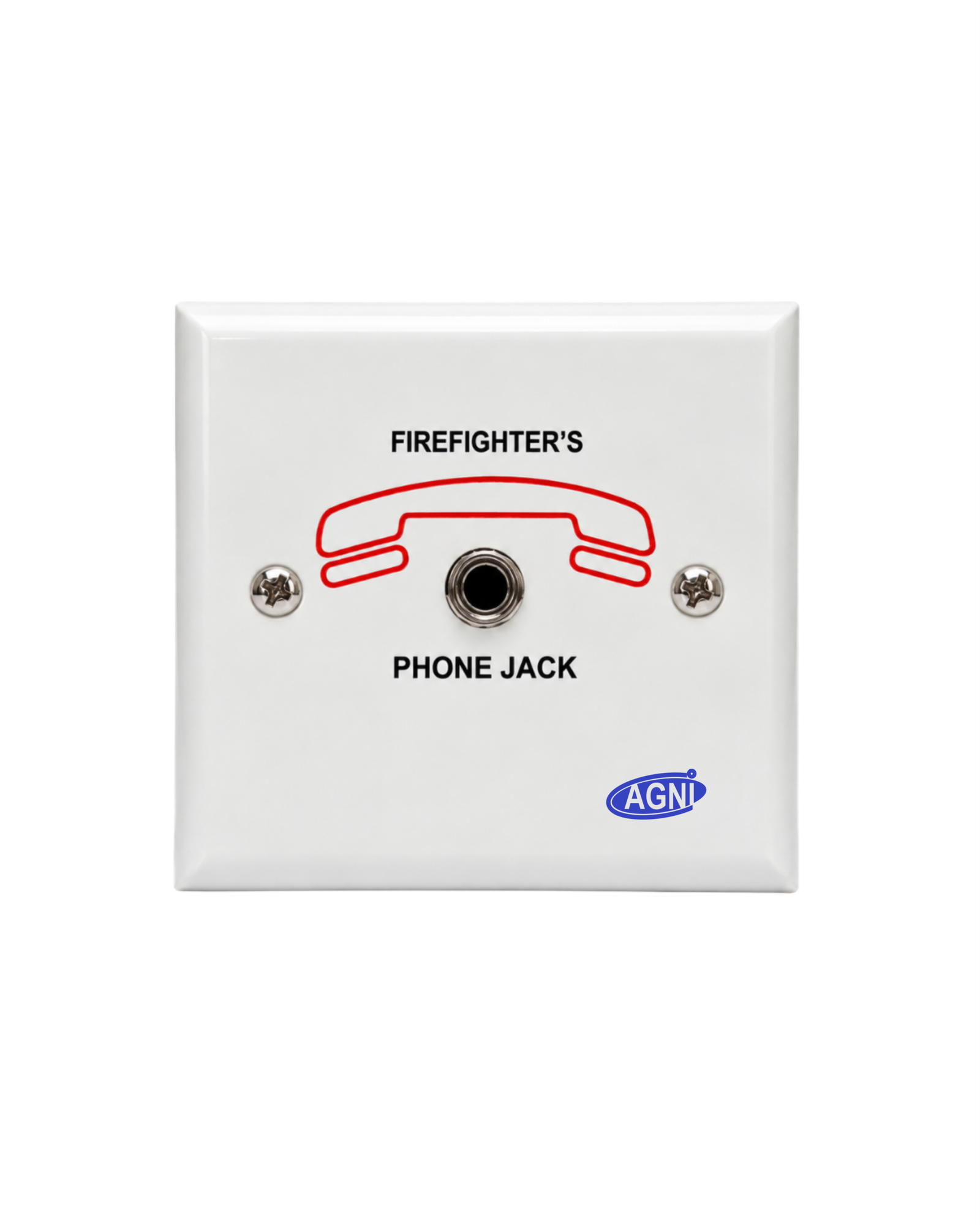

AGNI-ABS-JFT-906-B is a wall-mounted white ABS firefighter telephone jack plate with a 6.3 mm stereo socket. Firefighters plug an FFTH-901 handset into it for two-way talk with the fire control room through the FFTS-900 Series EVCS, on a 24 V DC, 10k EOL supervised circuit.
Frequently Asked Questions
It is a wall-mounted socket where a firefighter plugs in a portable handset during an emergency. Once the handset is in, the jack signals the fire alarm system and opens a two-way voice link to the fire control
1.2 m ± 0.2 m above finished floor level, as per IS 2189 (NBC), aligned with practices similar to BS 5839.
Yes, The AGNI-SSJ-FT-905-B stainless steel jack plate is made from 304 grade stainless steel with a bright brushed finish, Agni offers it in two sizes: the AGNI-SSJ-FT-905-B rectangular plate (116 × 70 mm) and the AGNI-SSJ-FT-904-A square plate (88 x 88 mm). Their electrical specification matches the ABS plate. The AGNI-ABS-JFT-906-B on this page is the ABS version.
