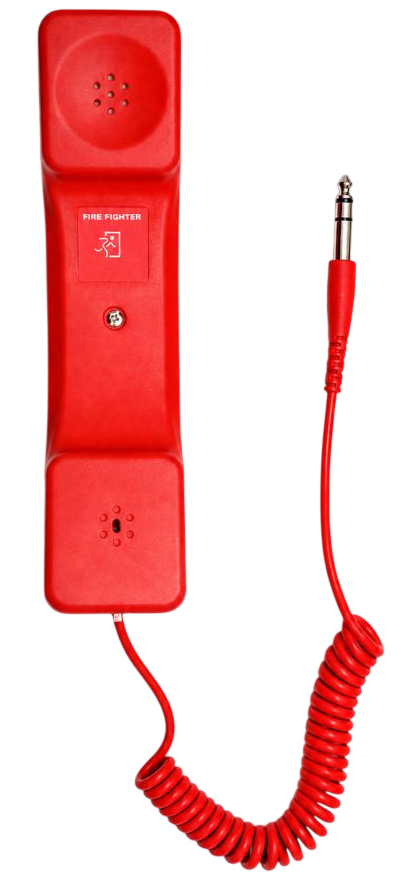

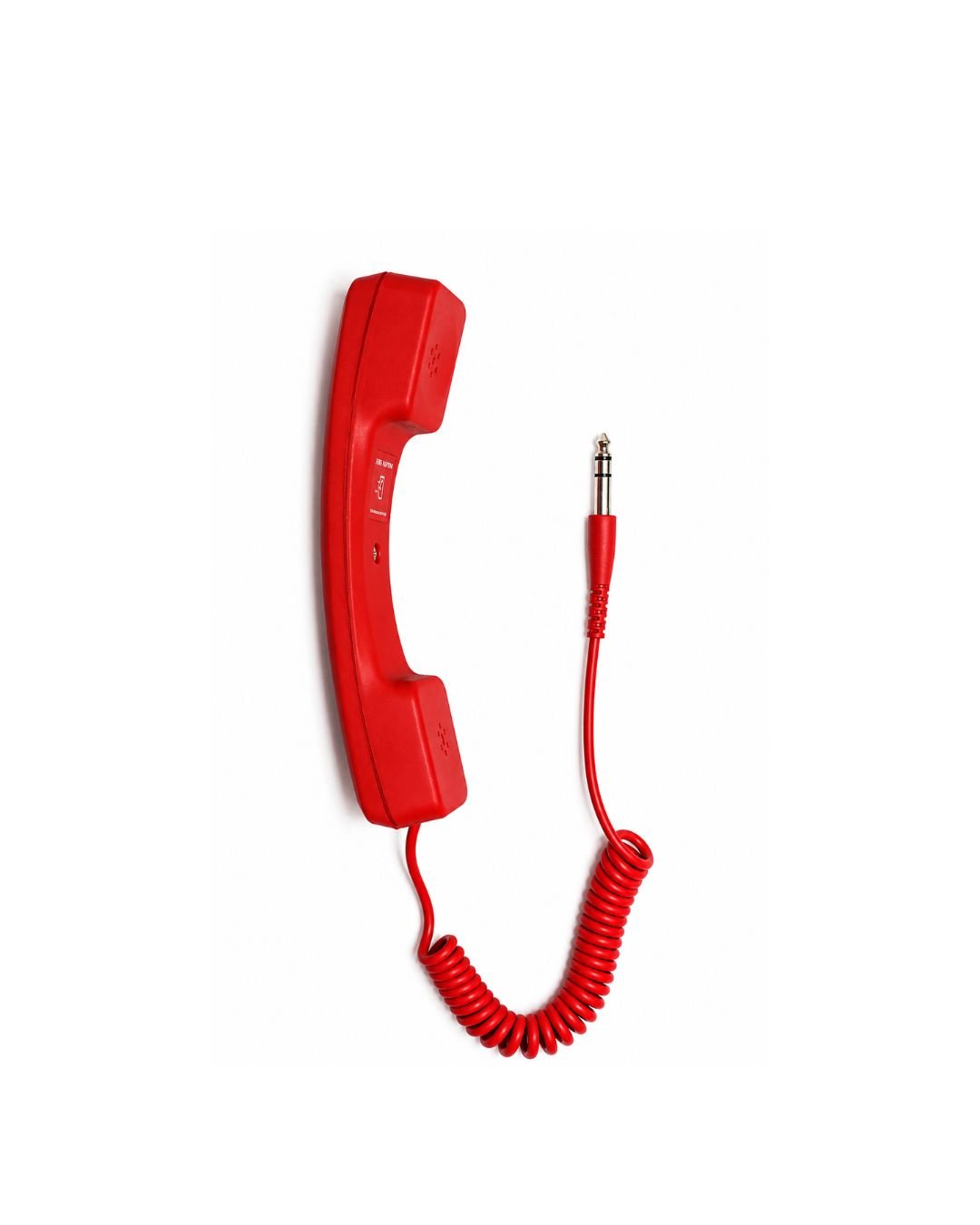

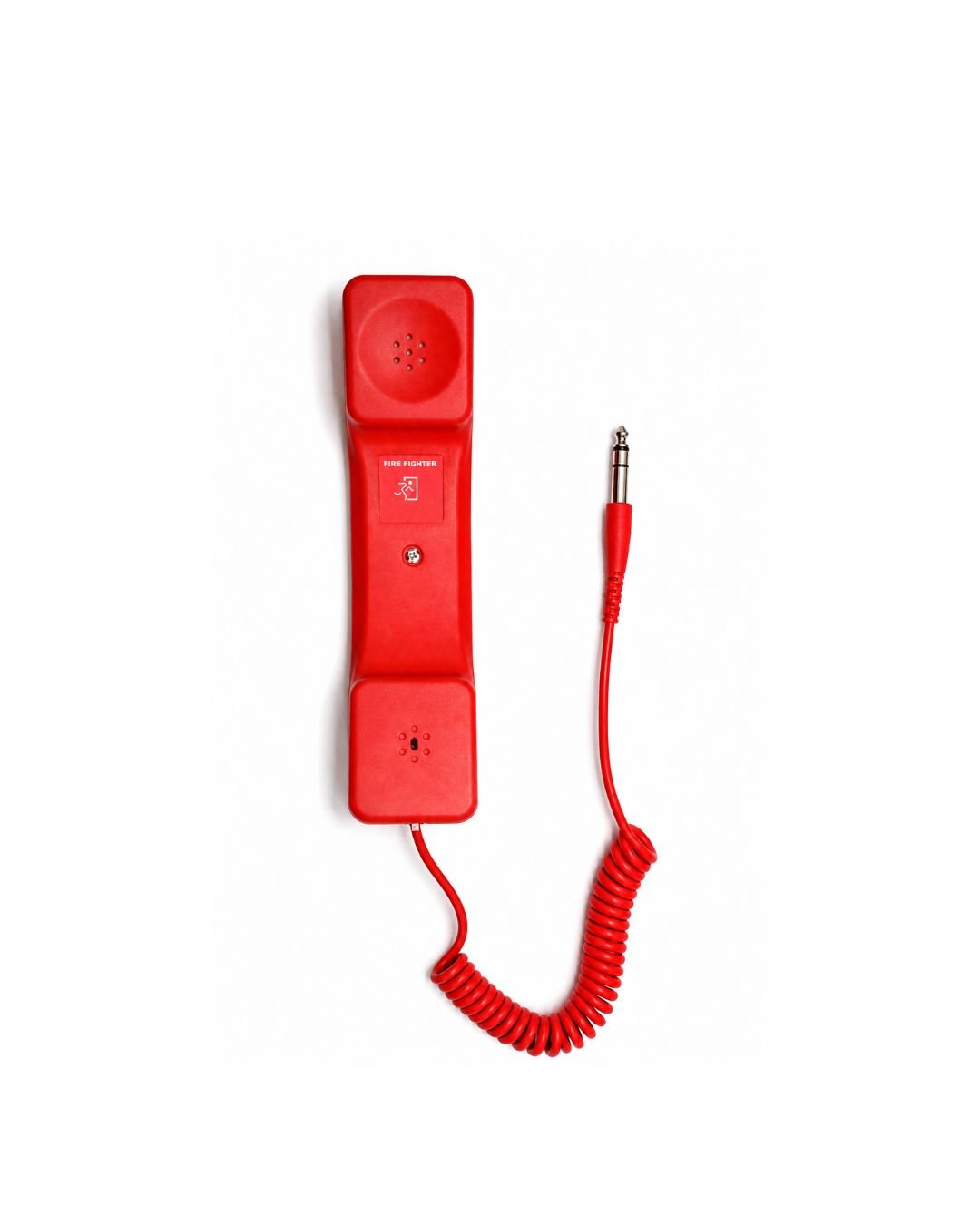

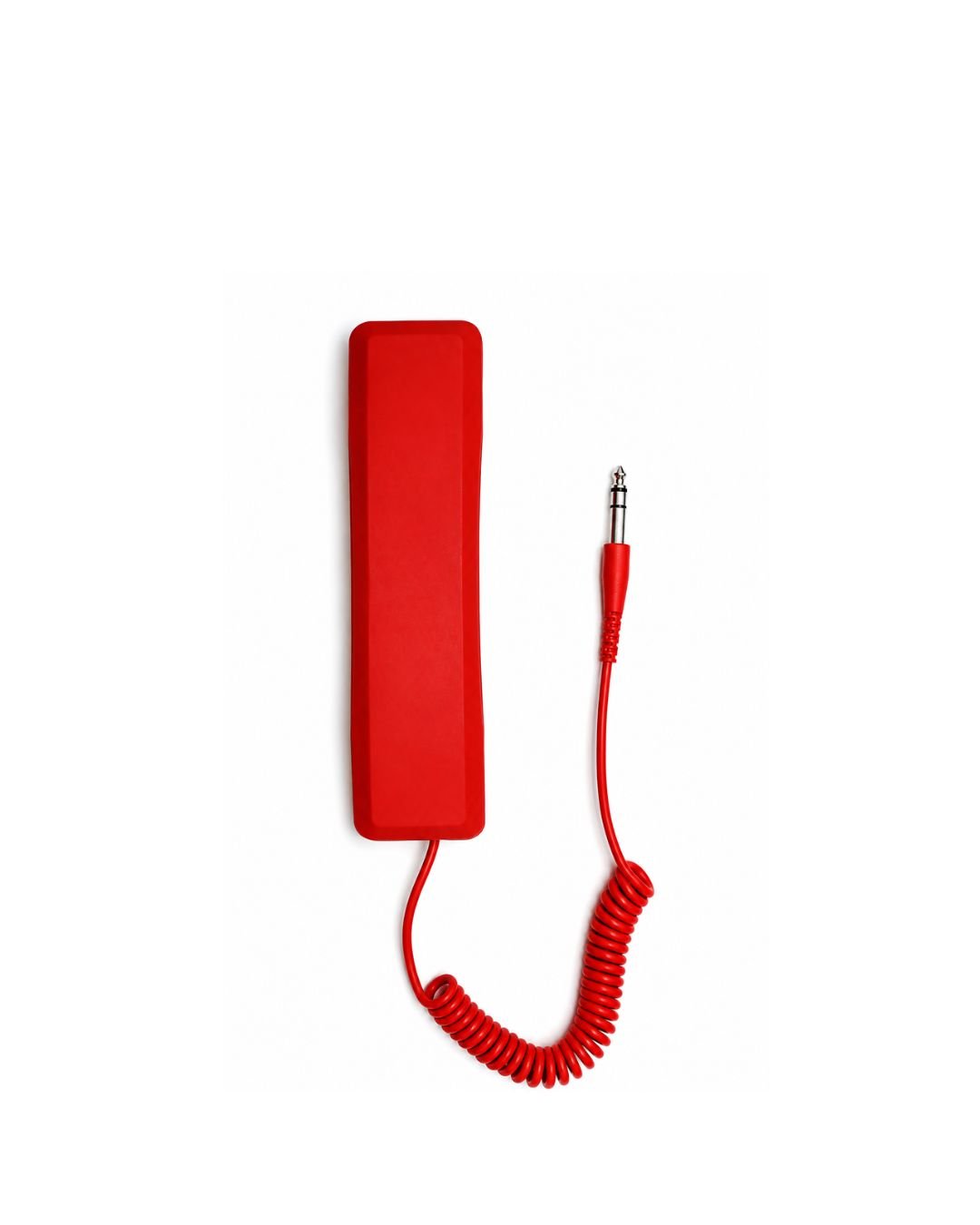

FFTH-901 Fire Fighter Telephone Handset

A portable, handeld firefighter telephone that plugs into any Firefighter’s Jack Unit and connects the person in the feild straight to the central fire control room Part of the AGNI-EVCS FFTS 900 fire fighter telephone system.

Part Number:
AGNI FFTH 901

Product Overview

Handheld Firefighter Telephone for Emergency Voice Communication

A Handheld Remote Firefighter's Telephone Handset (Model FFTH 901) is a portable emergency telephone handset that lets authorised personnel, such as firefighters and emergency responders, talk directly to the central panel. It plugs into firefighter jack unit installed at strategic locations across the building.

The handset is an integral part of the AGNI EVCS FFT 900 Fire Fighter Telephone System, a dependable emergency communication solution for voice contact between crews in the field and the fire control room. As a remote telephone handset, it turns any jack point into a communication point across the premises.

Moulded in heat-resistant ABS (UL94V-1), this fire telephone handset is built for harsh fire conditions, high temperature and physical impact. A flexible heavy-duty curly cord and a robust 6.3 mm plug give a secure conneciton without complex setup.

Fire Deteciton standards

Certifications & Compliance

CE
European Conformity

EN54-4 | EN45-2
European Certification

UL 217:2024
Functionality Compliance

IS 2189: 2022
NABL Laboratories Test Certified

ERTL North (Govt. India)
Functional Test Certified

Standard Code of Practice
INDIA-BIS | NBC

Approved Department

Government of India
Department of CPWD / PWD
Complied with CPWD DSR

Variants

Choose The Ideal Fire Fighter Telephone Jack

Each jack is a remote firefighter phone jack point: a socket on the wall that leads back to the control room. Around it sit the other parts a firefighter needs: the handset, and the jack plate in the material and size your project calls for. All three jack plates share the same electrical specification, so you choose between them by material, plate size and finish.

SS Fire Fighter Jack

AGNI-SSJ-FT-905-B

ABS Telephone Jack

AGNI-ABS-JFT-906-B

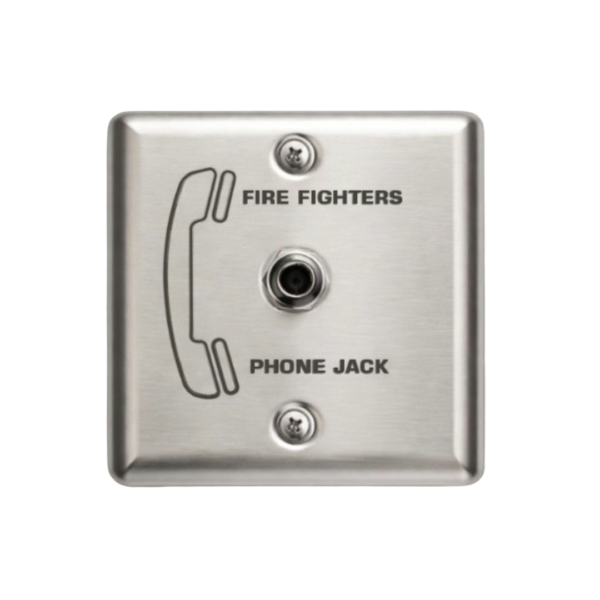

SS Firefighter Telephone Jack

AGNI-SSJ-FT-904-A

Technical Specifications

Full Technichal Specificaiton - FFTH 901

Parameter	Specification
Construction	Acrylonitrile Butadiene Styreme (abs) UL90V1
Max Tolerated Humidity	95% RH
Protection Category	Type A - Indoor Use / Rating IP47
Dimensions	Height 205 mm / Width 48 mm / Depth 48 mm
Body Color	Alart STD Red
Net Weight	295 g
Shipping Weight	310 g (Gross weight with packing)
Male Jack Socket	6.3 mm Stereo Pin Plug Type Heavy Duty
Order Info	AGNI FFTH-901

Parameter	Specification
Operating Voltage	24v Dc (±6%)
Voice Distortion	Less then 5%
Handset Provided Curly Cord	4.8 mm Length-1200 mm
Background Noise Cancellation	Available ENC
Audible Level	75 + db
Maximum Alarm current	35 mA
Audio Frequency	300 Hz to 3400 Hz Signal ±10%
Integrated Circuit Logic	Automatic Dialing
Ambient Operating Temperature	-2ºC to + 49ºC Range

Product	Part Number
Handheld Remote Firefighter's Telephone Handset - portable field unit	FFTH 901
Remote Telephone Handset Box	FFTH-901-BOX
Firefighter's Jack Unit - Stainless steel wall-mounted connection point	SSJ-FT 904-A
Firefighter Telephone Jack SS Body (Rectangular)	SSJ-FT 905-B
Firefighter Telephone Jack ABS Body	ABS-JFT 906-B
Remote Paging Module - connects EVCS panel to paging amplifire	FFT-PAC-900
BMS Interface Module - Building Management System integration	FFT-900 Nexus 2.9V
Hands-Free Speakerphone for Patients, Disabled Persons & Refuge Areas (Coming Soon)	FFT CARE-1008 HF
10k Ohms End-of-Line resistors for Class B circuit supervision - specify system configuration when ordering	EOL 10K Resistors
12V - 12Ah sealed lead-acid battery unit for backup power-specify system configuration when ordering	Battery (12Ah)
12V - 26Ah sealed lead-acid battery unit for extended power-specify system configuration when ordering	Battery (26Ah)
Module for Expantion system from 16 lines up to 128 lines	FFT-900 Expansion V-4
Networking Module	FFT-900 RS-485 Card
Type B interface cable for FFT-9 software connection	USB 2.0 Cable-FFT
Advanced PC software for system configuration, monitoring, diagonstics, and firmware updates	FFT-900 GUI-2 Software
Replacement handset curly cord and plug assembly for FFTH 901	Curly Cord 901

Key Features

Plug in and talk, no setup needed

In an emergency there is no time to configure anything. The AGNI-FFT-901 firefighter telephone handset connects with a single plug into the Firefighter’s Jack Unit. There are no settings to change and no steps to remember, so responders can reach the fire control room quickly and start giving information.

Plug-and-talk operation

Insert the 6.3 mm stereo plug into a jack unit and the fireman telephone handset is ready, with automatic dialing to the control room.

Heat-resistant ABS body

Impact-tough, UL94V-1 rated construction keeps the fire emergency telephone working under high temperature and rough handling.

Clear voice, low distortion

Voice distortion under 5%, 300 Hz to 3400 Hz audio range and 75+ dB audible level. Background noise cancellation (ENC) is available.

Heavy-duty curly cord

A 1200 mm coilded cord (4.8 mm) gives reach without tangling, ideal as a portable firefighter telephone on stairwells and landings.

Low-power, system-ready

Operates on 24V DC (±6%) with a mazimum current of 35 mA, suited to supervised firefighter telephone loops.

Unmistakable red finish

Standard red housing at 295 g net weight is easy to spot and light to carry, so a handheld firefighter telephone is never hard to find.

System components

The full FFT-900 ecosystem

Field-side hardware that connects to every FFT-900 master panel.

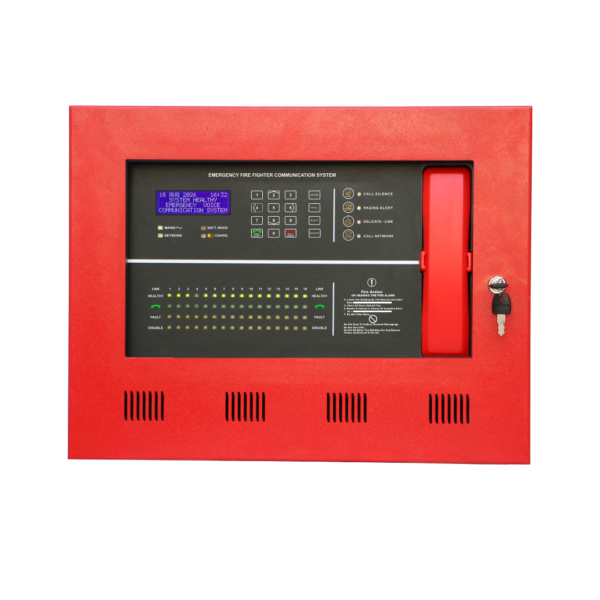

FFT900

Communication System

16 to 128-zone Fire Fighter Telephone Communication System (EVCS) for high-rise buildings.

SSJ-FT904-A

Stainless jack unit

Wall-mounted connection point for corridors, staircases and lift lobbies; corrosion-resistant, mounted 1.07–1.22 m from finished floor.

AGNI Nexus 2.9V

BMS interface module

Dedicated motherboard port for integrating the FFT-900 into a Building Management System for centralized monitoring.

Product in One Line

AGNI-FFTH-901 is a portable, heat-resistant firefighter telephone handset with a 1.2 m curly cord and 6.3 mm plug that plugs into any Firefighter’s Jack Unit to connect responders directly to the fire control room through the AGNI EVCS FFTS 900 system.

User Manual

42-48

inches

Where to mount the firefigther phone jack

The handset plugs into a Firefighter's Jack Unit. The standard wall-mounting height is 42 to 48 inches, about 1.07 m to 1.22 m measured from the finished floor to the operable part of the handset connection point. This range gives:

Easy access for firefighters
Compliance with safety and ergonomic standards
Convenient operation during emergency conditions

FAQs

Frequently Asked Questions

Common questions about the Sprinkler Annunciation Panels.

What is a firefighter telephone handset?

A firefighter telephone handset is a portable, plug-in telephone that firefighters carry into a buildings. They plug it into a Firefighter's Jack Unit on any floor to speak with the control room during an emergency. It is one part of a firefighter telephone system.

How does the AGNI-FFT-901 connect to the fire fighter telephone system?

The handset has a heavy-duty 6.3 mm stereo plug on the end of its curly cord. Plug it into a Firefighter's Jack Unit and the call is dialled automatically to the central control panel to the AGNI EVCS FFTS 900 system.

Does it need a separate power supply?

It runs on 24V DC (±6%) from the system and draws a maximum of 35 mA.

Can I order the handset separately from the system?

You, Contact Agni with order code AGNI FFTH-901 for pricing and availability.
