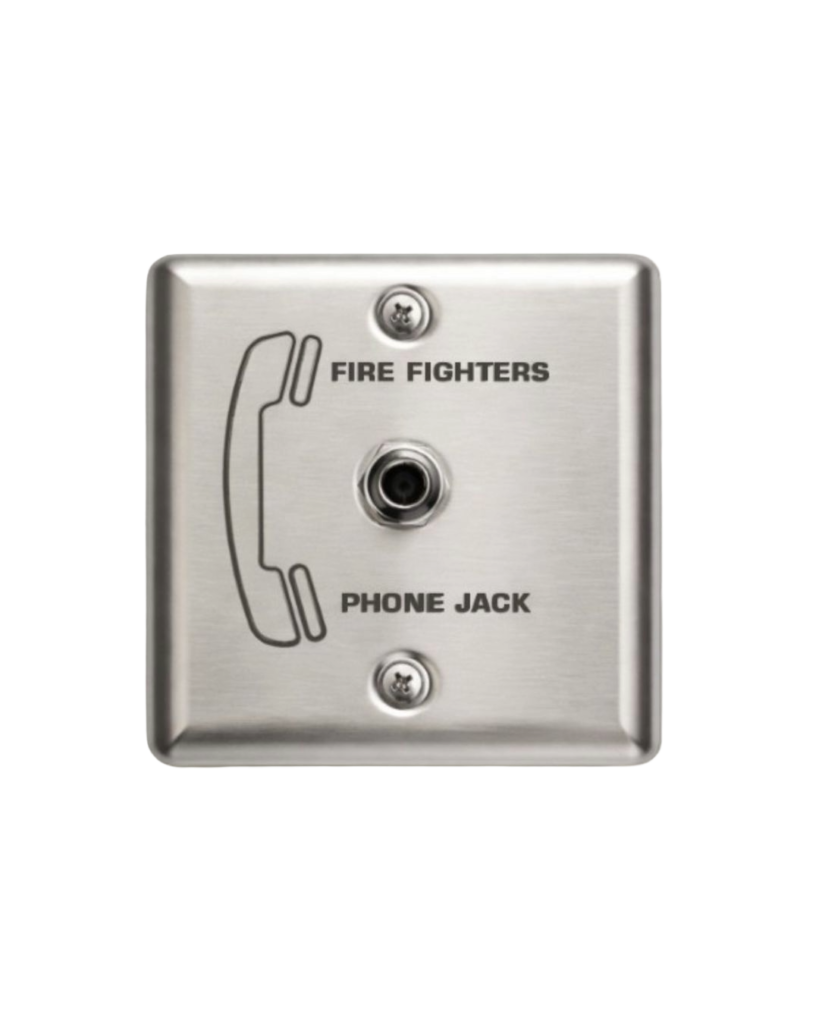

SSJ-FT 904 A Fire Fighter Telephone Jack
A brushed stainless steel jack plate that gives firefighters a fixed, supervised plug-in point on every floor. Plug in an FFTH-901 handset and you are speaking to the fire control room over the Agni FFTS-900 Series EVCS.
Part Number:
AGNI-SSJ-FT-904-A
Firefighter Communication, on a line that never depends on radio coverage
The AGNI-SSJ-FT-904-A is a dedicated emergency fire phone jack. Where a fire telephone system needs handset points beyond the control room, this jack plate provides them: in corridors, staircases, lift lobbies and service areas of high-rise buildings, shopping malls, offices, hospitals, and industrial or commercial complexes.
The plate is made from heavy brushed 304 grade corrosion-resistant stainless steel, so it stays legible and highly visible on the wall. It works asa firefighter telephone socket for the portable FFTH-901 handset, and it links to the central control room throught the FFT-900 Searies EVCS. That gives the fireman communication system a reliable two-way voice path in an emergency.
Because the jack wires into a monitor module rater than a proprietary bus, the datasheet states it is compatible with and brand of addressable monitor module. Fire fighter communication system designers can add jack points without changing their panel platform.
Certifications & Compliance
CE
European Conformity
EN54-4 | EN45-2
European Certification
UL 217:2024
Functionality Compliance
IS 2189: 2022
NABL Laboratories Test Certified
ERTL North (Govt. India)
Functional Test Certified
Standard Code of Practice
INDIA- BIS | NBC
Approved Department
Government of India
Department of CPWD / PWD
Complied with CPWD DSR
Choose The Ideal Fire Fighter Telephone Jack
Each jack is a remote firefighter phone jack point: a socket on the wall that leads back to the control room. Around it sit the other parts a firefighter needs: the handset, and the jack plate in the material and size your project calls for. All three jack plates share the same electrical specification, so you choose between them by material, plate size and finish.

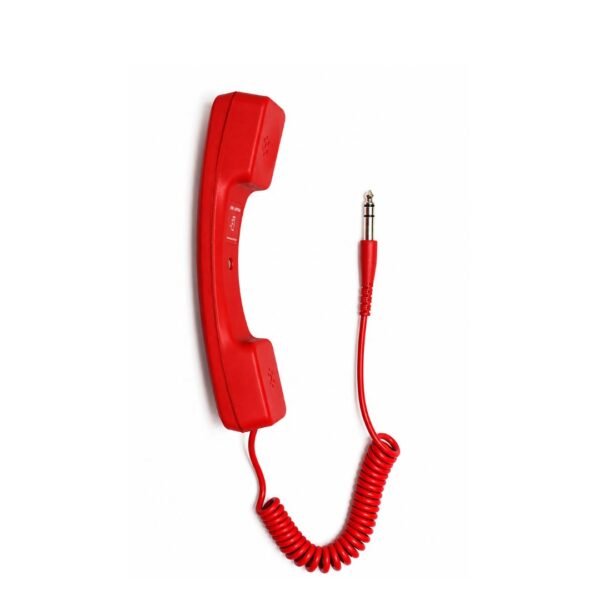

Firefighter Telephone Handset
AGNI-FFTH-901
- Red ABS body, 4.8 mm curly cord, 1200 mm length
- 6.3 mm stereo pin plug, 75+ dB audible level
- 24 V DC, IP47, ENC (background noise cancellation)
Stainless Steel Fire Fighter Jack
AGNI-SSJ-FT-905-B
- 304 grade stainless steel, 18 swg
- 116 × 70 mm rectangular plate, 95 g
- 6.3 mm socket, 24 V DC and 10k EOL supervision
ABS Firefighter Telephone Jack
AGNI-ABS-JFT-906-B
- High impact ABS plate, classic white matte finish
- 116 × 70 mm, 95 g, surface or flush mount
- 6.3 mm stereo socket, 24 V DC, 10k EOL supervision
Firefighter Telephone Jack Technichal Specificaiton - SSJ-FT-904-A
|
Parameter |
Specification |
|---|---|
|
Construction |
Made Out of 18 swg stainless steel Profile |
|
Max tolerated humidity |
95% RH |
|
Protection Category |
Type A - Indoor Use / Rating IP21C |
|
Dimensions |
Height - 88 mm / Width - 88 mm / Depth - 7 mm |
|
Finish |
Bright Stainless Steel brushed finish |
|
Net Weight |
85 g |
|
Mounting |
Surface Or Flush Mount |
|
Part Number |
SSJ-FT-904-A |
|
Parameter |
Specification |
|---|---|
|
Operating Voltage |
24v Dc (±6%) |
|
Female Jack |
6.3 stereo |
|
Monitoring |
DC current Open Short |
|
End of line Resistance |
10k 1/4 w |
|
Current When Handset Connectivity |
35 mA |
|
Connectivity Connection |
Male PIN TRS 6.3 mm |
|
Cable / Wire |
2 core 1.5 sq mm |
|
Circuits Supervised |
Class B wiring |
|
Ambient Operating Temperature |
-10ºC to + 49ºC Range |
|
Product |
Part Number |
|---|---|
|
Handheld Remote Firefighter's Telephone Handset - portable field unit |
FFTH 901 |
|
Remote Telephone Handset Box |
FFTH-901-BOX |
|
Firefighter's Jack Unit - Stainless steel wall-mounted connection point |
SSJ-FT 904-A |
|
Firefighter Telephone Jack SS Body (Rectangular) |
SSJ-FT 905-B |
|
Firefighter Telephone Jack ABS Body |
ABS-JFT 906-B |
|
Remote Paging Module - connects EVCS panel to paging amplifire |
FFT-PAC-900 |
|
BMS Interface Module - Building Management System integration |
FFT-900 Nexus 2.9V |
|
Hands-Free Speakerphone for Patients, Disabled Persons & Refuge Areas (Coming Soon) |
FFT CARE-1008 HF |
|
10k Ohms End-of-Line resistors for Class B circuit supervision - specify system configuration when ordering |
EOL 10K Resistors |
|
12V - 12Ah sealed lead-acid battery unit for backup power-specify system configuration when ordering |
Battery (12Ah) |
|
12V - 26Ah sealed lead-acid battery unit for extended power-specify system configuration when ordering |
Battery (26Ah) |
|
Module for Expantion system from 16 lines up to 128 lines |
FFT-900 Expansion V-4 |
|
Networking Module |
FFT-900 RS-485 Card |
|
Type B interface cable for FFT-9 software connection |
USB 2.0 Cable-FFT |
|
Advanced PC software for system configuration, monitoring, diagonstics, and firmware updates |
FFT-900 GUI-2 Software |
|
Replacement handset curly cord and plug assembly for FFTH 901 |
Curly Cord 901 |
Built for Emergency Communication

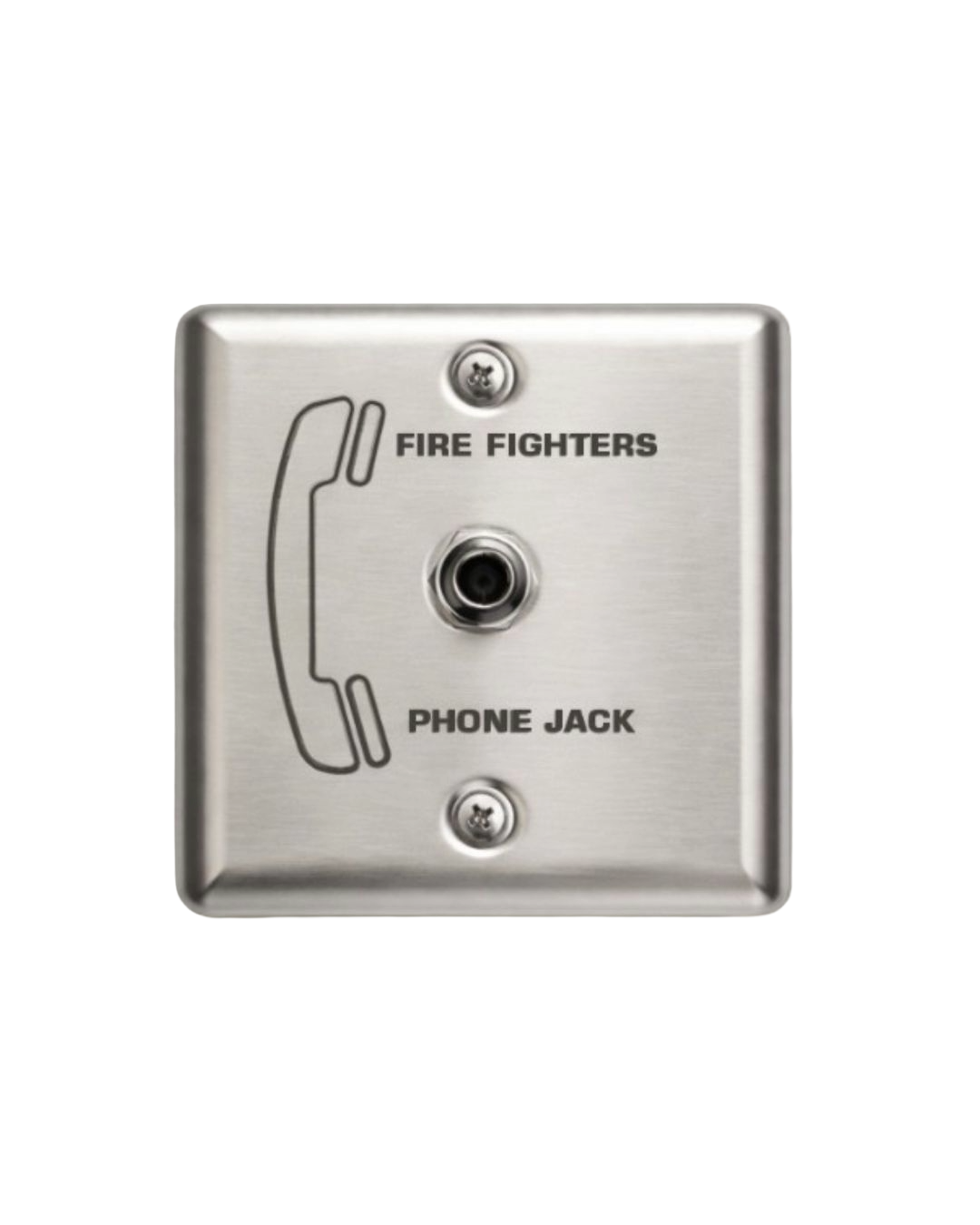

The Agni AGNI-SSJ-FT-904-A is a brushed stainless steel fire telephone jack that gives firefighters a fixed plug-in point on every floor. Connect an FFTH-901 handset and you are in two-way contact with the fire control room.
304 stainless steel jack plate
Made from 18 swg, 304 grade corrosion-resistant steel with a brushed finish. It is durable and easy to spot on the wall.
Supervised plug-and-talk activation
Plugging in the handset triggers the circuit, and the monitor module reports the jack's ID or location to the fire alarm system. A 10k end-of-line resistor and Class B wiring watch for open and short faults.
Works with the FFTS-900 Series EVCS
It gives duplex two-way communication once the control room presses "Call Accept". It connects through a monitor module the datasheet says is compatible with any brand.
The full FFT-900 ecosystem
Field-side hardware that connects to every FFT-900 master panel.
Handheld handset
Portable firefighter’s telephone with noise-cancelling mic and earpiece; plug-and-talk into any jack unit, no dialing required.
BMS interface module
Dedicated motherboard port for integrating the FFT-900 into a Building Management System for centralized monitoring.
Telephone Communication System
Fire fighter telephone communication system (EVCS) with 16 to 128 expandable zones, BS 5839-9 compliant.
Product in One Line
Agni AGNI-SSJ-FT-904-A is a 304 stainless steel firefighter telephone jack plate that connects an FFTH-901 handset to the fire control room through the FFTS-900 Series EVCS.
Frequently Asked Questions
A firefighter telephone jack is a well-mounted socket where firefighters plug in a portable handset to speak with the fire control room during an emergency. It is one part of a fire telephone system.
It is designed for the Agni FFTH-901 handset and the FFTS-900 Series EVCS. The jack is wired to a monitor module, which the datasheet states is compatible with any brand.
As per IS 2189 (NBC), mount it 1.2 m ± 0.2 m above finished floor level. It can be surface or flush mounted.
The circuit uses Class B wiring with a 10k, 1/4 W end-of-line resistor and monitors the DC corrent for open and short faults.
Use 2 core, 1.5 sq mm cable. Operating voltage is 24V DC (±6%) and current with a handset connected is 35 mA.
