SSJ-FT 905 B Fire Fighter Telephone Jack
The Agni SSJ-FT-905-B is a wall-mounted fire fighter jack plate for buildings with a firefighter’s telephone system. Firefighters plug a handset into it in a corridor, stairwell or lift lobby and speak directly to the fire control room.
Part Number:
AGNI-SSJ-FT-905-A
Firefighter Communication, on a line that never depends on radio coverage
A firefighter telephone jack is the fixed end of a fire telephone system. The Agni plate is the socket that stays on the wall at every key point in the building. The portable handset stays with the fire team, and the jack gives it a supervised route back to the control room.
The plate is cut from 18 SWG, 304 grade stainless steel with a bright brushed finish, so it stays readable and corrosion resistant in public corridors. Installed across high-rise buildings, malls, hospitals and industrial sites, it forms the field side of the FFTS-900 Series EVCS, our fireman communication system for emergency calls. A similar SSJ-FT-904-A variant is also available.
Certifications & Compliance
CE
European Conformity
EN54-4 | EN45-2
European Certification
UL 217:2024
Functionality Compliance
IS 2189: 2022
NABL Laboratories Test Certified
ERTL North (Govt. India)
Functional Test Certified
Standard Code of Practice
INDIA-BIS | NBC
Approved Department
Government of India
Department of CPWD / PWD
Complied with CPWD DSR
Choose The Ideal Fire Fighter Telephone Jack
Each jack is a remote firefighter phone jack point: a socket on the wall that leads back to the control room. Around it sit the other parts a firefighter needs: the handset, and the jack plate in the material and size your project calls for. All three jack plates share the same electrical specification, so you choose between them by material, plate size and finish.
Firefighter Telephone Handset
AGNI-FFTH-901
- Red ABS body, 4.8 mm curly cord, 1200 mm length
- 6.3 mm stereo pin plug, 75+ dB audible level
- 24 V DC, IP47, ENC (background noise cancellation)
SS Firefighter Telephone Jack
AGNI-SSJ-FT-904-A
- 304 grade stainless steel, 18 swg
- 88 × 88 mm, square plate, 85 g
- 6.3 mm socket, 24 V DC and 10k EOL supervision

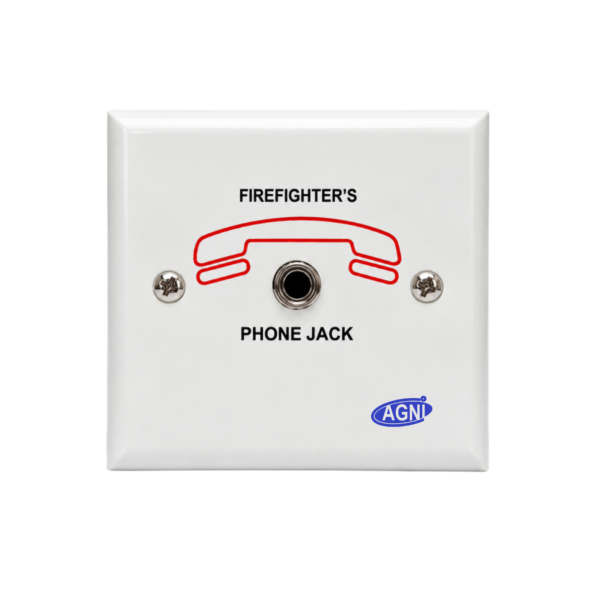

ABS Firefighter Telephone Jack
AGNI-ABS-JFT-906-B
- High impact ABS plate, classic white matte finish
- 116 × 70 mm, 95 g, surface or flush mount
- 6.3 mm stereo socket, 24 V DC, 10k EOL supervision
Firefighter Telephone Jack Technichal Specificaiton - SSJ-FT-905-B
|
Parameter |
Specification |
|---|---|
|
Construction |
Made Out of 18 swg stainless steel Profile |
|
Max tolerated humidity |
95% RH |
|
Protection Category |
Type A - Indoor Use / Rating IP21C |
|
Dimensions |
Height - 116 mm / Width - 70 mm / Depth - 5 mm |
|
Finish |
Bright Stainless Steel brushed finish |
|
Net Weight |
95 g |
|
Mounting |
Surface Or Flush Mount |
|
Part Number |
SSJ-FT-905-B |
|
Parameter |
Specification |
|---|---|
|
Operating Voltage |
24v Dc (±6%) |
|
Female Jack |
6.3 stereo |
|
Monitoring |
DC current Open Short |
|
End of line Resistance |
10k 1/4 w |
|
Current When Handset Connectivity |
35 mA |
|
Connectivity Connection |
Male PIN TRS 6.3 mm |
|
Cable / Wire |
2 core 1.5 sq mm |
|
Circuits Supervised |
Class B wiring |
|
Ambient Operating Temperature |
-10ºC to + 49ºC Range |
|
Product |
Part Number |
|---|---|
|
Handheld Remote Firefighter's Telephone Handset - portable field unit |
FFTH 901 |
|
Remote Telephone Handset Box |
FFTH-901-BOX |
|
Firefighter's Jack Unit - Stainless steel wall-mounted connection point |
SSJ-FT 904-A |
|
Firefighter Telephone Jack SS Body (Rectangular) |
SSJ-FT 905-B |
|
Firefighter Telephone Jack ABS Body |
ABS-JFT 906-B |
|
Remote Paging Module - connects EVCS panel to paging amplifire |
FFT-PAC-900 |
|
BMS Interface Module - Building Management System integration |
FFT-900 Nexus 2.9V |
|
Hands-Free Speakerphone for Patients, Disabled Persons & Refuge Areas (Coming Soon) |
FFT CARE-1008 HF |
|
10k Ohms End-of-Line resistors for Class B circuit supervision - specify system configuration when ordering |
EOL 10K Resistors |
|
12V - 12Ah sealed lead-acid battery unit for backup power-specify system configuration when ordering |
Battery (12Ah) |
|
12V - 26Ah sealed lead-acid battery unit for extended power-specify system configuration when ordering |
Battery (26Ah) |
|
Module for Expantion system from 16 lines up to 128 lines |
FFT-900 Expansion V-4 |
|
Networking Module |
FFT-900 RS-485 Card |
|
Type B interface cable for FFT-9 software connection |
USB 2.0 Cable-FFT |
|
Advanced PC software for system configuration, monitoring, diagonstics, and firmware updates |
FFT-900 GUI-2 Software |
|
Replacement handset curly cord and plug assembly for FFTH 901 |
Curly Cord 901 |
Built for Emergency Communication

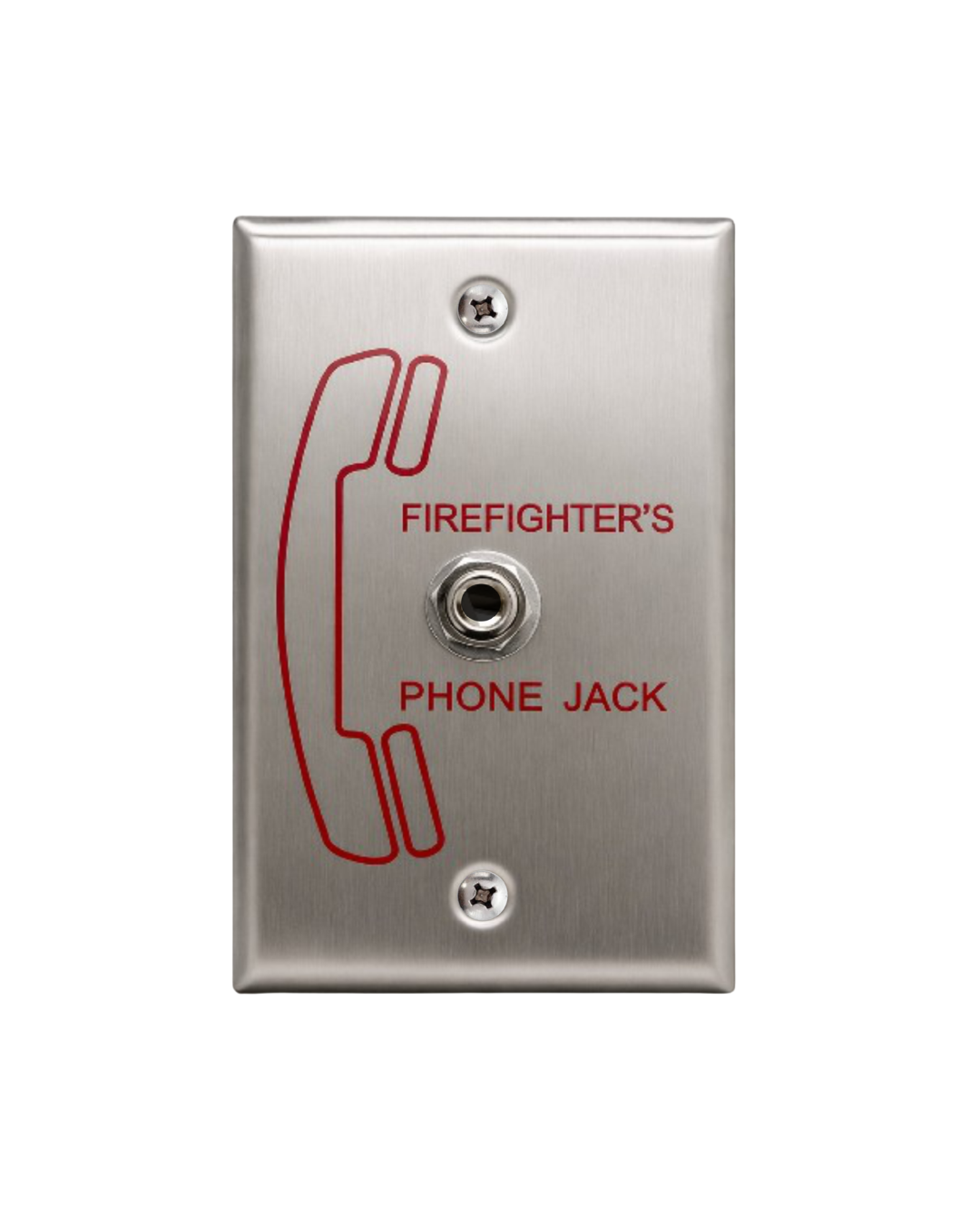

The Agni AGNI-SSJ-FT-905-B is a brushed stainless steel fire telephone jack that gives firefighters a fixed plug-in point on every floor. Connect an FFTH-901 handset and you are in two-way contact with the fire control room.
304 stainless steel jack plate
Made from 18 swg, 304 grade corrosion-resistant steel with a brushed finish. It is durable and easy to spot on the wall.
Supervised plug-and-talk activation
Plugging in the handset triggers the circuit, and the monitor module reports the jack's ID or location to the fire alarm system. A 10k end-of-line resistor and Class B wiring watch for open and short faults.
Works with the FFTS-900 Series EVCS
It gives duplex two-way communication once the control room presses "Call Accept". It connects through a monitor module the datasheet says is compatible with any brand.
The full FFT-900 ecosystem
Field-side hardware that connects to every FFT-900 master panel.
Handheld handset
Portable firefighter’s telephone with noise-cancelling mic and earpiece; plug-and-talk into any jack unit, no dialing required.
BMS interface module
Dedicated motherboard port for integrating the FFT-900 into a Building Management System for centralized monitoring.
Telephone Communication System
Fire fighter telephone communication system (EVCS) with 16 to 128 expandable zones, BS 5839-9 compliant.
Product in One Line
The Agni SSJ-FT-905-B is a wall-mounted 304 stainless steel firefighter telephone jack that lets firefighters plug in an FFTH-901 handset and speak directly to the fire control room through the FFTS-900 Series EVCS.
Frequently Asked Questions
It is a fixed wall plate with a socket where firefighters plug in a portable handset during an emergency, linking them to the fire control room. Fireman telephone jack, fire telephone jack and remote firefighter phone jack all describe this device.
The jack is wired to a monitor module. When a handset plug is inserted, the module detects the input and sends its ID or location to the fire alarm system. The operator presses Call Accept on the FFTS-900 Series EVCS panel to open two-way communication.
The Agni FFTH-901 portable handset. Its male TRS 6.3 mm plug fits the 6.3 mm stereo female jack on the plate.
The circuit is monitored for DC current open and short fault. A 10k, 1/4 W end-of-line resistor is removed from the panel and fitted in the female jack, on Class B wiring.
Use 2 core, 1.5 sq mm cable. Operating voltage is 24V DC (±6%) and current with a handset connected is 35 mA.
