Agni Response Indicator ABS Ceiling Mounted Concealed 502
A dual-LED concealed response indicator designed for conventional and addressable fire detectors, providing instant and clear visual alarm indication in concealed or inaccessible areas.
Part Number: AGNI-502 | Category: Response IndicatorÂ
Description

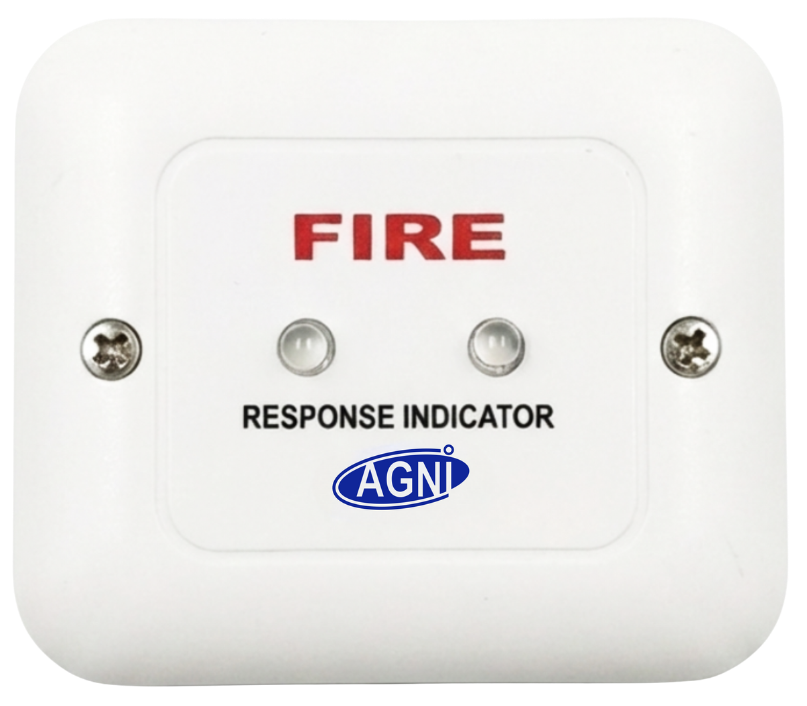

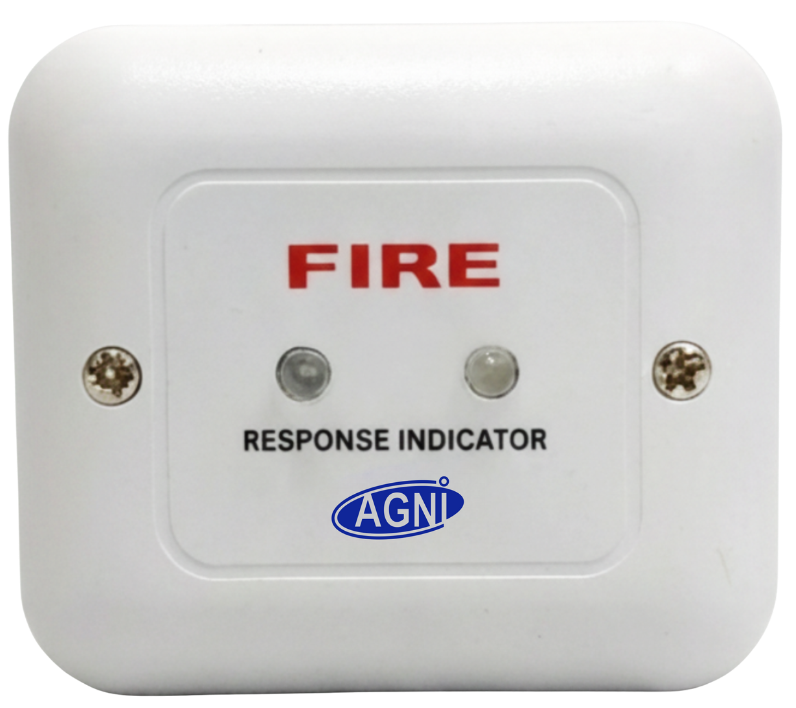

The Response Indicator Concealed – 502 from Agni Instruments Engineers India Private Limited is a remote visual alarm device developed to enhance fire detection visibility in areas where detectors are not directly visible.Â
It is commonly installed outside rooms, below false ceilings, inside air conditioning ducts, or in restricted spaces where the detector’s alarm LED cannot be easily seen. When the connected detector enters an alarm condition, the response indicator activates immediately, illuminating bright red LEDs to confirm the fire event.Â
Built with a durable FR-ABS plastic enclosure, the unit features a rugged industrial design, flush mounting, and a low-profile appearance. The dual-LED configuration ensures wide viewing angles, high brightness, ultra-low power consumption, and a long operational life.
The Response Indicator Concealed – 502 is compatible with both conventional and addressable fire alarm systems and complies with key international and Indian fire safety standards, making it suitable for commercial, industrial, and institutional installations.Â
Job to be Done
Primary Job
Help users quickly identify which fire detector has activated when the detector is installed in a concealed or inaccessible location.
Safety Job
Help occupants feel confident and guided during emergencies, Give facility managers peace of mind through and follow standard SOP
Functional Jobs
Visually indicate the fire alarm from a hidden detector, Provide immediate red LED confirmations during alarm conditions, Enable fast identification of the alarm source.
How it Works
How does the Agni Response Indicator Work?
The Response Indicator Concealed – 502 acts as a remote visual extension of a fire detector, providing immediate LED indication when a fire alarm is triggered.Â
Application & Solution
- False Ceiling InstallationsÂ
- Air-Conditioning Ducts
- Hotel Rooms & CorridorsÂ
- Server Rooms & Restricted AreasÂ
- Industrial FacilitiesÂ
Application & Solution
- False Ceiling InstallationsÂ
- Air-Conditioning Ducts
- Hotel Rooms & CorridorsÂ
- Server Rooms & Restricted AreasÂ
- Industrial FacilitiesÂ
How does the Response Indicator Operate?
1. Connection to Fire Detector
The response indicator is directly wired to a compatible conventional or addressable fire detector using a 24V DC supply.
2. Normal Monitoring State
Under normal conditions, the response indicator remains inactive while continuously monitoring the detector’s status.
3. Fire Detection
When the connected smoke or heat detector senses fire conditions, it enters alarm mode.
4. Signal Transmission
The alarm signal is instantly transmitted from the detector to the Response Indicator Concealed-502.
5. Visual Alarm Indication
The dual high-brightness LEDs illuminate red, providing a clear and immediate visual confirmation of the alarm.
6. Quick Identification & Response
The illuminated indicator allows maintenance terms and occupants to quickly identify the activated detector, reducing response time during emergencies.
Product in One LineÂ
When fire detectors are not visible, the Response indicator Concealed 502 provides a clear red LED alarm indication so users can quickly identify the activated detector and respond faster during emergencies.Â
Technical Specification
|
PARAMETER |
Specification |
|---|---|
|
Product Type |
Response Indicator (Concealed) |
|
Part Number |
AGNI-502 |
|
Compatible Systems |
Conventional & Addressable Detectors |
|
Operating Voltage |
15 VDC - 40 VDC |
|
Average Current |
2.5 mA @ 24 VDC |
|
Cable Size |
1.5 sq-mm |
|
LED Type |
Dual LED |
|
LED Color |
Red (in case of fire) |
|
Viewing Angle |
Wide |
|
Operating Temperature |
-10°C to +70°C (no icing) |
|
Max Humidity |
95% RH (non-condensing) |
|
Dimensions |
62 mm (H) × 70 mm (W) × 20 mm (D) |
|
Enclosure Material |
ABS Plastic (Acrylonitrible Butadiene Styrene) |
|
Body Color |
White |
|
Mounting Type |
Flush Mount |
|
Weight |
30 g |
|
IP Rating |
IP40 (42 overall waterproof protection) |
|
LED Life Span |
Up to 100,000 hours |
|
Design |
Low profile, rugged industrial design |
FAQ
What is a Response Indicator Concealed 502?
The Response Indicator Concealed 502 is a remote visual alarm indicator that provides a clear LED indication when a connected fire detector enters an alarm condition.
What Happens When a Fire Is Detected?
When a fire is detected, the Response Indicator Concealed 502 instantly turns on its red LEDs to provide a clear visual alert outside the protected or concealed area.
Where is the Response Indicator Concealed 502 used?
It is used in locations where fire detectors are not easily visible, such as false ceilings, air-conditioning ducts, high-depth ceilings, outside rooms, or visually restricted areas.
How does the Response Indicator Work during a fire?
When the connected detector detects fire and goes into alarm mode, the response indicator immediately illuminates with bright red LEDs, providing a clear visual confirmation of the alarm source.
What material is used for the enclosure?
The enclosure is made from ABS plastic (Acrylonitrile Butadiene Styrene), providing durable and a rugged industrial finish.
Which standards does the Response Indicator comply with?
It conforms to UL, EN 54-5 / EN 54-7, NFPA-72, IS 2189, and NBC fire safety standards.
