- Make : Agni Instruments Engineers (I) Pvt. Ltd.
- Model : AGNI-505
- Construction Material : 16/18 SWG MS CRCA Sheet, Red Powder Coated
- Colour : Signal Red
- Dimensions : H240xW135xD65mm
- Cable Entry : Top
- Mounting Holes : 2 Nos (4mm)
- Knock Out : 19mm
- Fragile Element : 2mm Thick Glass
- Break Glass Area : 30sq. cm
- Colour of LED : Red / Green (Talk-Back)
- Size of LED : 5mm
- Type of LED : Diffuse Type
- Sign Writing : In Case of fire Break Glass
- LED Status : Normal OFF, Fire ON
- Speaker : 16 ohm 2WATT.
- Operating Voltage : 24V DC
- Alarm Contact : C, NC
- Alarm Resistance : 560om/1 Watts
- Stand By Current : NIL
- Switch : Press to ON, Press to OFF

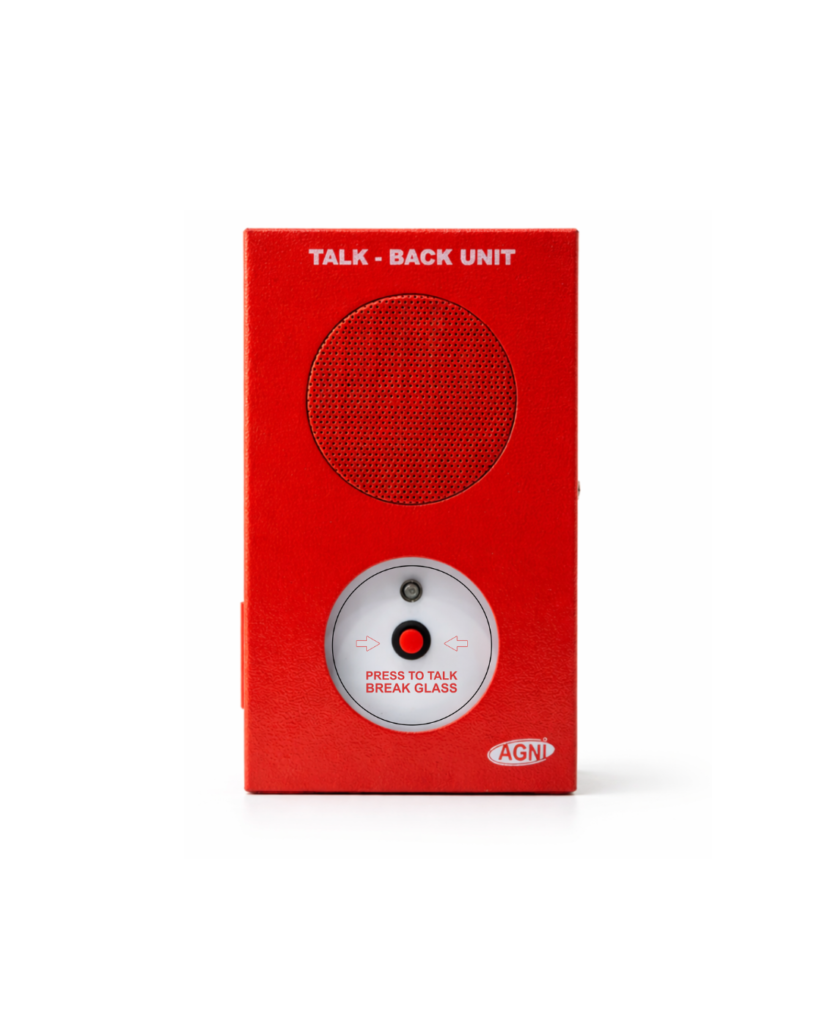

Agni, Simplex Type Talkback Slave Station
Agni Slave Talk-back Unit Can Communicate With Main Talk-back Master Panel. At Slave Unit After Pressing Ptt Switch Signal Comes On Main Master Panel Control Room Can Receive Call By Pressing Ptt Switch At Master Panel, and By This Indication Also Know Which Floor/zone Number Or Location Slave Unit Is Calling To Master Station. This Is A Simples Mod Of Communication.
